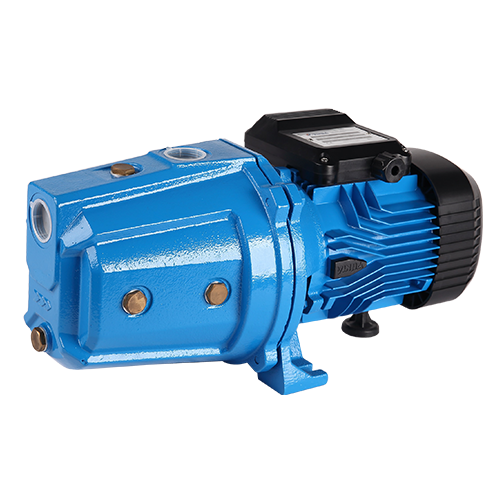

JLm series new JET pump for house well belongs to the single-phase self-priming JET pump category,is our patent design pump, attractive appearance, compact and very silent. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. The middle east market prefer to use diffuser in cast iron, nozzle in brass. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-Ejection union: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-Cast iron diffuser, brass nozzle
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +60℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
PERFORMANCE CHART
PERFORMANCE DATA
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | |||||||||||||
| 1~ | 0 | 10 | 20 | 30 | 40 | 45 | 50 | 55 | 60 | 80 | 100 | 110 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.8 | 6 | 6.6 |
| H (m) | |||||||||||||||||
| JLM37 | JLT37 | 0.5 | 0.37 | 0.51 | 2.37 | 42 | 34.5 | 28 | 22.5 | 8 | - | - | - | - | - | - | - |
| JLM55 | JLT55 | 0.75 | 0.55 | 0.74 | 3.51 | 50 | 40.5 | 36 | 31 | 23.5 | 10 | - | - | - | - | - | - |
| JLM75 | JLT75 | 1 | 0.75 | 0.99 | 4.62 | 52 | 47 | 43 | 39 | 33 | 28 | 20 | 10 | - | - | - | - |
| JLM150 | JLT150 | 2 | 1.5 | 1.89 | 8.95 | 53 | 51 | 48 | 45 | 42 | 40.5 | 39 | 37.5 | 36.5 | 30 | 15 | - |
| JLM180 | JLT180 | 2.5 | 1.8 | 2.28 | 10.76 | 60 | 57 | 54 | 51.5 | 48.5 | 47 | 45.5 | 44 | 43 | 38 | 28 | 15 |
DIMENSIONS
| MODEL | Dimensions(mm) | Package Dimension (mm) | N.W | |||||||||
| L1 | L2 | W1 | W2 | H1 | H2 | DN1 | DN2 | L | W | H | (kg) | |
| JLM37 | 408 | 117 | 186 | 138 | 193 | 95 | 1" | 1" | 430 | 215 | 220 | 13.2 |
| JLM55 | 408 | 117 | 186 | 138 | 193 | 95 | 1" | 1" | 430 | 215 | 220 | 14 |
| JLM75 | 408 | 117 | 186 | 138 | 193 | 95 | 1" | 1" | 430 | 215 | 220 | 15.4 |
| JLM150 | 523 | 138 | 227 | 170 | 230 | 115 | 1.25" | 1" | 575 | 260 | 265 | 28 |
| JLM180 | 523 | 138 | 227 | 170 | 230 | 115 | 1.25" | 1" | 575 | 260 | 265 | 30 |
JLM SERIES EXPLODING DRAWING
