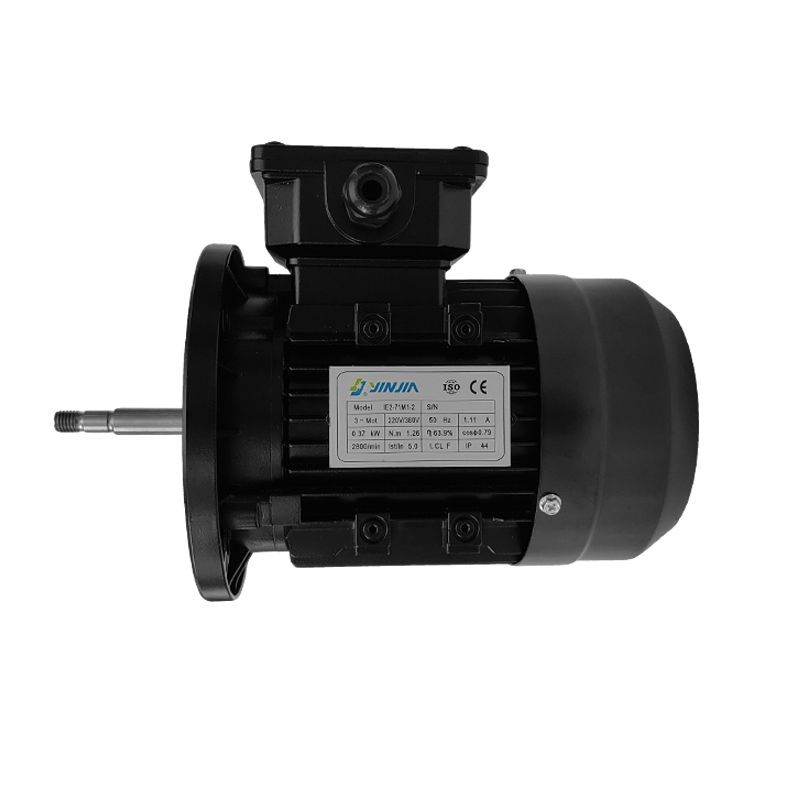

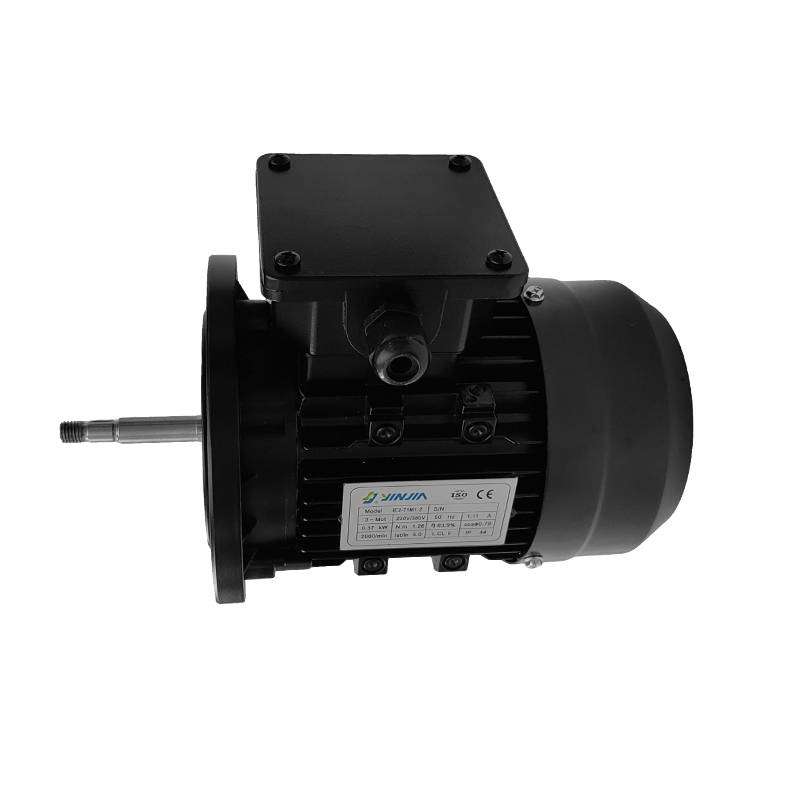

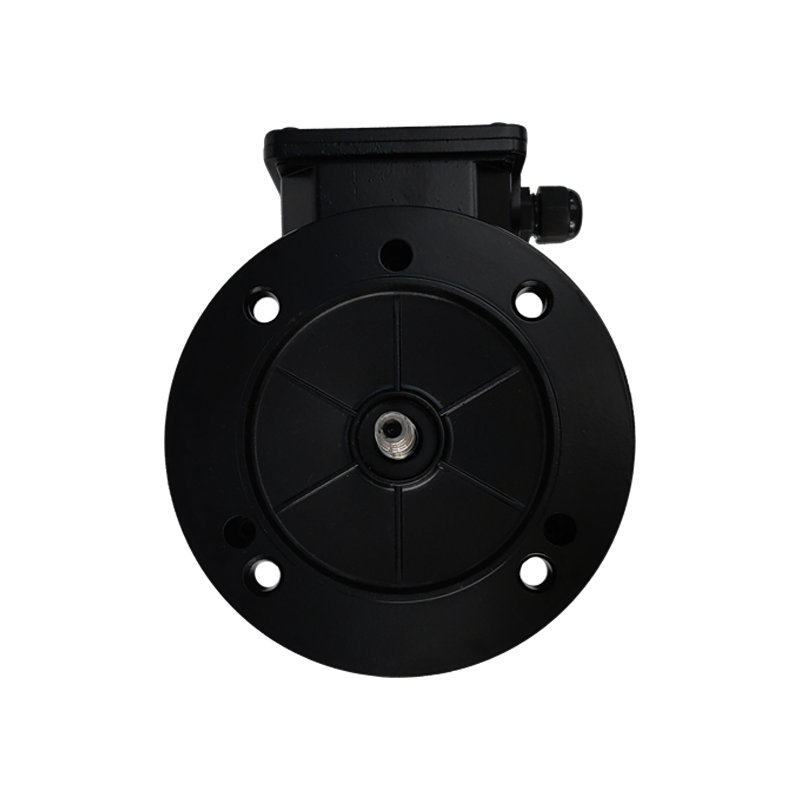

0.75kW Three Phase Motor 380V, YE2 TEFC Asynchronous Motor 1HP 50Hz, for Water Pump

YE2/Y2 serials are 3 phase asynchronous motors with totally enclosed fancooled. It is according with standard IEC, GB, etc.

Output: 0.75-315kW

Frame size: H80-H355

Rated voltage: according to customer' s requirements

Rated frequency: 50/60Hz

Efficiency: IE2/IE1

Insulation class: F

Protection grade: IP55

Cooling method: IC411

Duty type: S1

Motors H80-H132 adopt skeleton type oil seal on the driving end, (the oil seal is available as request). Motor H160 adopt skeleton type oil seal to seal on the driving end as standard

Can withstand 1.5 times of the rated current for 2 minutes (IEC60034-1)

Anti-condensation heater is available. (space heater)

PTC or Pt100 thermistor are available to protect the winding and bearing
