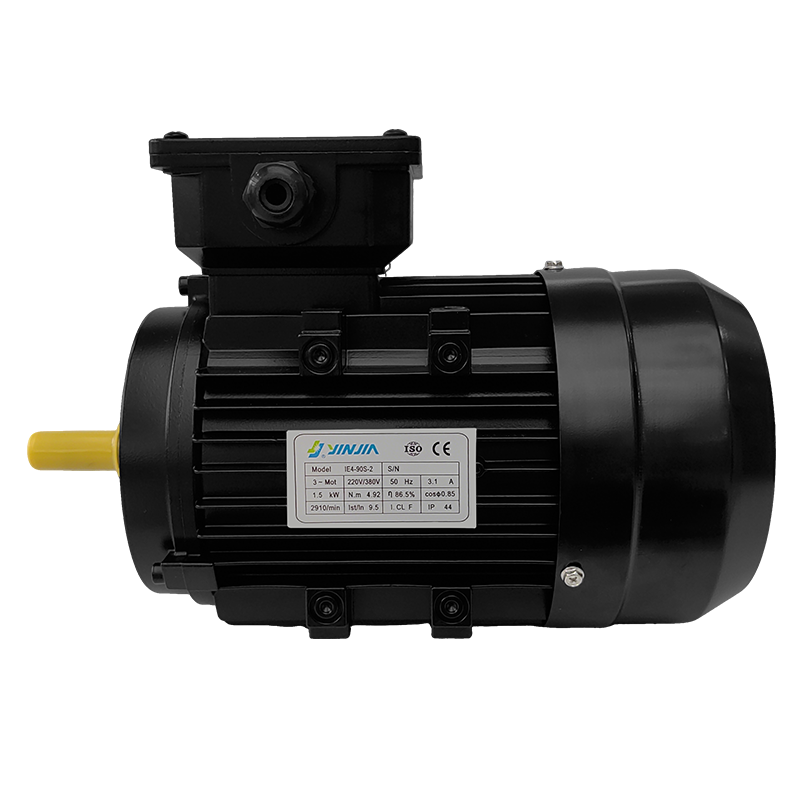

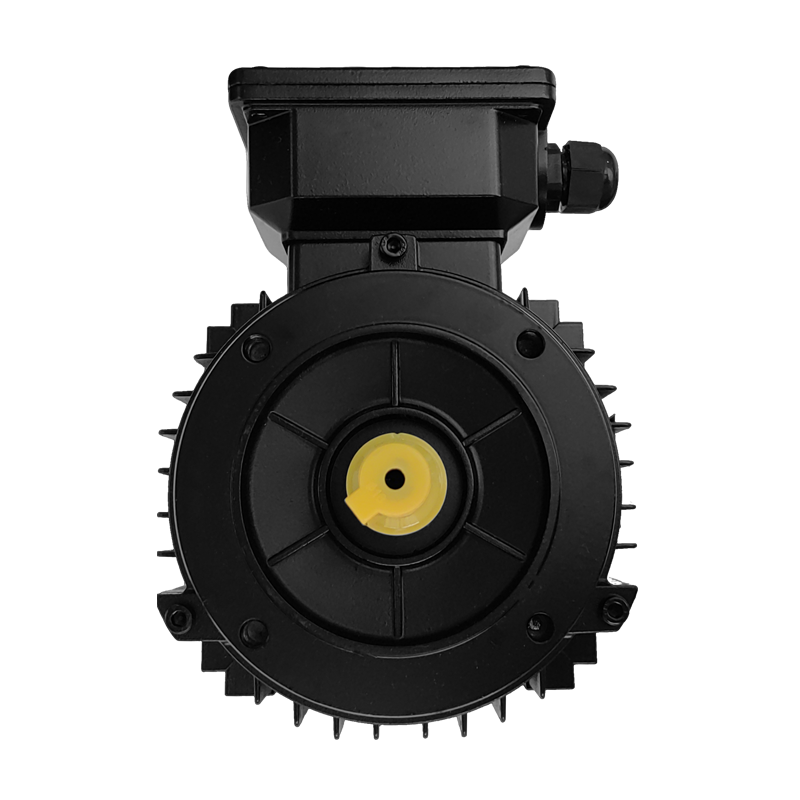

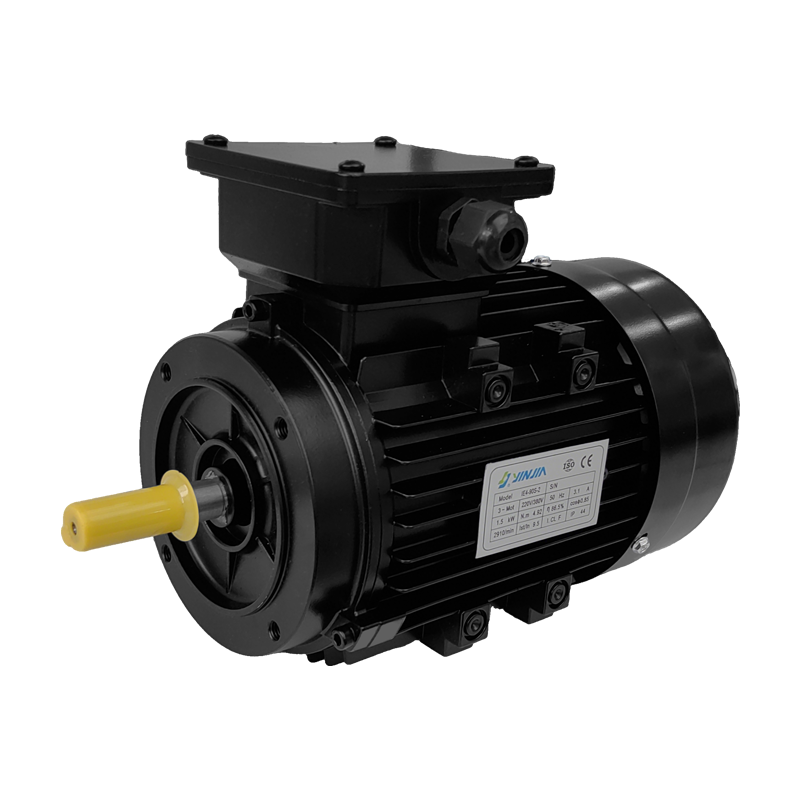

High Efficiency MSE5/4 Aluminum Housing Three Phase Motor, For Water Pump IE5/4

ProductFeatures

Output:0.75-18.5kW

·Frame size:H80-H160

Efficiency:IE5(GB-grade1)

IE4(GB-grade 2)

Voltage&frequency:multi-voltage&frequency available

Cooling method:IC411(standard)IC416(optional);

·Bearing:Maintenance-free bearing

Protection grade:IP55(standard.),IP56（optional);

·Insulation class:F

·Ambienttemperature:-15-40C

·Altitude:notexceeding1000m

ProductAdvantage

Compactstructure design

Attractive appearance

Lownoise

High starting torque

High efficiency and energy saving

Easyinstallationandmaintenance

.Reliable and durable
