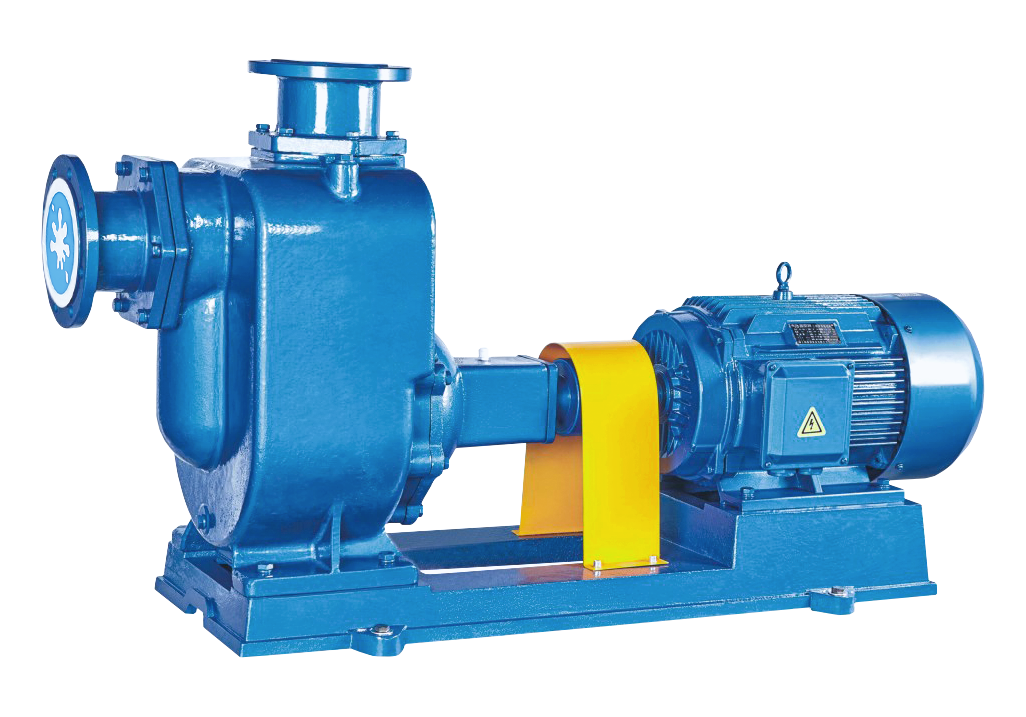

YINJIA Pump's The ZW（split）self-priming centrifugal sewage pump (hereinafter referred to as the electric pump) is a new-generation product designed in accordance with performance parameters stipulated by enterprise standards and incorporating our company's extensive manufacturing experience. The pump features a compact structure, small footprint, aesthetically pleasing design, minimal installation space requirements, stable operation, extended service life, high efficiency, low power consumption, and ease of installation. It may be used in series to meet specific head and flow requirements. This electric pump comprises three components: an electric motor, mechanical seal, and water pump. The motor is a single-phase or three-phase asynchronous motor; Mechanical seals are employed between the pump and motor. The rotor shaft is fabricated from highquality carbon steel with anti-corrosion treatment, ensuring enhanced mechanical strength, improved wear resistance, and corrosion resistance. This design also facilitates impeller maintenance and disassembly. All fixed flange sealing points utilise O-ring rubber seals for static sealing.
Key Advantages
✔Suitable for municipal wastewater treatment.
✔Ideal equipment for pumping slurry.
✔ Multi-Scenario Adaptability – Perfect for residential, commercial, and industrial use.
✔ Durable & Low Maintenance – Built with premium materials for long service life.
APPLICATIONS
-Suitable for urban environmental protection, construction, firefighting, chemical, pharmaceutical, printing and dyeing, brewing, power generation, electroplating, papermaking, industrial and mining washing, equipment cooling, etc.
-When fitted with a swing-arm spray nozzle, water can be propelled into the air and dispersed into fine droplets for misting, making it an excellent tool for farm nurseries, orchards, and tea plantations.
-Suitable for clean water, seawater, chemical media liquids with acidic or alkaline properties, and generally paste-like slurries (medium viscosity ≤ 100 cP, solid content up to 30%).
-Compatible with filter presses of any model or specification, serving as the ideal pump for conveying slurry to filter presses for filtration.

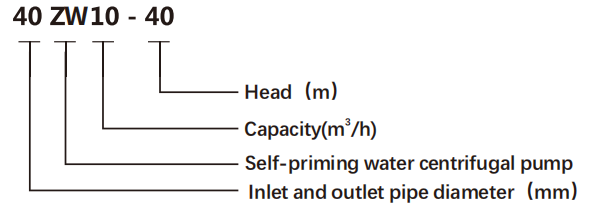

MODEL NUMBER IMPLICATION

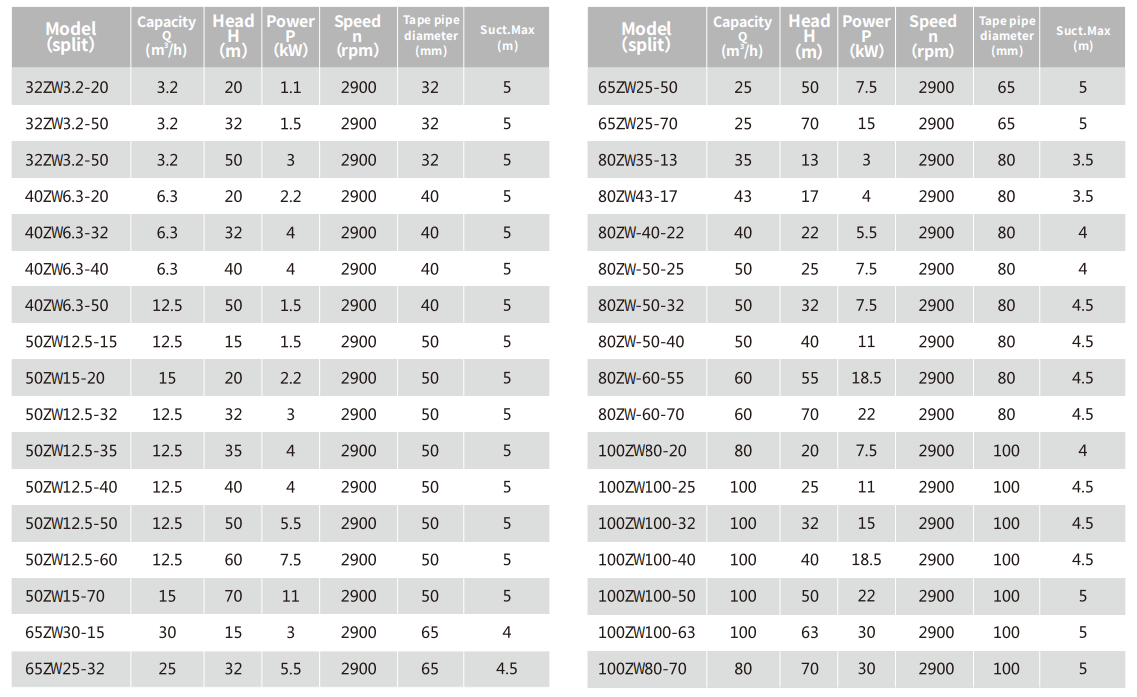

PARAMETER
