Rotor Technology & Performance Optimization

Custom Rotor Solutions for Higher Efficiency & Better Performance

YINJIA develops and improves motor rotors based on customer drawings, samples and performance targets. By combining rotor structure analysis, lamination development, aluminum casting, machining, balancing and testing, we help customers improve efficiency, torque, stability and manufacturing cost.

Patented Cast Aluminum Technology

In-house Lamination & Casting

Comparative Testing Support

Request Technical Proposal Send Your Sample

Rotor Technology & Performance Optimization

YiNJIA develops and improves motor rotors based on customerdrawings, samples and performance targets. By combining rotorstructure analysis, lamination development, aluminum casting,machining, balancing and testing, we help customers improve efficiency, torque, stability and manufacturing cost.

Patented Cast Aluminum Technology

Custom Rotor Solutions for

Higher Efficiency & Better Performance

Two Ways We Support Your Product

New Rotor Development

Applicable Scenarios：
Customers can provide——
Drawing or Rotor sample
Motor specification
Target efficiency
Required dimensions

Existing Product Optimization
Applicable Scenarios：
Current efficiency is too low
Motor temperature is too high
Torque is insufficient
Production cost is too high
Product performance is unstable

Applicable Scenarios:

Customers can provide——

Drawing or Rotor sample

Motor specification

Target efficiency

Required dimensions

New Rotor Development

Appllcable Scenarios：
Current efficiency is too low
Motor temperature is too high
Torque is insufficient
Production cost is too high
Performance is unstable

Existing Product Optimization

Aluminum Die-Cast Rotor Development

The aluminum casting process has a direct impact on rotor consistency, electrical performance and motor efficiency. Our engineering and production teams control the casting, machining and inspection process according to the required rotor application.

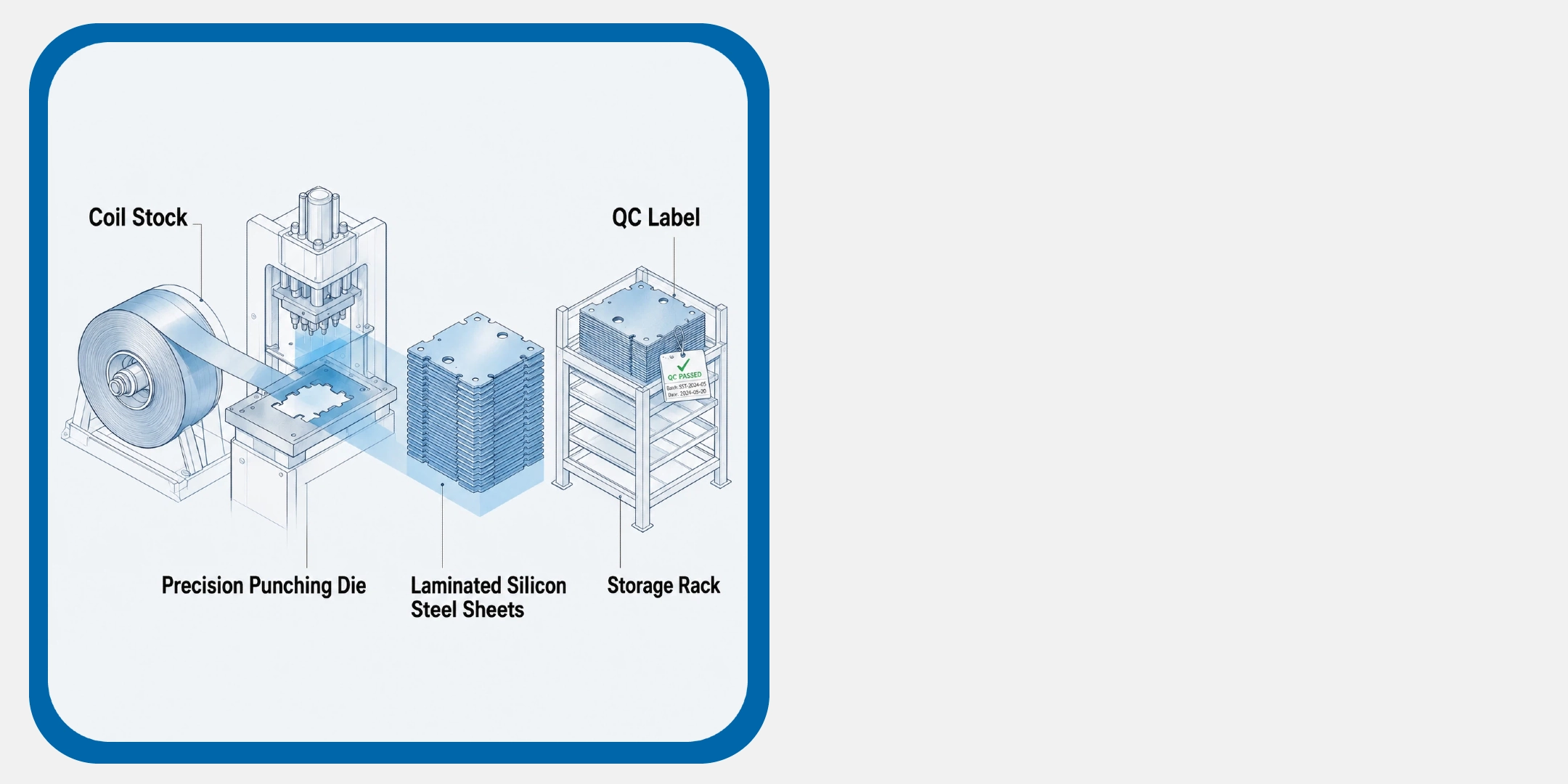

Silicon steels heet punching and material preparation

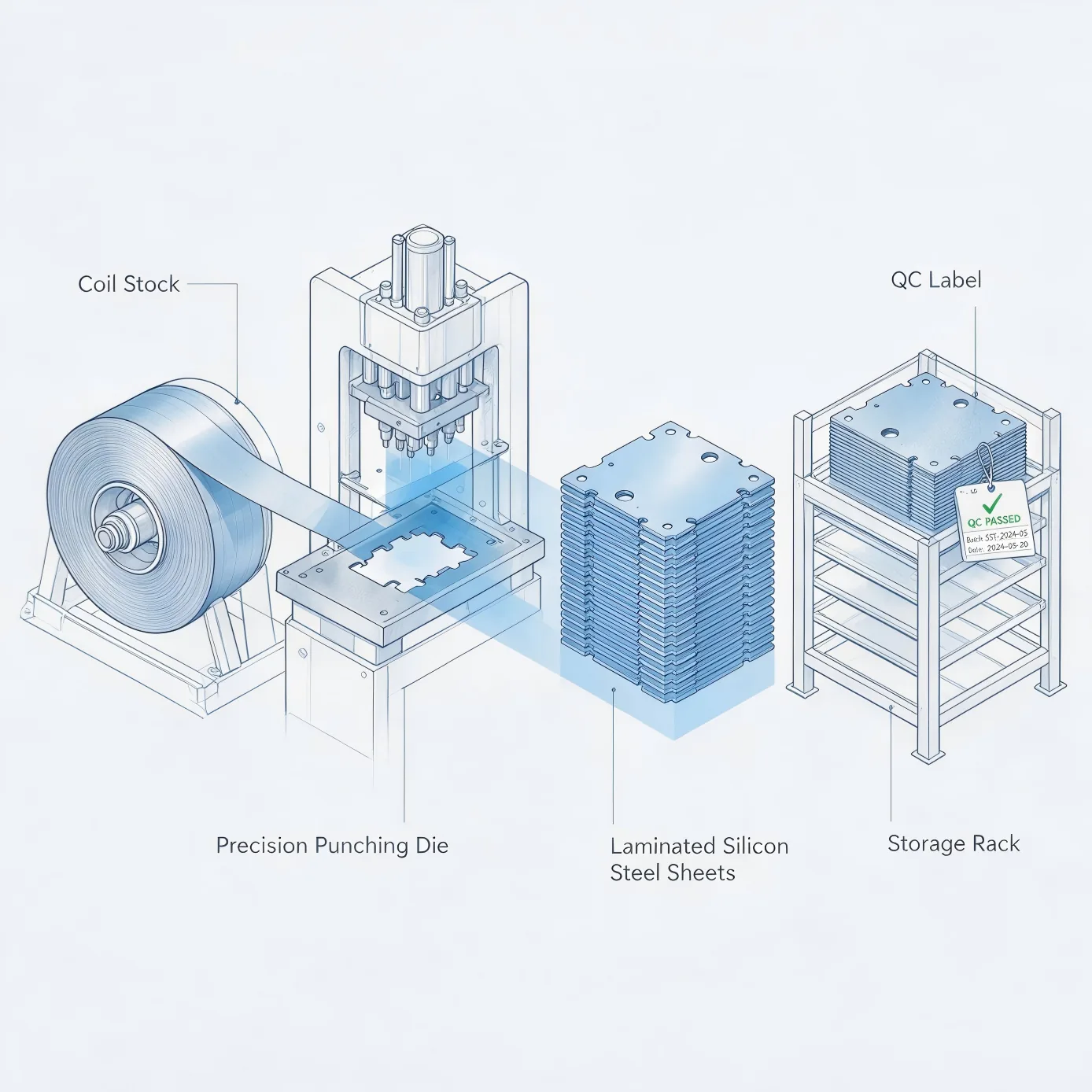

1. Lamination Preparation

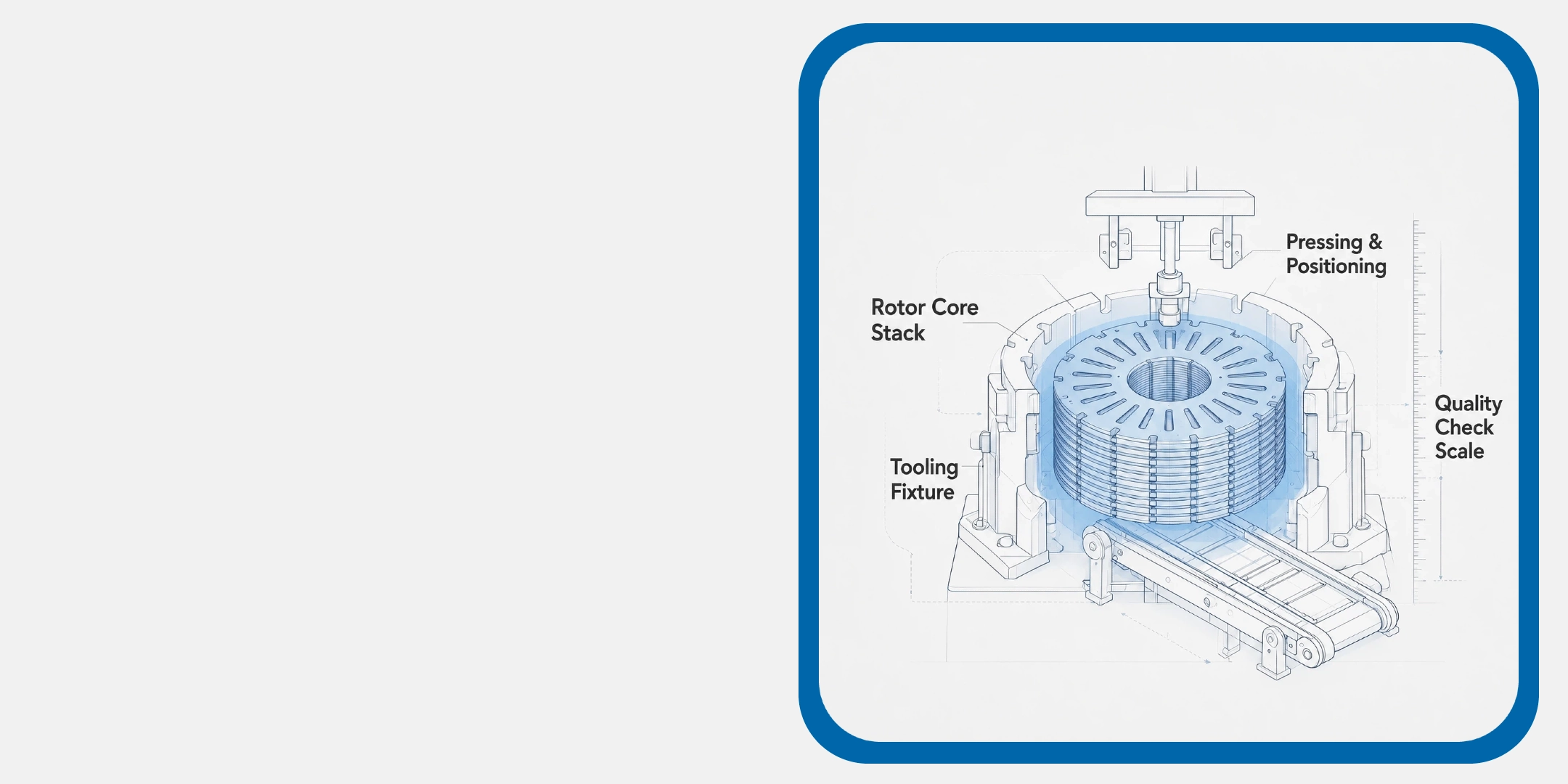

Core stacking and

pre-processing

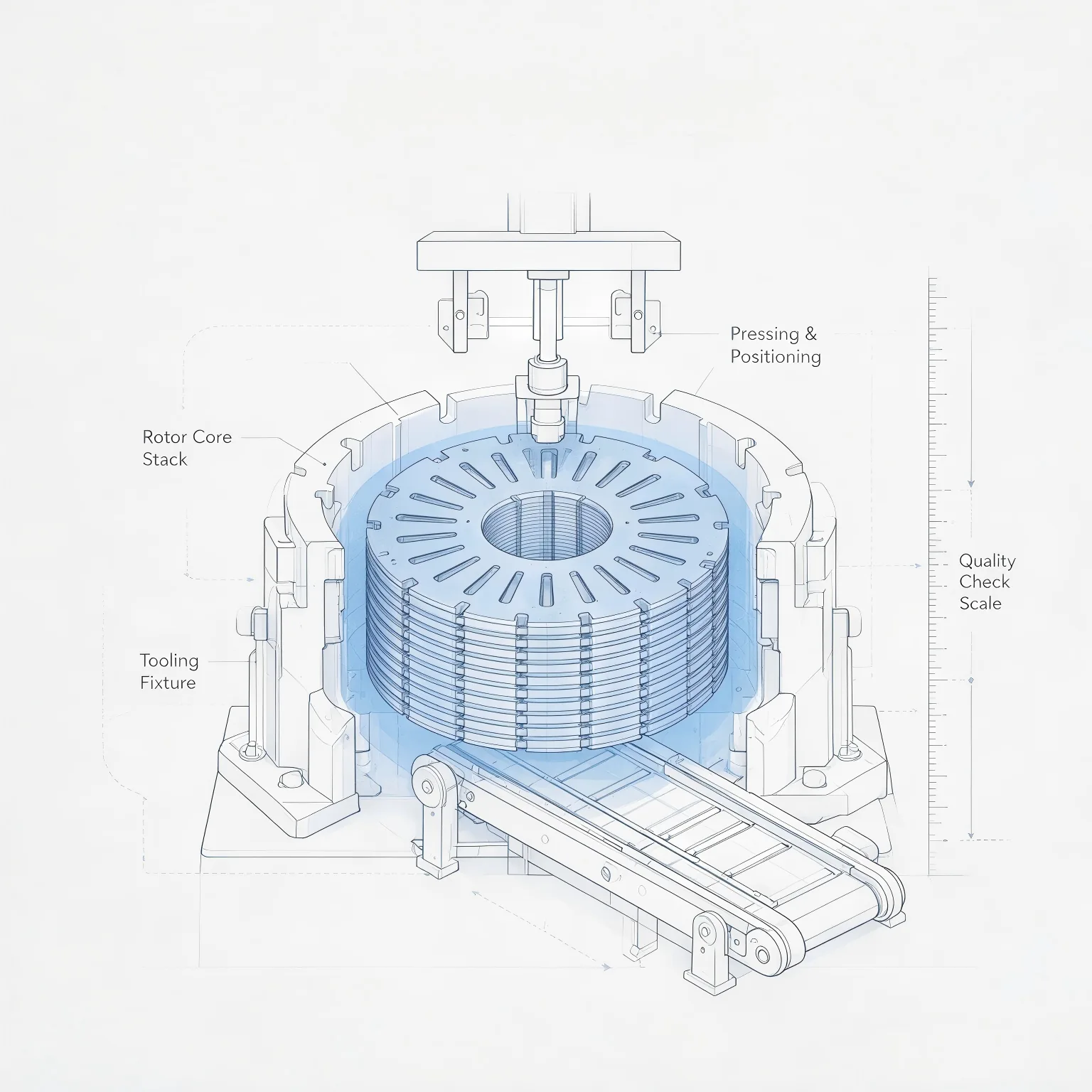

2. Rotor Stack Assembly

High-pressure aluminum

casting process

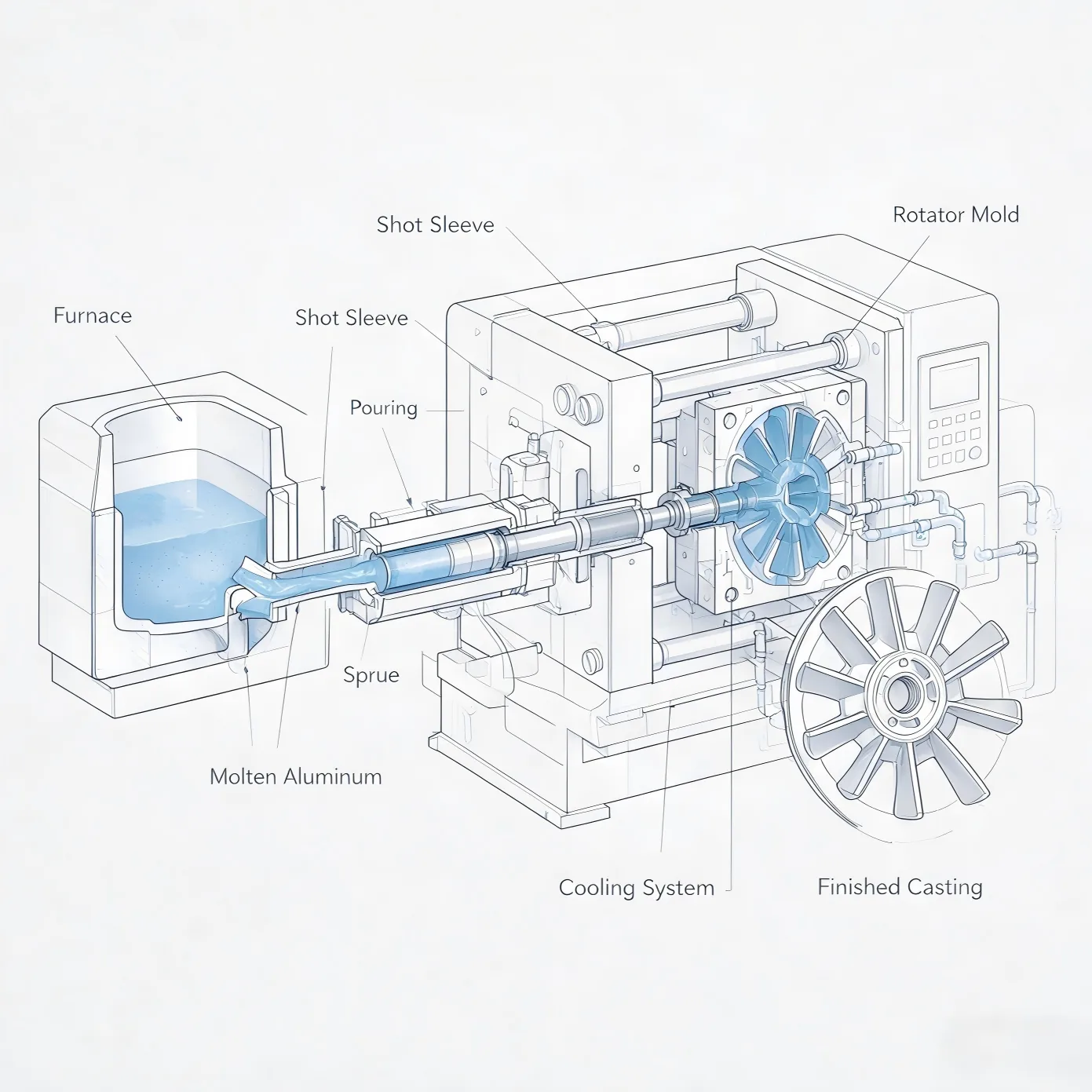

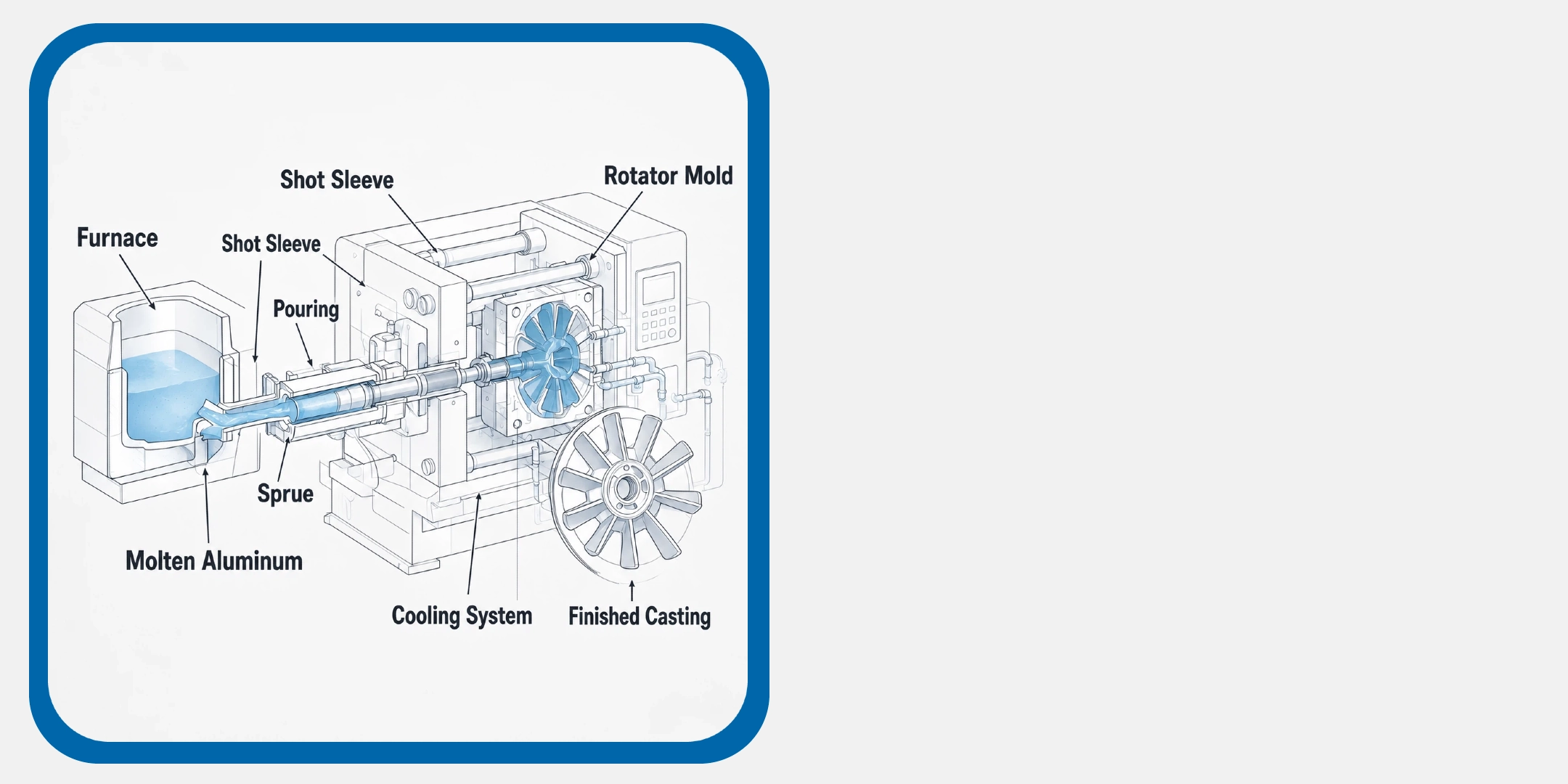

3. Aluminum Die Casting

Shaft pressing and

precision machining

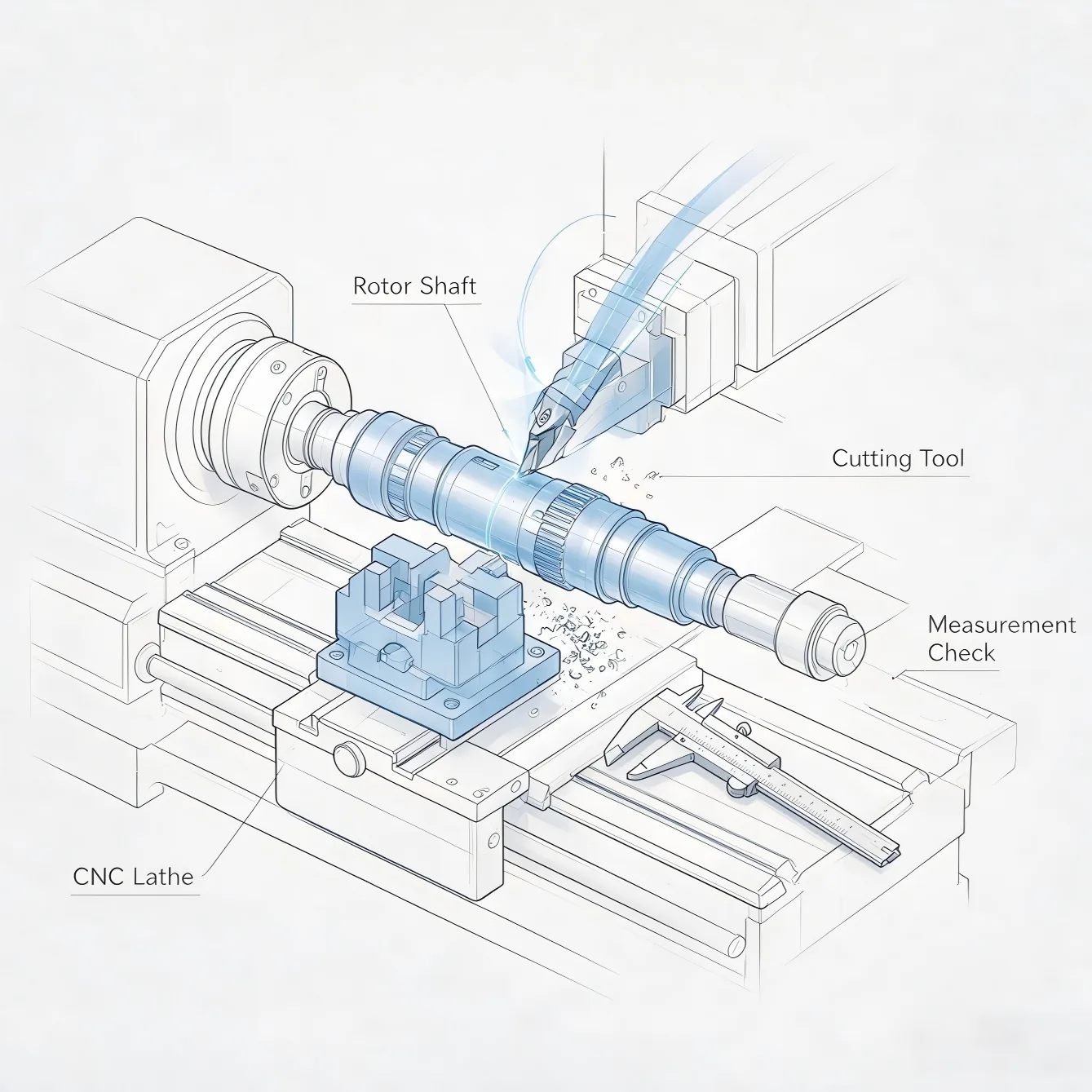

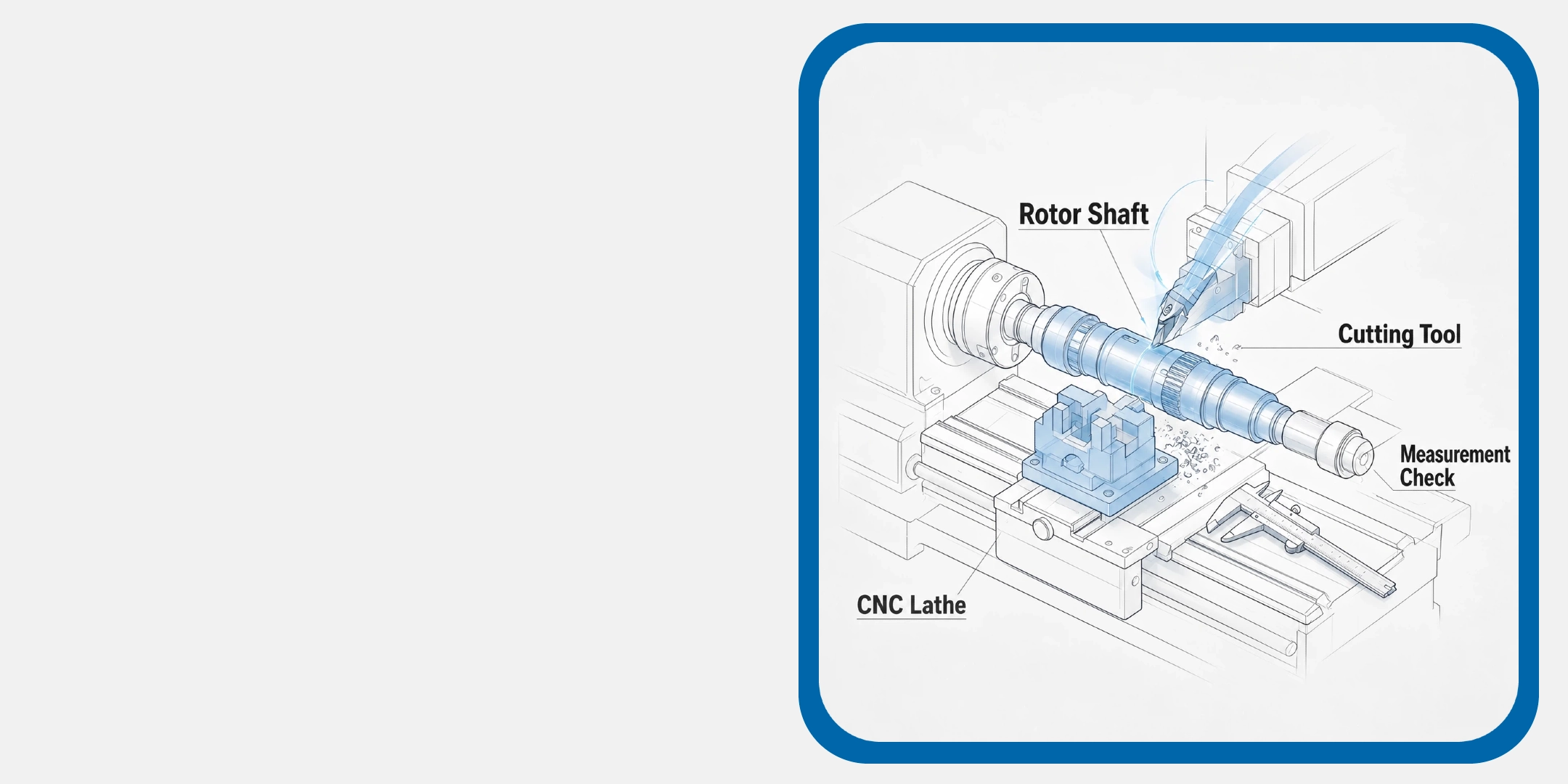

4.Shaft Machining

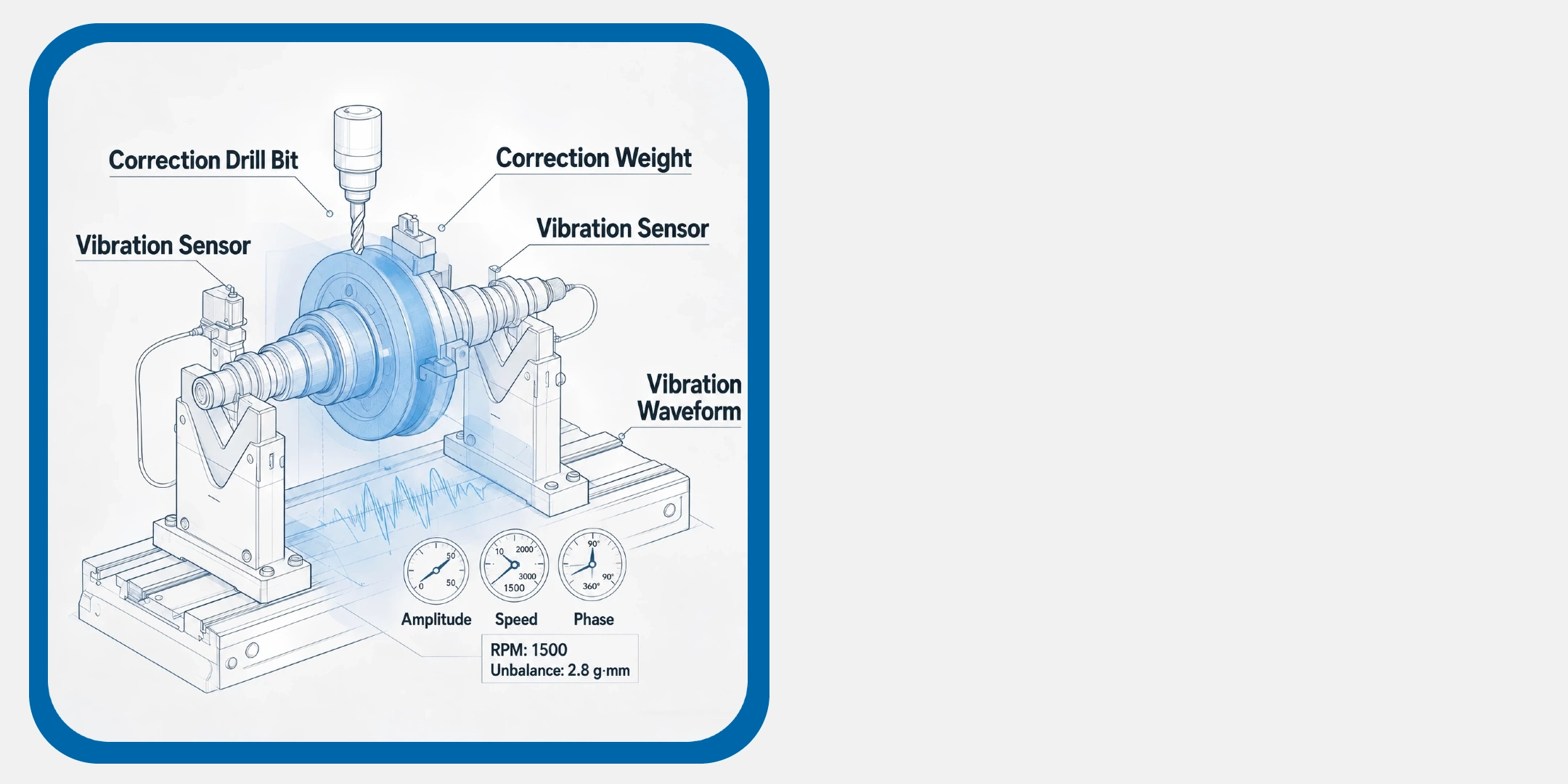

High-precision dynamic

balance correction

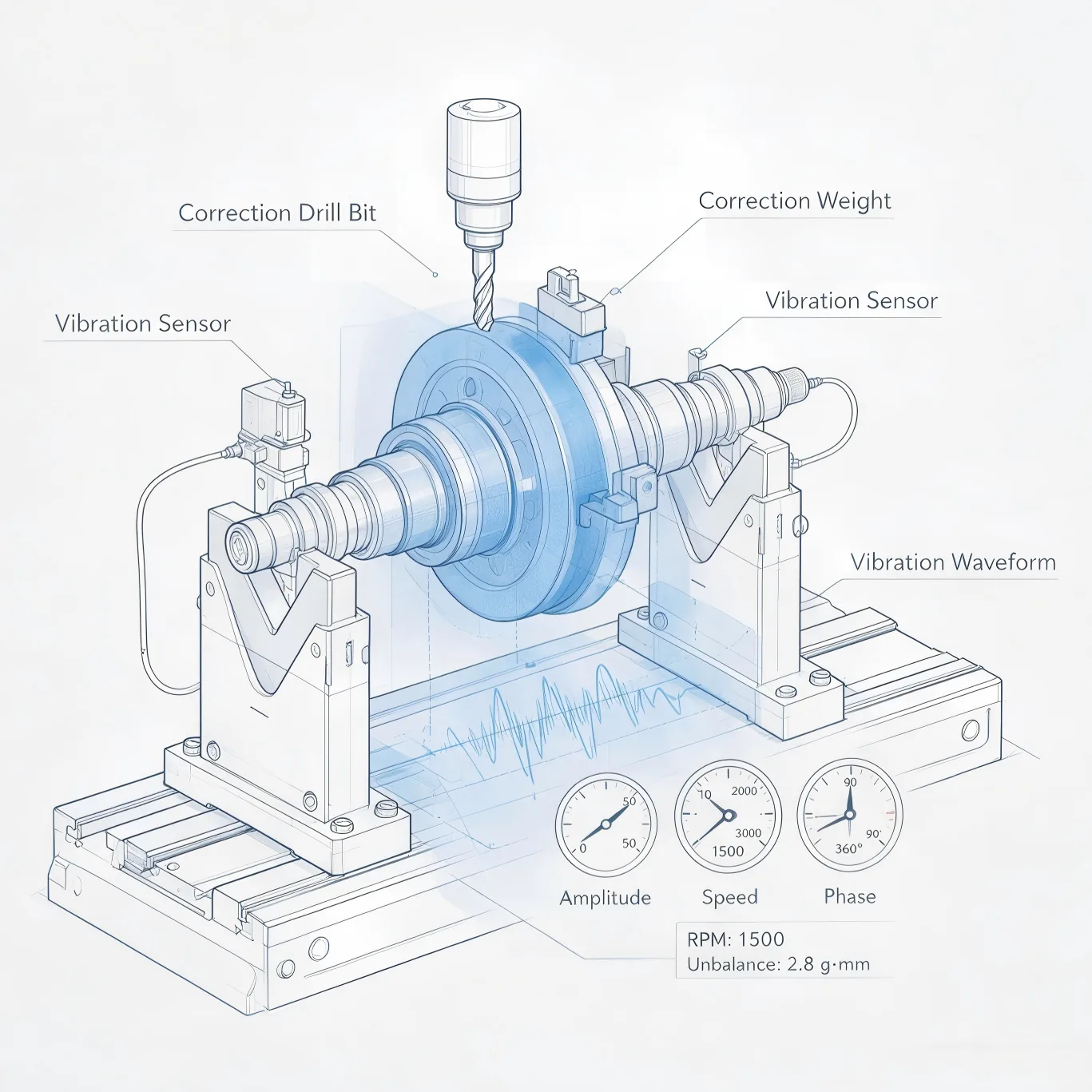

5. DynamicBalancing

Full-item electrical and

efficiency verification

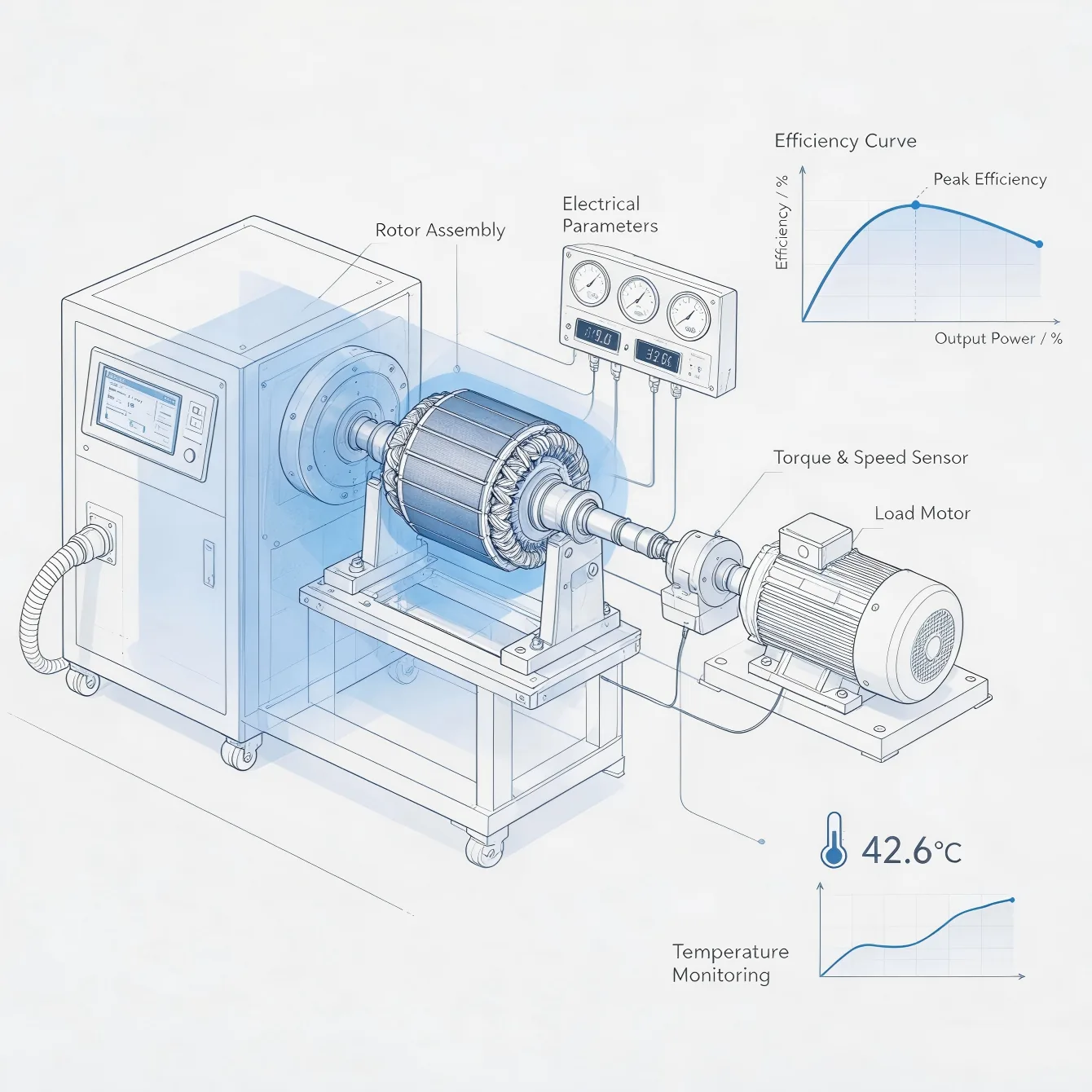

6.Performance Testing

Applying Patented Rotor Technology

to Customer Products

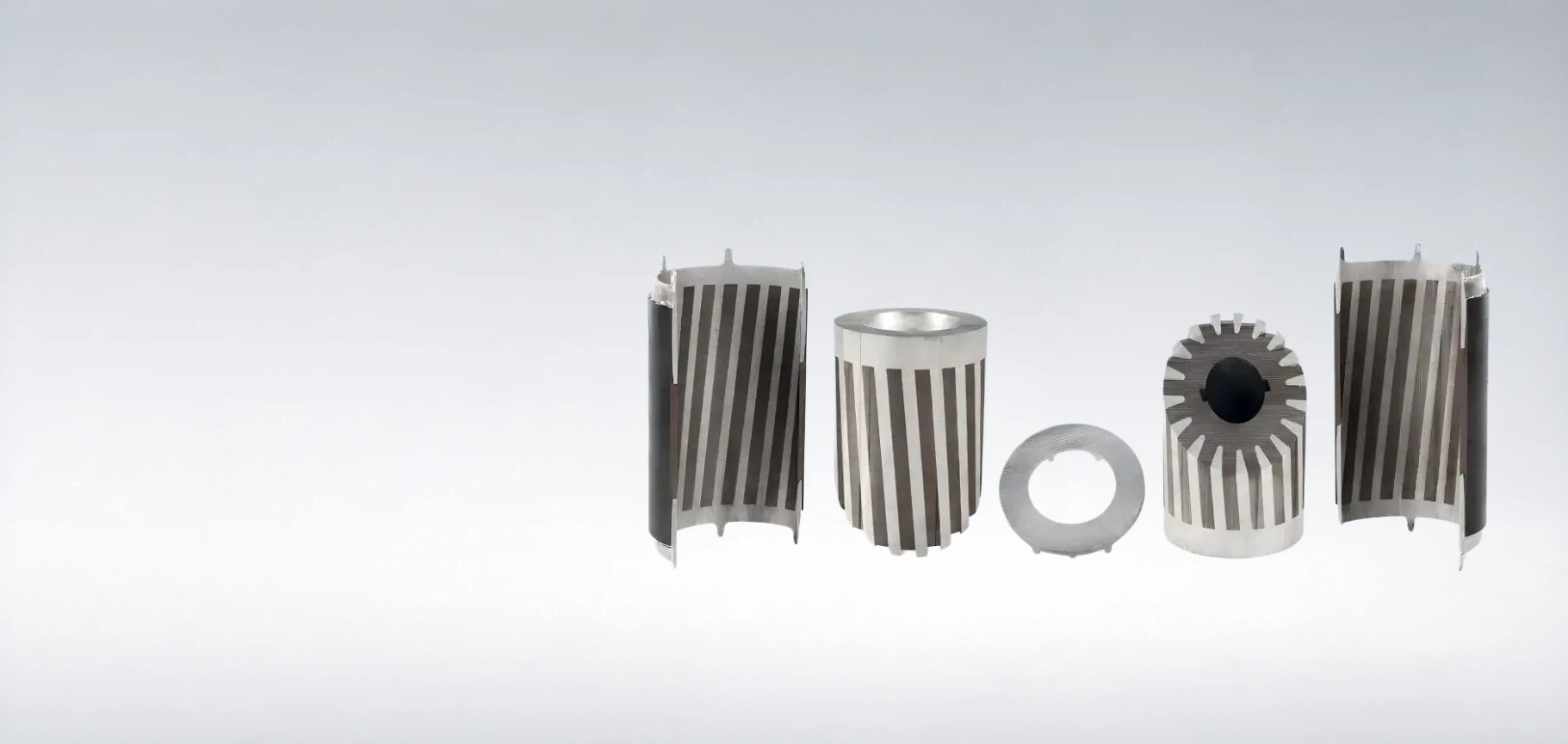

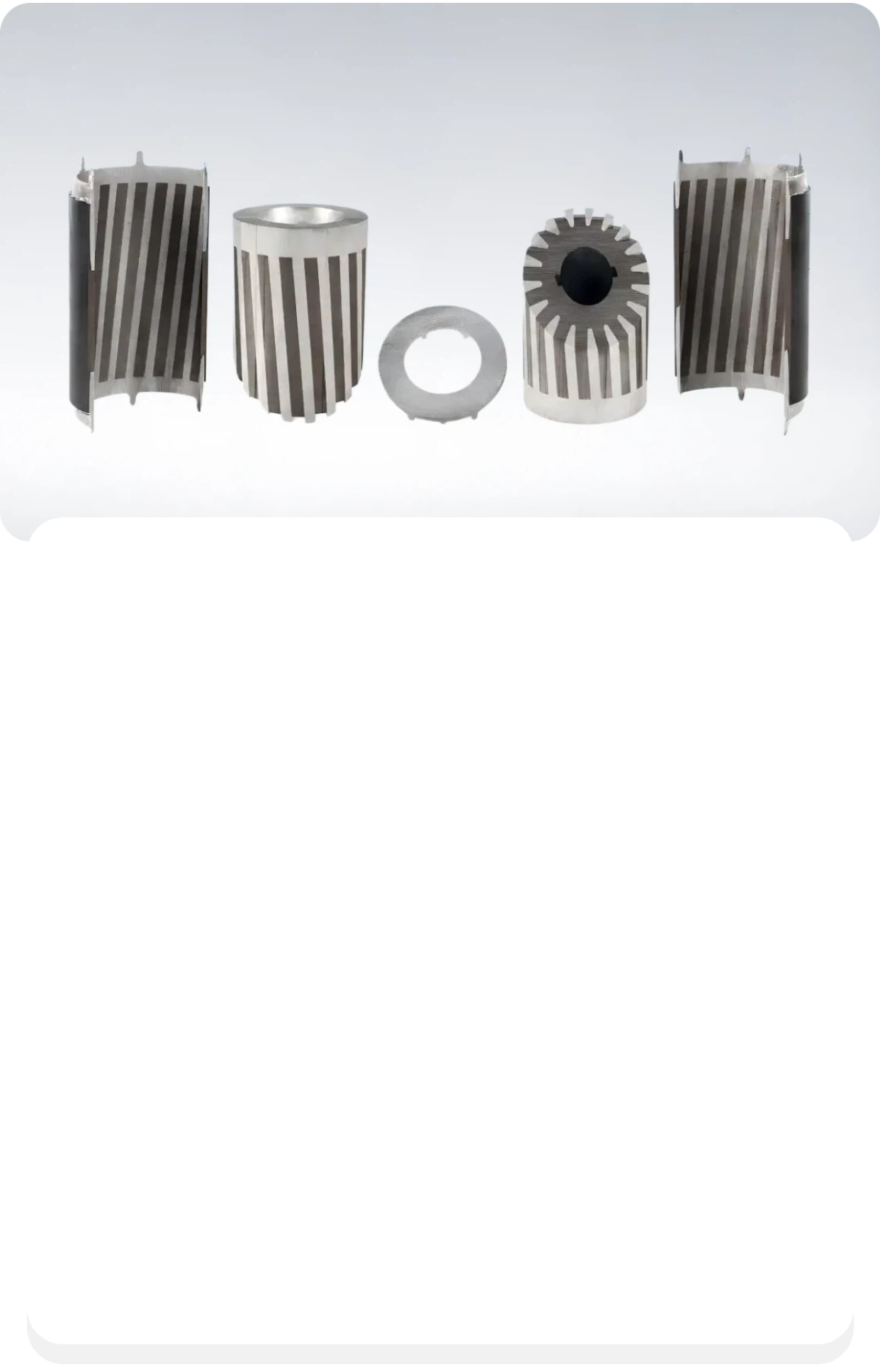

Patented Rotor Die-Casting Technology

Our self-developed patented rotor die-casting technology upgrades the whole rotor manufacturing process.Every internal structural detail of the rotor is precisely controlled.

Integrated forming of rotor lamination, end ring and end cap avoids loose assembly and energy loss.Our finished rotor cores feature lower iron loss, higher conductivity and stronger structural rigidity.

We provide reliable, energy-saving rotor component solutions for all kinds of motors and pumps.

Applying Patented Rotor Technology to Customer Products

Our self-developed patented rotor die-casting technology upgrades the whole rotor manufacturing process.Every internal structural detail of the rotor is precisely controlled.

Integrated forming of rotor lamination, end ring and end capavoids loose assembly and energy loss.Our finished rotorcores feature lower iron loss, higher conductivity and stronger structural rigidity.

We provide reliable, energy-saving rotor component solutions for all kinds of motors and pumps.

Patented Rotor Die-Casting Technology

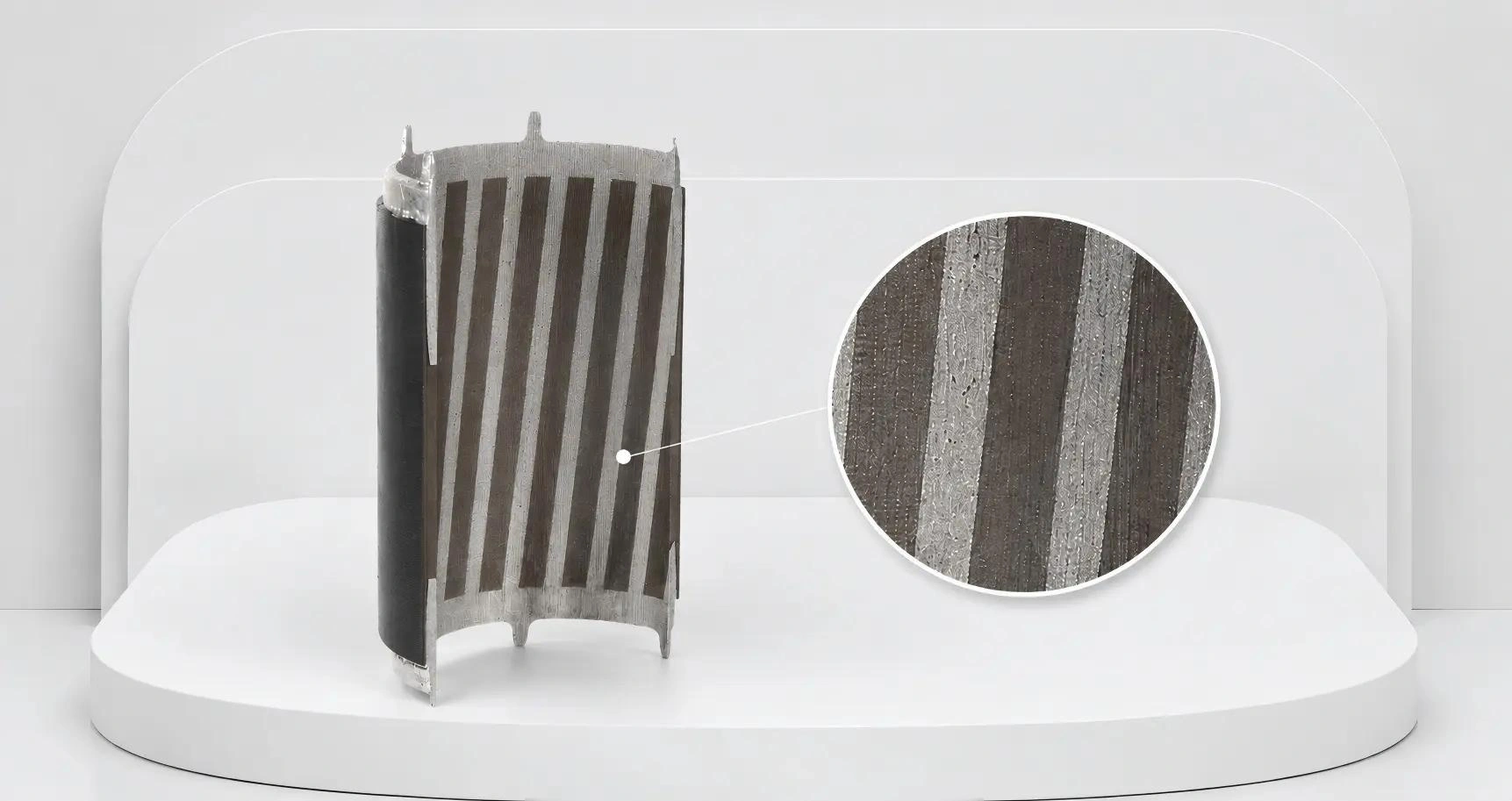

Traditional Rotor

・Inconsistent aluminum filling

・Higher energy loss

・Uneven temperature rise

・Higher manufacturing cost

Optimized Rotor

・Patented die-casting process

・Higher motor efficiency

・Better thermal stability

・Optimized total cost

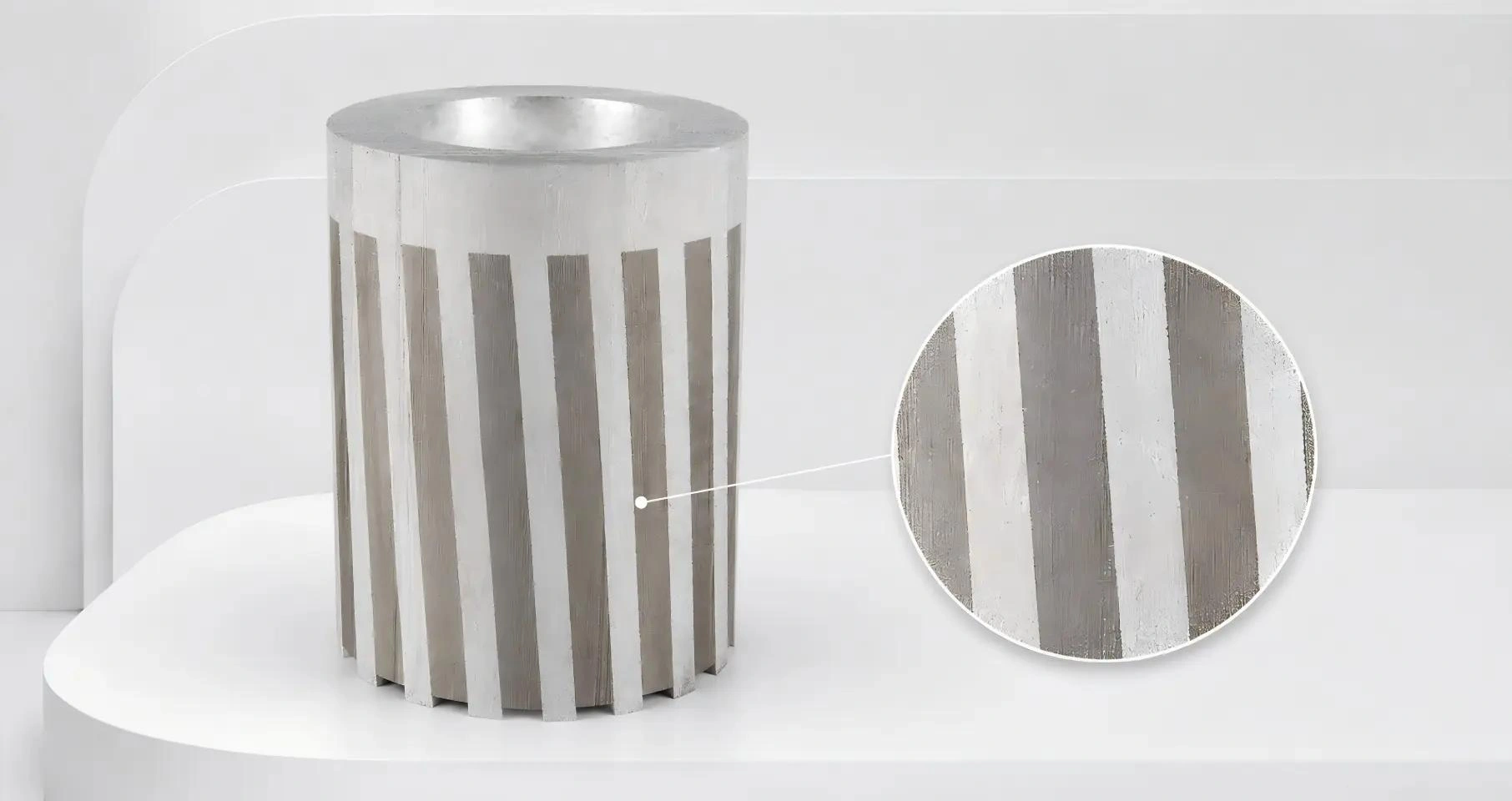

1. Rotor Body - Aluminum Filling

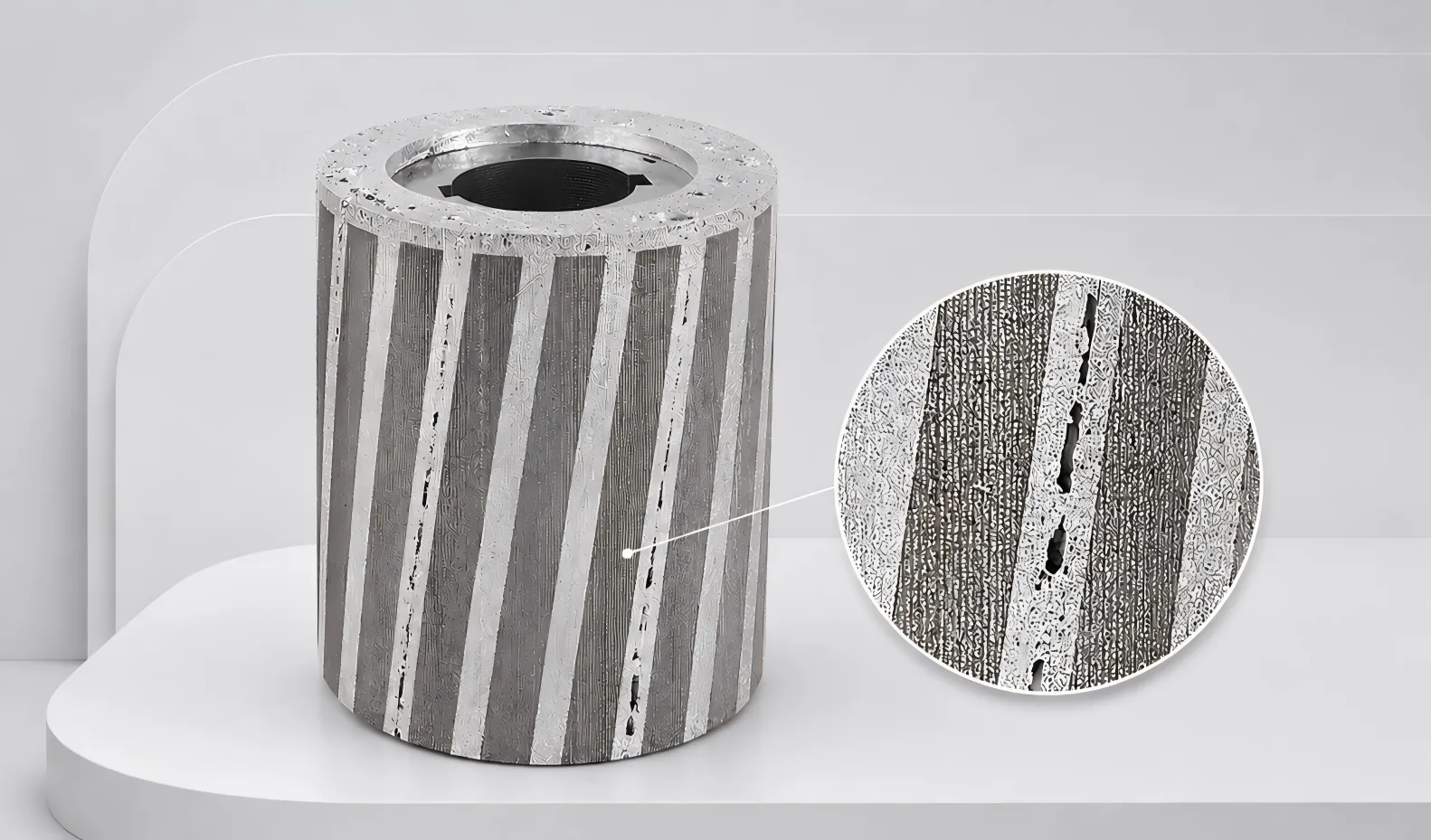

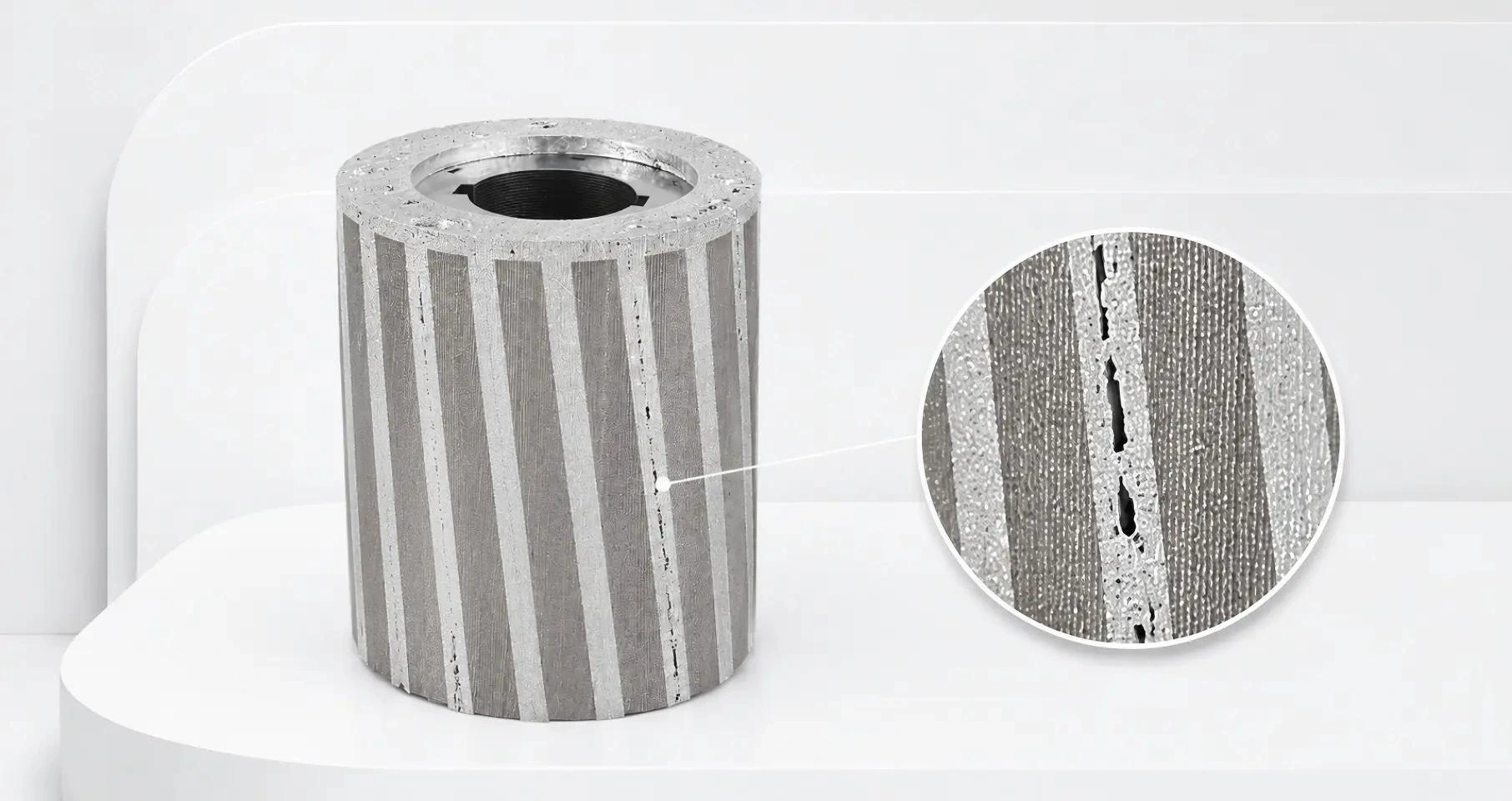

Traditional Rotor

・Lower structural density

・More voids and pores

Optimized Rotor

・Higher structural density

・Fewer voids and pores

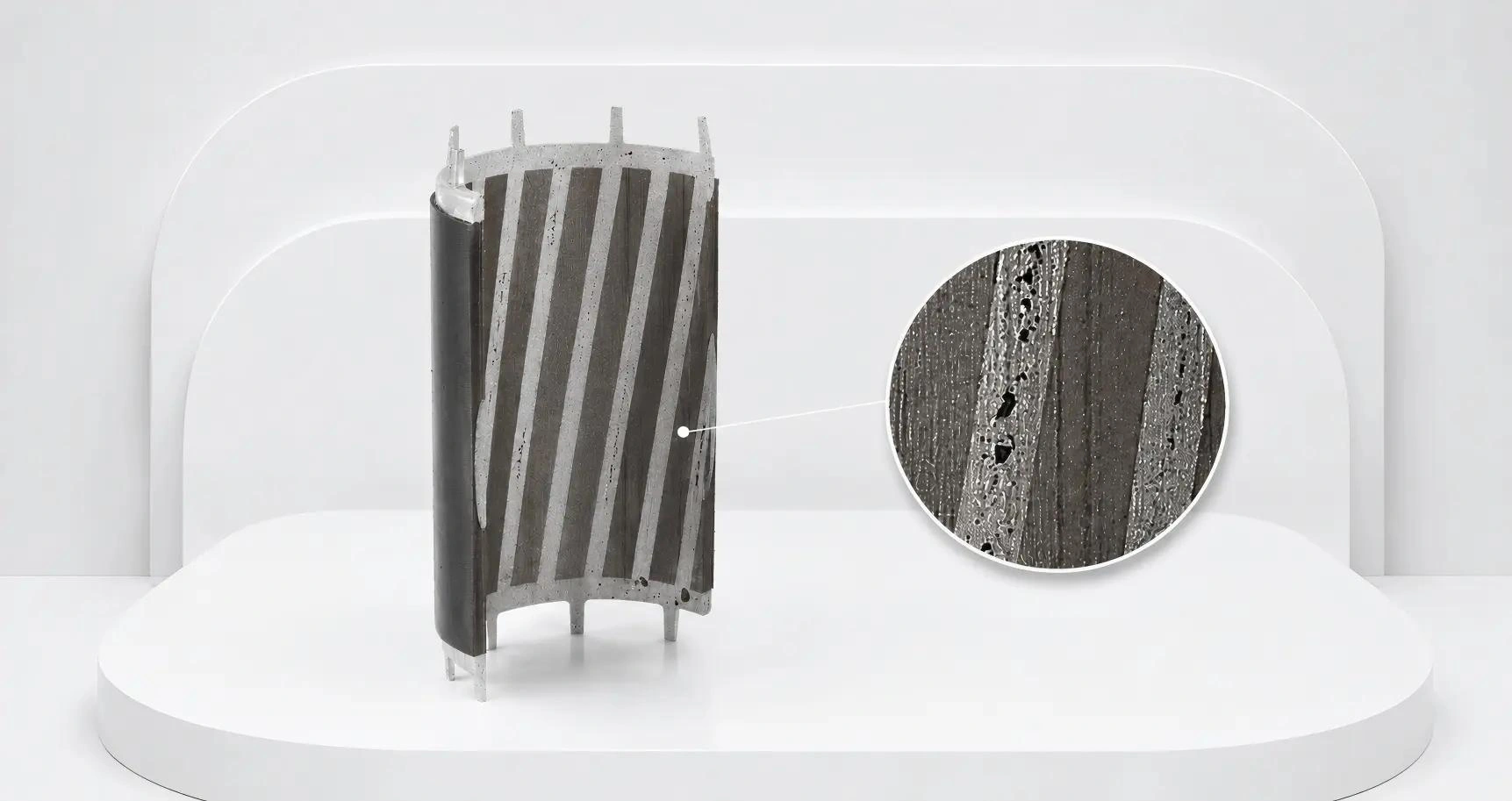

2.Rotor Lamination (Section) - Density

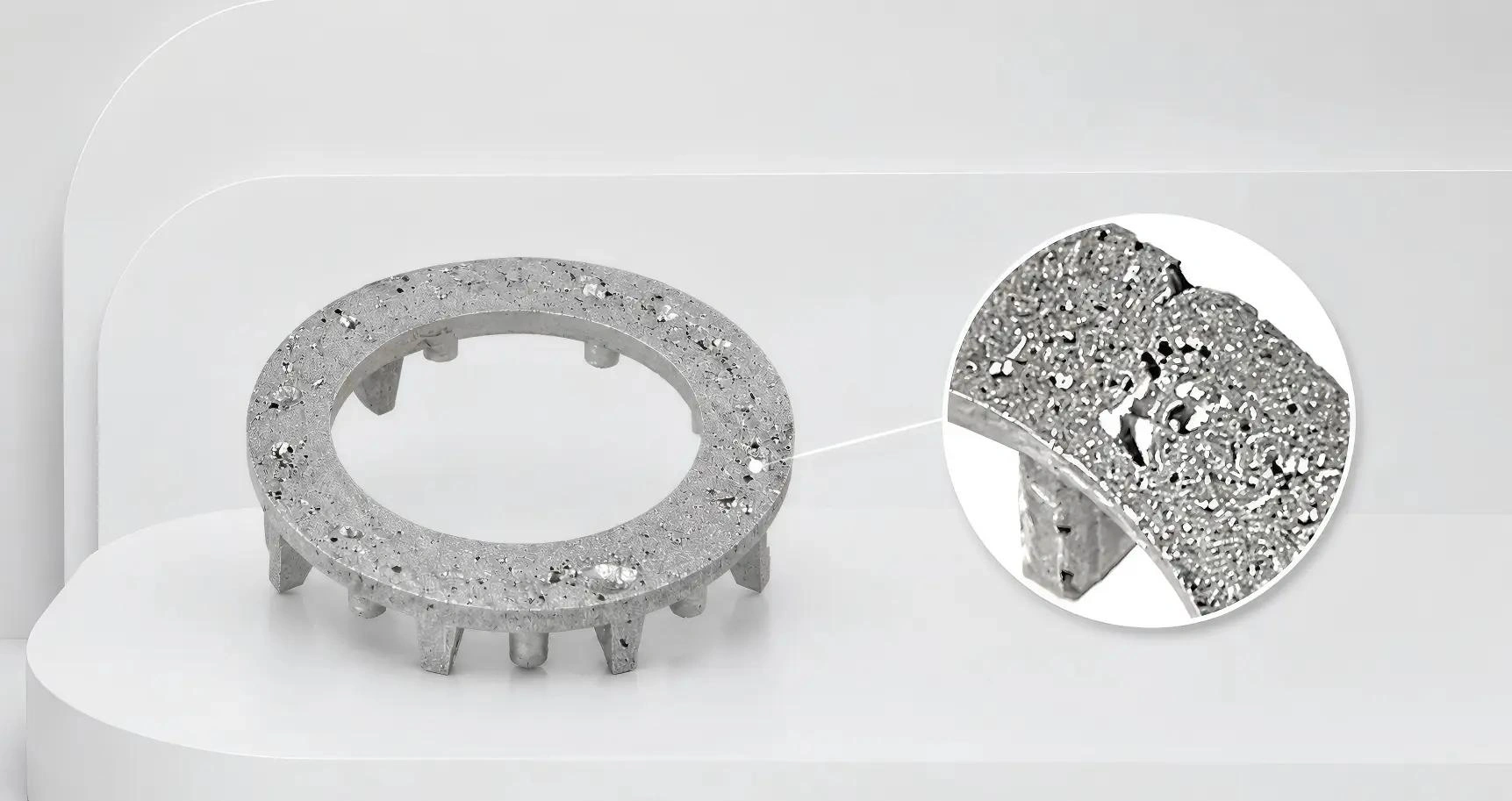

Traditional Rotor

・Rough suirface

・Higher processing cost

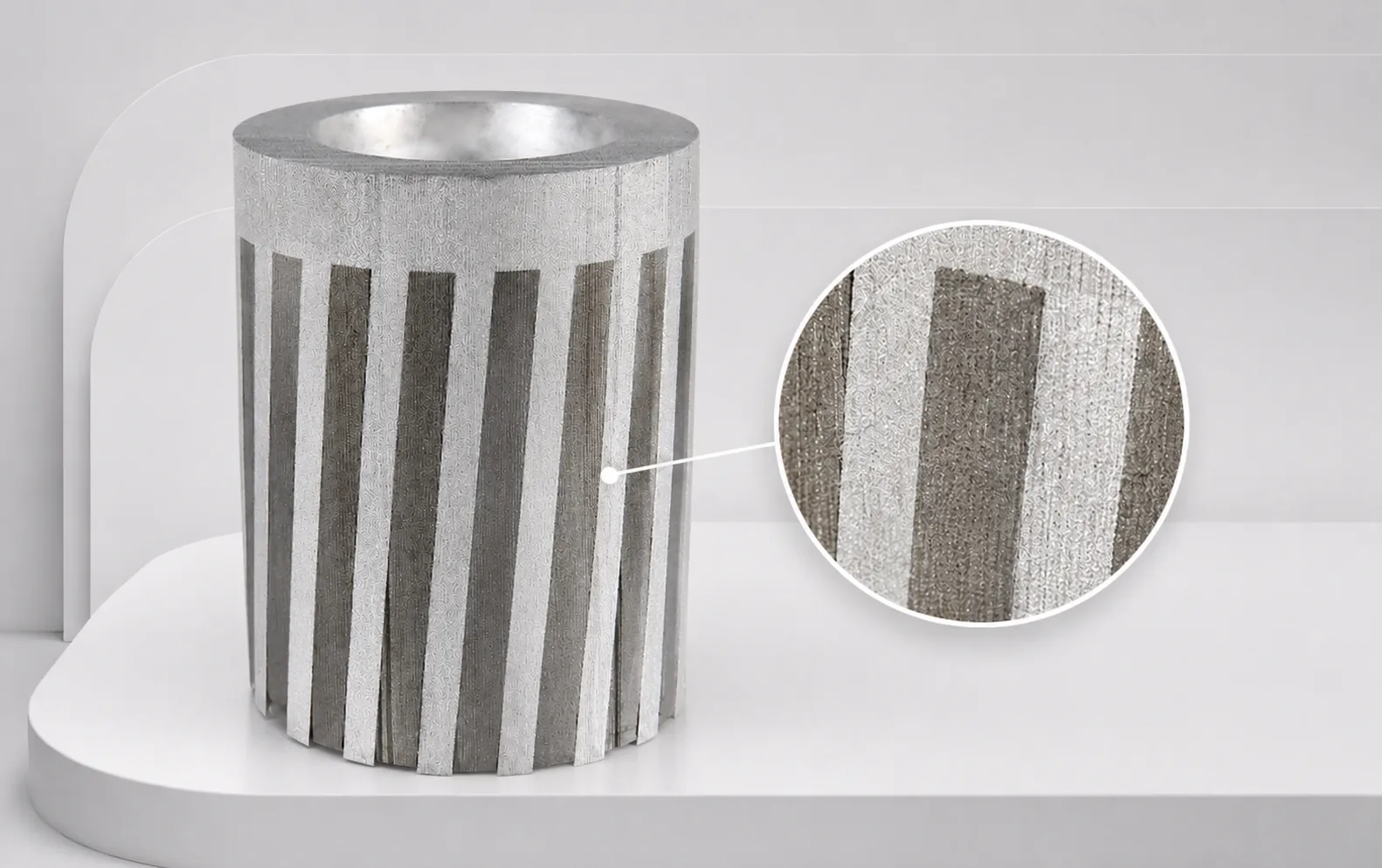

Optimized Rotor

・Smoother surface

・Lower processing cost

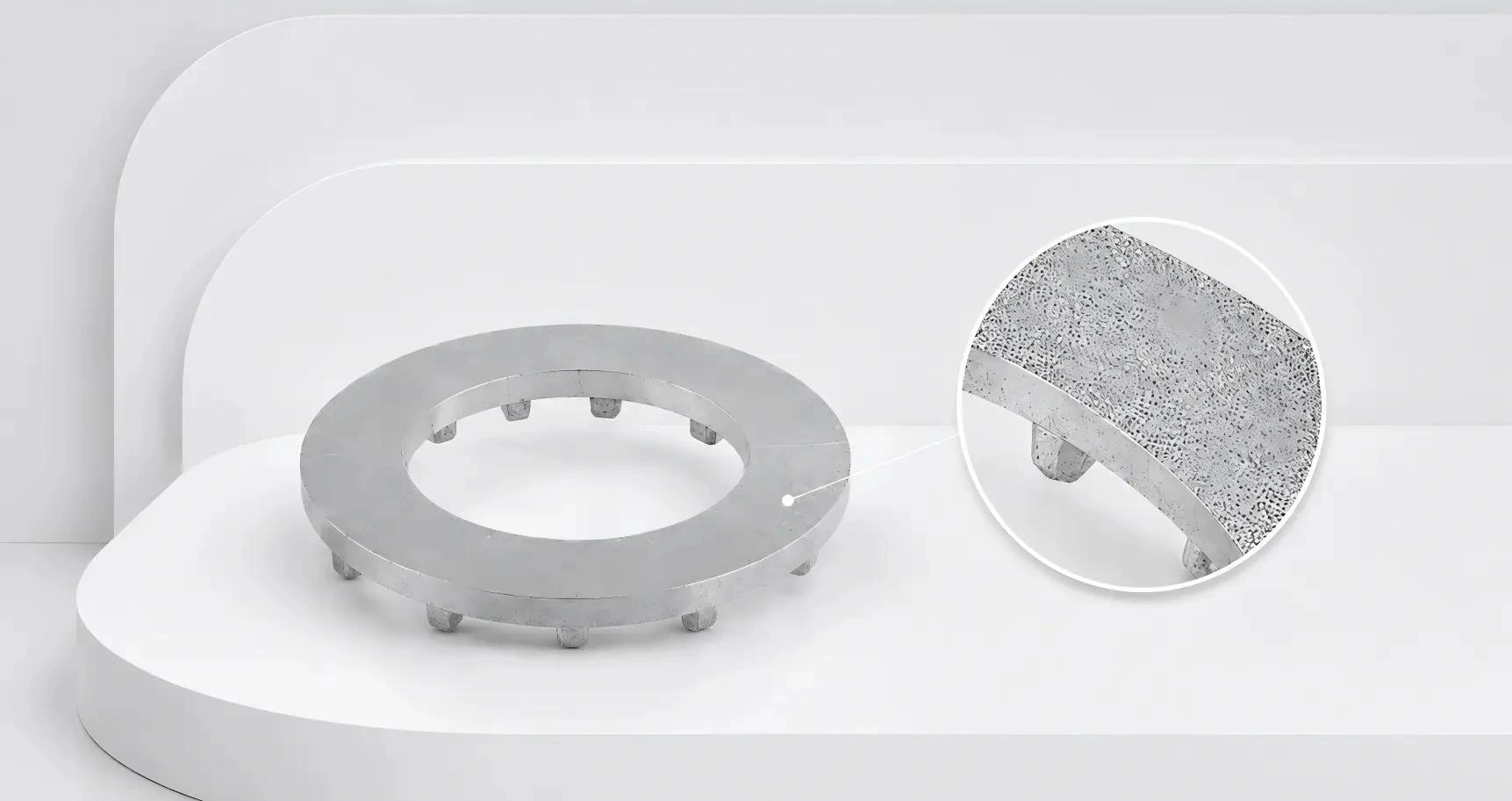

3. End Ring - Surface Quality

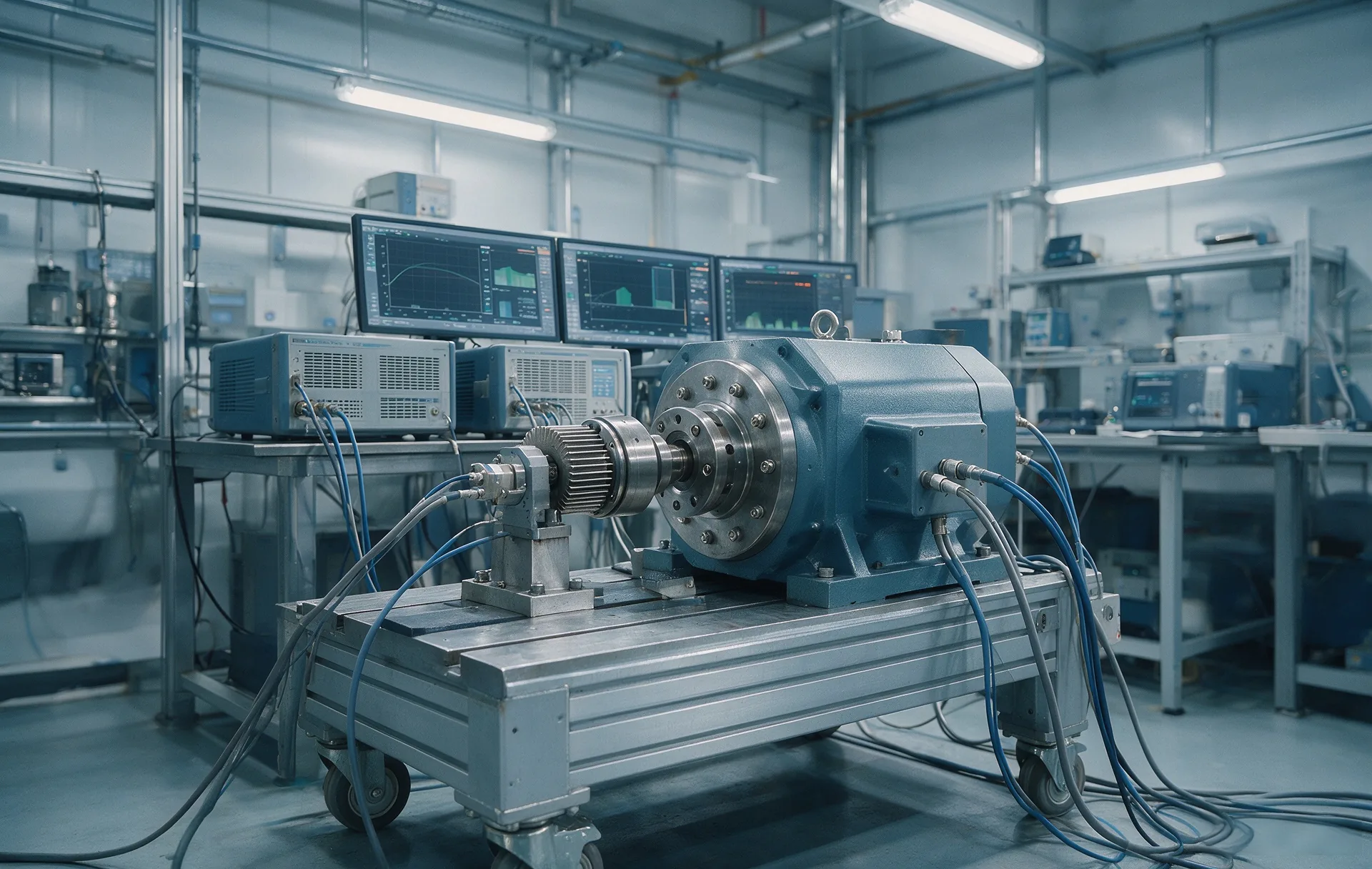

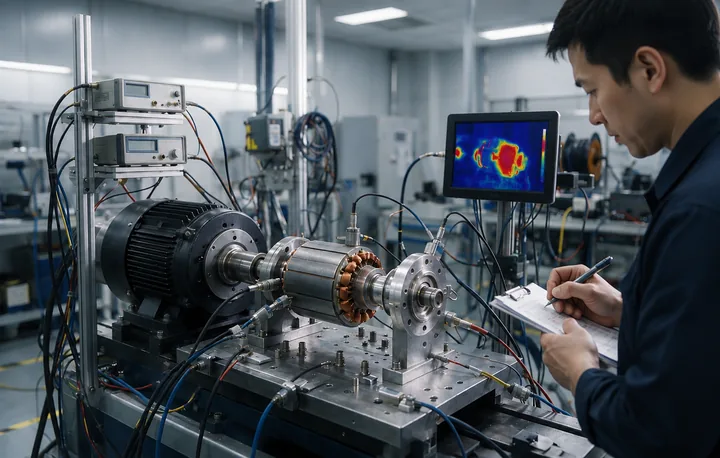

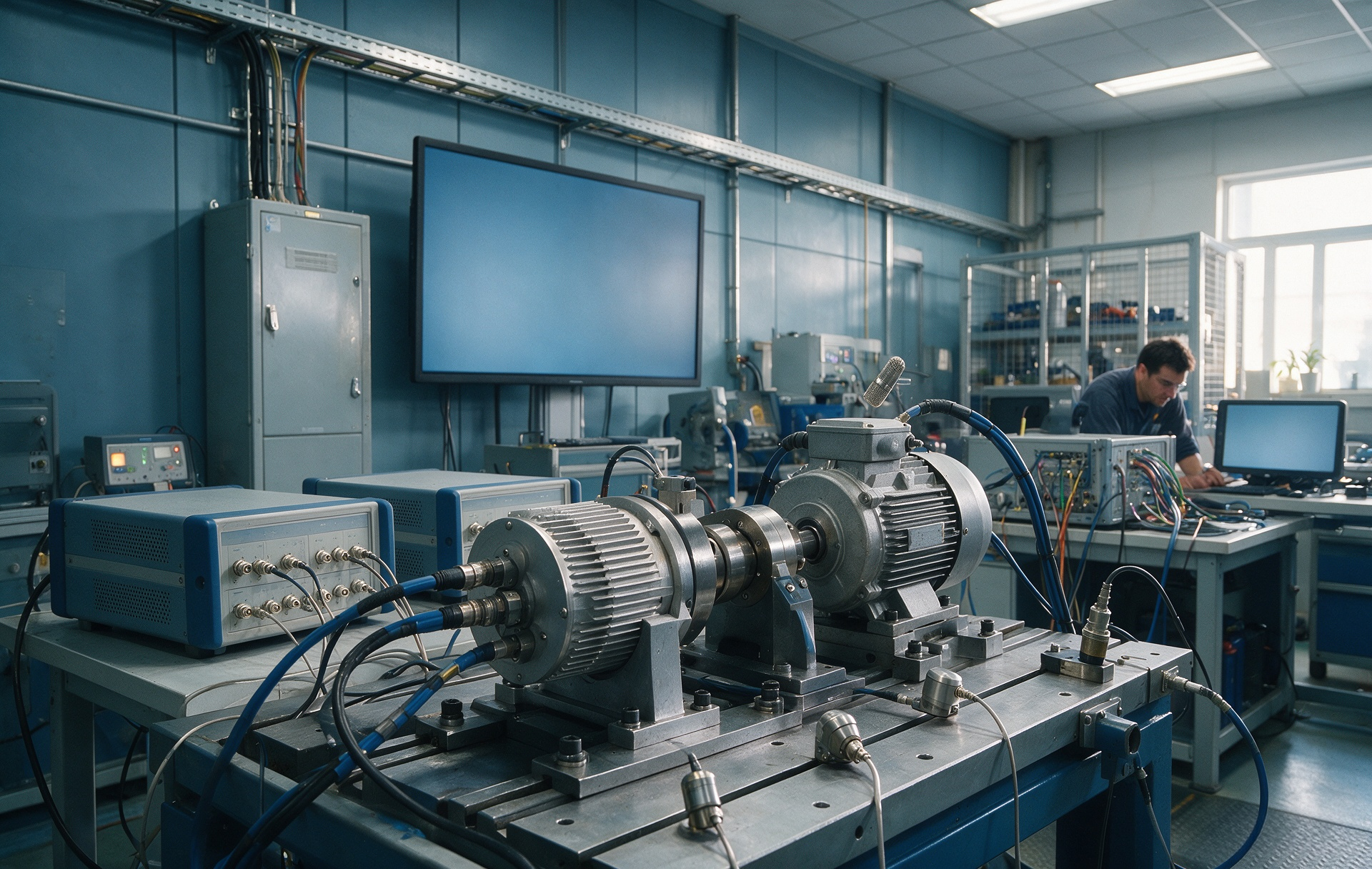

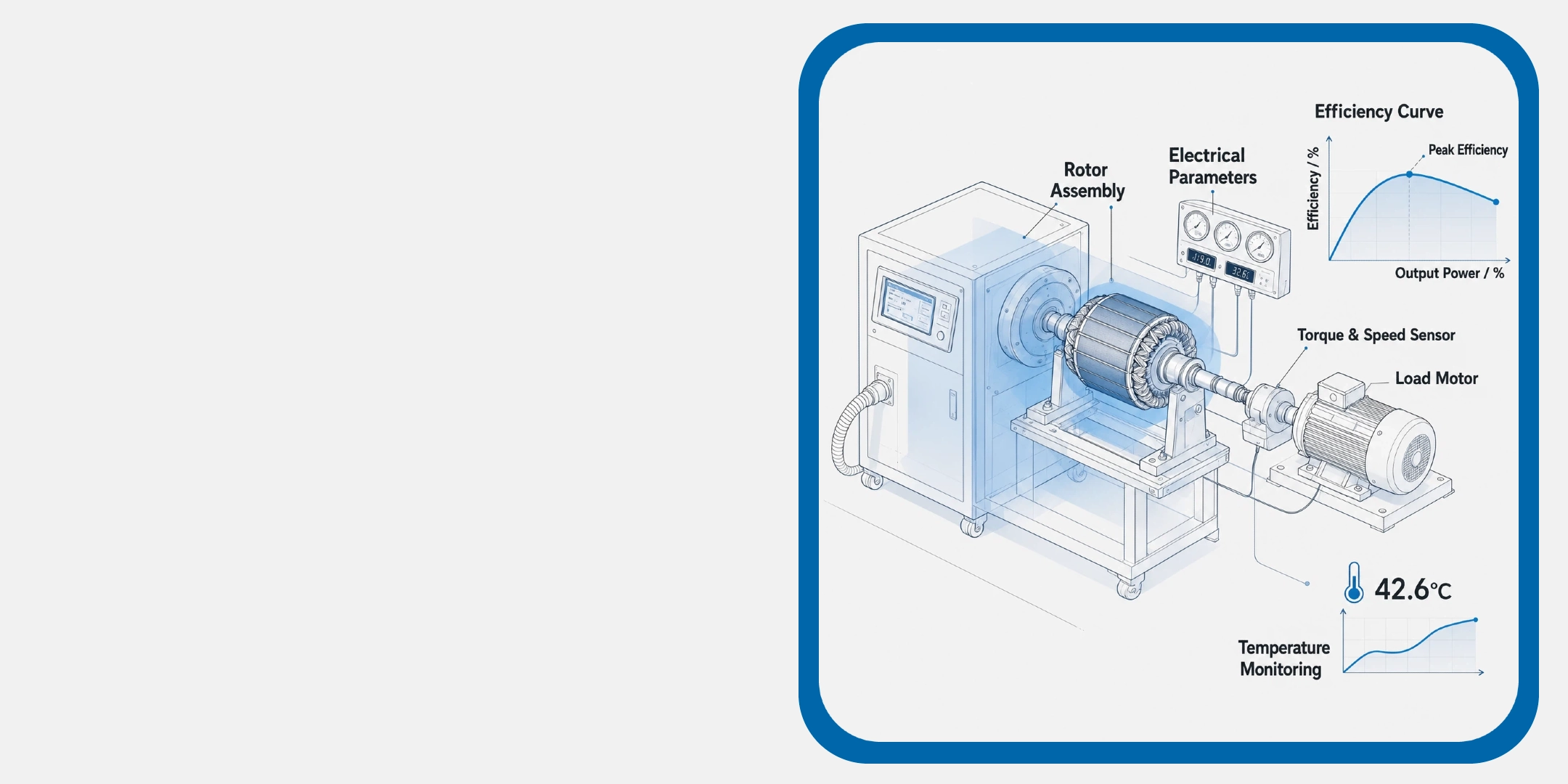

Testing and Verification

・Efficiency Testing：Input/output power and energy efficiency verification

・Torque & Speed：Torque output and rotational speed calibration

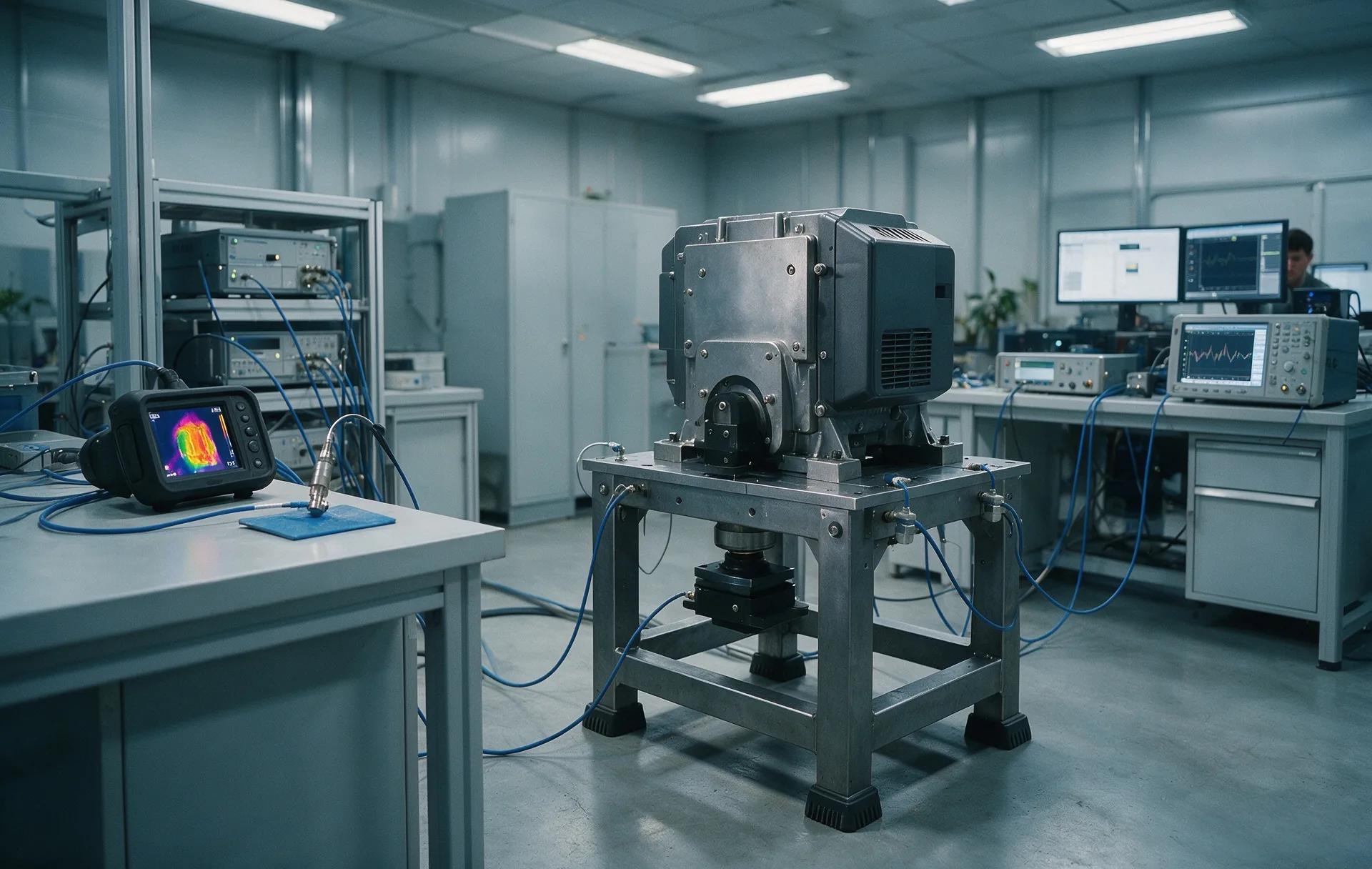

・Temperature Rise：Winding and housing temperature-rise test

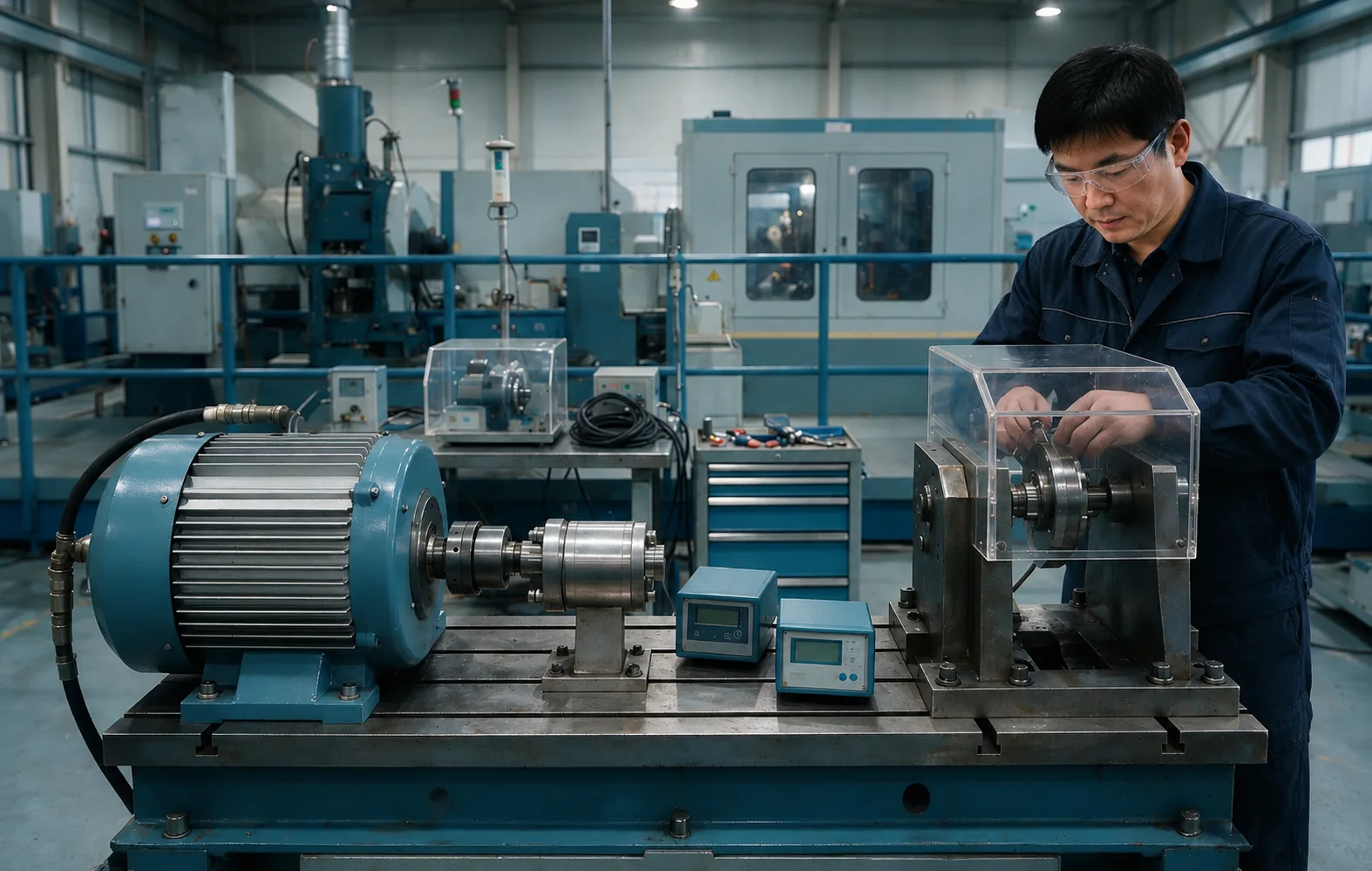

・Noise & Vibration：Operating noise and mechanical vibration detection

Performance Improvement Case

Before Optimization

・Traditional Rotor Structure
・Severe internal energy loss
・Uneven heat distribution during operation
・Restricted motor efficiency output
・High comprehensive production cost
・Noticeable vibration & noise
Our solution

・Patented Optimized Rotor Design
・Upgraded silicon steel lamination scheme
・Advanced proprietary die-casting process
・Rigorous simulation & contrast testing
・Targeted improvement on structural drawbacks
After Optimization

・Optimized Rotor Design
・Improved Material Utilization
・Reduced Rotor Energy Loss
・Better Thermal Management
・Smoother and Quieter Operation
・Improved Operational Stability
・Designed for Continuous-Duty Applications
