AC Deep well pump 3SDM series

Name: AC Deep well pump 3SDM series
Brand: YINJIA
Rating: 5.0 (70 reviews)


Availability:

Inquire Add to Basket

Model:
3SDM series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

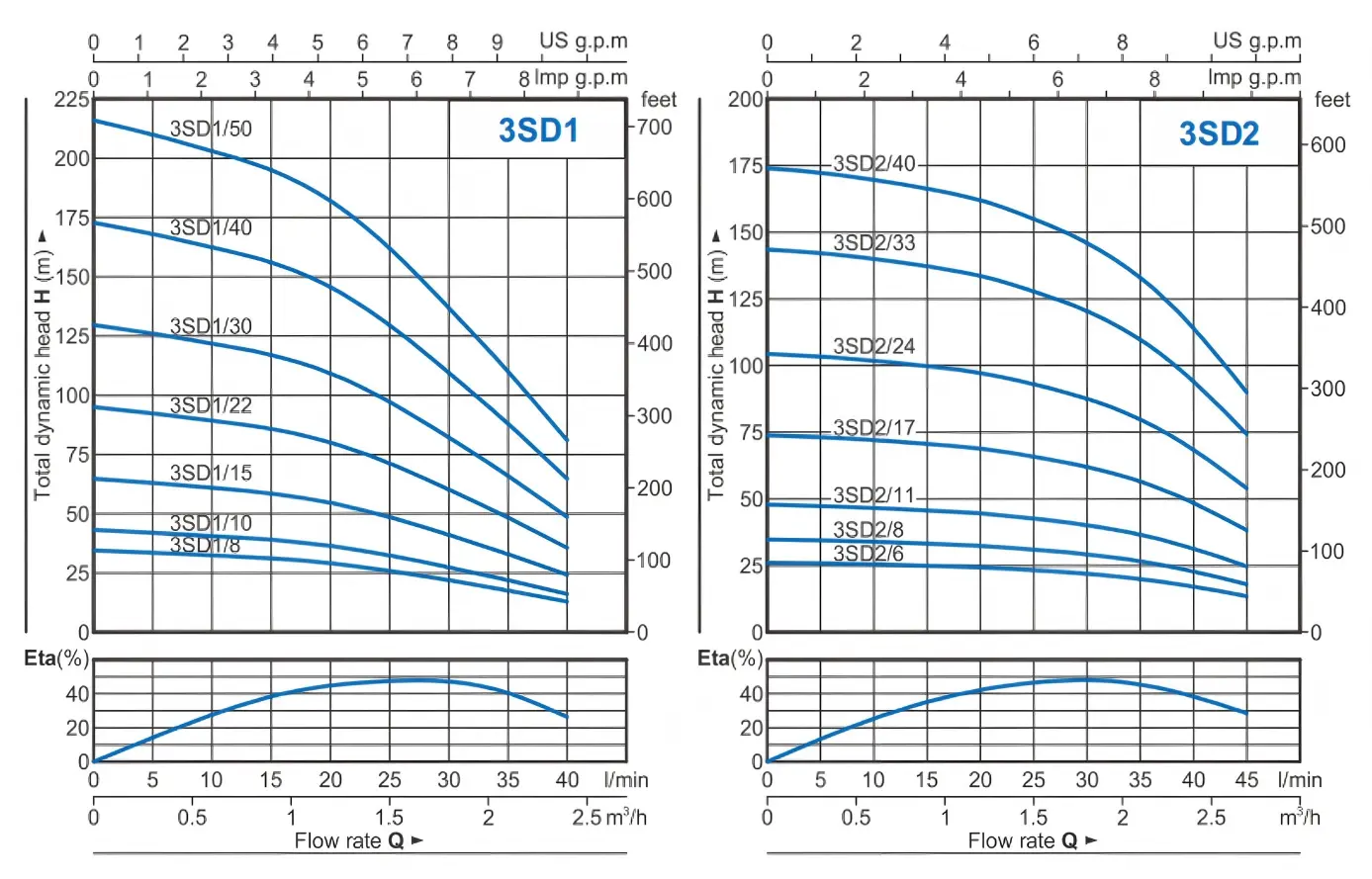

Performance Data

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40
3SDM1/8	3SD1/8	0.18	0.25	H(m)		35	34	32	31	29	26	22	18	13
3SDM1/10	3SD1/10	0.25	0.33			43	42	41	39	36	32	27	22	16
3SDM1/15	3SD1/15	0.37	0.5			65	63	61	59	55	49	41	33	24
3SDM1/22	3SD1/22	0.55	0.75			95	92	89	86	80	71	60	48	36
3SDM1/30	3SD1/30	0.75	1			130	126	122	117	109	97	82	66	49
3SDM1/40	3SD1/40	1.1	1.5			173	168	162	156	146	130	110	88	65
3SDM1/50	3SD1/50	1.5	2			216	210	203	195	182	162	137	110	81

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45
3SDM2/6	3SD2/6	0.18	0.25	H(m)		26	26	25	25	24	23	22	20	17	13
3SDM2/8	3SD2/8	0.25	0.33			35	34	34	33	32	31	29	27	23	18
3SDM2/11	3SD2/11	0.37	0.5			48	47	47	46	45	43	40	37	31	25
3SDM2/17	3SD2/17	0.55	0.75			74	73	72	71	69	66	62	57	48	38
3SDM2/24	3SD2/24	0.75	1			104	103	102	100	97	93	88	80	68	54
3SDM2/33	3SD2/33	1.1	1.5			144	142	140	137	134	128	120	110	94	74
3SDM2/40	3SD2/40	1.5	2			174	172	170	166	162	155	146	133	114	90
