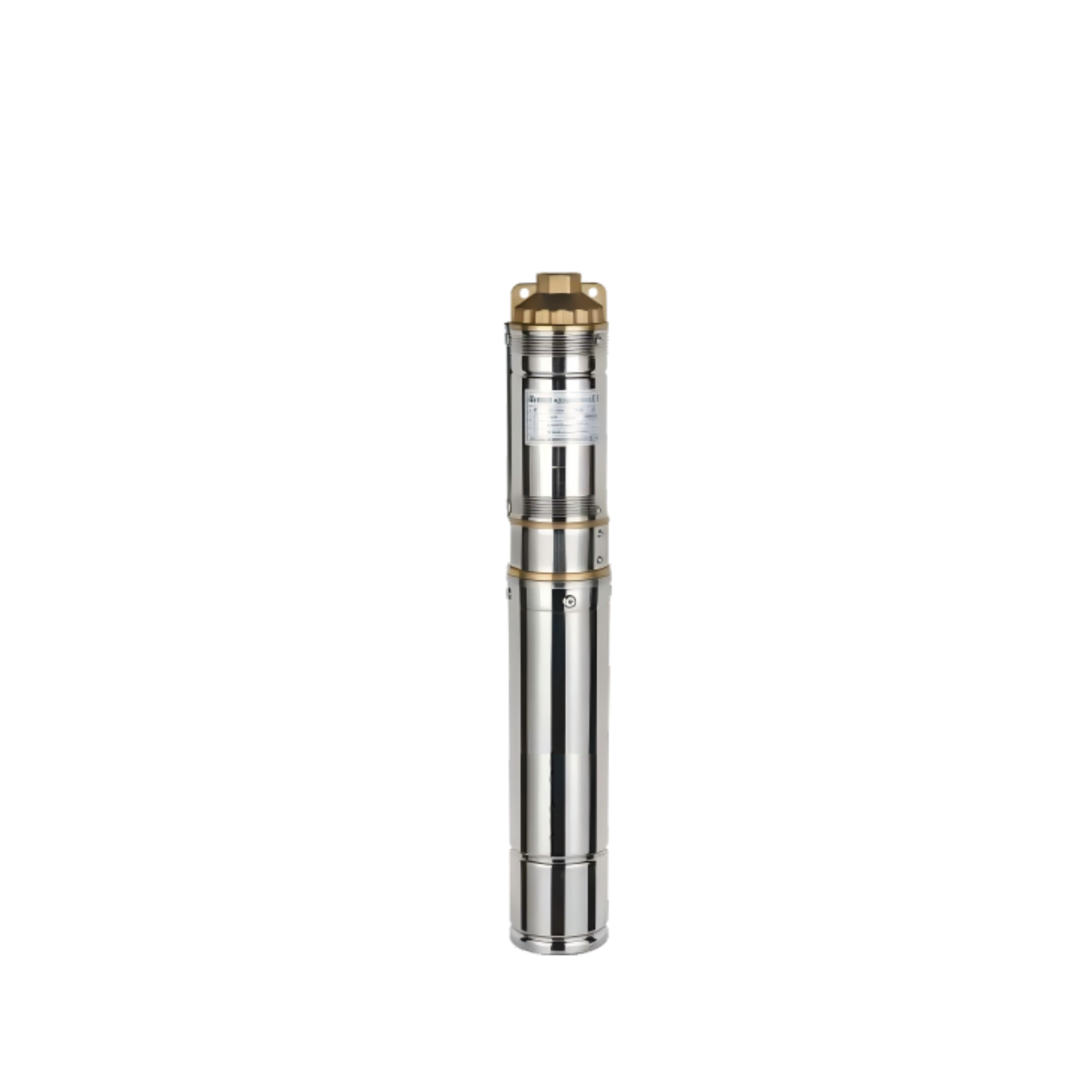

AC Deep well pump 4QGD series

Name: AC Deep well pump 4QGD series
Brand: YINJIA
Rating: 5.0 (68 reviews)


Availability:

Inquire Add to Basket

Model:
4QGD series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

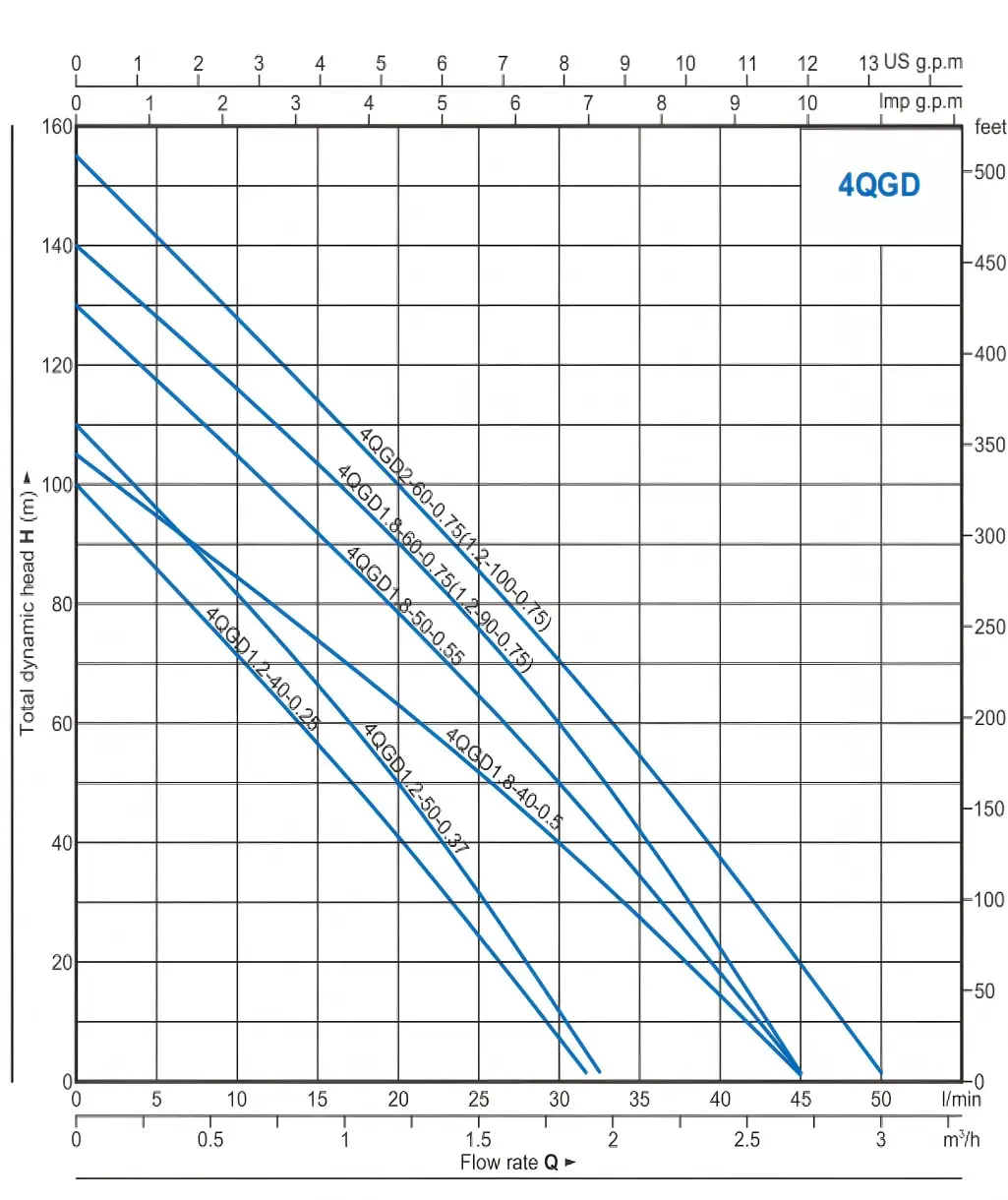

Performance Data

MODEL	P₂		Max.Flow		Max.Head	Voltage	Max.Dia	Outlet	Length
MODEL	kW	HP	l/min	m³/h	(m)	(V)	(mm)	(Inch)	(mm)
4QGD1.2-40-0.25	0.25	0.33	32	1.9	100	220	96(102)	1	515(523)
4QGD1.2-50-0.37	0.37	0.5	32	1.9	110			1	525(533)
4QGD1.8-40-0.5	0.5	0.7	45	2.7	105			1	539(547)
4QGD1.8-50-0.55	0.55	0.75	45	2.7	130			1	568(576)
4QGD1.8-60-0.75	0.75	1	45	2.7	140			1	583
4QGD1.2-90-0.75	0.75	1	45	2.7	140			1	583
4QGD2-60-0.75	0.75	1	48	2.9	155			1	608
4QGD1.2-100-0.75	0.75	1	48	2.9	155			1	608

1	Pump Cover
2	Bolt
3	Pull ring
4	Outlet
5	Sand proof sleeve
6	Screw sleeve
7	Screw
8	Coupling
9	Fixed splint
10	Inlet section
11	Cable
12	Cable sheath
13	Screw
14	Cable clamp
15	Grease screw
16	"O"-ring
17	Framework oil seal
18	Oil chamber
19	Screw
20	Locking ring
21	Screw
22	"O"Ring
23	Mechanical seal
24	Gasket
25	Bearing
26	Rotor
27	Bearing
28	Insulation paper
29	Stator
30	Down bearing seat
31	Motor pipe
32	Oil
33	Capacitor
34	wiring cap
35	Rubber cup
36	End cover
37	Clamping spring
