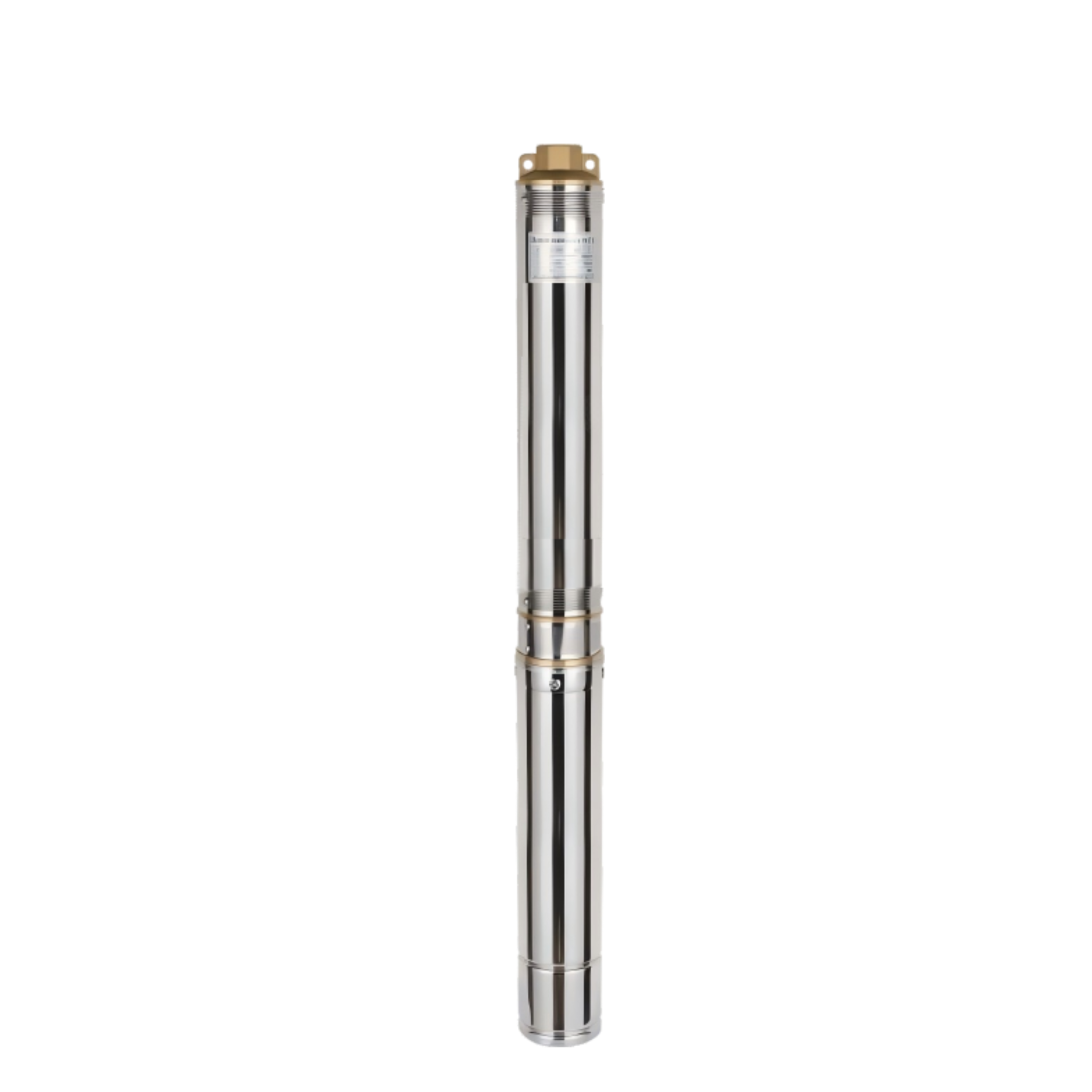

AC Deep well pump 4SD series

Name: AC Deep well pump 4SD series
Brand: YINJIA
Rating: 5.0 (51 reviews)


Availability:

Inquire Add to Basket

Model:
4SD series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

Performance Data

Model	Q.max	Capacity arrange	Total head arrange
4SD2	4	0.6~3	428~18
4SD3	5.3	1.2~4.2	430~12
4SD4	6.5	1.2~5.4	407~13
4SD6	9.5	2.4~7.2	335~13
4SD8	12	2.4~9.6	249~13
4SD10	14	3.6~10.8	202~12
4SD12	17.5	3.6~14.4	180~9
4SD16	24	6~18	130~9

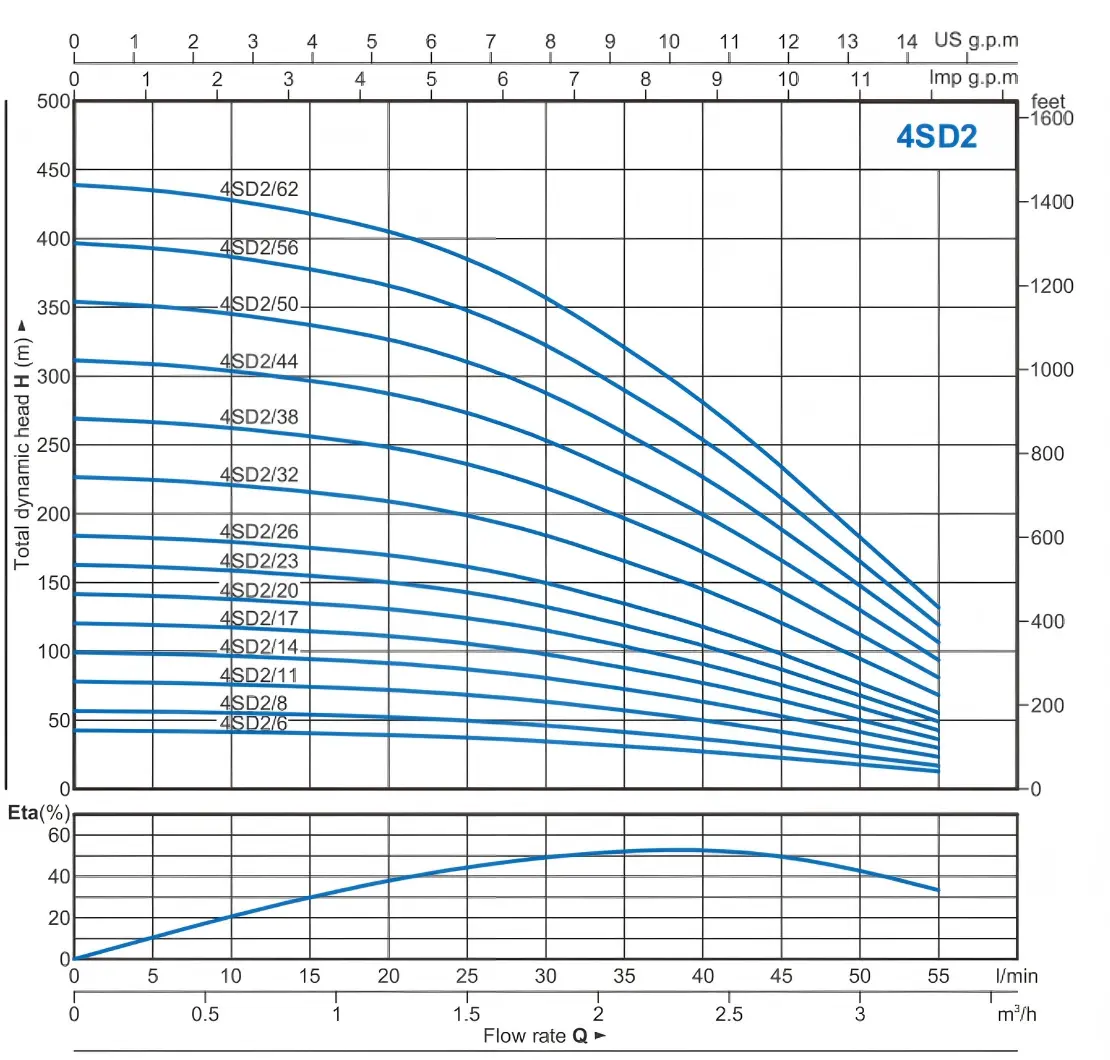

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	5	10	15	20	25	30	35	40	45	50	55
4SDM2/6	4SD2/6	0.25	0.33	H(m)		42	42	41	40	39	37	35	31	27	23	18	13
4SDM2/8	4SD2/8	0.37	0.5			57	56	55	54	52	50	46	41	36	30	24	17
4SDM2/11	4SD2/11	0.55	0.75			78	77	76	74	72	68	63	57	50	42	32	23
4SDM2/14	4SD2/14	0.75	1			99	98	97	94	91	87	81	72	63	53	41	30
4SDM2/17	4SD2/17	0.92	1.25			120	119	117	115	111	106	98	88	77	64	50	36
4SDM2/20	4SD2/20	1.1	1.5			142	140	138	135	131	124	115	104	91	75	59	43
4SDM2/23	4SD2/23	1.3	1.75			163	161	159	155	150	143	132	119	104	87	68	49
4SDM2/26	4SD2/26	1.5	2			184	182	179	175	170	161	150	135	118	98	77	55
4SDM2/32	4SD2/32	1.8	2.5			227	225	221	216	209	199	184	166	145	121	94	68
4SDM2/38	4SD2/38	2.2	3			269	267	262	256	248	236	219	197	172	143	112	81
4SDM2/44	4SD2/44	2.6	3.5			312	309	304	297	287	273	253	228	199	166	130	94
-	4SD2/50	3	4			354	351	345	337	327	310	288	259	227	189	148	106
-	4SD2/56	3.7	5			397	393	387	378	366	348	322	290	254	211	165	119
-	4SD2/62	4	5.5			439	435	428	418	405	385	357	321	281	234	183	132
