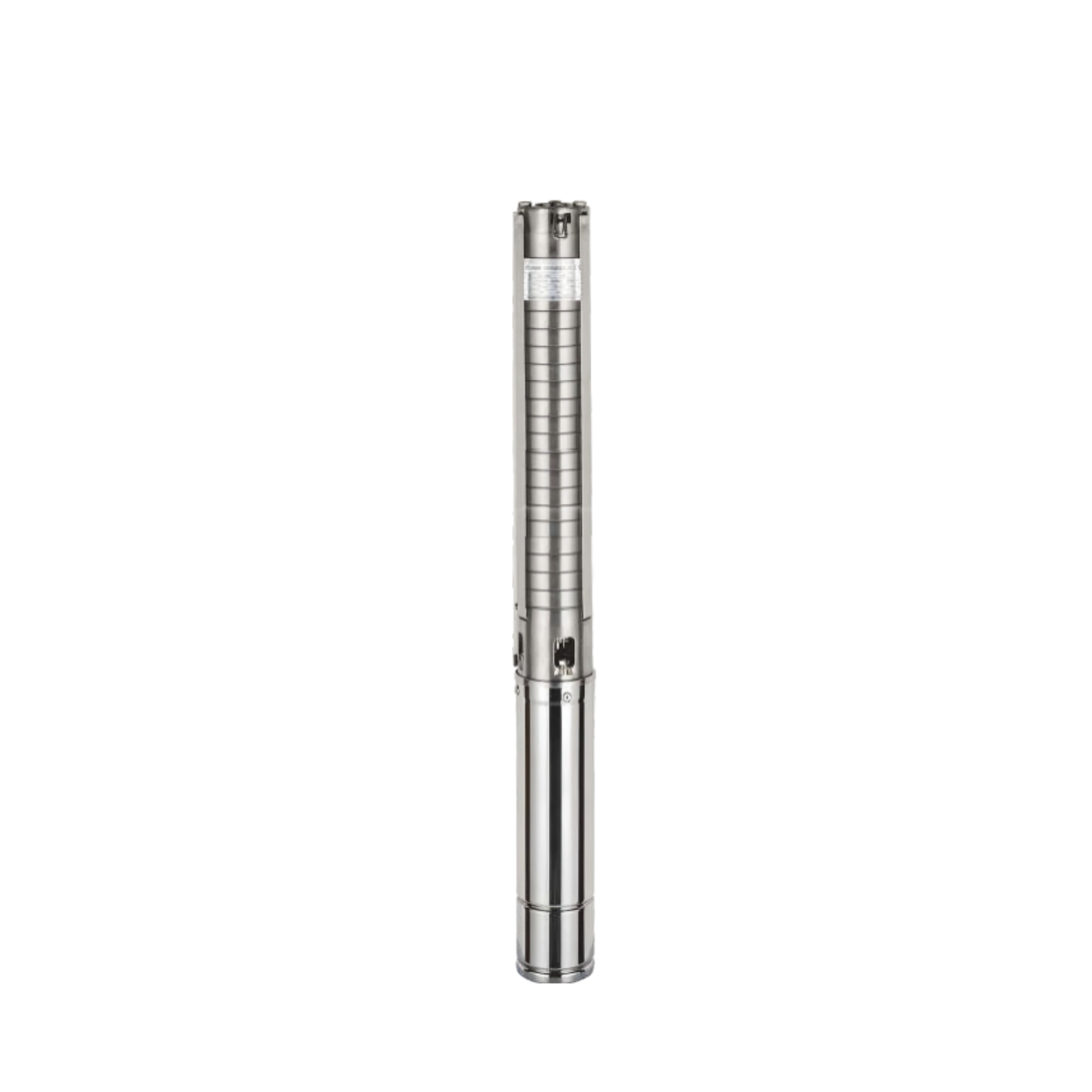

AC Deep well pump 4SP series

Name: AC Deep well pump 4SP series
Brand: YINJIA
Rating: 5.0 (26 reviews)


Availability:

Inquire Add to Basket

Model:
4SP series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

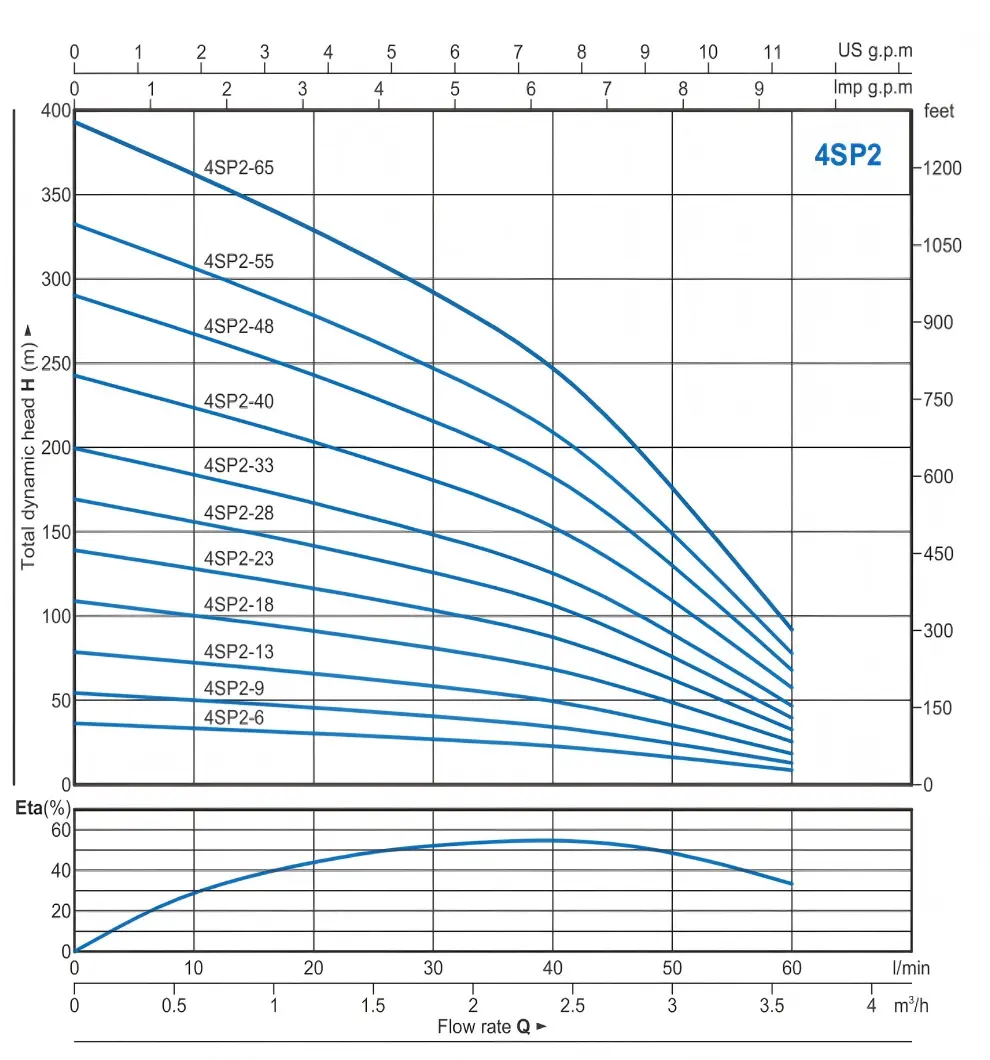

Performance Data

Model	Q.max	Capacity arrange	Total head arrange
4SP2	4	0.6~3	362~16
4SP3	5	1.2~4.2	334~14
4SP5	7.5	1.2~6	347~12
4SP8	12.5	2.4~9.6	250~11
4SP14	20	3.6~16.2	154~10

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	0.6	1.2	1.8	2.4	3	3.6
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	10	20	30	40	50	60
4SPM2-6	4SP2-6	0.37	0.5	H(m)		36	33	30	27	23	16	8
4SPM2-9	4SP2-9	0.37	0.5			54	50	46	40	34	24	13
4SPM2-13	4SP2-13	0.55	0.75			79	72	66	58	49	35	18
4SPM2-18	4SP2-18	0.75	1			109	100	91	81	68	49	25
4SPM2-23	4SP2-23	1.1	1.5			139	128	116	103	87	62	33
4SPM2-28	4SP2-28	1.3	1.75			169	156	142	126	106	76	40
4SPM2-33	4SP2-33	1.5	2			200	184	167	148	125	89	47
4SPM2-40	4SP2-40	1.8	2.5			242	223	202	180	152	108	57
4SPM2-48	4SP2-48	2.2	3			290	267	243	216	182	130	68
4SPM2-55	4SP2-55	2.6	3.5			333	306	278	247	209	149	78
-	4SP2-65	3	4			393	362	329	292	247	176	92
