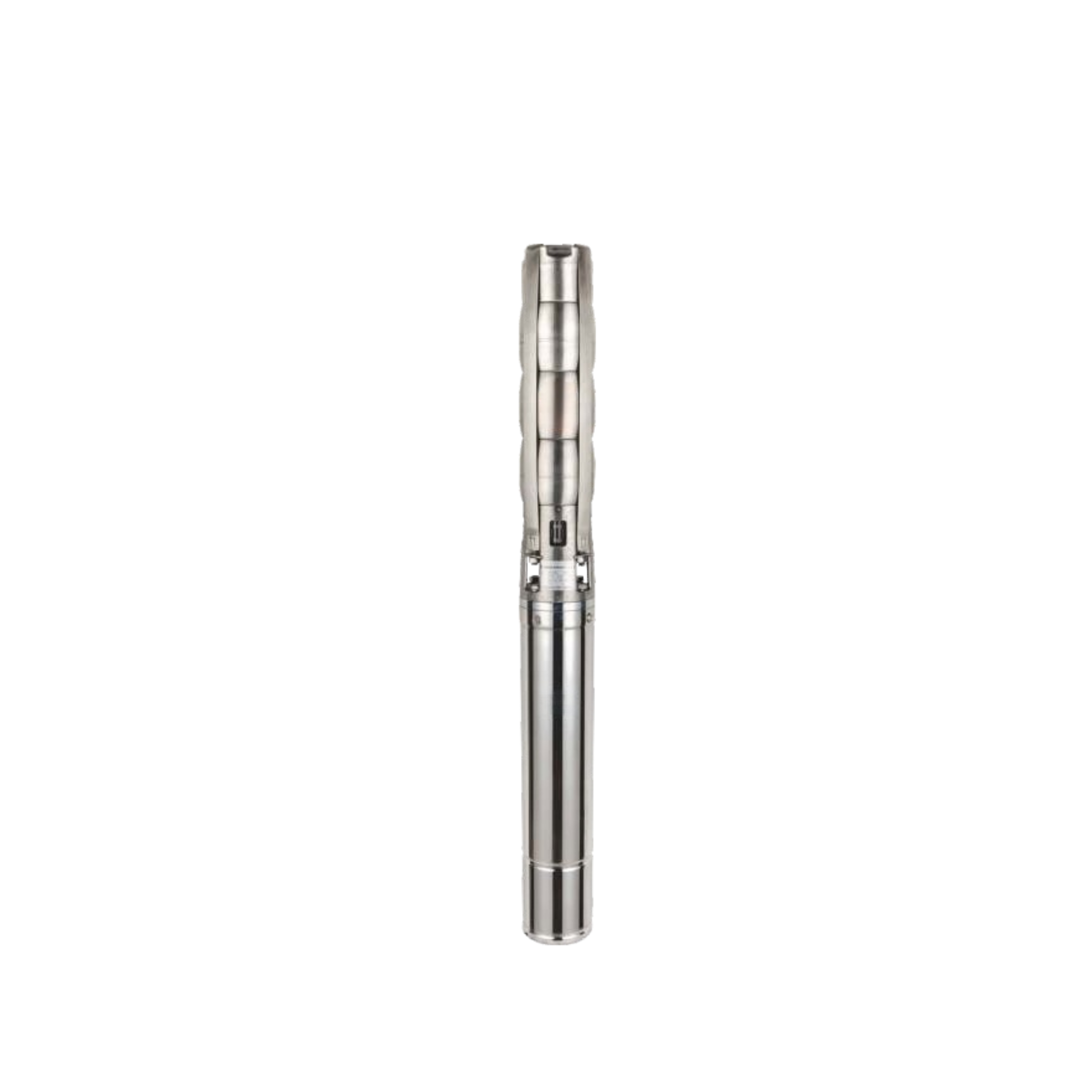

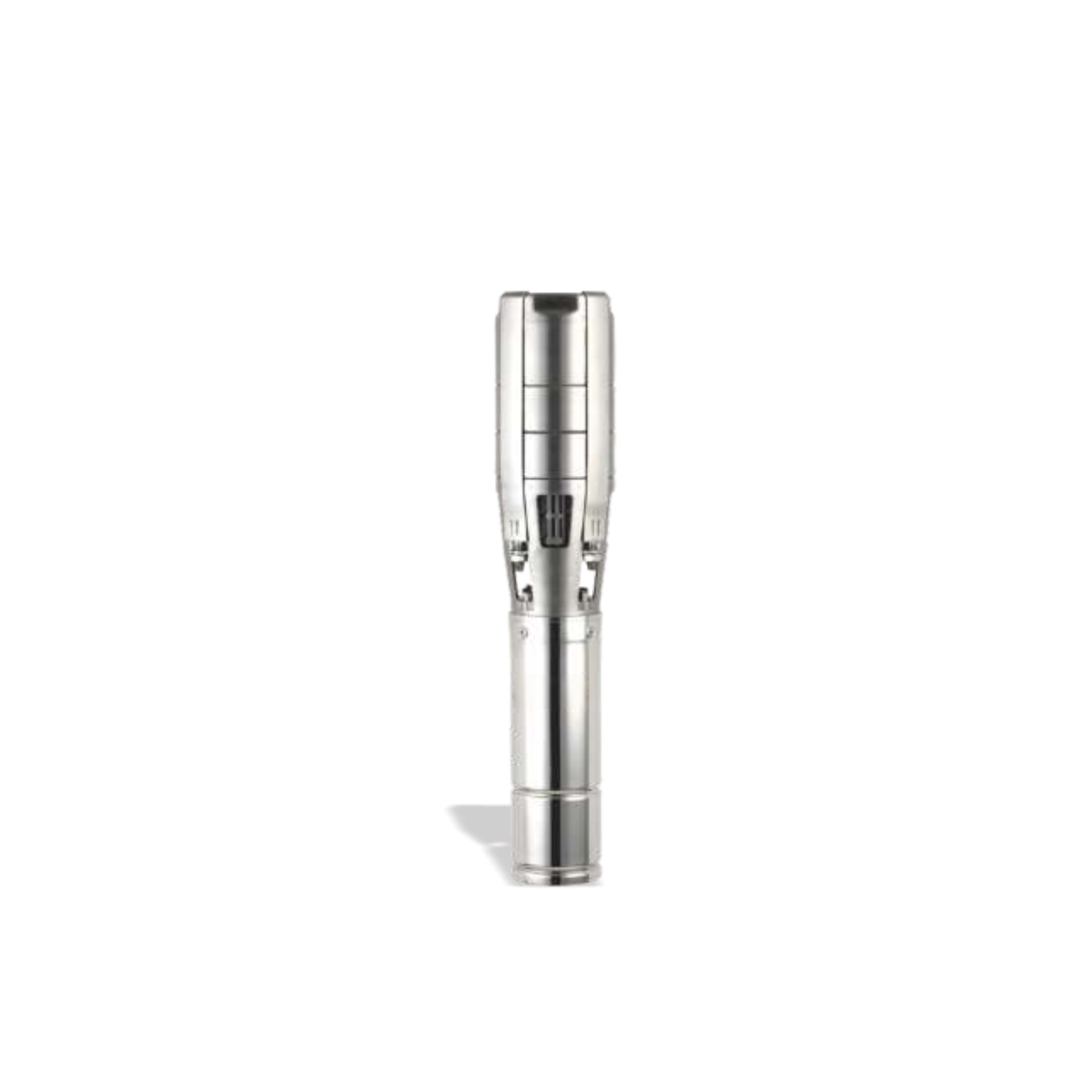

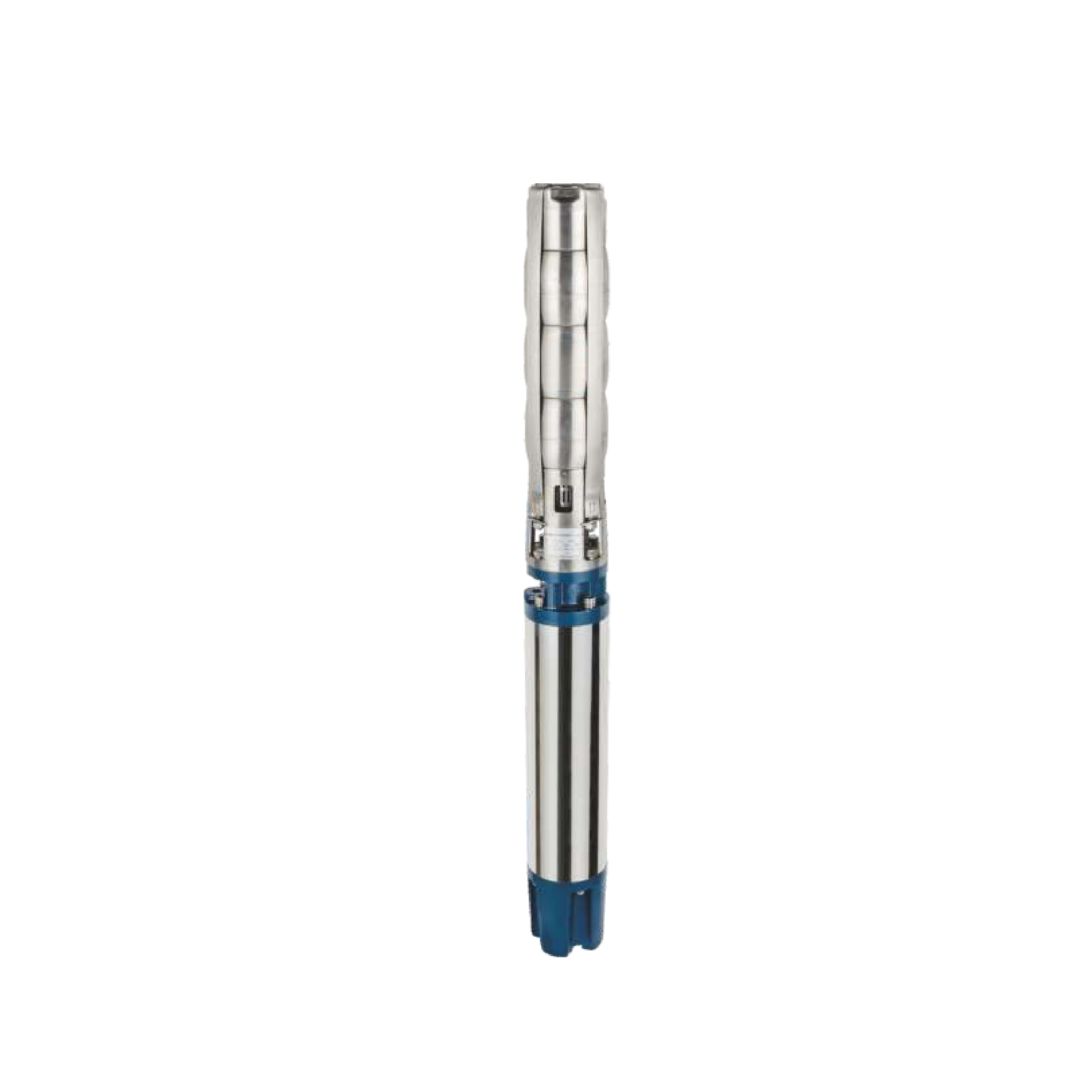

AC Deep well pump 6SP series

Name: AC Deep well pump 6SP series
Brand: YINJIA
Rating: 5.0 (43 reviews)


Availability:

Inquire Add to Basket

Model:
6SP series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

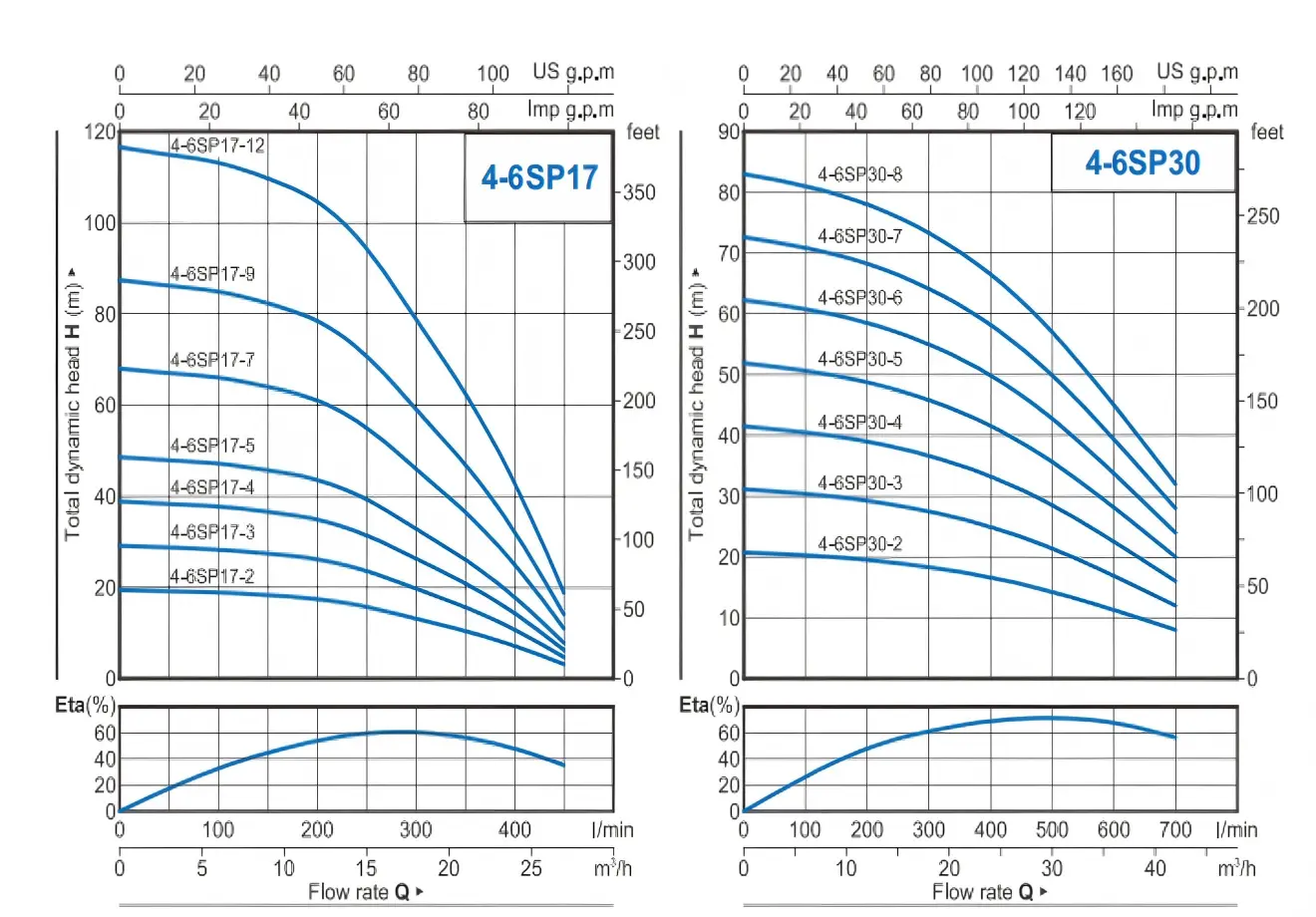

Performance Data

Model	Q.max	Capacity arrange	Total head arrange
6SP17	30	6~24	453~19
6SP30	52	12~36	298~13
6SP46	75	18~54	248~14
6SP60	82	18~66	214~6
8SP77	115	24~84	387~22
8SP95	125	36~108	302~15

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18	21	24	27
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350	400	450
4-6SPM17-2	4-6SP17-2	1.1	1.5	H(m)		19	19	19	18	17	16	13	10	7	3
4-6SPM17-3	4-6SP17-3	1.5	2			29	29	28	27	26	24	20	16	11	5
4-6SPM17-4	4-6SP17-4	2.2	3			39	38	38	37	35	31	26	21	14	6
-	4-6SP17-5	3	4			49	48	47	46	44	39	33	26	18	8
-	4-6SP17-7	4	5.5			68	67	66	64	61	55	46	37	25	11
-	4-6SP17-9	5.5	7.5			87	86	85	82	78	71	59	47	32	14
-	4-6SP17-12	7.5	10			117	115	113	110	105	94	79	63	43	19

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	6	12	18	24	30	36	42
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700
4-6SPM30-2	4-6SP30-2	2.2	3	H(m)		21	20	20	18	17	14	11	8
-	4-6SP30-3	3	4			31	30	29	27	25	21	17	12
-	4-6SP30-4	4	5.5			42	41	39	37	33	29	23	16
-	4-6SP30-5	5	7			52	51	49	46	42	36	28	20
-	4-6SP30-6	5.5	7.5			62	61	59	55	50	43	34	24
-	4-6SP30-7	7.5	10			73	71	68	64	58	50	39	28
-	4-6SP30-8	7.5	10			83	81	78	73	67	57	45	32
