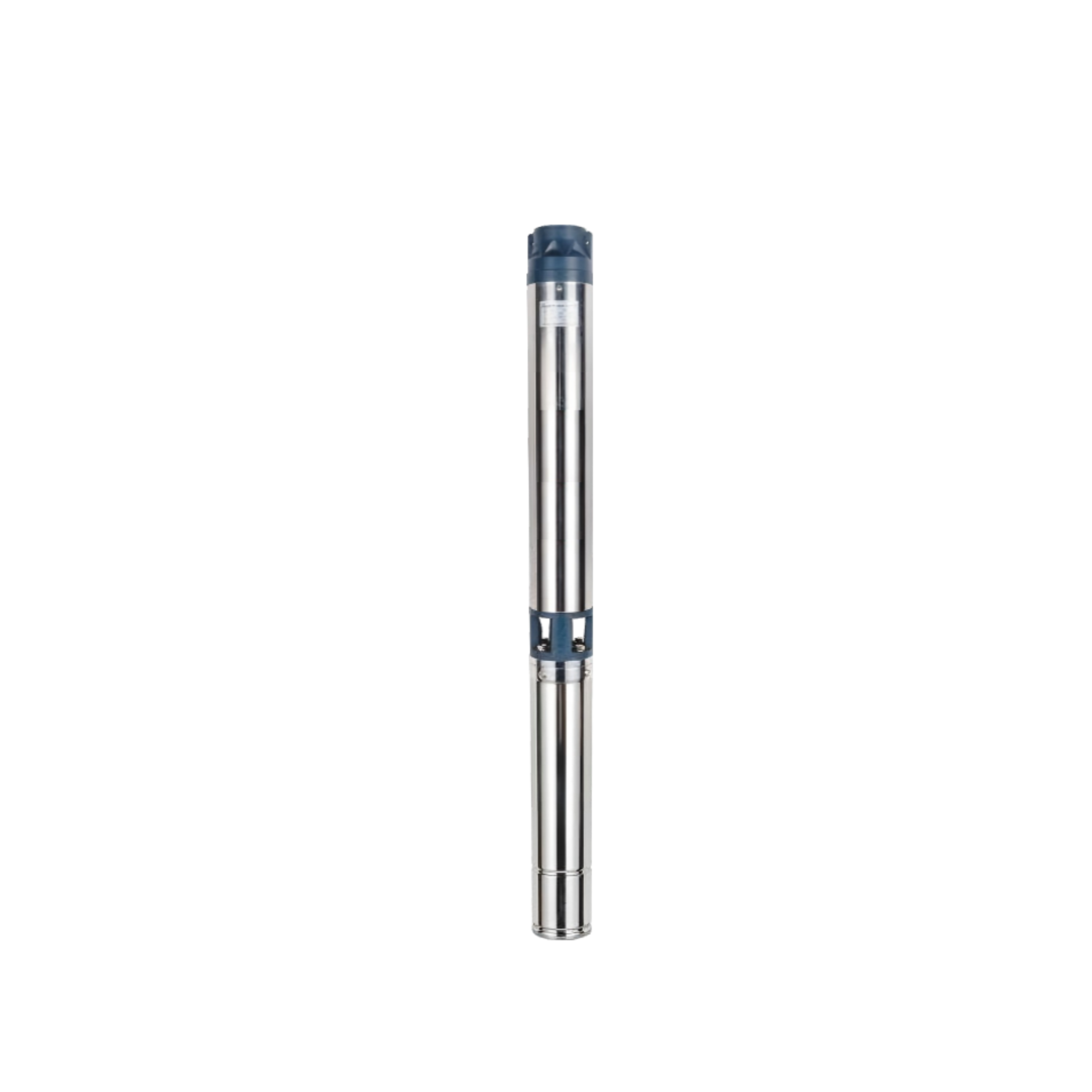

AC Deep well pump 6SR series

Name: AC Deep well pump 6SR series
Brand: YINJIA
Rating: 5.0 (77 reviews)


Availability:

Inquire Add to Basket

Model:
6SR series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

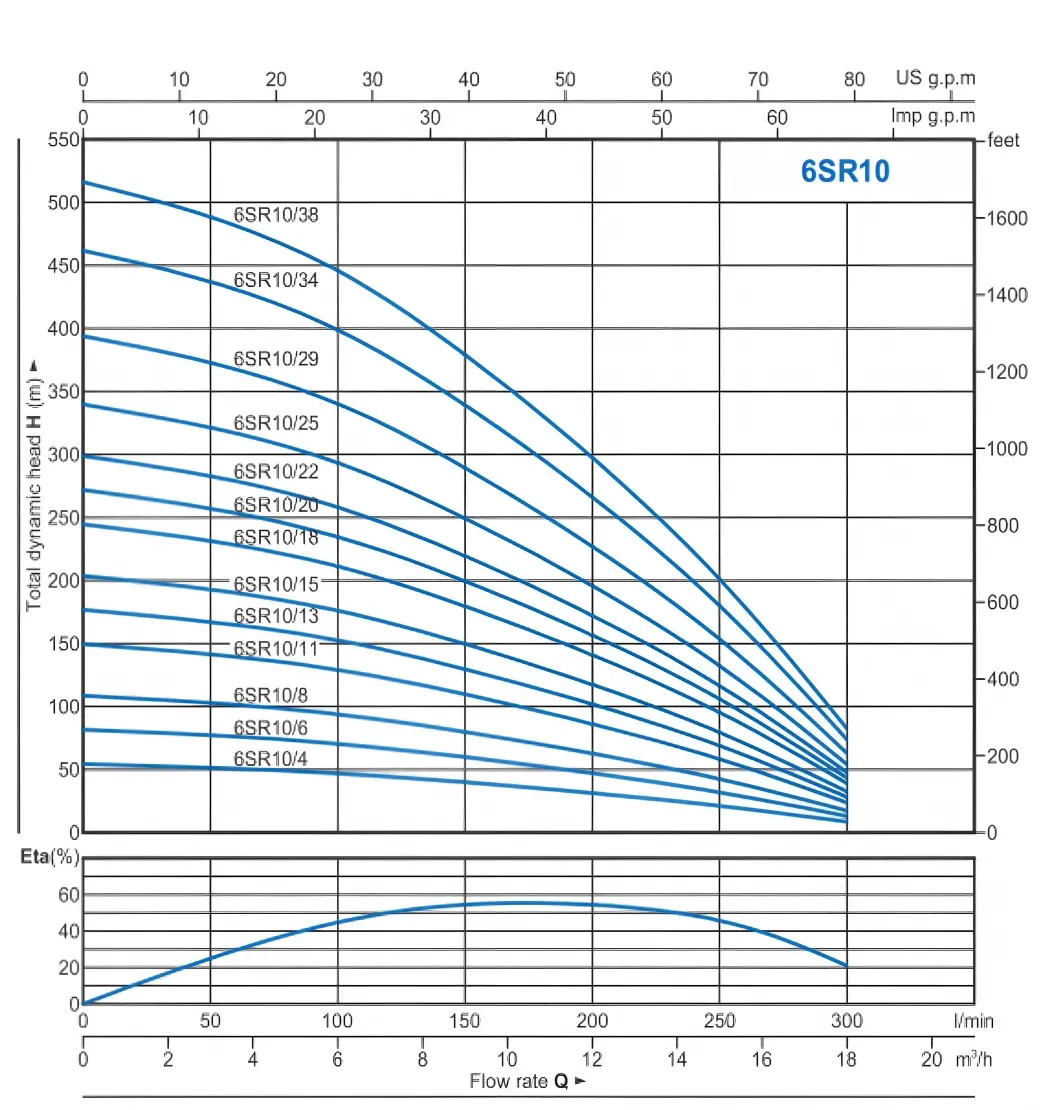

Performance Data

Model	Q.max	Capacity arrange	Total head arrange
6SR10	19	6~15	446~21
6SR18	31	6~24	436~22
6SR30	44	10~35	373~15
6SR45	70	12~54	197~11
6SR60	76	12~66	163~3

MODEL		P₂		DELIVERY		n≈2850 1/min
1~ 220V-240V	3~ 380-415V	kW	HP	Q	m³/h	0	3	6	9	12	15	18
1~ 220V-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300
6SRM10/4	6SR10/4	2.2	3	H(m)		54	51	47	40	31	21	9
6SRM10/6	6SR10/6	3	4			82	77	70	60	47	32	13
6SRM10/8	6SR10/8	4	5.5			109	103	94	80	63	42	17
6SRM10/11	6SR10/11	5.5	7.5			149	141	129	110	86	58	24
-	6SR10/13	7.5	10			177	167	153	130	102	69	28
-	6SR10/15	7.5	10			204	193	176	150	117	79	33
-	6SR10/18	9.2	12.5			245	231	211	180	141	95	39
-	6SR10/20	11	15			272	257	235	200	157	106	43
-	6SR10/22	11	15			299	283	258	219	172	116	48
-	6SR10/25	13	17.5			340	321	293	249	196	132	54
-	6SR10/29	15	20			394	373	340	289	227	153	63
-	6SR10/34	18.5	25			462	437	399	339	266	180	74
-	6SR10/38	18.5	25			516	488	446	379	298	201	82
