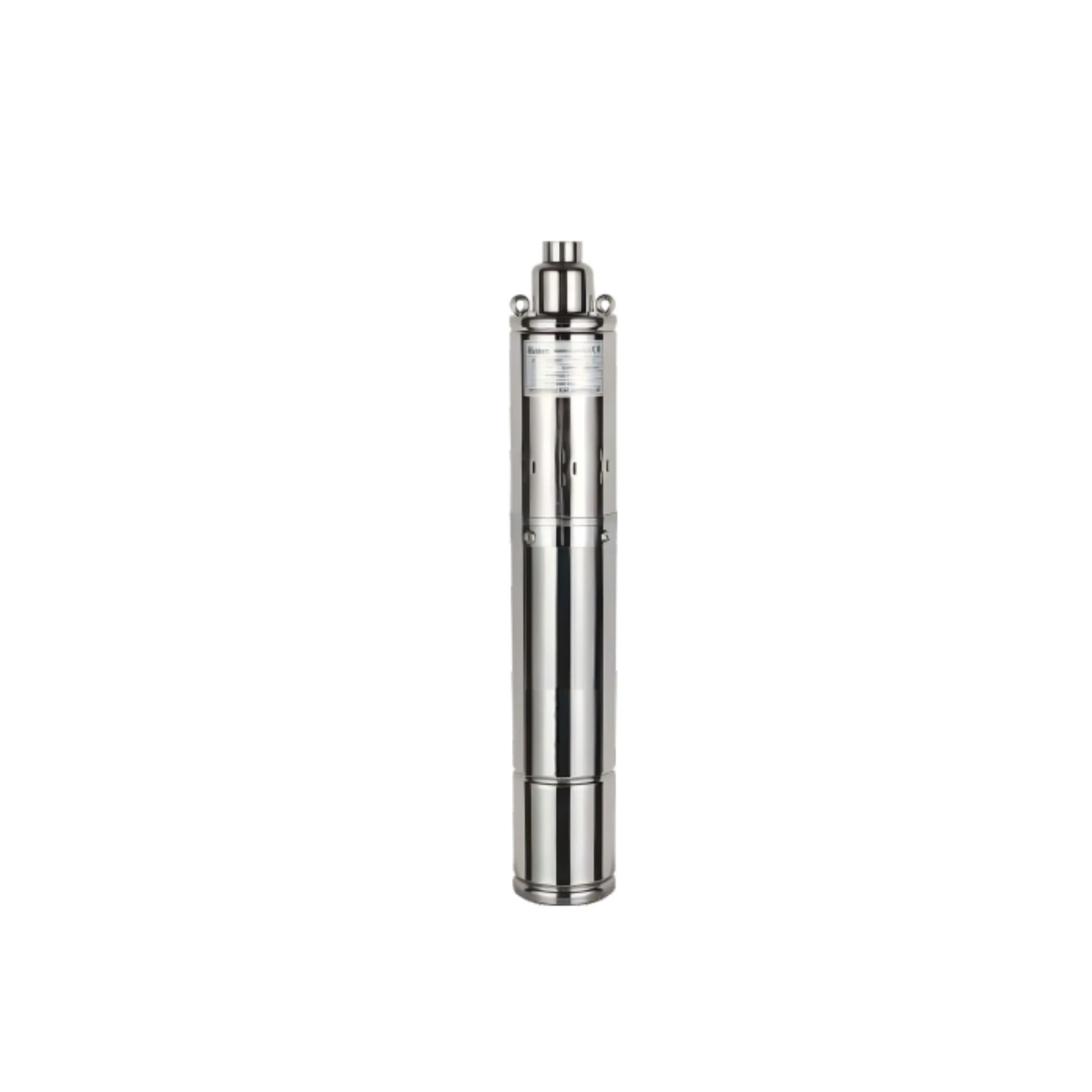

AC Deep well pump QGD series

Name: AC Deep well pump QGD series
Brand: YINJIA
Rating: 5.0 (49 reviews)


Availability:

Inquire Add to Basket

Model:
QGD series
Brand:
YINJIA

YINJIA AC deep well pumps are designed to deliver stable and efficient water supply from deep wells under a wide range of working conditions. Featuring durable materials, reliable motors, and excellent hydraulic performance, they are suitable for residential water supply, agricultural irrigation, pressure boosting, and industrial applications. The pumps offer consistent operation, a long service life, and easy maintenance for dependable daily use.

deep well pump AC deep well pump Water Pump borehole pump

Product Description

Application

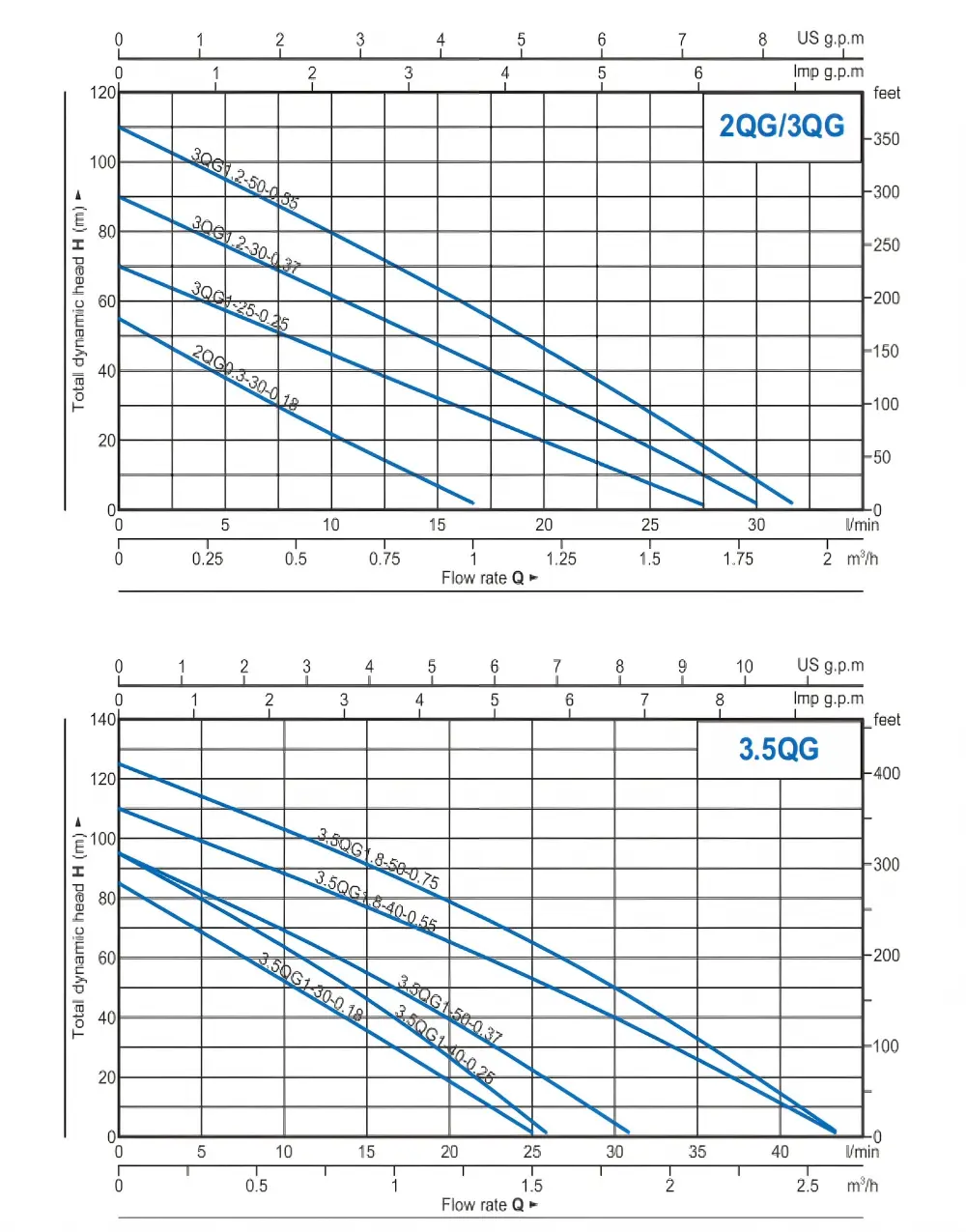

Performance Data

MODEL	P₂		Max.Flow		Max.Head	Voltage	Max.Dia	Outlet	Length
MODEL	kW	HP	l/min	m³/h	(m)	(V)	(mm)	(Inch)	(mm)
2QGD0.3-30-0.18	0.18	0.25	17	1	55	220	52	½	633
3QGD1-25-0.25	0.25	0.33	28	1.7	70		76	1	577
3QGD1.2-30-0.37	0.37	0.5	30	1.8	90			1	607
3QGD1.2-50-0.55	0.55	0.75	32	1.9	110			1	647
3.5QGD1-30-0.18	0.18	0.25	25	1.5	85		90	1	512
3.5QGD1-40-0.25	0.25	0.33	25	1.5	95			1	522
3.5QGD1-50-0.37	0.37	0.5	30	1.8	95			1	532
3.5QGD1.8-40-0.55	0.55	0.75	43	2.6	110			1	571
3.5QGD1.8-50-0.75	0.75	1	43	2.6	125			1	596
