Design long-distance transfer using elevation, friction, pressure limits, staged pumping, surge control and energy cost. Map source, destination, high points, low points and seasonal water levels before sizing. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For utilities, agricultural projects and contractors, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Map source, destination, high points, low points and seasonal water levels before sizing. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
Compare pipe diameters and include fittings, valves, filters, roughness and future flow growth. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal pump long distance water transfer, begin by turning “calculate friction” into a measurable requirement. Compare pipe diameters and include fittings, valves, filters, roughness and future flow growth. Record the source condition, required result, measurement method and acceptable tolerance. This prevents utilities, agricultural projects and contractors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “calculate friction,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - long-distance transfer, reduces specification disputes and creates a useful commissioning baseline.
Review normal, shutoff and transient pressure at every low point and across all pipe and valves. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.

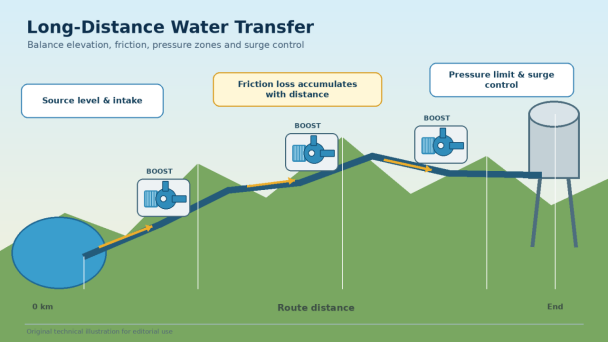

One high-head pump, series pumps or intermediate stations have different pressure, control and maintenance tradeoffs. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Use engineered valve timing, check valves, surge protection and air-release or vacuum valves. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal pump long distance water transfer, begin by turning “manage surge and air” into a measurable requirement. Use engineered valve timing, check valves, surge protection and air-release or vacuum valves. Record the source condition, required result, measurement method and acceptable tolerance. This prevents utilities, agricultural projects and contractors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “manage surge and air,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - long-distance transfer, reduces specification disputes and creates a useful commissioning baseline.
Monitor source level, pressure and flow and protect against dry running, pipe breaks and unsafe automatic restart. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Balance pump efficiency, pipe cost, electricity, leakage, spares and access along the route. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example A route must move 80 m³/h over 4 km with 35 m static lift. A smaller pipe produces 42 m friction while a larger pipe produces 21 m. TDH is therefore about 77 m versus 56 m before other losses. Compare the higher pipe cost with pump power, energy, surge pressure and future capacity over the project life. |
A reliable decision should be supported by a labeled cutaway or flow-path diagram, a transparent TDH calculation, and a comparison at the same duty point. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal pump long distance water transfer into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Surveying only source and destination and missing intermediate high or low points.
· Choosing pipe from connection size or lowest initial cost.
· Ignoring surge, air valves and check-valve behavior until commissioning.

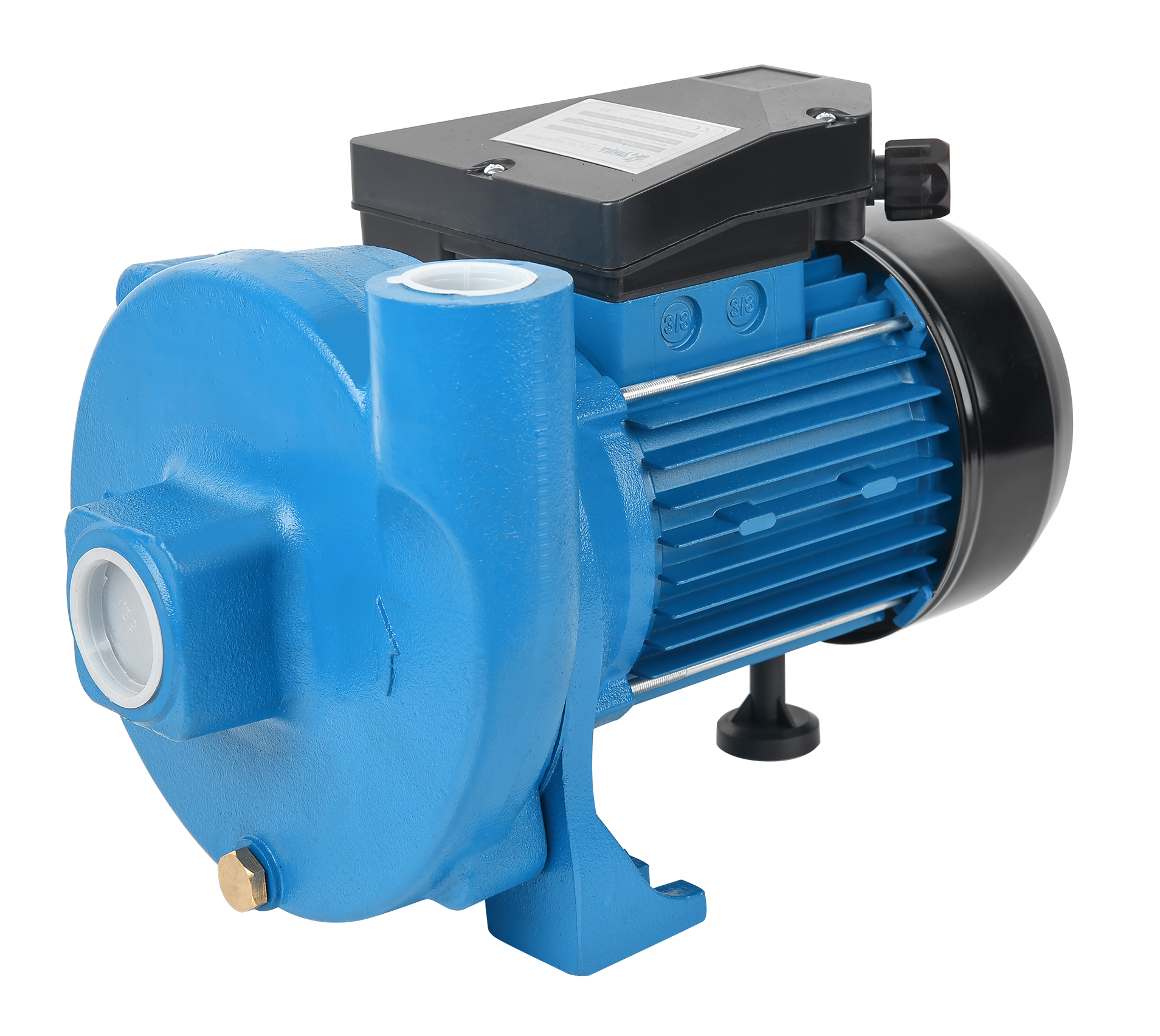

YINJIA lists long-distance water transfer among centrifugal-pump applications. DK emphasizes high flow and CM covers higher industrial flow and head, while multistage and diesel-driven categories may suit other site conditions. Send YINJIA the route profile, design flow, pipe data, source conditions and electrical supply for curve-based review. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant DK high-flow, CM industrial, multistage or diesel categories depending on duty rather than selecting from a family name alone. |
The practical lesson from centrifugal water pumps for long-distance water transfer is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For utilities, agricultural projects and contractors, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Add static level difference, route friction, equipment loss and required destination pressure.
Compare pressure class, power, land, access, controls, surge and maintenance.
Air can collect at high points and vacuum can develop during draining or transients.
Yes. Lower friction reduces head, but capital cost must be compared.
Route profile, flow, pipe data, source conditions, destination pressure and electrical supply.
