Troubleshoot low flow and pressure by checking priming, rotation, suction leaks, blockages, system head and wear. Measure flow and pressure and compare them with the curve, commissioning data and current system demand. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For service technicians, operators and installers, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.

Confirm the expected duty

Measure flow and pressure and compare them with the curve, commissioning data and current system demand. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.

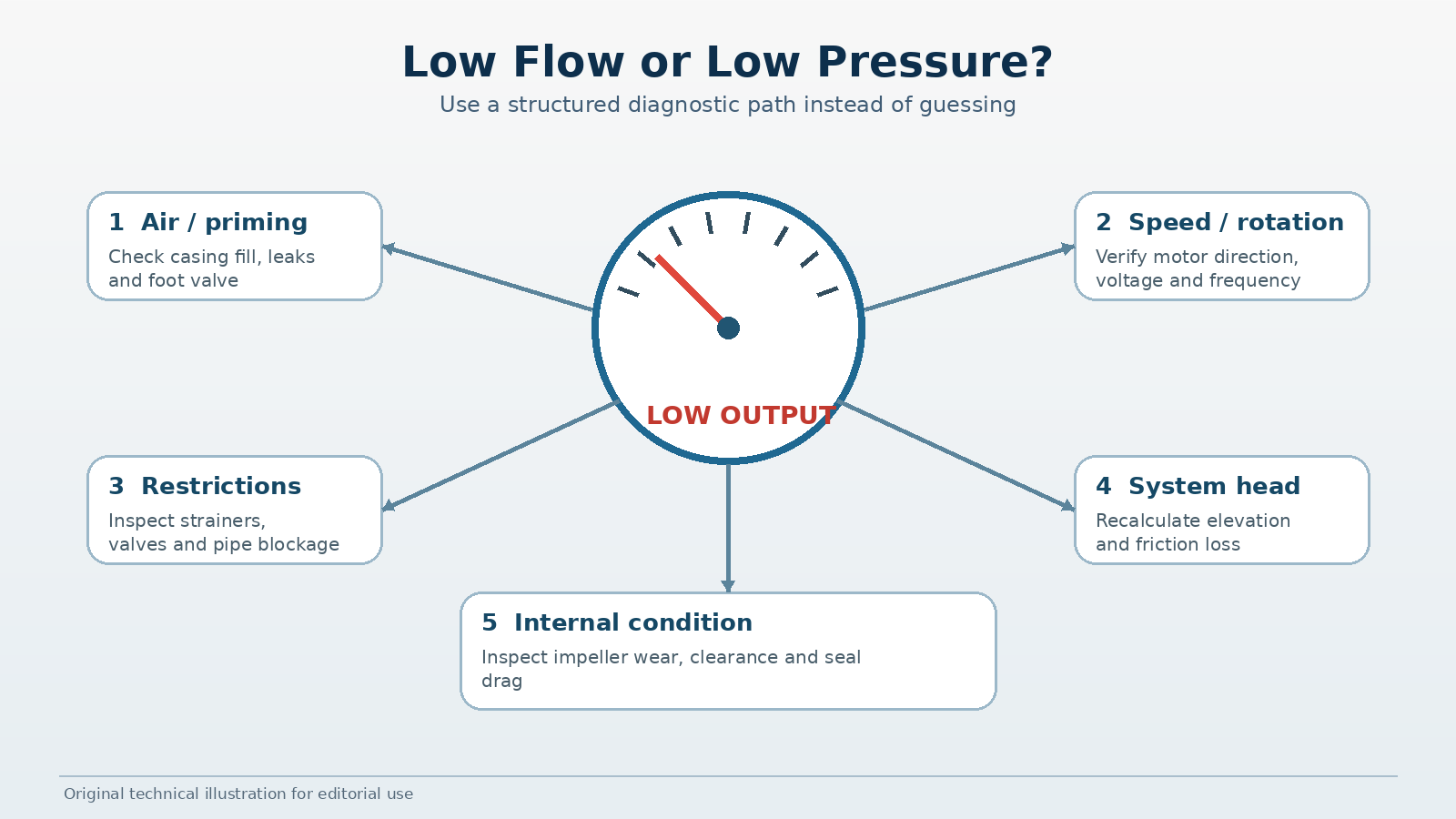

Check air and priming

Inspect suction joints, plugs, gaskets, foot valve, source level and any visible bubbles. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.

Follow the energy path through the pump

For centrifugal pump low flow low pressure, begin by turning “check air and priming” into a measurable requirement. Inspect suction joints, plugs, gaskets, foot valve, source level and any visible bubbles. Record the source condition, required result, measurement method and acceptable tolerance. This prevents service technicians, operators and installers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.

Connect each component to system performance

Validation should use evidence that another reviewer can reproduce. For “check air and priming,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to troubleshooting and reliability, reduces specification disputes and creates a useful commissioning baseline.

Verify rotation and speed

Wrong three-phase rotation, low voltage, low frequency or an incorrect VFD setting can sharply reduce head. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.

Find restrictions

Dirty strainers, collapsed hoses, partly closed valves, clogged filters and small pipes move the duty to lower flow. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.

Recalculate system head

Additional outlets, longer pipes or higher destination pressure may exceed the original pump selection. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.

Separate every head component

For centrifugal pump low flow low pressure, begin by turning “recalculate system head” into a measurable requirement. Additional outlets, longer pipes or higher destination pressure may exceed the original pump selection. Record the source condition, required result, measurement method and acceptable tolerance. This prevents service technicians, operators and installers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.

Check the worst operating condition

Validation should use evidence that another reviewer can reproduce. For “recalculate system head,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to troubleshooting and reliability, reduces specification disputes and creates a useful commissioning baseline.

Inspect internal wear

A worn, blocked or damaged impeller and increased clearances can reduce shutoff head and capacity. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.

Troubleshoot systematically

Record suction pressure, discharge pressure, motor current and flow, changing one condition at a time. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.

Worked Example

Technical Evidence and Field Validation

A reliable decision should be supported by a labeled cutaway or flow-path diagram, a transparent TDH calculation, and before-and-after measurements. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.

Field validation turns the initial recommendation for centrifugal pump low flow low pressure into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.

An application record from troubleshooting and reliability is most useful when it documents the source condition, required duty, selected model, commissioning readings and final outcome. Preserve the engineering assumptions and units while removing confidential customer details. Compare measured results with the original calculation, explain any variance and record the corrective action. This creates a repeatable selection method for distributors, contractors and operators instead of relying on general pump advice.

Common Mistakes to Avoid

· Replacing the pump before measuring flow, pressure, voltage and current.

· Opening the casing before checking valves, rotation, priming and strainers.

· Using one pressure reading without knowing flow and gauge elevation.

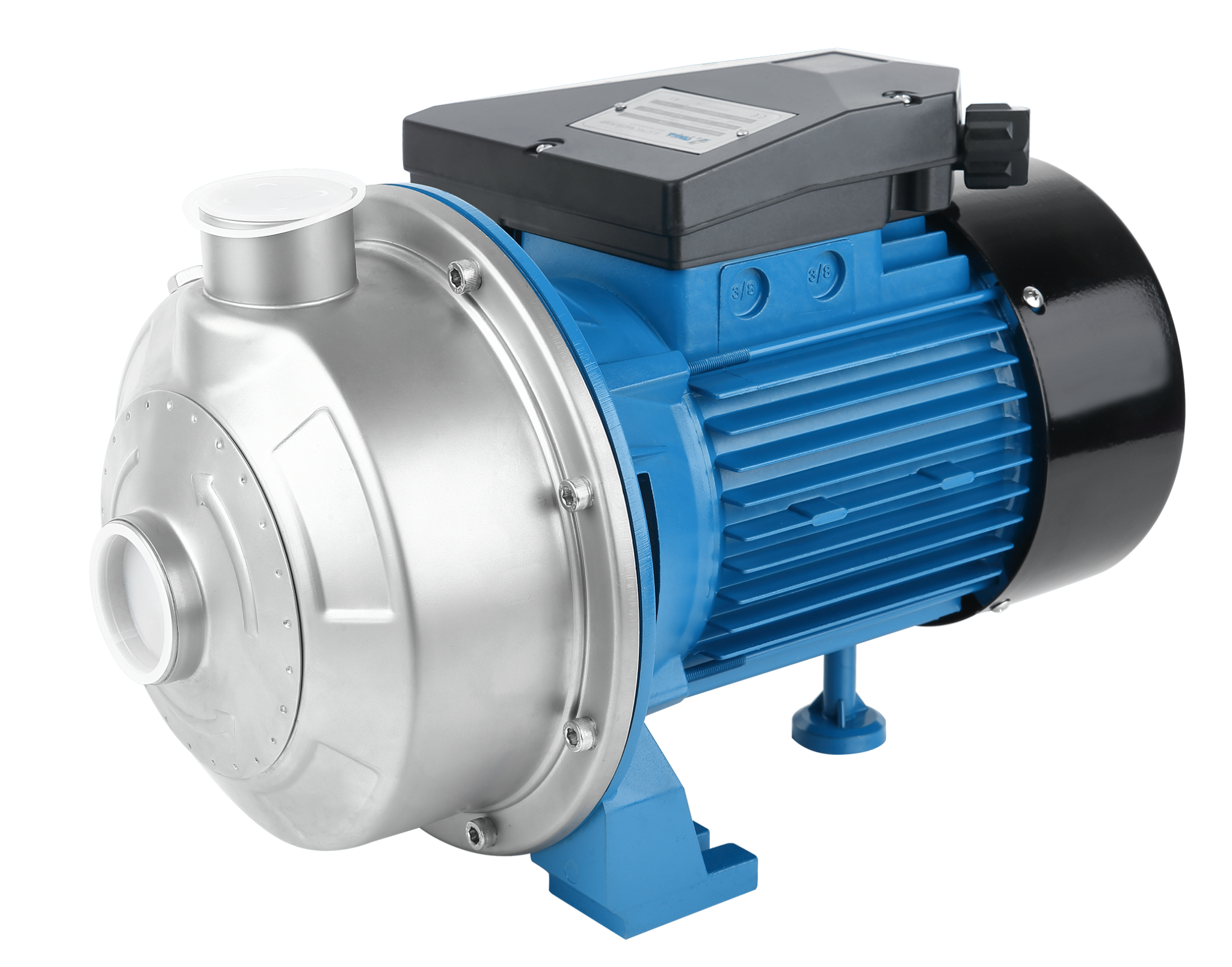

YINJIA Product and Service Integration

Conclusion

The practical lesson from why a centrifugal water pump has low flow or low pressure is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For service technicians, operators and installers, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.

FAQ

Why does the pump run but deliver no water?

Possible causes include lost prime, air leakage, blockage, closed valves, wrong rotation or impeller damage.

Can low voltage reduce performance?

Yes. Measure running voltage at the motor and compare it with the nameplate range.

How can system resistance be identified?

Compare operating and permitted shutoff head, and measure losses across filters and valves.

Does a worn impeller reduce pressure?

Yes. Wear, blockage or increased clearance can reduce shutoff head and flow.

Why only at peak demand?

Higher flow raises system and suction losses and can move the pump outside its suitable range.
