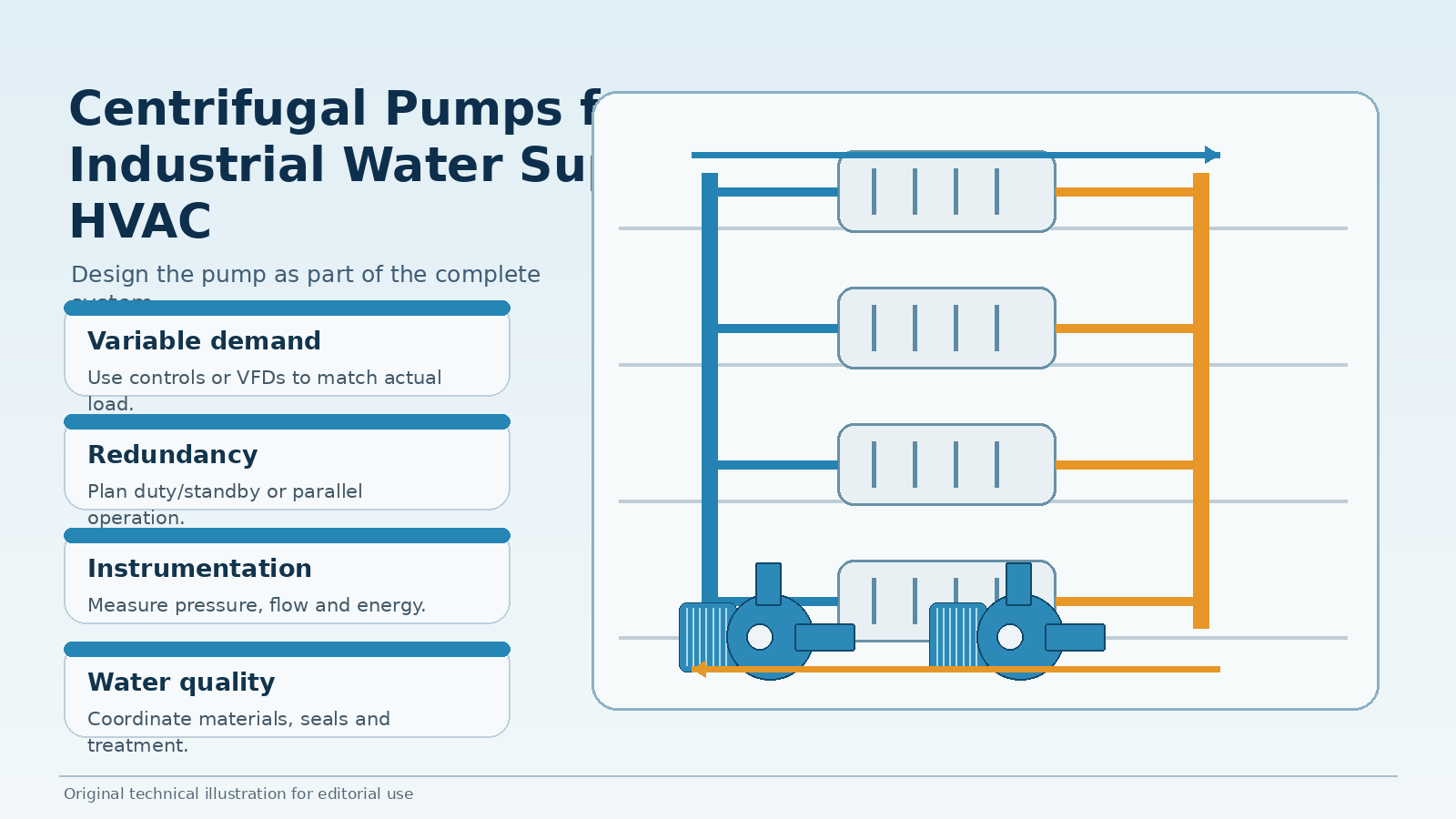

Select industrial centrifugal pumps for transfer, cooling, HVAC, boosting and emergency systems. Record normal, minimum, peak and emergency conditions and whether the loop is open or closed. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For mep engineers, industrial projects and contractors, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Record normal, minimum, peak and emergency conditions and whether the loop is open or closed. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
Compare end-suction, inline, split-case, multistage, monoblock and base-mounted arrangements. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal pumps industrial water supply HVAC, begin by turning “choose the configuration” into a measurable requirement. Compare end-suction, inline, split-case, multistage, monoblock and base-mounted arrangements. Record the source condition, required result, measurement method and acceptable tolerance. This prevents mep engineers, industrial projects and contractors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “choose the configuration,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - industrial and hvac, reduces specification disputes and creates a useful commissioning baseline.
Match casing rating, seal, elastomer, bearing and material to real industrial water conditions. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Use VFDs or staged pumps when the system spends many hours below the design peak. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Duty/standby or duty/assist systems need isolation, check valves, hour rotation and regular readiness testing. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal pumps industrial water supply HVAC, begin by turning “plan redundancy” into a measurable requirement. Duty/standby or duty/assist systems need isolation, check valves, hour rotation and regular readiness testing. Record the source condition, required result, measurement method and acceptable tolerance. This prevents mep engineers, industrial projects and contractors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “plan redundancy,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - industrial and hvac, reduces specification disputes and creates a useful commissioning baseline.
Trend suction and discharge pressure, flow, current, vibration and temperature to identify deterioration. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Confirm standards, certified curves, dimensions, materials, motor data, tests and project submittal schedule. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example A closed HVAC loop is designed for 120 m³/h at 32 m and spends most hours below 60% flow. A fixed-speed pump throttled at part load wastes head. Compare a VFD and staged pumps using the annual load profile while checking minimum flow, motor cooling, sensor location and control stability. |
A reliable decision should be supported by a labeled cutaway or flow-path diagram, a comparison at the same duty point, a transparent TDH calculation, and a demand schedule or measured flow record. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal pumps industrial water supply HVAC into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Adding building height directly to closed-loop pump head.
· Providing standby equipment without testing valves and automatic start logic.
· Using one generic curve for different impellers, speeds or frequencies.

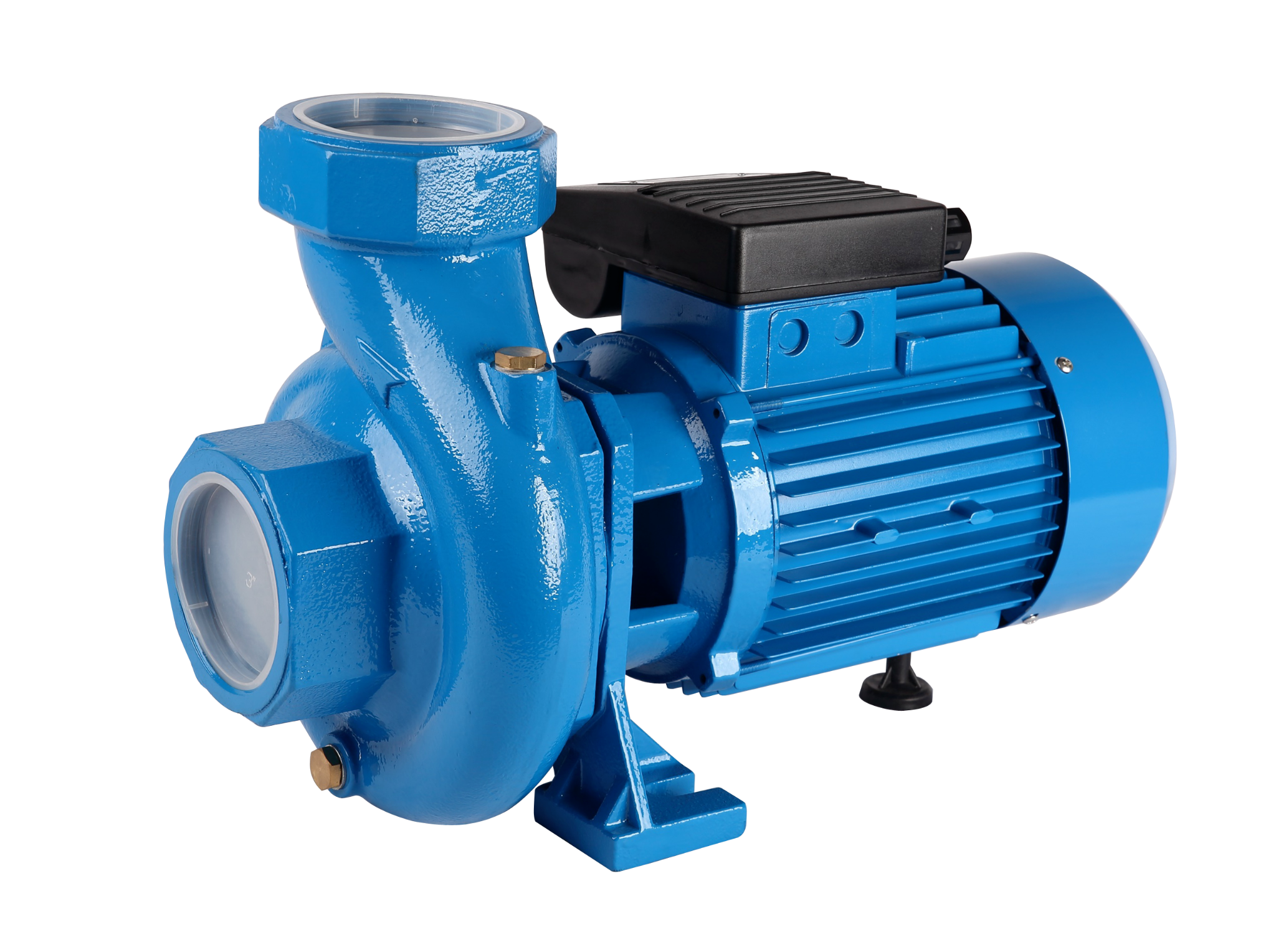

YINJIA describes its CM industrial range as a horizontal single-impeller monoblock/end-suction design made to DIN 24255/EN 733 for water supply, circulation and boosting. The page states up to 216 m³/h, 100 m head and 1.5–22 kW. YINJIA also lists ZS stainless, inline, multistage and split-case categories. Confirm project standards and certified curves. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant CM industrial, ZS stainless, inline and multistage categories as applicable rather than selecting from a family name alone. |
The practical lesson from centrifugal pumps for industrial water supply and hvac systems is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For mep engineers, industrial projects and contractors, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Static elevation is largely balanced in a filled closed loop; the pump mainly overcomes friction and equipment loss.
When demand varies and the pump, motor and control system can safely operate over the required range.
One pump runs while another is available after a fault or for maintenance, with tested valves and controls.
Suction and discharge pressure, flow, current, vibration, temperature and valve status.
Compare duty, layout, pipe loads, foundation, service access, efficiency and pressure rating.
