Identify cavitation through noise, vibration and performance loss, then improve suction pressure, piping and operation. Vapor bubbles form where local pressure falls below vapor pressure and collapse in a higher-pressure region. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For operators, maintenance teams and engineers, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Vapor bubbles form where local pressure falls below vapor pressure and collapse in a higher-pressure region. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.

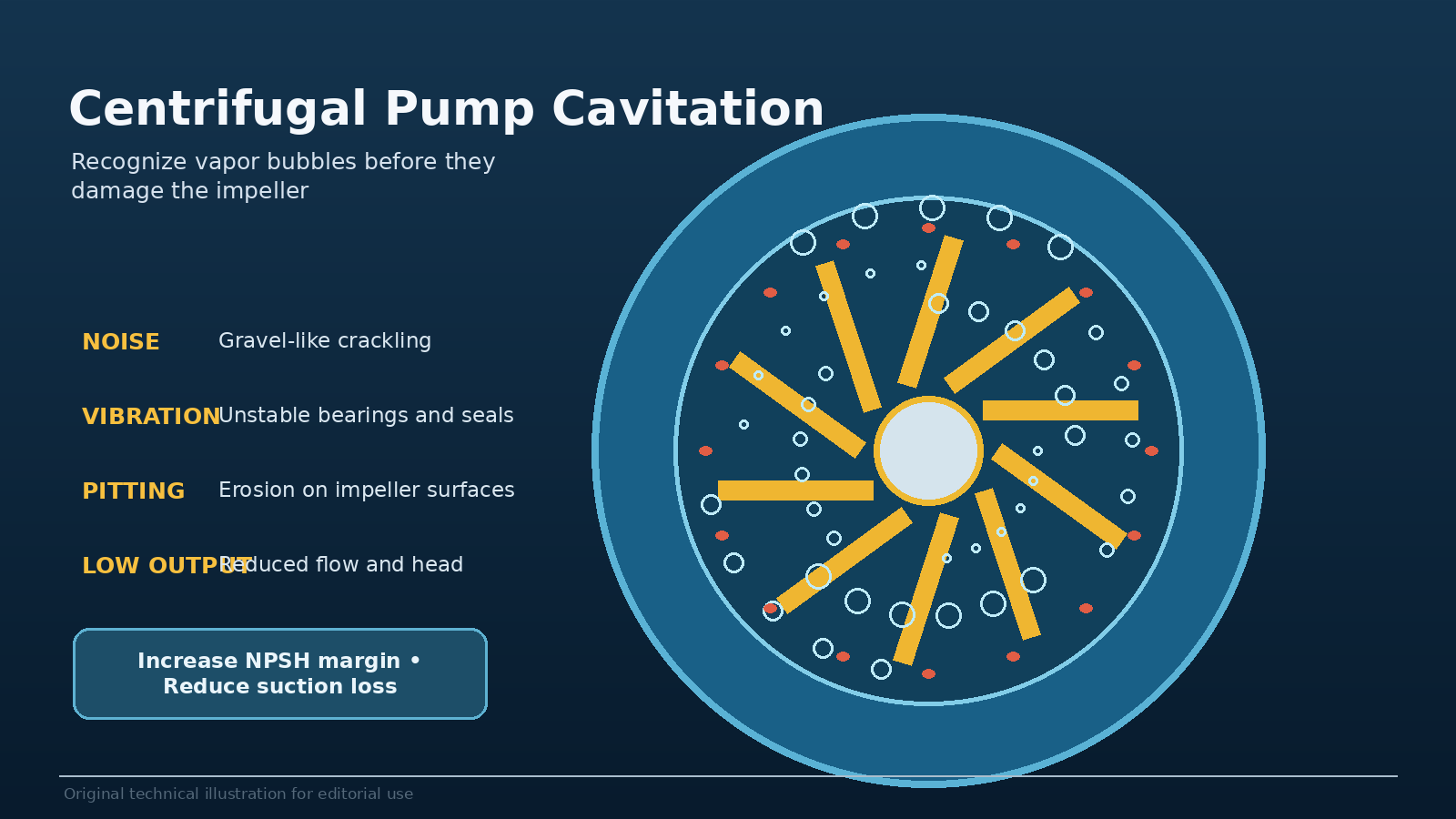

Gravel-like noise, vibration, unstable pressure, pitting and recurring seal or bearing problems are common clues. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal pump cavitation, begin by turning “recognize the signs” into a measurable requirement. Gravel-like noise, vibration, unstable pressure, pitting and recurring seal or bearing problems are common clues. Record the source condition, required result, measurement method and acceptable tolerance. This prevents operators, maintenance teams and engineers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “recognize the signs,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to troubleshooting and reliability, reduces specification disputes and creates a useful commissioning baseline.
NPSH available is reduced by suction lift, friction, temperature and altitude, while pump NPSH required rises with flow. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Lower the pump, enlarge and shorten the suction line, clean strainers and avoid partly closed suction valves. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Reduce excessive flow, lower speed or select a pump with better suction performance when necessary. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal pump cavitation, begin by turning “change the operating point” into a measurable requirement. Reduce excessive flow, lower speed or select a pump with better suction performance when necessary. Record the source condition, required result, measurement method and acceptable tolerance. This prevents operators, maintenance teams and engineers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “change the operating point,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to troubleshooting and reliability, reduces specification disputes and creates a useful commissioning baseline.
Air leaks, bearing damage, misalignment and poor foundations can mimic cavitation and require different remedies. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Document minimum source level, maximum temperature, clean-filter loss and acceptable operating range. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example A second process branch is opened and the pump begins to sound like gravel. Flow rises, suction loss increases and the operating point moves right, where NPSH required may be higher. Clean the strainer, measure suction pressure and compare NPSHA with the model curve before replacing the impeller. |
A reliable decision should be supported by a suction layout with source levels, a labeled cutaway or flow-path diagram, a transparent TDH calculation, and the exact model curve with the duty point marked. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal pump cavitation into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
An application record from troubleshooting and reliability is most useful when it documents the source condition, required duty, selected model, commissioning readings and final outcome. Preserve the engineering assumptions and units while removing confidential customer details. Compare measured results with the original calculation, explain any variance and record the corrective action. This creates a repeatable selection method for distributors, contractors and operators instead of relying on general pump advice.
· Treating every noisy pump as cavitation.
· Using maximum suction lift instead of an NPSH calculation.
· Throttling the suction valve to control flow.

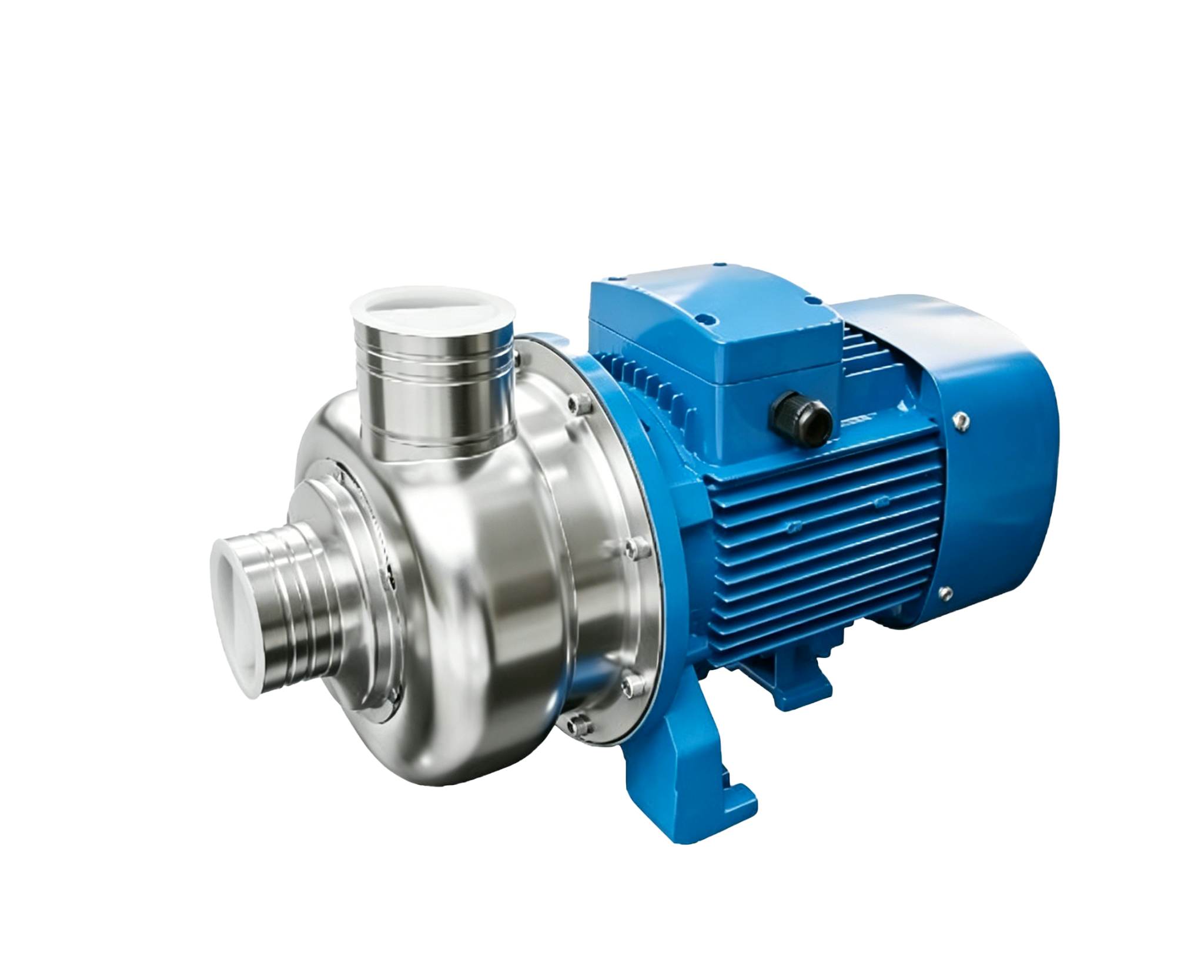

YINJIA clean-water centrifugal pages specify use with water or non-aggressive liquids without sand or solids and list model limits for suction lift, temperature and pressure. Treat these limits as preliminary guidance and request NPSH information or engineering review for marginal suction conditions. For technical troubleshooting, send YINJIA the pump model, nameplate, site photos, suction layout, source level, pressure readings, flow estimate, motor current and a description of when the symptom occurs. |
The practical lesson from centrifugal pump cavitation: causes, signs and prevention is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For operators, maintenance teams and engineers, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Often gravel or crackling, but sound alone is not proof.
Yes. Repeated bubble collapse can pit and erode the impeller inlet.
It can reduce loss, but source level, temperature, altitude and flow also matter.
Cavitation forms vapor at low pressure; air leakage introduces external gas. Symptoms can overlap.
Often, but the new operating point and process duty must be recalculated.
