Size a centrifugal pump by calculating flow, total dynamic head, system resistance, operating point, NPSH and motor power. Record minimum, normal and peak flow so the pump remains stable through real operating variation. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For engineers, contractors and technical buyers, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Record minimum, normal and peak flow so the pump remains stable through real operating variation. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
Combine static head, required pressure and flow-dependent losses through every part of the system. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal pump sizing guide, begin by turning “build total dynamic head” into a measurable requirement. Combine static head, required pressure and flow-dependent losses through every part of the system. Record the source condition, required result, measurement method and acceptable tolerance. This prevents engineers, contractors and technical buyers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “build total dynamic head,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to sizing and hydraulics, reduces specification disputes and creates a useful commissioning baseline.

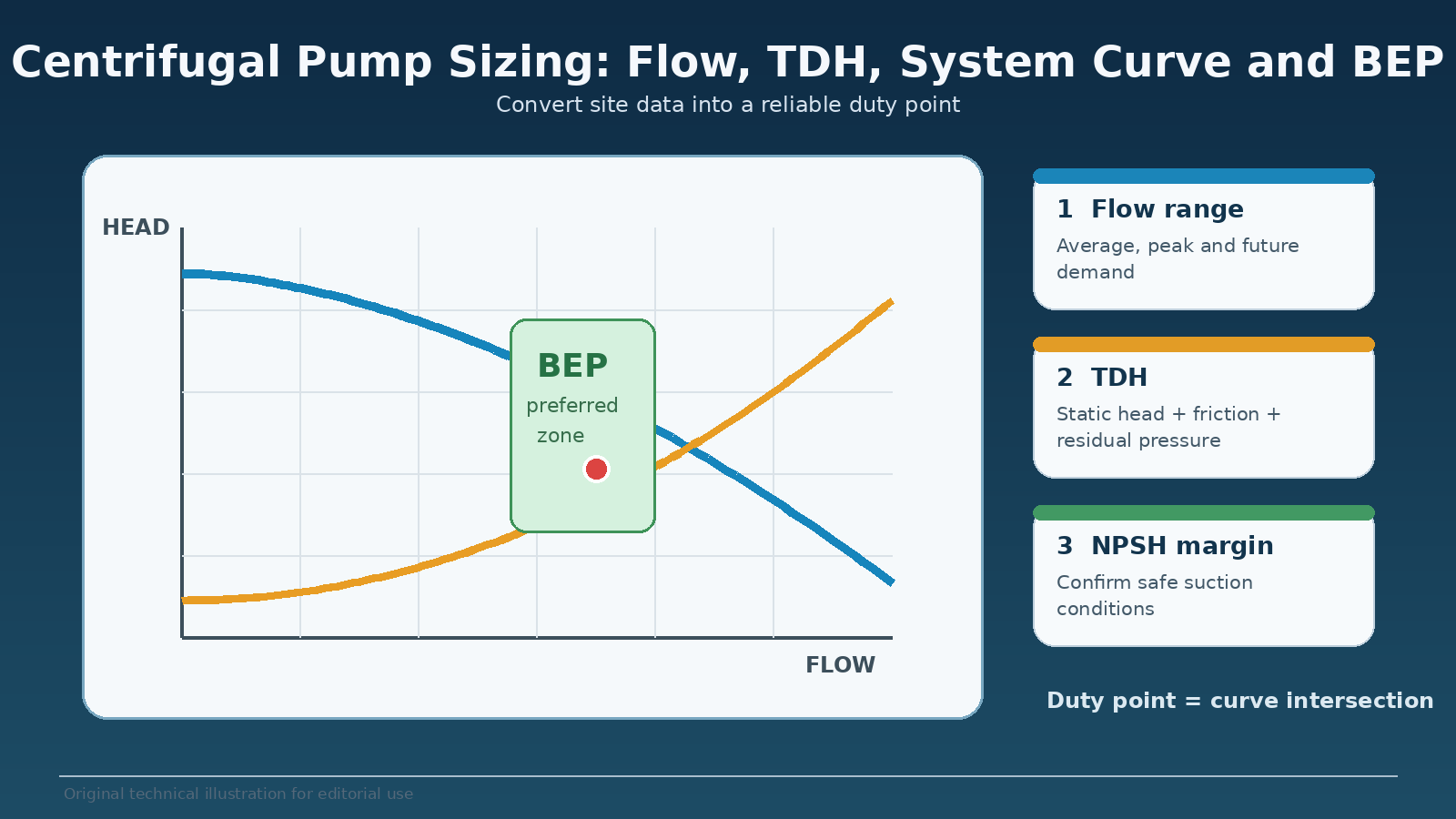

The operating point is where the falling pump curve intersects the rising system curve. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Normal operation near the best efficiency region reduces energy use, recirculation, vibration and radial load. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Check motor load across the credible operating range and avoid using service factor to hide poor sizing. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal pump sizing guide, begin by turning “verify absorbed power” into a measurable requirement. Check motor load across the credible operating range and avoid using service factor to hide poor sizing. Record the source condition, required result, measurement method and acceptable tolerance. This prevents engineers, contractors and technical buyers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “verify absorbed power,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to sizing and hydraulics, reduces specification disputes and creates a useful commissioning baseline.
Available NPSH must exceed required NPSH at the worst source level, temperature and flow. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
A sizing sheet should record elevations, pipe data, liquid, duty point, efficiency, power and pressure limits. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example Design flow is 40 m³/h. Static lift is 18 m, friction and equipment loss is 11 m, and the process needs 1 bar residual pressure, approximately 10.2 m water head. TDH is about 39.2 m. Check the exact curve near 40 m³/h at 39 m and then verify efficiency, power and NPSH for the worst source and filter condition. |
A reliable decision should be supported by a demand schedule or measured flow record, a transparent TDH calculation, the exact model curve with the duty point marked, and site voltage, phase, frequency and protection data. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal pump sizing guide into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Using static elevation alone and omitting pressure and equipment losses.
· Selecting one point without checking minimum and maximum demand.
· Using a family envelope instead of the exact model and frequency curve.

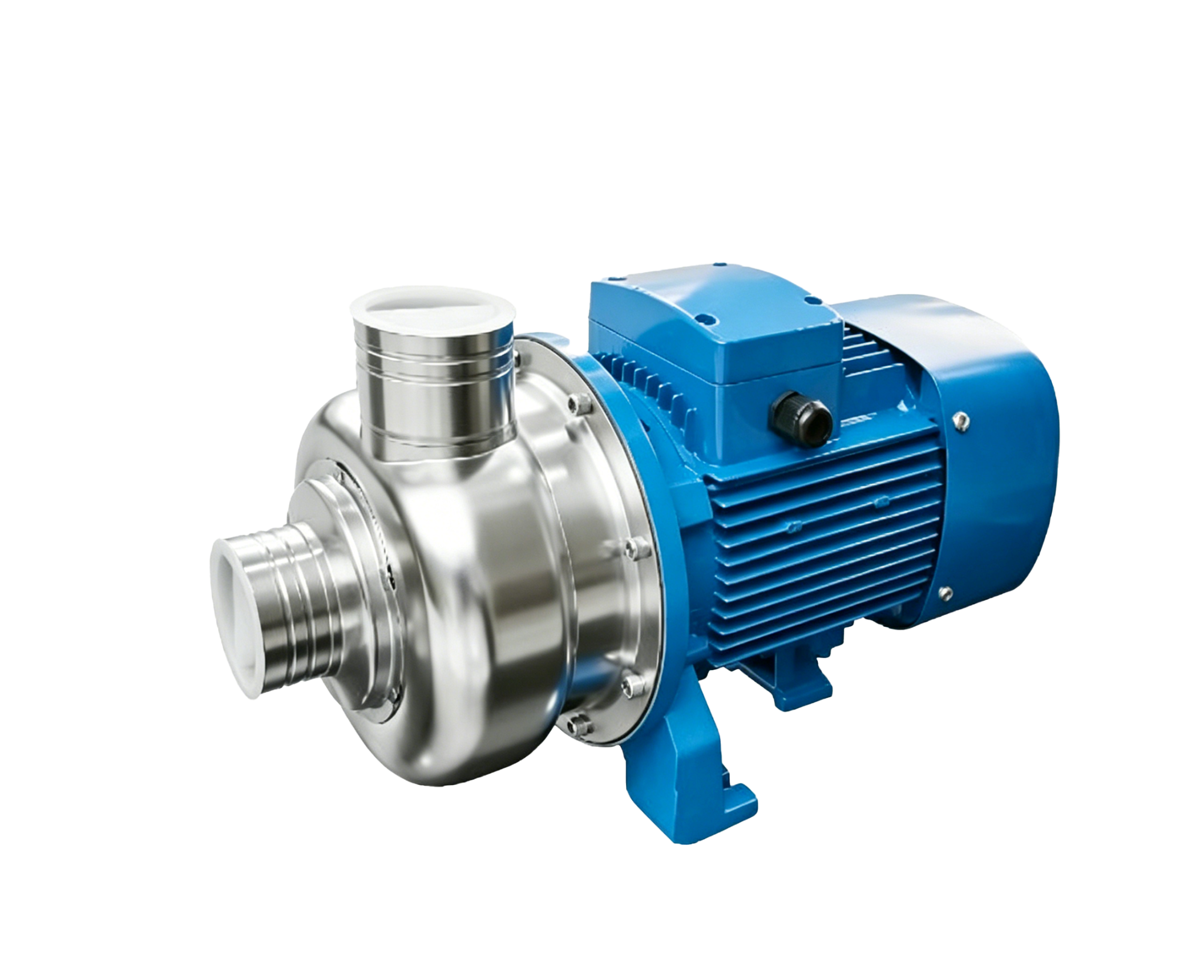

YINJIA product pages publish model-level maximum flow, maximum head, motor power and connections for several centrifugal ranges. The CM industrial envelope is stated up to 216 m³/h and 100 m head across 1.5–22 kW. These values narrow the family; the exact impeller, frequency and curve are still required for final sizing. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant Curve-based review across YINJIA centrifugal and industrial families rather than selecting from a family name alone. |
The practical lesson from centrifugal pump sizing guide: flow, tdh, system curve and bep is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For engineers, contractors and technical buyers, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Static pressure difference, residual pressure and friction through pipe, valves and equipment at design flow.
It represents system head versus flow and intersects the pump curve at the expected duty point.
It generally improves efficiency and reduces hydraulic loads and instability.
Some pumps absorb more power at higher flow, so one-point checking can miss overload risk.
Use project practice and manufacturer data for the worst source level, temperature and flow.
