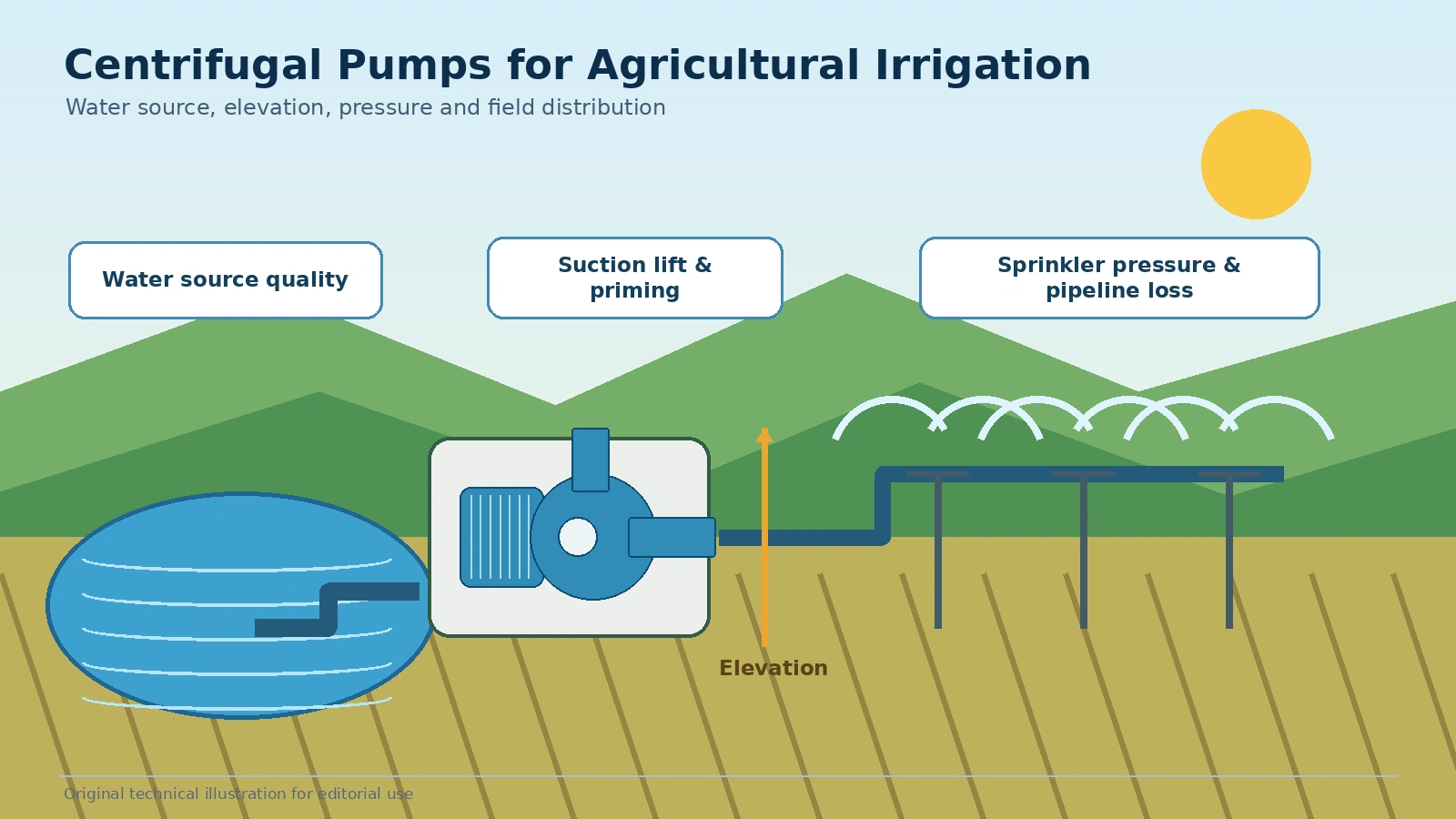

Select an irrigation centrifugal pump using flow, elevation, friction, source conditions, debris protection and seasonal operating cost. Flood irrigation needs high flow, while sprinklers need pressure at each nozzle and drip systems need stable regulated supply. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For farm owners, irrigation contractors and agricultural distributors, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Flood irrigation needs high flow, while sprinklers need pressure at each nozzle and drip systems need stable regulated supply. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
Use the lowest seasonal source level and highest field point when calculating static head. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal water pump for irrigation, begin by turning “measure elevation changes” into a measurable requirement. Use the lowest seasonal source level and highest field point when calculating static head. Record the source condition, required result, measurement method and acceptable tolerance. This prevents farm owners, irrigation contractors and agricultural distributors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “measure elevation changes,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - irrigation, reduces specification disputes and creates a useful commissioning baseline.
Long pipes, filters, foot valves and small diameters can consume more head than the field elevation. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Use a suitable strainer, keep the intake above sediment and prevent air leakage or hose collapse. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Compare single-phase, three-phase and diesel options based on site power, hours and control requirements. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal water pump for irrigation, begin by turning “choose the power source” into a measurable requirement. Compare single-phase, three-phase and diesel options based on site power, hours and control requirements. Record the source condition, required result, measurement method and acceptable tolerance. This prevents farm owners, irrigation contractors and agricultural distributors from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “choose the power source,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to applications - irrigation, reduces specification disputes and creates a useful commissioning baseline.
Use a firm base, independent pipe support, weather shelter, gauges, isolation valves and safe electrical protection. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Record flow, pressure and motor current, keep filters clean and repair leaks to control energy cost. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example Twenty-four sprinklers each require 0.45 m³/h at 3 bar. Zone flow is 10.8 m³/h. Add 6 m elevation and 9 m pipe/filter loss to about 30 m nozzle pressure, giving roughly 45 m TDH. The pump curve should be checked near 10.8 m³/h at 45 m, including the lowest seasonal source level. |
A reliable decision should be supported by a system schematic covering normal and peak operation, a labeled cutaway or flow-path diagram, a transparent TDH calculation, and site voltage, phase, frequency and protection data. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal water pump for irrigation into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Sizing from farm area instead of the active irrigation zone.
· Ignoring seasonal water-level decline and dirty-filter loss.
· Using undersized pipe with a high-flow pump, creating excessive friction.

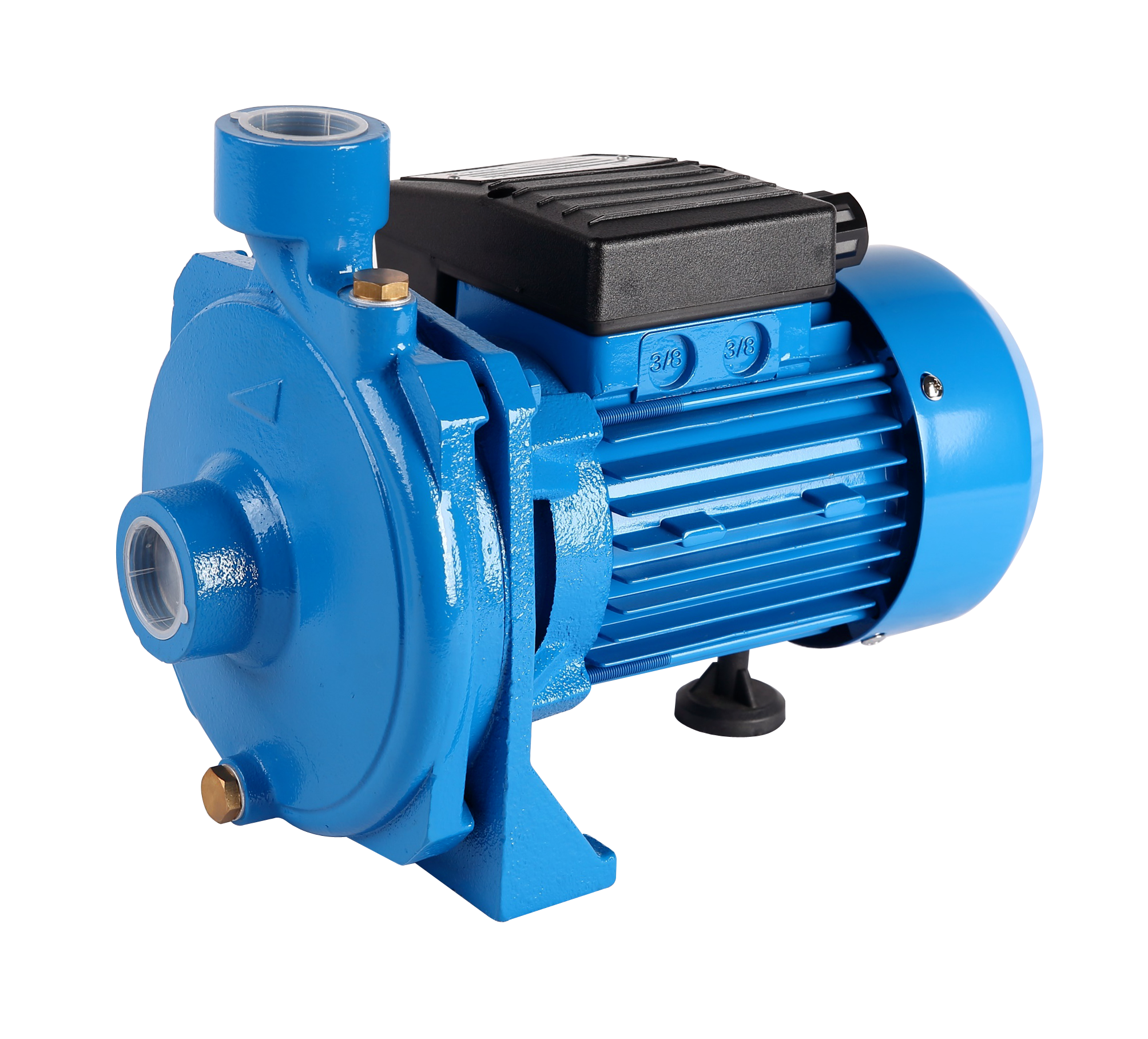

YINJIA describes centrifugal pumps for flood and spray irrigation and for drawing water from lakes, rivers and wells. Its DK series is positioned for high-flow clean-water applications, while SCM and other centrifugal families cover smaller agricultural and general-purpose duties. Published maximum values must be checked against the required irrigation duty on the exact curve. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant DK high-flow series and current SCM/general centrifugal ranges rather than selecting from a family name alone. |
The practical lesson from centrifugal water pumps for agricultural irrigation is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For farm owners, irrigation contractors and agricultural distributors, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Usually a high-flow pump at the calculated head, but source level and pipe loss still control selection.
Use the nozzle manufacturer rating, then add elevation and pipeline losses.
Yes when suction lift, priming, submergence, debris protection and liquid compatibility are suitable.
Often it is used to reduce velocity and friction; it should not be smaller without a justified design.
Compare power availability, operating hours, automation, fuel or electricity cost and service support.
