Choose a centrifugal water pump by defining flow, TDH, liquid, materials, power supply, duty and service requirements. Calculate normal and peak water demand from the actual process, irrigation zone or tank fill time. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For importers, distributors, contractors and engineers, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.
Calculate normal and peak water demand from the actual process, irrigation zone or tank fill time. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
Add static elevation, required outlet pressure and friction through pipe, fittings, filters and valves. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For how to choose a centrifugal water pump, begin by turning “calculate total dynamic head” into a measurable requirement. Add static elevation, required outlet pressure and friction through pipe, fittings, filters and valves. Record the source condition, required result, measurement method and acceptable tolerance. This prevents importers, distributors, contractors and engineers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “calculate total dynamic head,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to selection, reduces specification disputes and creates a useful commissioning baseline.

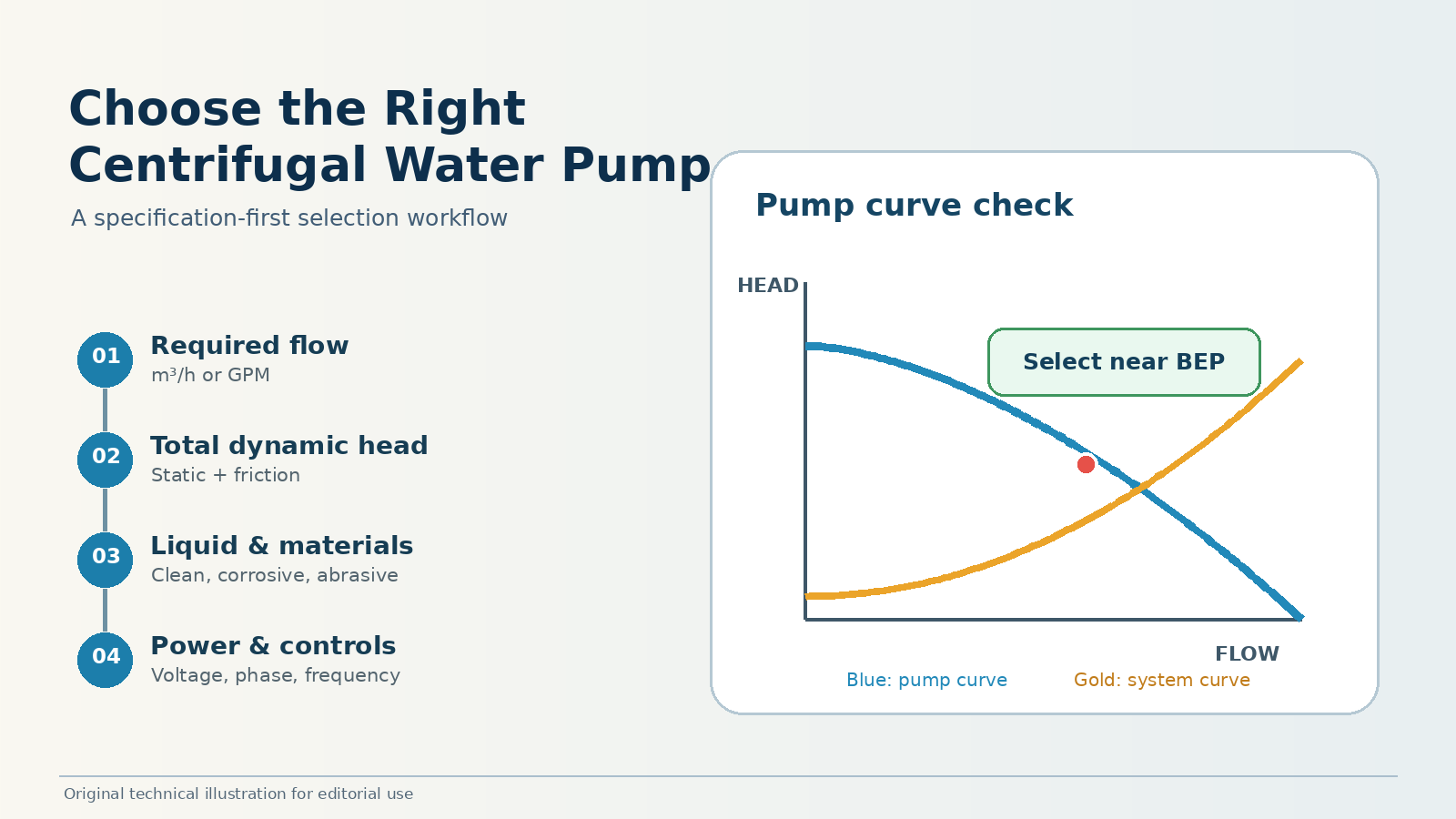

Evaluate source level, temperature, altitude, pipe loss and NPSH margin to prevent air problems and cavitation. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Select casing, impeller, shaft, seal faces and elastomers for corrosion, abrasion and temperature. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Confirm voltage, frequency, phase, starting current, duty rating, enclosure and control method. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For how to choose a centrifugal water pump, begin by turning “choose the motor” into a measurable requirement. Confirm voltage, frequency, phase, starting current, duty rating, enclosure and control method. Record the source condition, required result, measurement method and acceptable tolerance. This prevents importers, distributors, contractors and engineers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “choose the motor,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to selection, reduces specification disputes and creates a useful commissioning baseline.
Check efficiency, absorbed power and NPSH at the real duty point, not only maximum head or flow. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Request curves, drawings, manuals, parts lists, test records, warranty terms and spare-parts support. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example A rooftop tank requires 12 m³/h. Static elevation is 18 m, pipe and valve loss is 7 m, and 5 m residual head is needed at the inlet. The RFQ should state 12 m³/h at 30 m TDH, then compare efficiency, absorbed power and NPSH at that point. “2 HP centrifugal pump” is not a complete selection requirement. |
A reliable decision should be supported by a demand schedule or measured flow record, a transparent TDH calculation, a suction layout with source levels, and liquid chemistry and a wetted-parts list. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for how to choose a centrifugal water pump into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Adding a large arbitrary safety factor that oversizes the pump.
· Selecting material by casing only and ignoring the seal, shaft and impeller.
· Ordering before confirming frequency, phase, voltage and the exact curve.

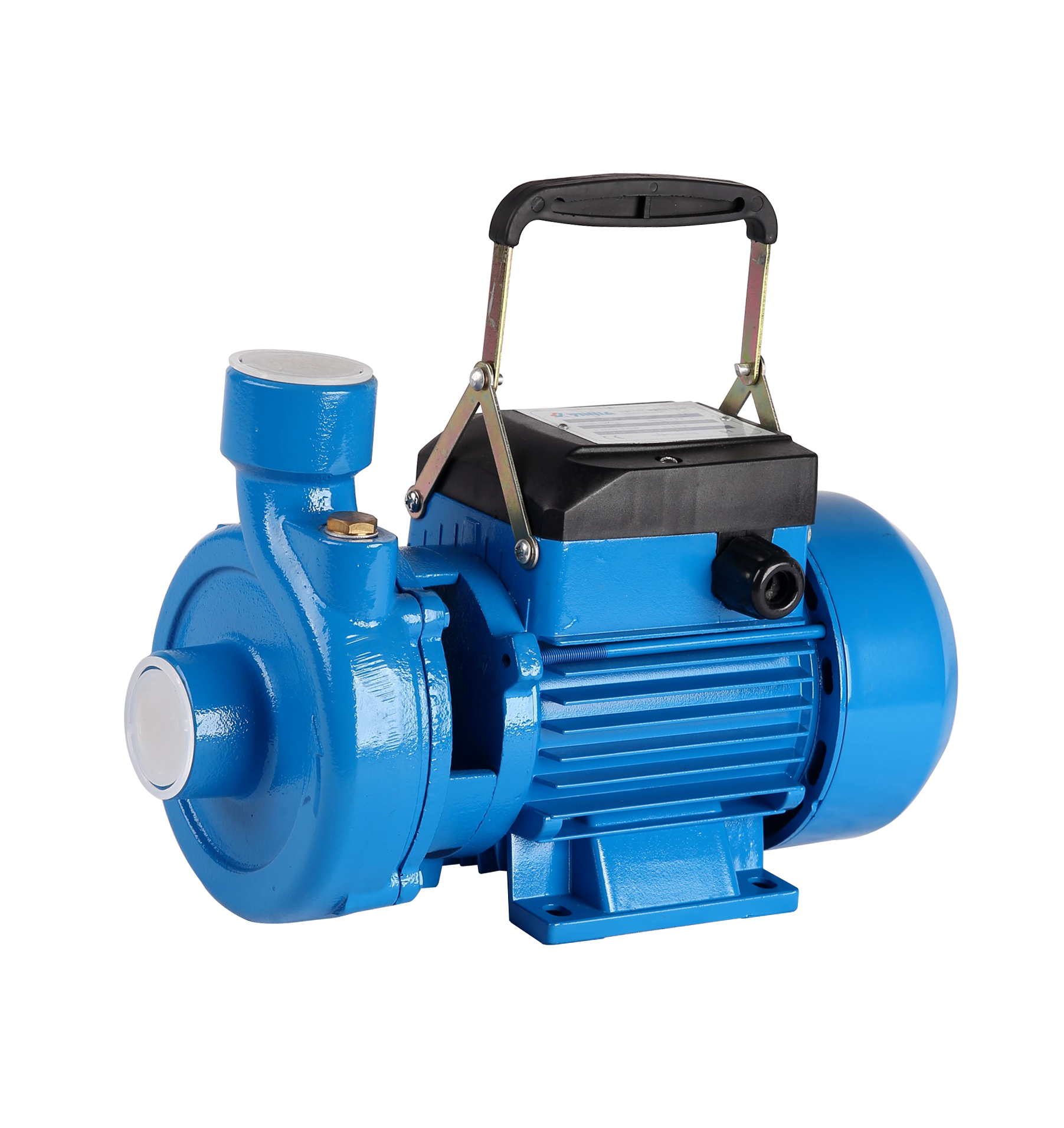

YINJIA lists multiple centrifugal configurations and selected options for voltage, frequency, impeller, shaft, seal and anti-rust treatment. SCM targets single-phase clean-water duties, DK emphasizes higher flow, CM covers industrial standardized service and ZS provides stainless-steel construction. Final selection should be reviewed by YINJIA against the buyer duty point. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant SCM for smaller single-phase duties; DK for higher flow; CM for industrial service; ZS for stainless construction rather than selecting from a family name alone. |
The practical lesson from how to choose the right centrifugal water pump is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For importers, distributors, contractors and engineers, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
Flow, TDH, liquid, temperature, suction layout, electrical supply, duty, materials and installation conditions.
Not automatically. Verify where the larger pump operates on the system curve.
No. Connection size is an interface; flow is defined by pump and system curves.
Add elevation or pressure difference, required outlet pressure and flow-dependent losses.
Use the same duty point, materials, curve, motor, test and warranty requirements.
