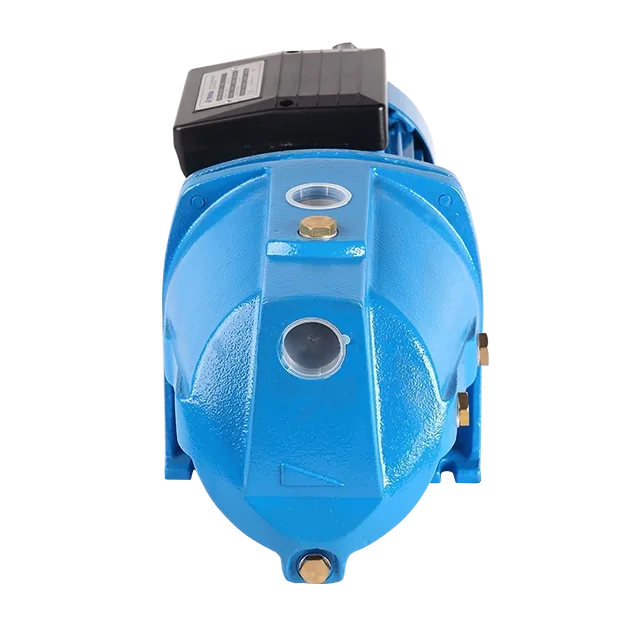

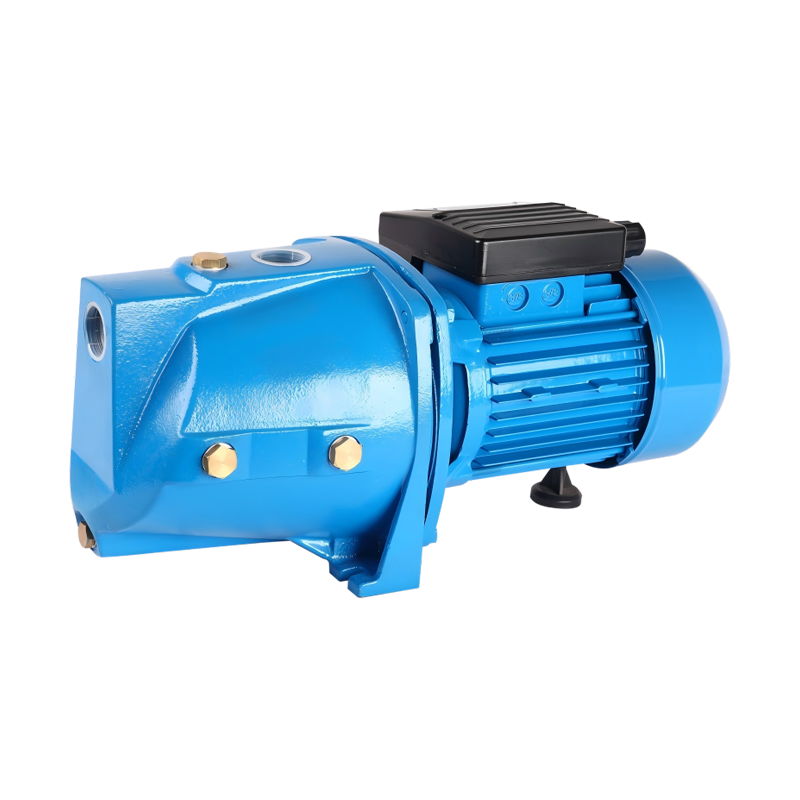

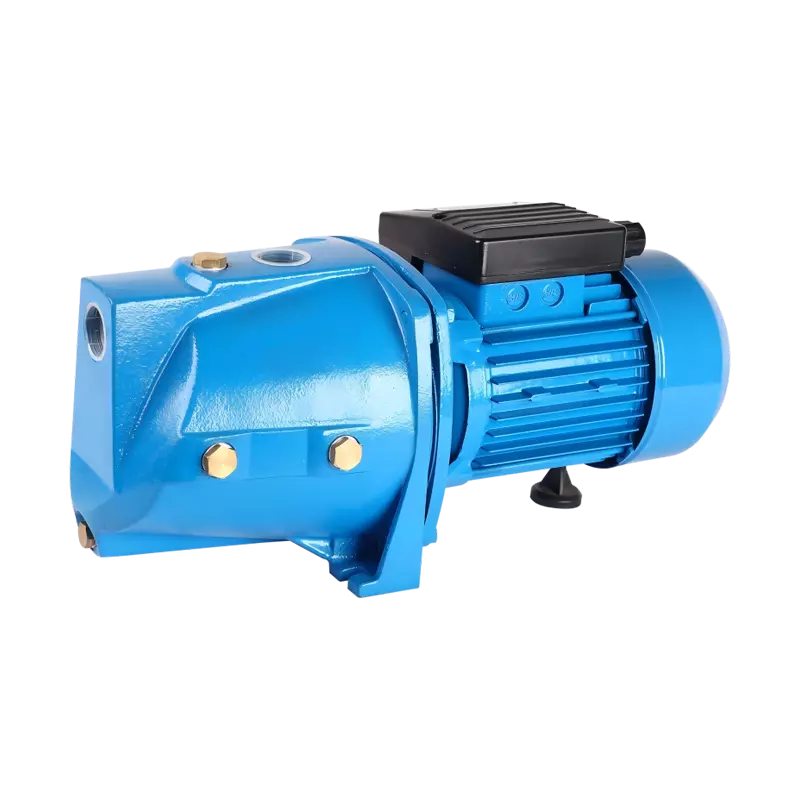

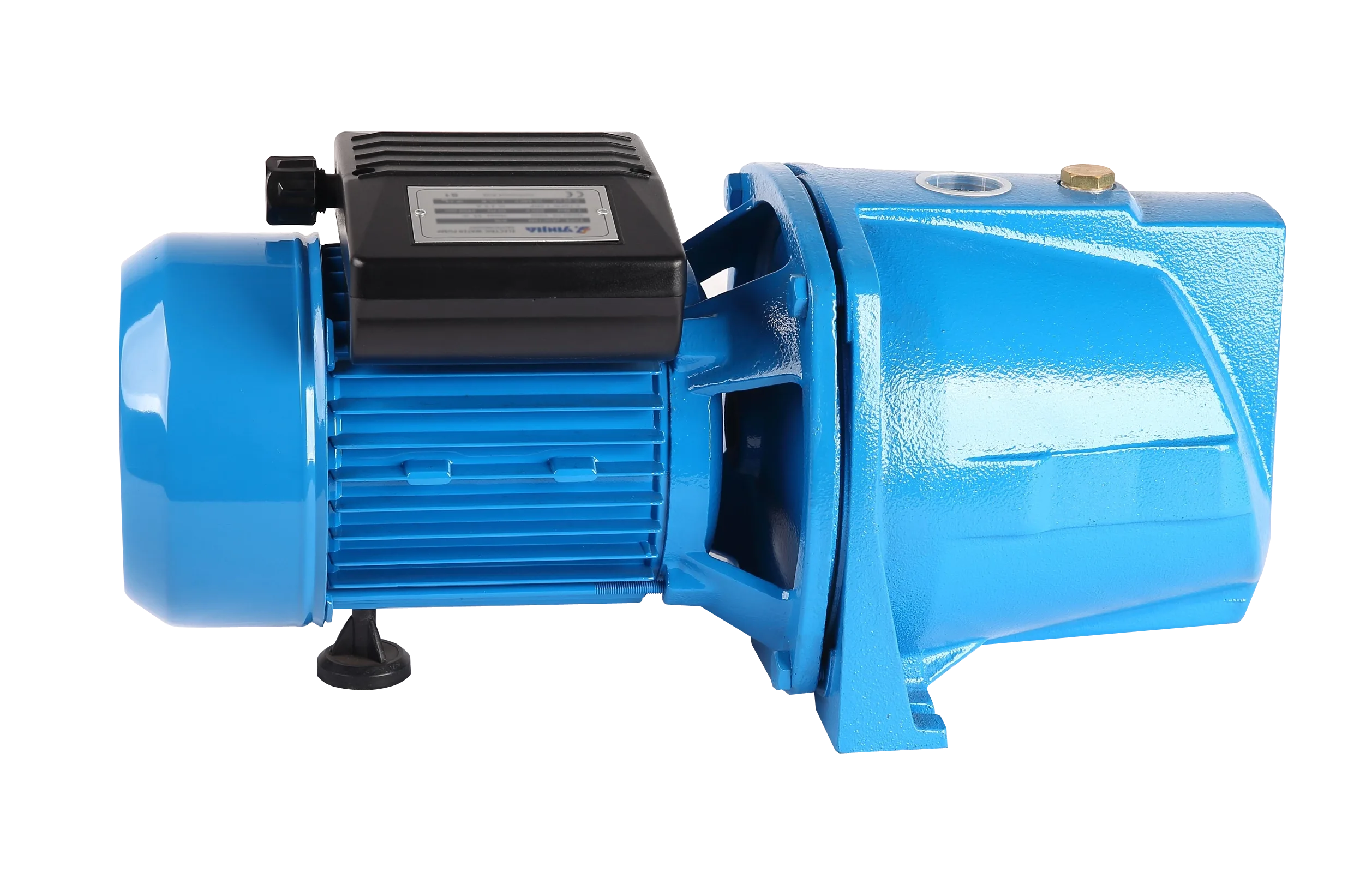

High quality single phase selfpriming JET pump is offered by China manufacturer YINJIA. Buy single phase selfpriming JET pump which is of high quality directly with low price. JSW series single phase selfpriming JET pump,is a best seller pump in the global market, like wide range of voltage 160V to 250V for Bangladesh also available. The electrical JET pumps have high performance in terms of head and flow rate, ideal for residential use when there is a need for the self- priming function. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-Ejection union: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-Cast iron diffuser, brass nozzle
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +60℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

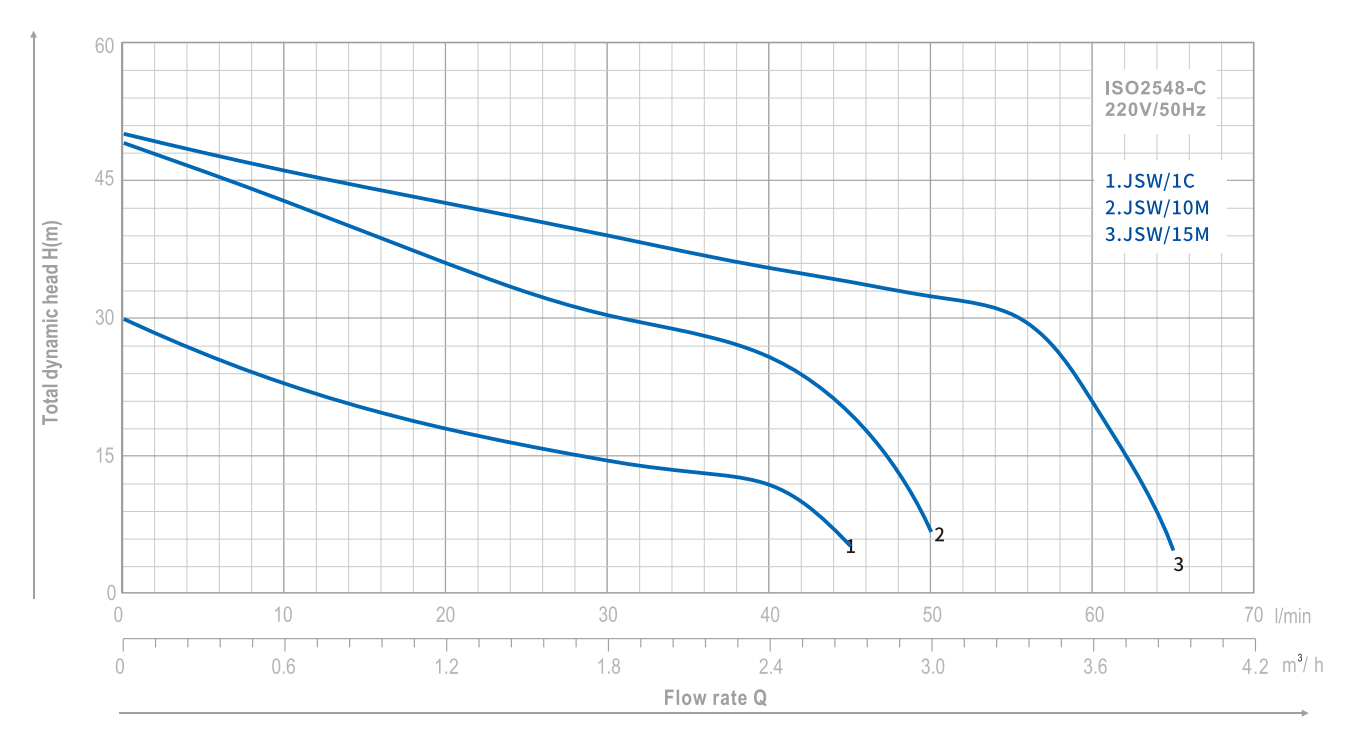

PERFORMANCE
JSW/10M - 0.75 kW / 1 HP - Max. Head 49m - Max. Flow 50 l/min - 1" water pump

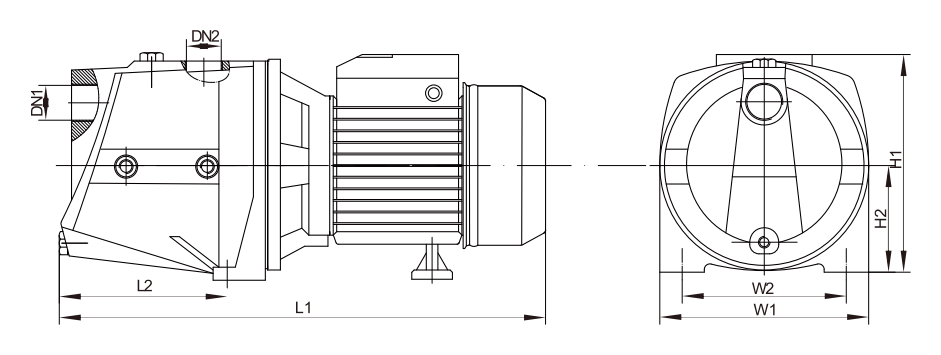

DIMENSIONS
JSWM EXPLODING DRAWING
