A storage tank can protect a house from interrupted supply, low municipal flow, or a low-yield well. However, the tank alone does not guarantee useful pressure. A complete system must move water into the tank, keep it from overflowing, deliver water from the tank to fixtures, and protect the pump when the level becomes too low. The correct water pump for a house with a water tank depends on whether the job is transfer, pressure boosting, or both.
Draw the system from source to highest outlet, marking water levels, pipe sizes, elevation, peak flow, and controls. This prevents measuring head from the wrong point or combining incompatible duties.

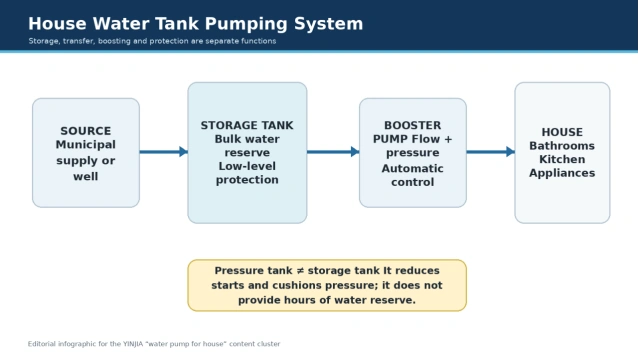

A storage tank holds a substantial volume of water at atmospheric pressure. It may be installed at ground level, underground, in a basement, or on a roof. Its purpose is to separate an unreliable or low-flow source from short periods of higher household demand.
A pressure tank is a sealed water-and-air vessel that provides limited drawdown, cushions pressure, and reduces starts. It cannot replace bulk storage; many systems use both.
In this layout, municipal water or a well fills a ground-level tank through a float valve or level control. A booster pump draws from the tank and supplies the house. The pump must overcome elevation to the highest fixture, provide the desired residual pressure, and cover friction losses at the design flow.
The booster may be a self-priming jet pump, centrifugal pump, multistage pump, or integrated constant-pressure system. The choice depends on suction conditions, flow, total head, noise requirements, and control preference. Dry-run or low-level protection should stop the pump before the tank empties.
A transfer pump moves water from a lower tank to an elevated tank. Household outlets are then supplied by gravity. The transfer pump is sized mainly for elevation, friction, and the required tank-refill rate. It does not need to create the final fixture pressure because gravity provides it.
Use level controls to prevent overflow and dry running, plus a non-return valve. Verify roof support, overflow, drain, and local structural rules.
Gravity pressure may be too low when the tank is only slightly above an upstairs bathroom. A booster installed after the roof tank can add pressure. Because the suction side already has positive head, the pump usually primes easily, but it still needs protection if the tank level falls below the outlet.
The booster must not create more pressure than pipes, heaters, valves, and fixtures can tolerate. Variable-speed control can maintain steadier pressure, while a pressure switch and tank provide a simpler pressure range.
Some houses need one pump to fill a roof tank and another to boost selected outlets. Trying to make one pump perform both duties may create control conflicts. Separate pumps allow each duty point and control sequence to be optimized. They also make maintenance less disruptive.
First choose a refill time. If a 2,000-liter tank should refill in two hours, the average transfer flow is 1,000 liters per hour, or about 16.7 liters per minute. Add a reasonable margin if the source and pipe can support it, but avoid filling so quickly that the incoming supply, well, or float valve becomes unstable.
Calculate total dynamic head from the lowest source water level to the highest discharge point. Add vertical lift and friction through the transfer pipe, elbows, valves, check valve, filter, and tank inlet. The desired flow and TDH form the duty point used on the pump curve.
The lowest tank level is the critical suction condition. For a surface pump, calculate suction lift and keep the suction line short, airtight, and adequately sized. If the lower tank is deep or the pump cannot be placed close to it, a submersible transfer pump may be more reliable than a long suction line.
Booster sizing begins with realistic simultaneous demand. List the fixtures likely to operate together, such as two showers and a kitchen tap. Use actual fixture flow data when possible. A larger home, rain showers, irrigation, or multi-family use may require a higher design flow.
Next add elevation from the minimum tank water level to the highest fixture, required pressure at that fixture, and pipe friction. If the highest shower is 10 meters above the lowest water level and needs about 2.5 bar, the system already requires roughly 35 meters of head before friction is added. The selected pump must deliver the design flow at the final TDH, not merely reach that head at zero flow.
For a rooftop tank, available gravity head can be subtracted from the additional pressure required, but use the minimum water level and lowest expected inlet pressure. Check the maximum condition as well so the booster does not overpressurize lower floors.
Use a suction pipe at least as large as the pump inlet unless the manufacturer specifies otherwise. Avoid abrupt reductions directly at the inlet, unnecessary elbows, flexible hose that can collapse, and high points that trap air. Install an eccentric reducer with the flat side up on horizontal suction piping where appropriate. A foot valve or check valve must be accessible and suitable for the water quality.
The discharge line should include an isolation valve, service union, pressure gauge, and check valve in positions that support safe maintenance. Pipe velocity and friction should remain reasonable. Increasing pipe diameter can sometimes improve household performance more effectively than installing a larger pump.
Support piping independently and use flexible connectors or vibration isolation where needed. Do not allow pipe loads to distort the pump casing. Provide drainage around indoor tanks and pumps so a seal leak or overflow does not damage the building.
A tank-filling pump normally uses a low-level start and high-level stop signal in the receiving tank, plus low-water protection in the source tank. Float switches should have room to move without tangling. Electrode or sensor systems must suit the water conductivity and installation environment.
A house booster can use a pressure switch with pressure tank, an electronic flow controller, or variable-speed constant-pressure control. A pressure switch is simple and serviceable. An electronic controller is compact and often includes dry-run protection. Variable speed improves pressure stability when demand changes widely. In every case, add a low-level interlock from the storage tank.
Size and pre-charge the pressure tank for the pump and control method. Repair tiny leaks that can cause continuous cycling.
Keep the storage tank covered, ventilated through a screened opening, protected from sunlight where possible, and fitted with a hygienic overflow and drain. Clean and disinfect the tank at intervals appropriate to local conditions. Prevent insects, sediment, and surface runoff from entering.
Inspect level controls, strainers, foot valves, check valves, pressure tank pre-charge, electrical terminals, and pump seals. Listen for changes in sound and record operating pressure and current. A gradual loss of pressure may indicate a blocked filter, air leak, worn impeller, falling source level, or waterlogged pressure tank.

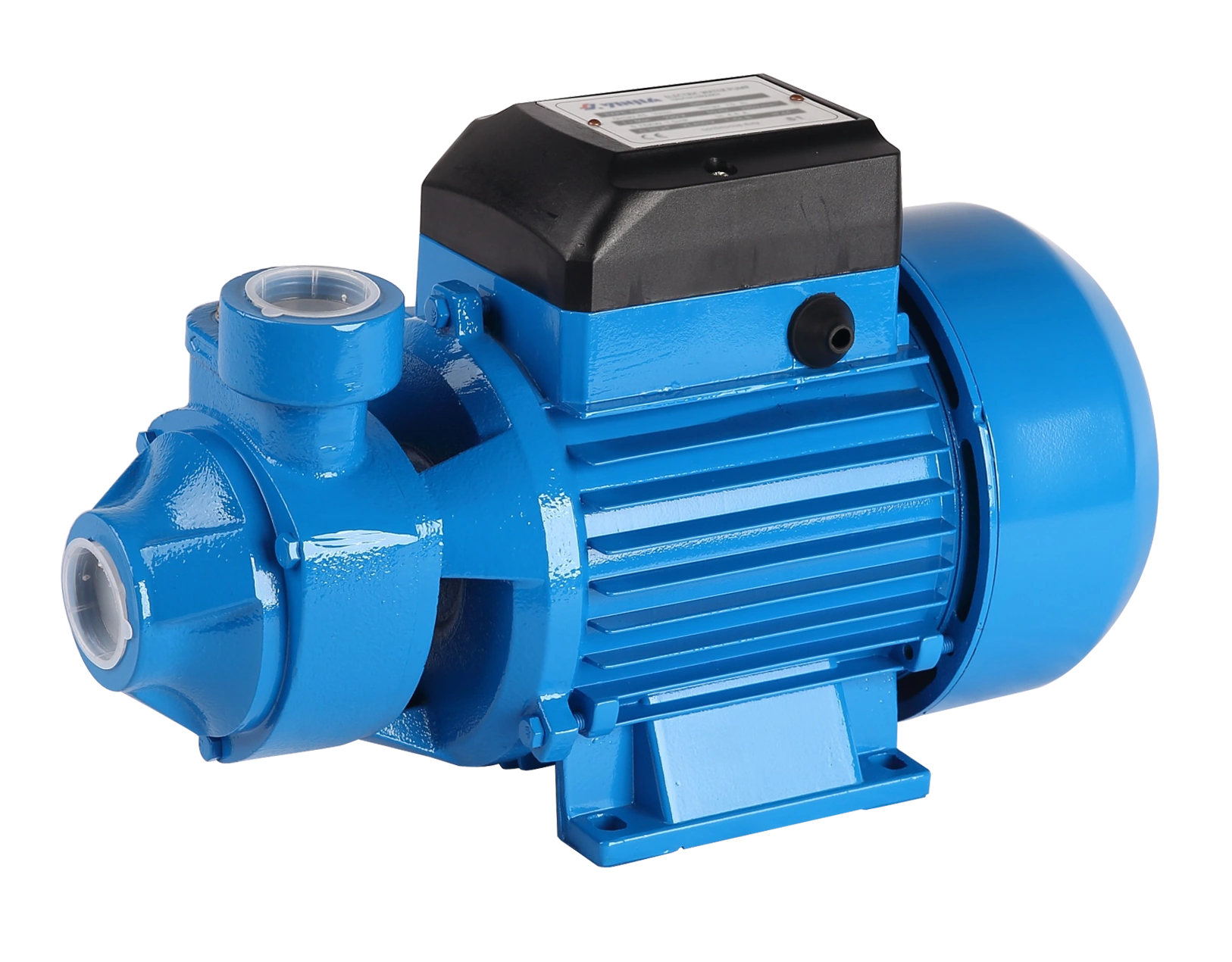

For tank-fed household projects, YINJIA can supply different elements of the system rather than treating every application as the same pump. Its stated portfolio includes peripheral pumps, self-priming jet pumps, centrifugal and multistage pumps, booster systems, pressure switches, pressure tanks, and deep-well pumps. YINJIA reports manufacturing experience since 1990 and offers OEM, ODM, and CKD/SKD cooperation. To evaluate a tank project, provide tank capacities, minimum and maximum water levels, transfer distance, building height, peak household flow, target pressure, pipe sizes, electrical supply, control sequence, and water quality.
It is possible in special designs, but separate transfer and booster pumps are usually easier to size and control. Each duty has a different flow, head, and start-stop logic.
Place it close to the supply tank where it remains accessible, dry, ventilated, and protected from flooding. Keep suction piping short and avoid installing beside noise-sensitive rooms.
Use a low-level float, electrode, pressure or flow logic, or another dry-run device suitable for the system. The protection should be tested during commissioning.
A transfer pump may be needed to fill it. A separate booster may also be useful when the vertical distance to fixtures does not create enough gravity pressure.
Sizing depends on pump flow and power, pressure-switch settings, acceptable starts per hour, and desired drawdown. Follow pump and tank manufacturer guidance rather than selecting only by physical volume.
