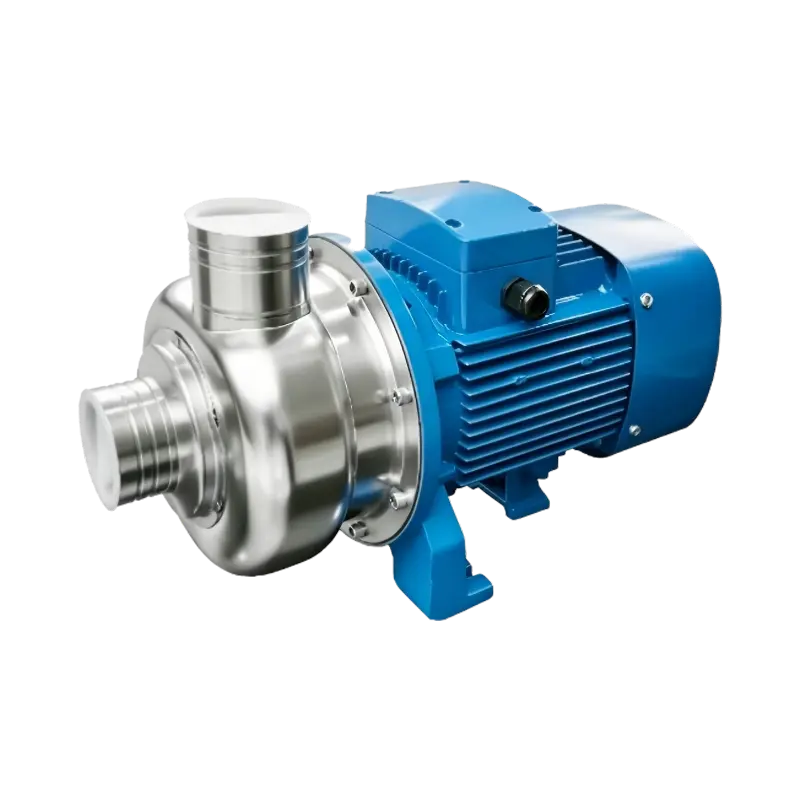

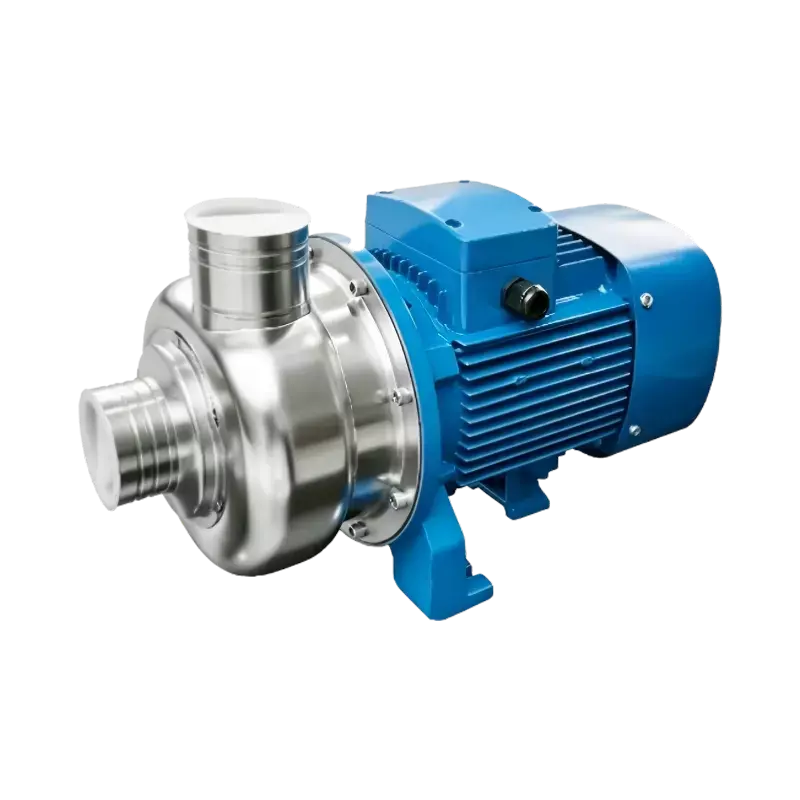

APPLICATIONS
Water supply
Pressurization
Liquid transfer in industry and horticulture
Water circulation systems for heating and air conditioning
DESCRIPTION
Motor
Copper winding, IE2 efficiency, I.CI B, IPX4
single phase with thermal protection
Motor shaft
AlSI304 welding shaft
Voltage & Frequency
230V,380V: 50HZ,60HZ
Pump body
AISI304
Pumpcover
AISI304
Impeller
AISI304
Motor bracket
Aluminium
Mechanical seal
Ceramic-Graphite-NBR Graphite-SiC-EPDM
Liquid temperature
-15°C - +80°C
Ambient temperature
0-40°C

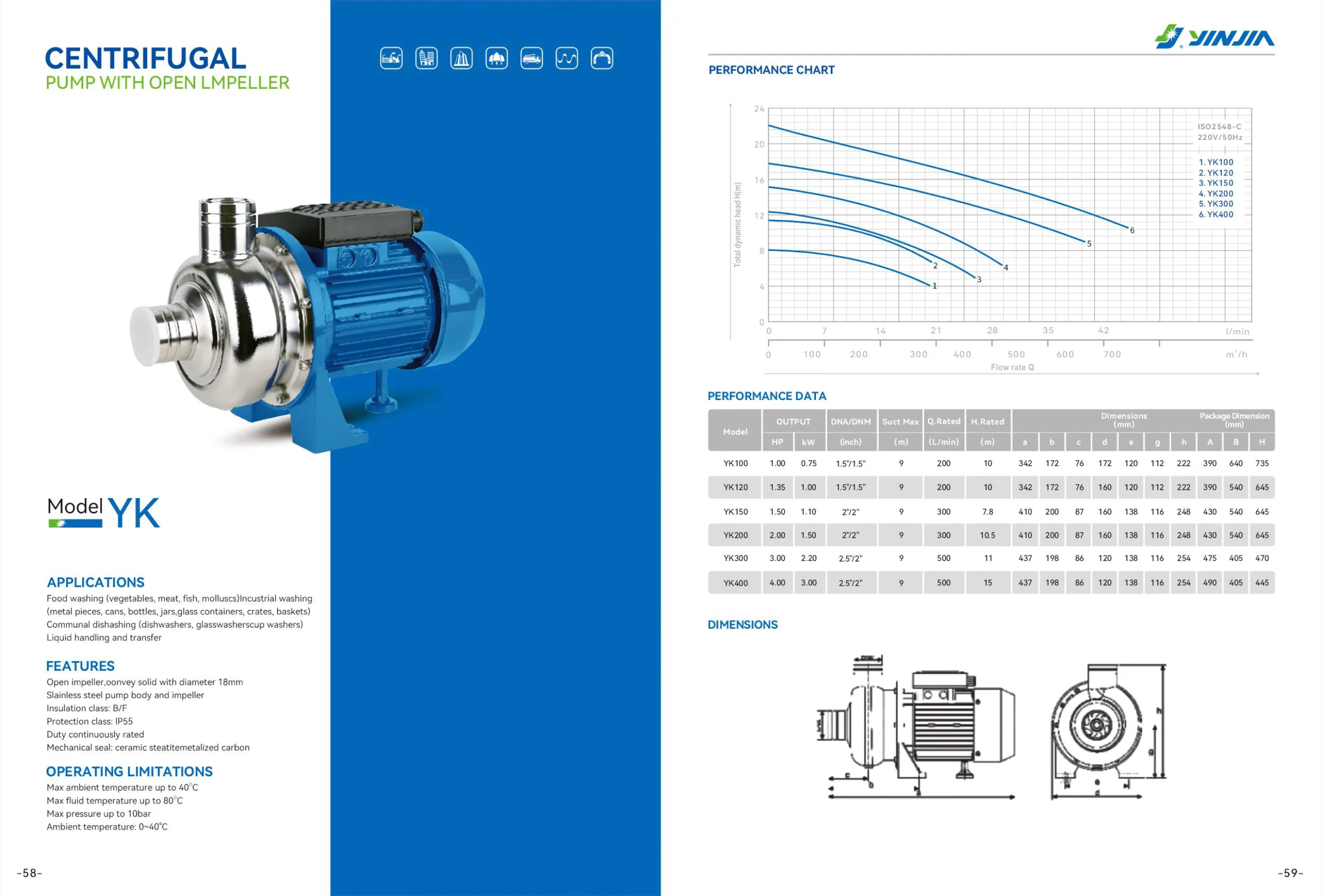

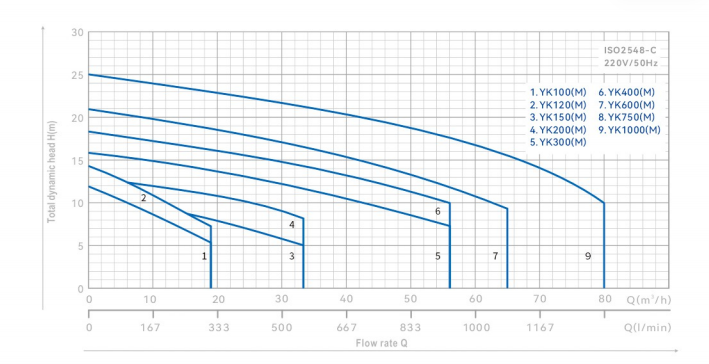

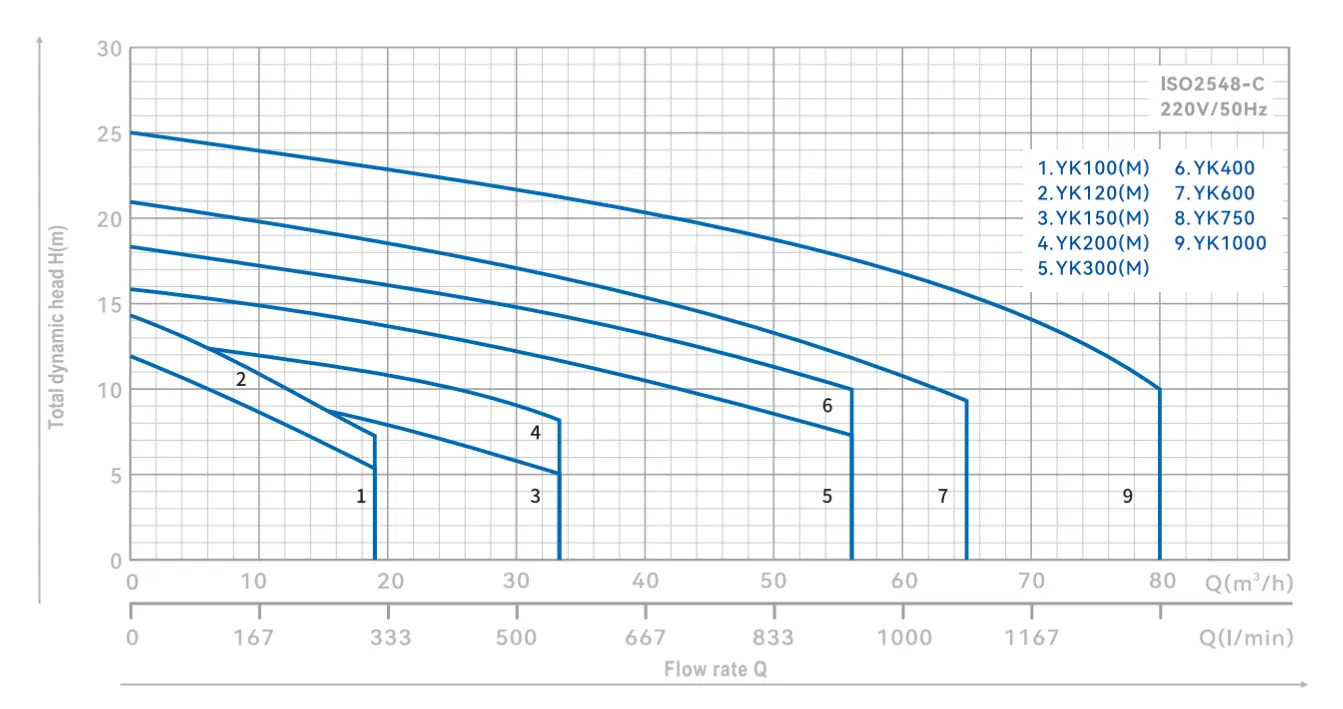

PERFORMANCE CHART
PERFORMANCE DATA
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | ||||||||||
| 1~ | 6 | 12 | 18 | 24 | 33 | 42 | 48 | 57 | 66 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 100 | 200 | 300 | 400 | 550 | 700 | 800 | 950 | 1100 |
| H (m) | ||||||||||||||
| YK100M | YK100 | 1 | 0.75 | 0.99 | 4.62 | 10.5 | 8 | 5.5 | - | - | - | - | - | - |
| YK120M | YK120 | 1.2 | 0.9 | 1.19 | 5.3 | 12.5 | 10 | 7 | - | - | - | - | - | - |
| YK150M | YK150 | 1.5 | 1.1 | 1.44 | 6.75 | 9.5 | 8.8 | 7.8 | 6.7 | 5 | - | - | - | - |
| YK200M | YK200 | 2 | 1.5 | 1.89 | 8.95 | 12.7 | 12 | 11.2 | 10 | 8.3 | 6.5 | - | - | - |
| YK300M | YK300 | 3 | 2.2 | 2.84 | 13.46 | 15 | 14 | 13.5 | 12.7 | 11.2 | 9.8 | 8.9 | 7.5 | - |
| YK400M | YK400 | 4 | 3 | 3.6 | 6.2 | 17.5 | 16.8 | 16 | 15.2 | 14 | 12.5 | 11.5 | 9.7 | 7.5 |
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | ||||||||
| 1~ | 20 | 30 | 40 | 50 | 60 | 70 | 80 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 333 | 500 | 666 | 833 | 1000 | 1166 | 1333 |
| H (m) | ||||||||||||
| YK600M | YK600 | 6 | 4.5 | 3.96 | 9.1 | 18.5 | 17 | 15.5 | 13.5 | 10.5 | - | - |
| YK750M | YK750 | 7.5 | 5.5 | 4.9 | 10.6 | 20 | 19 | 17.5 | 16 | 14 | 12 | - |
| YK1000M | YK1000 | 10 | 7.5 | 6.75 | 14.5 | 23 | 22 | 18.5 | 18.5 | 17 | 14 | 10 |

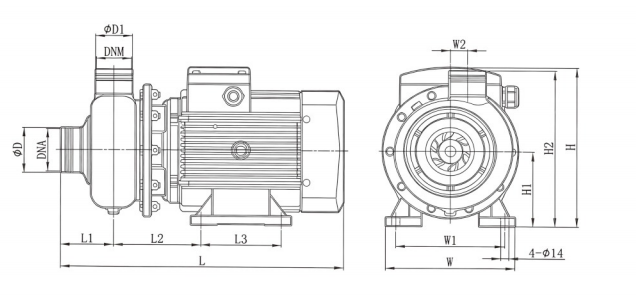

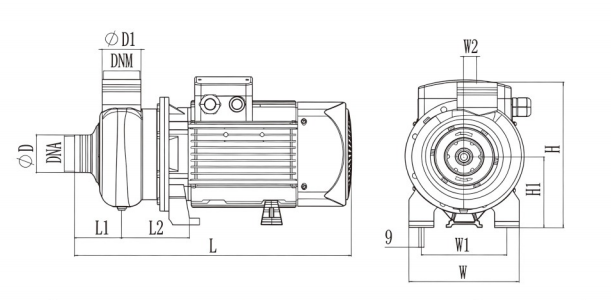

DIMENSIONS
| MODEL | Dimensions(mm) | Package Dimension (mm) | N.W | |||||||||||||
| D | D1 | DNA | DNM | H | H1 | L | L1 | L2 | W | W1 | W2 | L | W | H | (kg) | |
| YK100M | 52 | 46 | G11/2 | G11/4 | 226 | 108 | 340 | 76 | 86 | 172 | 120 | 13 | 450 | 230 | 290 | 10.0 |
| YK120M | 52 | 46 | G2 | G2 | 226 | 108 | 340 | 76 | 86 | 172 | 120 | 13 | 450 | 230 | 290 | 10.0 |
| YK150M | 63 | 63 | G2 | G2 | 253 | 120 | 403 | 82 | 101 | 193 | 140 | 20 | 450 | 230 | 290 | 13.5 |
| YK200M | 63 | 63 | G2 | G2 | 253 | 120 | 403 | 82 | 101 | 193 | 140 | 20 | 450 | 230 | 290 | 16.0 |
| YK300M | 80 | 63 | G2 1/2 | G2 | 253 | 120 | 435 | 82 | 101 | 193 | 140 | 20 | 500 | 270 | 290 | 20.2 |
| YK400M | 80 | 63 | G2 1/2 | G2 | 253 | 120 | 435 | 82 | 101 | 193 | 140 | 20 | 500 | 270 | 290 | 25.0 |
| MODEL | Dimensions(mm) | Package Dimension (mm) | N.W | ||||||||||||||
| D | D1 | DNA | DNM | H | H1 | L | L1 | L2 | L3 | W | W1 | W2 | L | W | H | (kg) | |
| YK600M | 80 | 63 | G2 1/2 | G2 | 285 | 132 | 515 | 92 | 153 | 140 | 225 | 190 | 30 | 520 | 340 | 320 | 34.0 |
| YK750M | 80 | 63 | G2 1/2 | G2 | 305 | 132 | 560 | 92 | 172 | 140 | 260 | 216 | 30 | 560 | 370 | 320 | 51.0 |
| YK1000M | 80 | 63 | G2 1/2 | G2 | 305 | 132 | 560 | 92 | 172 | 140 | 260 | 216 | 30 | 560 | 370 | 320 | 56.0 |
