Learn how a centrifugal water pump converts motor power into flow and head, including components, limits, applications and selection basics. The impeller accelerates water from its eye toward the outer diameter, creating continuous inlet flow when the casing is full. A reliable answer must connect the required flow and total dynamic head with suction conditions, liquid compatibility, electrical supply and the exact model curve. For new buyers, distributors and installers, the objective is not merely to name a pump type, but to define a duty that can be verified before ordering and during commissioning.

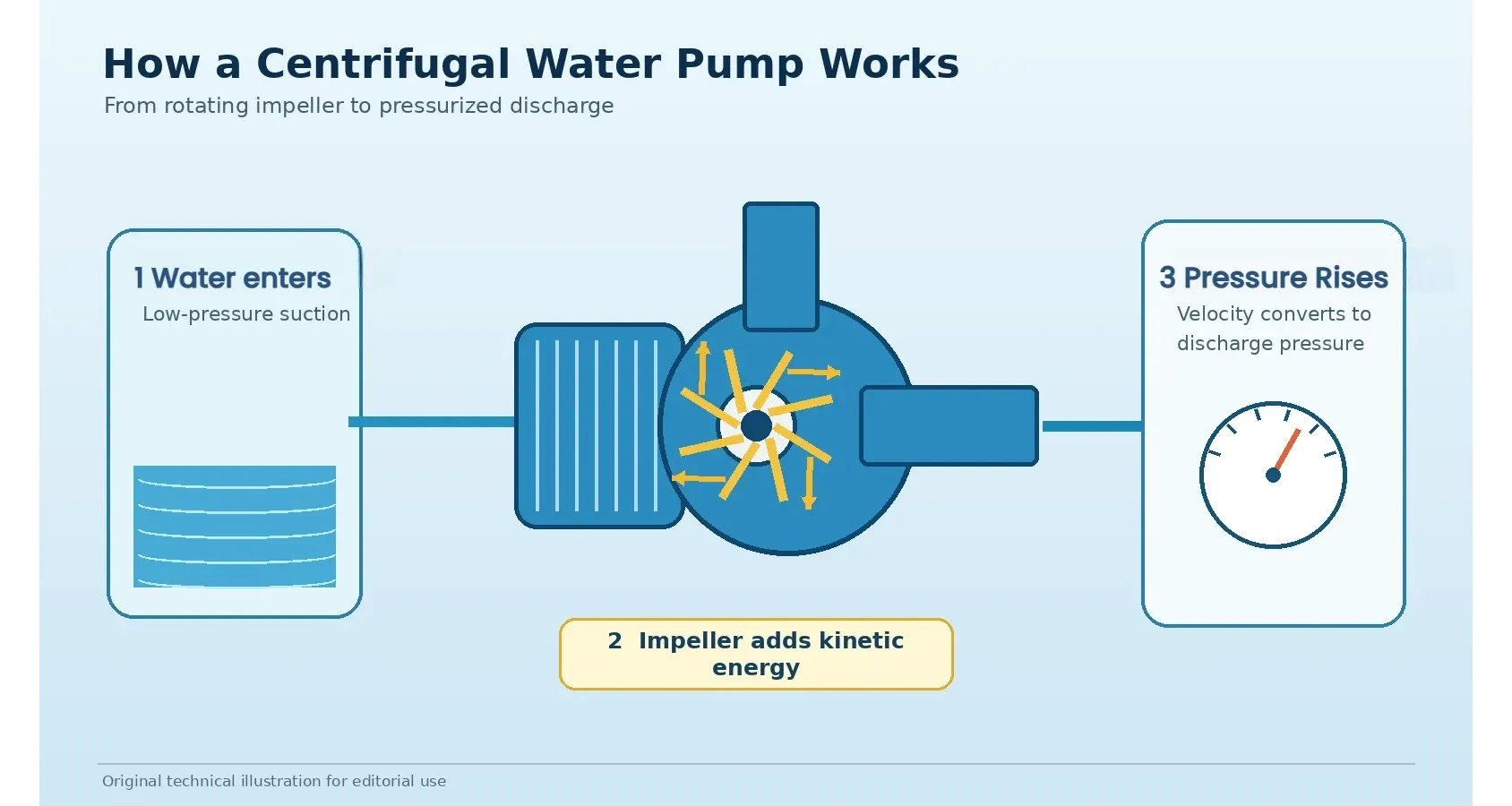

The impeller accelerates water from its eye toward the outer diameter, creating continuous inlet flow when the casing is full. This point should be quantified before a model is selected. Use measured values or a documented calculation, then state the normal condition and the most demanding credible condition.
The volute or diffuser slows and guides the liquid so part of its velocity energy becomes pressure head. The pump and the piping must be evaluated as one system. Pipe diameter, elevation, valves, filters, source level and control settings can move the operating point even when the pump itself has not changed.
For centrifugal water pump working principle, begin by turning “how velocity becomes pressure” into a measurable requirement. The volute or diffuser slows and guides the liquid so part of its velocity energy becomes pressure head. Record the source condition, required result, measurement method and acceptable tolerance. This prevents new buyers, distributors and installers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “how velocity becomes pressure,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to fundamentals, reduces specification disputes and creates a useful commissioning baseline.
The impeller, casing, shaft, bearings, seal and motor each control hydraulic performance or mechanical reliability. Check the relevant performance curve rather than relying on horsepower, connection size or product name. The proposed duty should fall in a stable region with acceptable efficiency, absorbed power and suction margin.
Actual flow is set by the intersection of the pump curve and system resistance rather than by one fixed catalog number. Installation quality affects the result. Support piping independently, prevent suction-side air leaks, provide safe electrical protection and leave space for service.
Clean-water transfer, irrigation, building supply and circulation are common, but standard models should not run dry or handle abrasive solids. Material and operating limits must match the liquid. Water temperature, dissolved chemicals, sand, corrosion risk and ambient conditions influence the casing, impeller, shaft, seal and elastomers.
For centrifugal water pump working principle, begin by turning “applications and limits” into a measurable requirement. Clean-water transfer, irrigation, building supply and circulation are common, but standard models should not run dry or handle abrasive solids. Record the source condition, required result, measurement method and acceptable tolerance. This prevents new buyers, distributors and installers from treating a general product label as a specification. Where values vary, document both the normal case and the limiting case, because the correct pump must be checked across the real operating envelope rather than at one convenient catalog point.
Validation should use evidence that another reviewer can reproduce. For “applications and limits,” compare the stated requirement with the exact model curve, drawing, test record or site measurement. Confirm the units, frequency, liquid condition and test assumptions before accepting the result. If the evidence conflicts with field behavior, investigate the system first instead of immediately changing pump size. A controlled review links the decision to fundamentals, reduces specification disputes and creates a useful commissioning baseline.
A good selection meets flow and head near an efficient region with compatible materials, electrical supply and suction conditions. A purchasing decision should include maintenance and documentation. Request installation instructions, dimension drawings, curves, spare-part identification, warranty terms and test information.
Maximum flow and maximum head occur at different ends of the curve, so they cannot normally be achieved together. After commissioning, record flow, suction pressure, discharge pressure, motor current and operating conditions. These readings create a baseline for detecting wear, blockage, leaks or control changes.
▌ Application example A system needs 6 m³/h at 24 m TDH. Two pumps may both use a 1 HP motor, yet only one curve may pass through the required point. Horsepower therefore screens the motor size but does not define hydraulic performance. Compare the exact curve, efficiency, absorbed power, suction margin and materials at 6 m³/h and 24 m head. |
A reliable decision should be supported by a labeled cutaway or flow-path diagram, a transparent TDH calculation, the exact model curve with the duty point marked, and a system schematic covering normal and peak operation. These records allow the buyer or engineer to confirm that the stated duty, liquid condition and electrical assumptions match the proposed pump. For a YINJIA model, verify every model-level statement against the latest approved datasheet or test record. Mark measured and estimated values separately, keep units consistent and retain the source files for commissioning. A traceable evidence package makes alternatives easier to compare, helps diagnose field deviations and prevents a pump from being approved from a family description alone.
Field validation turns the initial recommendation for centrifugal water pump working principle into a commissioning baseline. Record the actual suction level, discharge pressure, flow estimate, motor current, vibration, temperature, valve positions and test condition where they are relevant. Compare these readings with the selected curve and the design assumptions. If performance differs, investigate system resistance, air entry, rotation direction, supply quality and instrument accuracy before changing pump size. Keeping this record improves maintenance planning and gives buyers a practical reference for repeat orders or future system changes.
· Combining maximum flow and maximum head as one operating point.
· Assuming a larger motor automatically creates the required pressure.
· Using a clean-water design for sand or aggressive liquid without checking wetted parts.

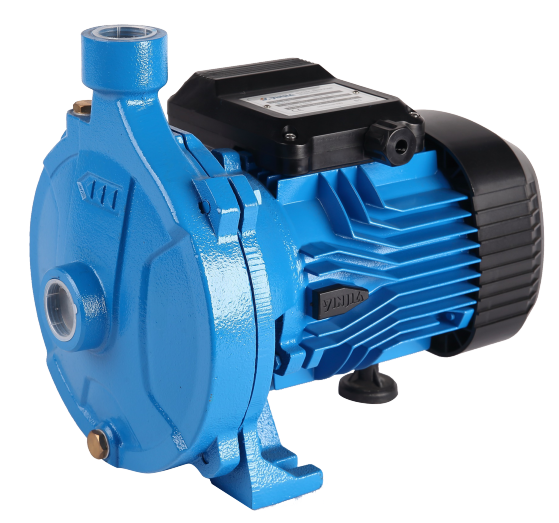

YINJIA offers clean-water centrifugal ranges including SCM single-phase, DK high-flow, CM industrial and ZS stainless-steel models. Its official website states manufacturing experience since 1990 and support for OEM, ODM and CKD/SKD cooperation. Confirm exact curves and options on the latest data sheet. For a model-level review, send YINJIA the required flow, TDH, liquid, temperature, suction arrangement, voltage, frequency, phase, duty pattern and target market. Ask for the exact curve and confirmed configuration for the relevant SCM, DK, CM and ZS centrifugal families rather than selecting from a family name alone. |
The practical lesson from what is a centrifugal water pump and how does it work? is to define the hydraulic and installation problem before selecting hardware. Use the exact duty point, verify suction and electrical conditions, compare compatible materials and require evidence that matches the proposed model. For new buyers, distributors and installers, this approach reduces oversizing, commissioning delays and specification disputes. The final page should lead readers to one relevant technical guide, one appropriate YINJIA product category and a clear request-for-selection action, while avoiding claims that cannot be supported by current documentation.
It creates lower pressure at the impeller inlet when the casing is full. Source or atmospheric pressure then moves water into the pump.
Air is compressible and a standard centrifugal pump cannot move it efficiently enough to establish normal water flow.
The operating point is where the pump curve intersects the system curve.
No. Use the exact flow-head curve plus power, efficiency, NPSH and materials.
High solids, very viscous liquid, accurate metering and prolonged dry running may require another design.
