An automatic water pump should start when water is needed, stop when demand ends, and protect itself when the source or plumbing system is abnormal. The word “automatic,” however, covers several control methods. A traditional pressure switch and tank, an electronic flow controller, and a variable-speed constant-pressure system behave differently. Choosing the correct one affects comfort, cycling, energy use, maintenance, and pump life.
The control system must be selected together with the pump curve, source, household demand, and pressure limits. Adding an automatic controller to an incorrectly sized pump does not correct inadequate flow, excessive head, or poor suction conditions.
The system needs reliable start and stop signals plus protection against cycling, dry running, overload, excessive pressure, and unsafe fault restarts.
The source changes the required logic. A pump drawing from a storage tank should stop at low level. A well pump may need dry-well protection and a recovery delay. A booster connected to a pressurized inlet should respond to variable inlet pressure. A transfer pump filling a roof tank needs level control rather than household pressure control.
A pressure switch senses discharge pressure. When pressure falls to the cut-in setting, it starts the pump. When pressure reaches the cut-out setting, it stops the pump. A captive-air pressure tank supplies a small volume between these settings and prevents the pump from starting every time a tap drips or a toilet valve opens briefly.
This serviceable system suits many homes and wells. Its cut-in and cut-out range must provide useful tank drawdown without uncomfortable pressure variation.
Tank pre-charge is normally set in relation to cut-in pressure and checked only after water pressure is drained. A damaged bladder or incorrect pre-charge reduces drawdown and causes rapid cycling. Switch settings must remain within the pump curve and the ratings of the tank, pipes, water heater, filters, fixtures, and relief devices.
A pressure-switch system also needs motor overload protection and dry-run logic where the source may fail. The switch itself cannot always distinguish an empty tank from a closed outlet; it only responds to pressure.
An electronic controller usually starts the pump when pressure drops or flow begins and stops it after flow ends. Many units include check-valve functions, dry-run detection, alarm lights, and timed restart attempts. The result is compact automatic operation without a large pressure tank.
Controller designs vary, so check current, voltage, frequency, minimum flow, pressure, orientation, restart logic, and contactor requirements.
A small leak can keep flow above the stop threshold or trigger repeated starts. A small pressure vessel often helps with drips, thermal expansion, and very short demands. It can also reduce water hammer. Follow the controller manufacturer’s guidance rather than assuming “tankless” means a tank is always undesirable.
Electronic controllers work well for many tank-fed houses and compact boosters. They may be less suitable when the system has very low flows, frequent leaks, unusual pressure requirements, or a pump whose shutoff head cannot reach the controller’s stop threshold.
A variable-frequency drive, or VFD, changes motor speed to maintain a pressure setpoint. When one small tap opens, the motor may run slowly. As more fixtures open, speed increases to maintain pressure. This reduces the large pressure swings associated with fixed-speed cut-in and cut-out operation.
Variable speed suits changing demand and stable-shower expectations. It may save energy at reduced load, but results depend on the hydraulic system and usage.
Match the drive to motor data. Commission setpoint, speed limits, ramps, sleep mode, restart pressure, sensor calibration, protection, and a stabilizing pressure vessel.
The pump curve at full and reduced speed must cover the entire operating range. A drive cannot make an undersized pump produce head beyond its hydraulic capability, and a severely oversized pump may remain unstable even at low speed.
A transfer pump moving water from a lower tank to a roof tank should normally be controlled by water level. A low-level signal in the receiving tank starts filling, and a high-level signal stops it. Another low-level signal in the source tank prevents dry running.
Float switches need room to move; electrodes or other sensors may suit different tanks. Correctly rate relays and contactors for the motor, and design the control circuit to fail safely.
Avoid relying only on a float valve that mechanically closes while the pump continues to run. The pump needs an electrical stop command or pressure control designed for that duty. Add an overflow route as secondary protection.

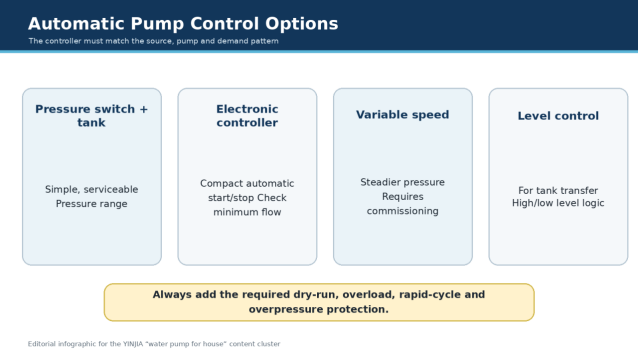

Use a pressure switch and tank when simplicity, serviceability, and tolerance of small demands are priorities. Use an electronic controller when compact automatic operation is desired and the household flow remains above the controller’s reliable threshold. Choose variable speed when pressure stability across widely changing demand justifies the added cost and commissioning.
For tank transfer, use level control. For a low-yield well, combine pump control with recovery protection or storage. For a municipal supply, confirm whether direct boosting is allowed and analyze minimum and maximum inlet pressure.
Control selection should follow the pump duty. Calculate peak flow and total dynamic head, then verify the pump curve. Confirm the controller can carry the motor current and the pump can reach the stop pressure or setpoint with adequate margin.
Dry running can damage seals, bearings, impellers, and motors. Use tank level switches, well-level protection, pressure or flow logic, or motor-current monitoring suitable for the source. Test the protection during commissioning.
Repeated starts may result from a waterlogged tank, tiny leak, blocked check valve, insufficient tank volume, incorrect switch settings, or unstable electronic logic. Set a minimum run time or restart delay where the controller supports it, and fix the hydraulic cause.
The electrical system should protect against overcurrent, short circuit, under-voltage, over-voltage, and phase loss or reversal where relevant. Match cable and breaker sizes to the nameplate and local code. Outdoor controllers need suitable enclosure protection and ventilation.
The pump’s shutoff head and control settings must not exceed the ratings of the plumbing system. Install a relief valve or pressure-reducing equipment when the design requires it. Check pressure during low demand, when the pump may approach its highest head.
Locate sensors where they represent household pressure, add useful gauges, and route controller cables according to instructions.
Commission with the source at its minimum expected level. Test one small tap, several fixtures, sudden opening and closing, tank-empty simulation, power failure, and restart. Measure flow, dynamic pressure, pump current, cycling frequency, and noise. Record settings and leave a clear wiring diagram for future service.
Common faults include a pump that will not stop because of a leak or inadequate shutoff head; a pump that will not start because the start pressure is too low or a sensor is blocked; rapid cycling from a failed pressure tank; and dry-run alarms caused by suction leaks or insufficient source flow.

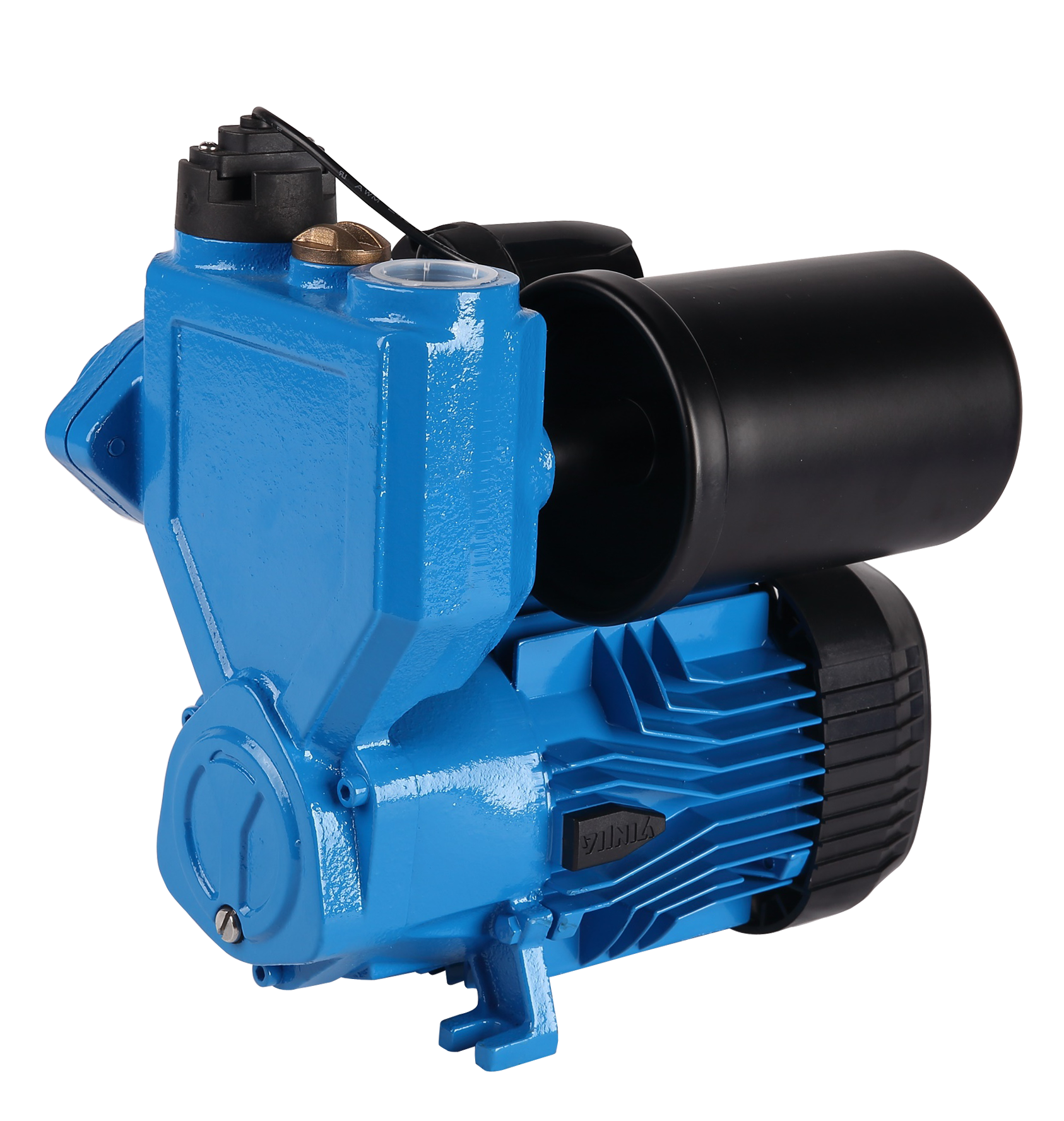

YINJIA lists pressure switches and pressure tanks alongside peripheral, self-priming jet, centrifugal, multistage, deep-well, and booster-system pumps. This allows an automatic household solution to be discussed as a pump-and-control package. YINJIA states that it has manufactured pumps since 1990 and supports OEM, ODM, and CKD/SKD cooperation. For an automatic-pump quotation, provide the duty point, source type and level, desired pressure behavior, motor electricity, maximum starts per hour, dry-run risk, tank volume, installation environment, and required alarms or restart logic.
A pressure switch and tank suit simple, serviceable systems. Electronic controllers are compact. Variable speed provides steadier pressure. The best choice depends on demand variation, source reliability, budget, and service support.
Some electronic systems can, but a small vessel may still improve stability, absorb tiny demands, and reduce water hammer. Conventional pressure-switch systems require a properly sized tank.
Likely causes include a waterlogged or undersized tank, leaks, a faulty check valve, incorrect pressure settings, or unstable controller logic. Repeated cycling should be corrected promptly.
Some controllers lock out until manual reset; others attempt timed restarts. Choose a restart strategy that matches how quickly the source can recover and does not repeatedly run the pump dry.
No. Savings depend on time spent at reduced flow, pipe friction, pressure setpoint, pump efficiency, and correct sizing. Constant pressure and comfort may be the primary benefits.
