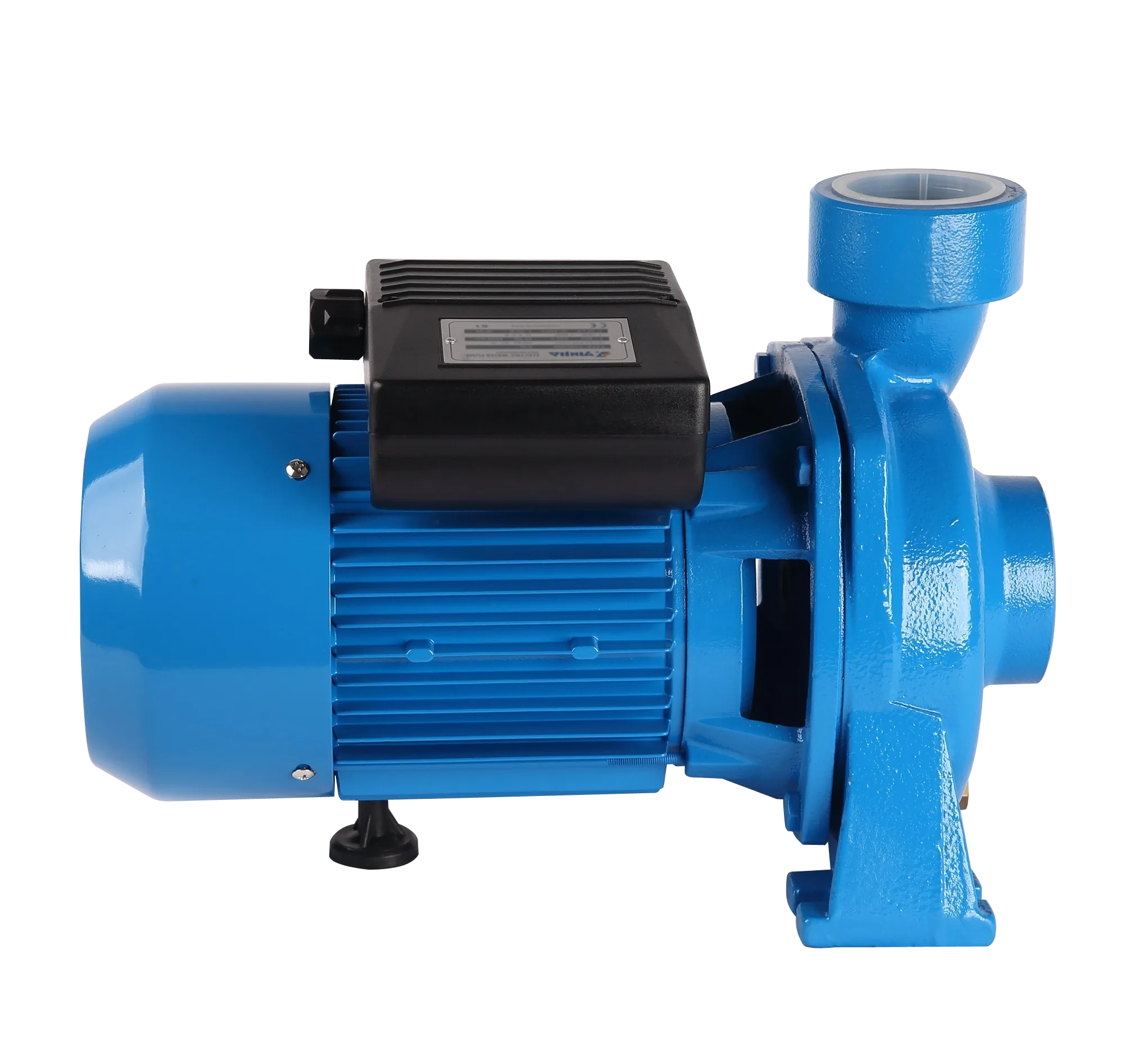

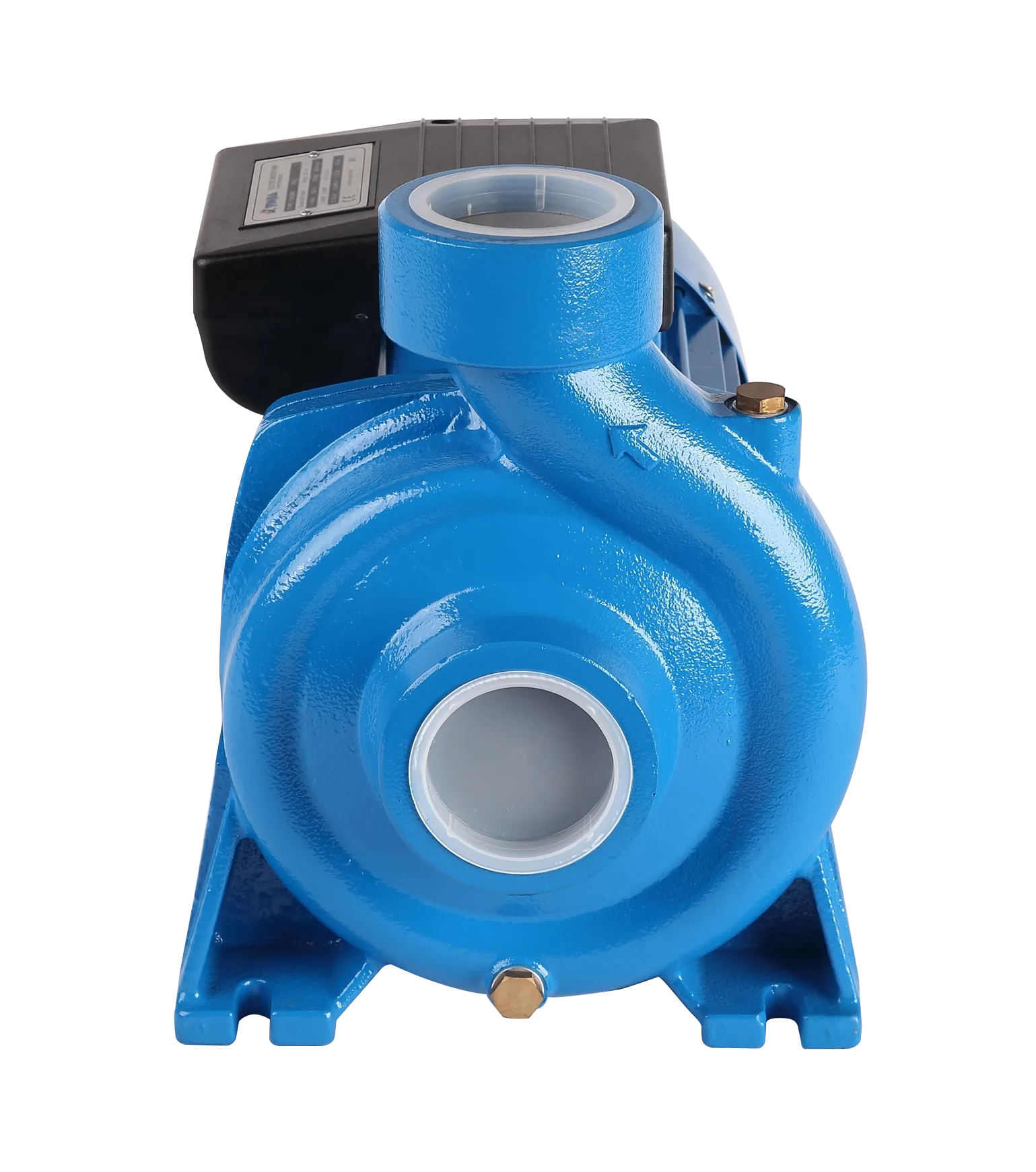

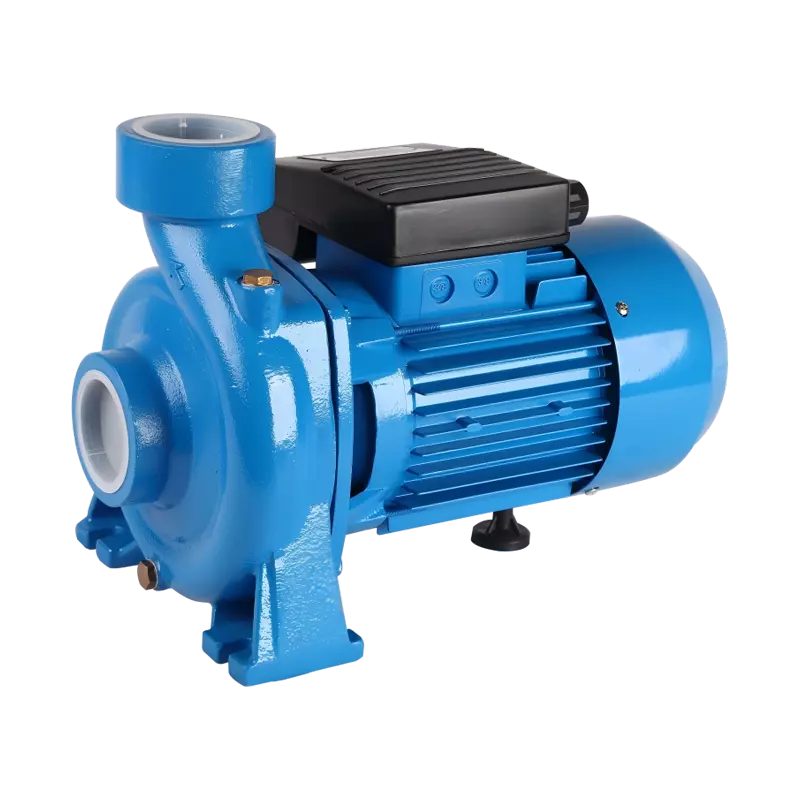

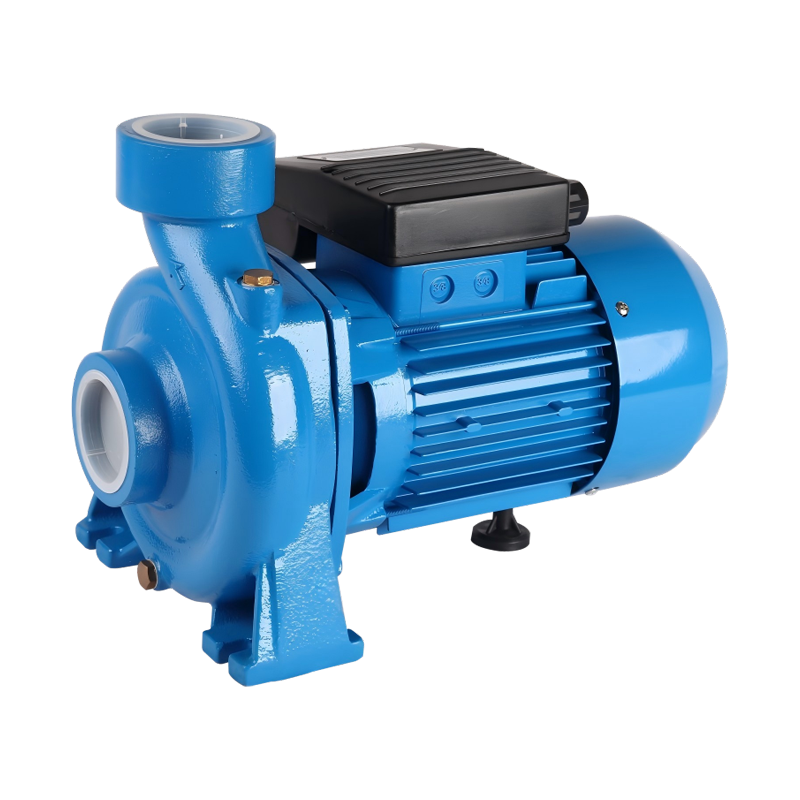

YINJIA is a leading China high capacity centrifugal pump for water system manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our high capacity centrifugal pump for water system have been satisfied by many customers. YS series high capacity centrifugal pump for water system belongs to the electrical centrifugal pump category, is a classical and popular pump in the global market. Single phase and three phase are available. The Heavy duty electric water pump suitable to cover any small, medium or large capacity request, for domestic, agricultural and industrial purposes. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for industrial use and urban water supply,pressure boosting for high buildings and fire fighting,garden imgation,long-distance water transfer,heating ventilation and air controlling, circulation and pressure boosting for cold hot water, and supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: cast iron
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-Brass impeller
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

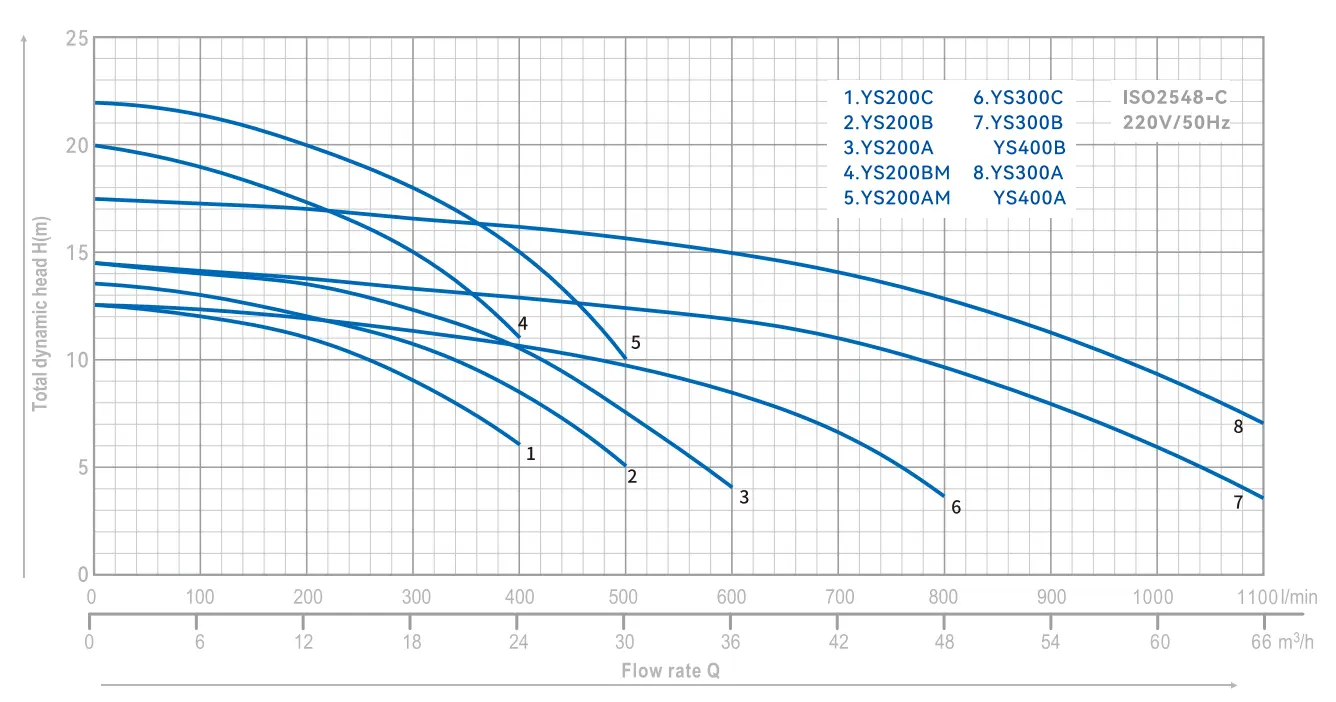

PERFORMANCE

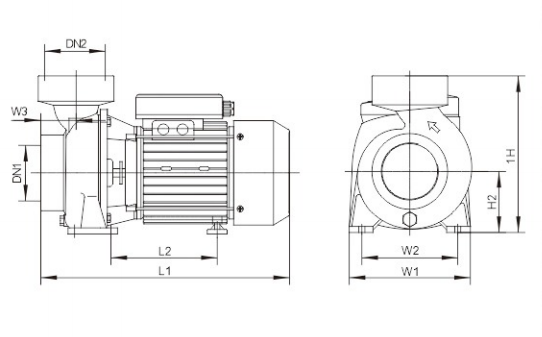

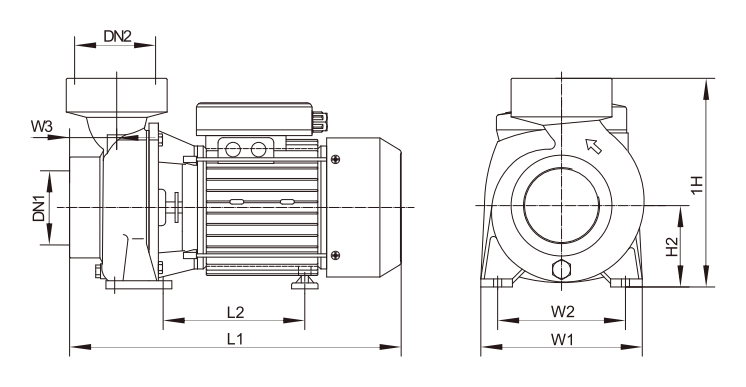

DIMENSIONS
YS SERIES EXPLODING DRAWING
