China electric garden water JET pump factory directly supply. YINJIA is a large-scale electric garden water JET pump manufacturer and supplier in China. JET series electric garden water JET pump belongs to the single-phase self-priming JET pump category,is a best seller pump in the global market. The electrical JET pumps have high performance in terms of head and flow rate, ideal for residential use when there is a need for the self- priming function. Pumps should be installed in a covered area, protected against the weather.
Product Feature And Application
- APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
- DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
- SPECIAL FEATURES ON REQUEST
Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F - OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
- MOTOR
-Insultation class: B
-Protection: Ip44
-Speed of rotation: 2850rpm
-Continuous duty: S1

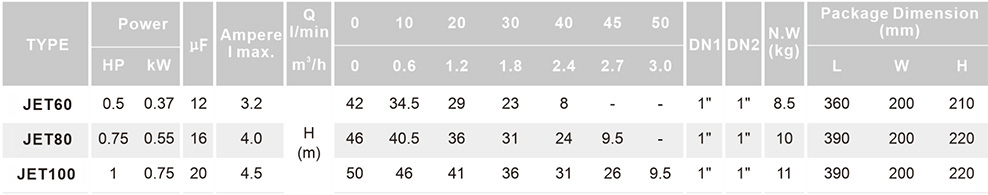

Product Parameter (Specification)

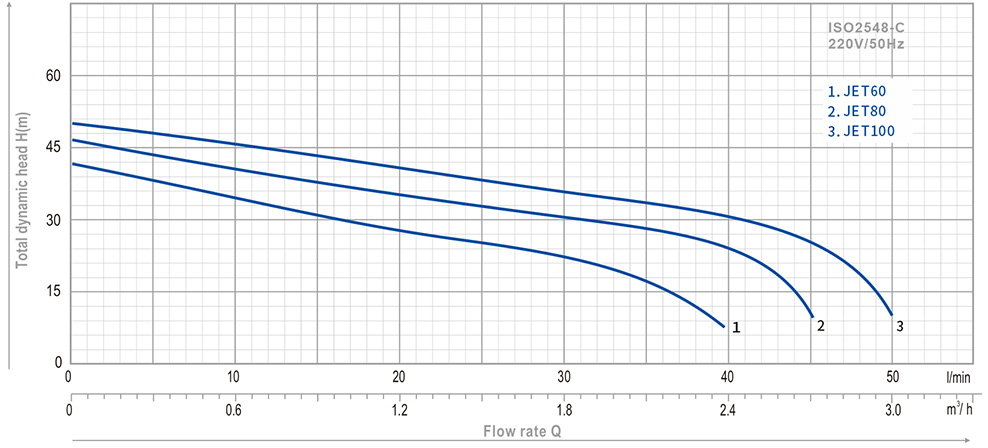

PERFORMANCE
JET60 -0.37 kW / 0.5 HP - Max. Head 42m - Max. Flow 40 l/min - 1" water pump
JET80 - 0.55 kW / 0.75 HP - Max. Head 46m - Max. Flow 45 l/min - 1" water pump
JET100 - 0.75 kW / 1 HP - Max. Head 50m - Max. Flow 55 l/min - 1" water pump

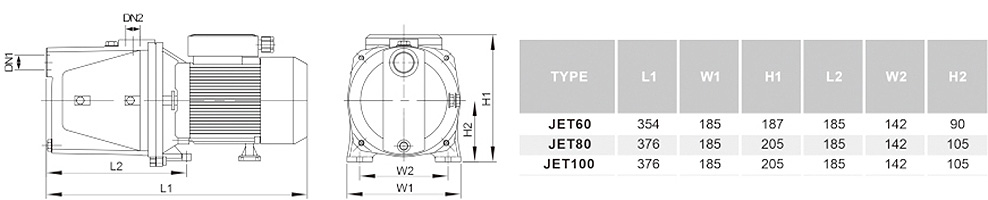

DIMENSIONS

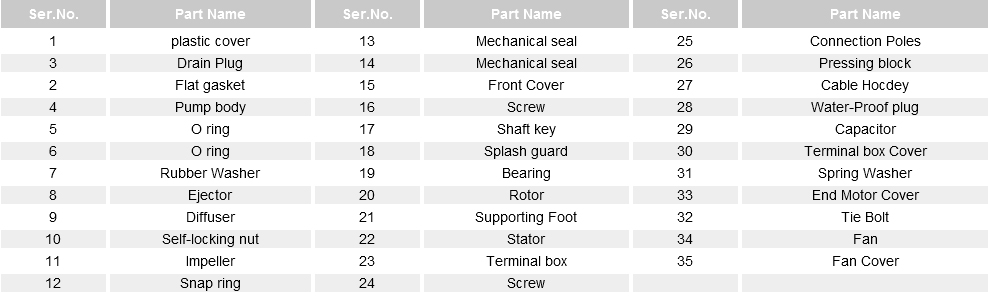

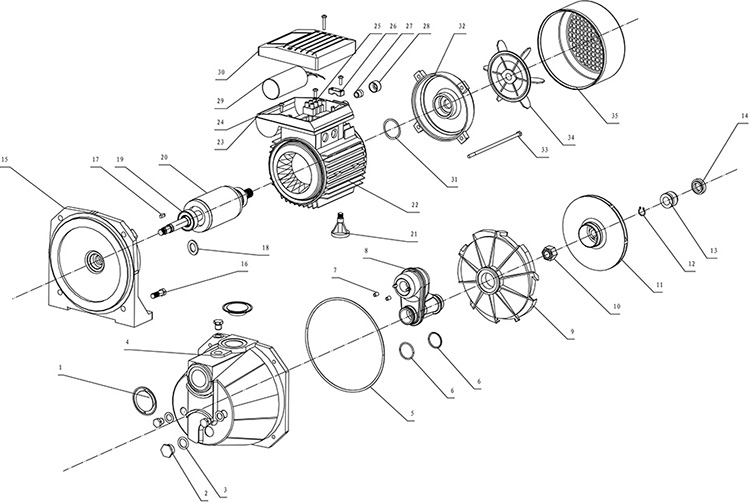

JET EXPLODING DRAWING
