YINJIA as a professional high quality Electrical JET Pumps manufacturer, you can rest assured to buy Electrical JET Pumps from our factory and we will offer you the best after-sale service and timely delivery. JET/A series electrical JET pumps belongs to the single-phase self-priming JET pump category,is a best seller pump in the global market, like 110V/60HZ for Philippines also available. The electrical JET pumps have high performance in terms of head and flow rate, ideal for residential use when there is a need for the self- priming function. Pumps should be installed in a covered area, protected against the weather.
Product Feature And Application
- APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
- DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-Ejection union: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
- SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-Cast iron diffuser, brass nozzle
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
- OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +60℃
-Max. altitude: +1000 mt.
- MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
Product Parameter (Specification)

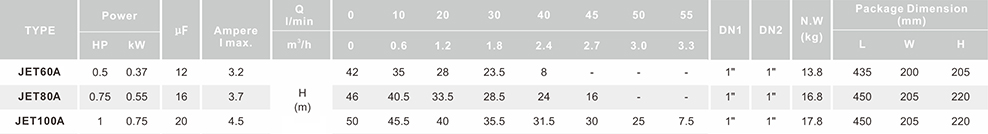

PERFORMANCE
JET60A -0.37 kW / 0.5 HP - Max. Head 42m - Max. Flow 40 l/min - 1" water pump
JET80A - 0.55 kW / 0.75 HP - Max. Head 46m - Max. Flow 45 l/min - 1" water pump
JET100A - 0.75 kW / 1 HP - Max. Head 50m - Max. Flow 55 l/min - 1" water pump
DIMENSIONS

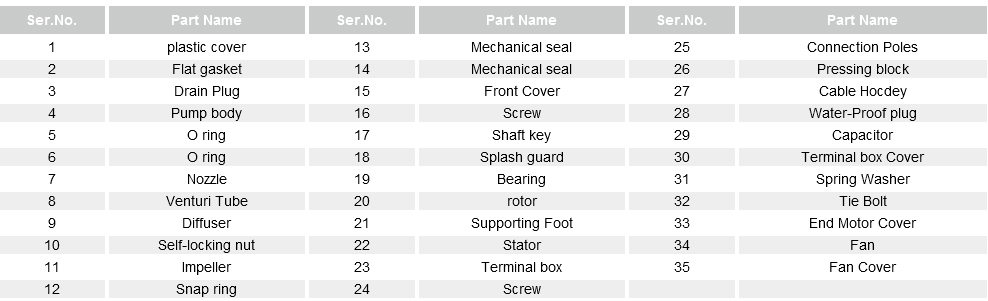

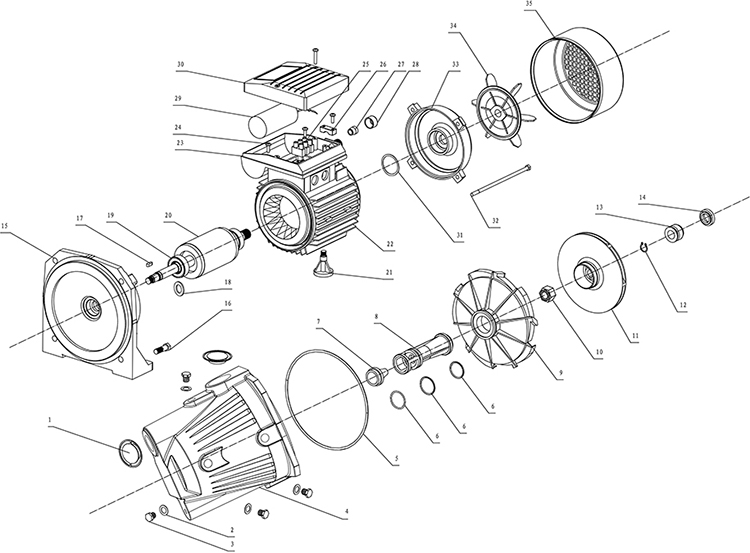

JETA SERIES EXPLODING DRAWING
