A water pump for a house should do more than move water. It must deliver enough flow when several fixtures are used, maintain comfortable pressure at the highest outlet, match the available water source, and operate without excessive cycling, noise, or energy waste. That is why choosing a pump by horsepower alone often produces disappointing results. A larger motor cannot correct a poor system layout, an undersized pipe, an unreliable water source, or the wrong control method.
The best selection process starts with four questions: Where does the water come from? Where must it go? How much water may be needed at one time? How much total head must the pump overcome? Once those answers are clear, the appropriate pump family, motor size, controls, tank, and protection devices become much easier to identify.
Different homes use pumps for different reasons. One homeowner may need to draw clean water from a shallow well. Another may need to transfer water from a ground-level storage tank to a rooftop tank. A third may have acceptable municipal flow but weak pressure on an upper floor. These applications can require very different products even when the homes have a similar number of bathrooms.
Write a duty statement before comparing models, such as: “Supply two bathrooms and a kitchen from a ground tank, with two fixtures running together.” Include the source, highest outlet, expected simultaneous demand, and automatic-control requirement.
Flow is the volume of water delivered over time, usually expressed in liters per minute, cubic meters per hour, or gallons per minute. Pressure describes the force available to push water through pipes and fixtures. A house needs both. High pressure with too little flow feels weak when several outlets open, while high flow with inadequate pressure may not reach an upstairs shower satisfactorily.
Estimate peak demand from fixtures likely to operate together. High-flow rain showers, irrigation, fast bathtub filling, or multi-family use increase the design flow.
Pressure requirements depend on the desired pressure at the outlet plus the vertical lift and pipe losses. Roughly 10 meters of water column equals about 1 bar of pressure. Therefore, a pump supplying a shower 8 meters above the water level must first overcome that elevation before it can provide useful pressure at the shower.

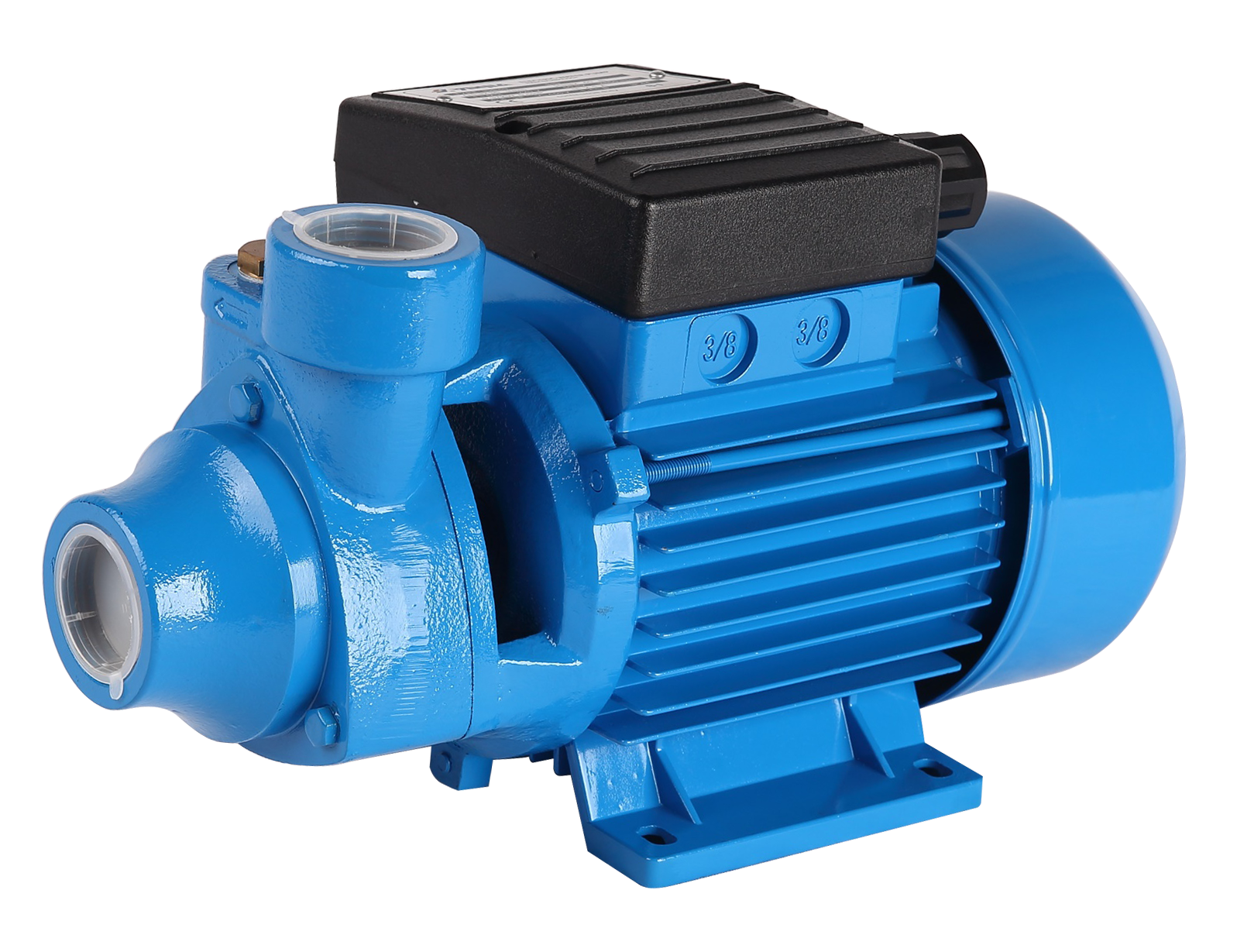

Peripheral pumps are compact and can create useful pressure at modest flow, making them suitable for small homes or light transfer duties.
Self-priming jet pumps suit shallow wells, cisterns, and ground tanks. They still require initial priming, an airtight suction line, and a foot valve or check valve where the system requires one; add dry-run protection when the supply is uncertain.
Centrifugal pumps suit general transfer and supply. Multistage pumps provide higher head and are often used for larger or multi-story homes. Select them from the pump curve, not the product name alone.
Submersible pumps push water from inside a borehole and are normally preferred when the pumping water level is beyond reliable surface-pump suction. Confirm well diameter, depth, yield, water quality, cable length, and controls.
Integrated boosters combine pumping and control functions and may offer constant pressure and dry-run protection. Their hydraulic rating must still match the house.
Total dynamic head, or TDH, is the sum of three main components: vertical elevation, required outlet pressure, and friction loss. If the water level is 2 meters below the pump, the highest shower is 9 meters above it, and the homeowner wants approximately 2.5 bar at that shower, the pressure requirement alone represents about 25 meters of head. Add the 11-meter elevation difference and an allowance for friction, and the required duty may approach 40 meters of head at the design flow.
Friction rises rapidly in small, long, or restrictive pipes. Calculate it for the actual diameter, length, valves, elbows, filters, and check valves.
Place the duty point within the stable middle of the manufacturer’s pump curve, not near zero-flow shutoff or the extreme high-flow end.
Municipal mains, storage tanks, shallow wells, and deep wells impose different conditions. Some locations prohibit or restrict direct boosting from the public main because a booster can affect the network or create contamination risks. In such cases, a break tank may be required. Always check local plumbing and water authority rules before installation.
For tanks, use the lowest operating water level. For wells, use the pumping level under demand and confirm the source can replenish water fast enough to avoid dry running.
A traditional pressure switch and pressure tank is robust and serviceable. The pump starts at the cut-in pressure and stops at the cut-out pressure. A correctly sized, pre-charged tank reduces cycling and provides a small reserve of pressurized water.
Electronic controllers provide compact automatic operation and may include dry-run protection. Check minimum flow, restart behavior, current rating, and pressure-vessel recommendations.
Variable-speed control adjusts motor speed to maintain steadier pressure as demand changes. It needs correct commissioning, motor compatibility, electrical protection, and stable low-flow logic.
Confirm that wetted materials suit the water quality and local drinking-water rules. Sand, iron, salinity, or aggressive chemistry may require special construction or treatment.
Match the power supply, cable, grounding, circuit breaker, and overload protection to the nameplate voltage, phase, frequency, and current. Provide ventilation, weather protection, dry-run protection, and the required valves and strainers.
A good pump can perform poorly when installed badly. Keep suction piping short, straight, airtight, and at least as large as the pump inlet. Avoid high points that trap air. Support the pipe independently so its weight does not strain the casing. Mount the pump on a rigid, level base with flexible connectors or vibration isolation where appropriate.
Keep the priming port, controller, strainer, drain, tank valve, and terminals accessible. Protect the pump from flooding, freezing, rain, overheating, and noise-sensitive walls.
YINJIA can be introduced in this decision process as a manufacturer with product families for household clean-water applications, including peripheral pumps, self-priming jet pumps, centrifugal and multistage pumps, deep-well pumps, booster systems, pressure switches, and pressure tanks. The company states that it has manufactured pumps since 1990 and supports OEM, ODM, CKD/SKD, and brand cooperation. For a project inquiry, buyers should provide the water source, required flow, total head, voltage and frequency, control preference, water quality, and installation environment so that a suitable pump curve and configuration can be reviewed.
Before ordering, confirm the source level, simultaneous flow, elevation, outlet pressure, friction loss, curve duty point, suction conditions, electricity, controls, protection, materials, noise location, service access, and local rules.
The right house pump is the model that meets the real flow and head requirement, matches the source, and works with the correct tank and controls. System selection produces more consistent pressure and easier maintenance than buying extra horsepower.
There is no universal horsepower. A small home with a nearby tank may need modest power, while a multi-story house or deep well may require much more. Select the duty point in flow and total head first, then use the manufacturer’s curve and motor rating.
That depends on local regulations and the condition of the public network. Direct boosting may be restricted. A break tank and booster set may be required to prevent negative pressure or contamination risks.
No. A self-priming design can evacuate some air after the casing is filled correctly, but it still needs water for sealing and cooling. Dry running can damage seals and other parts.
A pressure tank is normally required with a conventional pressure-switch system and can also improve some electronic-control systems. It reduces rapid cycling, absorbs small demands, and helps manage pressure fluctuations.
Service life depends on operating point, water quality, cycling frequency, installation, electrical supply, protection, and maintenance. Correct sizing and protection are usually more important than simply buying a larger motor.
