YINJIA is a leading China vertical multi-stage water pump manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our vertical multi-stage water pump have been satisfied by many customers. YMPV series vertical multi-stage water pump is a most popular type of centrifugal pumps, with three or morePPOimpellers, it can make higher pressure than single stage pump, widely used at various sites that request high pressure. Distribution of water in combination with pressure sets and for pressure boosting.
APPLICATIONS
-Centrifugal vertical and horizontal multistage water pumps able to develop high pressure and a high water lift with a comparatively low power consumption.
-Universal pump for civil and industrial purposes, for high pressure system and for irrigation in agriculture and sports fittings.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Pump casing: Stainless Steel AISI 304
-Diffuser: PPO
-Impeller: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechaniacal seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
YMPV3 PERFORMANCE CHART
YMPV6 PERFORMANCE CHART
YMPV9 PERFORMANCE CHART

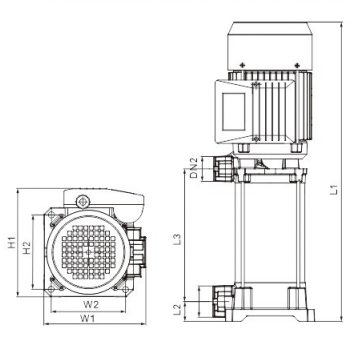

DIMENSIONS
YMPV Series Exploding Drawing
