Low water pressure can turn normal household tasks into daily frustrations. Showers become weak, washing machines fill slowly, and pressure collapses when a second tap opens. A booster pump can solve many of these problems, but only after the cause is identified. Installing a powerful pump on a blocked pipe, undersized service line, empty tank, or low-yield well may increase noise and energy use without delivering a reliable improvement.
The best water pump for a house with low water pressure is therefore not one universal model. It is a correctly sized booster that matches the source, available inlet flow, required outlet pressure, peak household demand, and local plumbing rules.

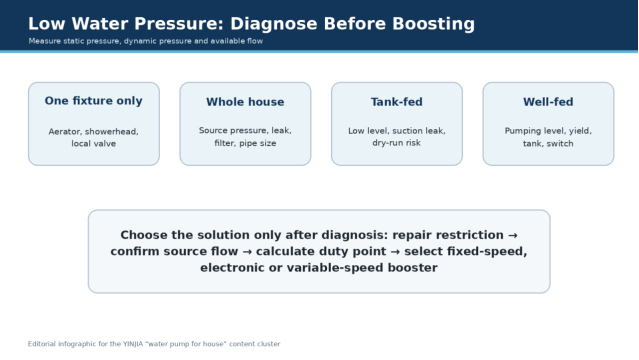

First determine whether the problem affects one fixture or the whole house. Clean aerators and showerheads, then check incoming pressure, tank level, filters, valves, leaks, pipe size, and any existing pump controls.
Measure static pressure when no water is flowing, then measure dynamic pressure while one or more fixtures run. Static pressure may look acceptable even when the supply line cannot deliver enough flow. If pressure falls sharply under demand, the restriction or source capacity is often more important than the static reading.
Perform a container flow test with one fixture and again with another outlet open. This separates a pressure problem from limited supply flow.
Street pressure may be low at certain times, particularly in elevated areas or rapidly growing neighborhoods. Before direct boosting, confirm whether local regulations permit a pump to connect to the public main. Some authorities require a break tank so the booster cannot pull negative pressure from the network.
A rooftop tank creates pressure through elevation. If the vertical distance between the tank water level and an upstairs shower is small, gravity pressure may be inadequate. A compact booster installed after the tank can improve pressure, provided it is protected against running when the tank is empty.
A house supplied from a ground or basement tank normally needs a booster to deliver both elevation head and comfortable fixture pressure. Suction layout, minimum tank level, and pump priming are critical. A multistage pump or a suitable self-priming jet pump may be used depending on the layout and required duty.
For a well system, low pressure may result from a worn pump, incorrect pressure-switch settings, a waterlogged pressure tank, falling pumping water level, or a well yield lower than household demand. A larger pump cannot create more water than the well can supply. Storage may be required to separate slow source recovery from short periods of high household use.
Corroded galvanized pipe, undersized tubing, dirty cartridge filters, softener problems, half-closed valves, and restrictive check valves can consume much of the available pressure. Correct these issues before sizing a booster. Otherwise, the pump may operate at high head with poor flow and frequent cycling.
This arrangement starts at a lower pressure and stops at a higher one. A correctly sized tank reduces starts, supplies small demands, and cushions pressure changes.
Switch settings must stay within the pump curve and every component’s pressure rating. Check tank pre-charge with the water side depressurized.
Electronic controllers start the pump on demand and may add dry-run protection. Confirm minimum-flow logic, current rating, start pressure, and restart behavior.
Small leaks can cause repeated starts; a small pressure vessel may stabilize minor demands. Follow the controller manufacturer’s instructions.
A variable-speed booster adjusts motor speed to keep discharge pressure near a setpoint as demand changes. It can provide excellent comfort when one shower or several fixtures may run. It also limits unnecessary pressure at low demand and may reduce energy consumption when the system spends substantial time below full load.
Consider initial cost, commissioning, minimum-flow behavior, motor compatibility, and local service. The pump curve must still cover maximum flow at the required head.
First estimate simultaneous household flow. A practical design condition might include two showers and one tap, while a larger house may include irrigation or multiple bathrooms. Use fixture data and actual usage patterns instead of simply multiplying the total number of outlets.
Next calculate total dynamic head. Add the vertical rise from the lowest source water level to the highest fixture, the pressure desired at that fixture, and friction loss through pipe, fittings, filters, valves, and treatment equipment. Ten meters of head is approximately one bar, so a desired 2.5 bar at the highest shower represents about 25 meters before elevation and friction are added.
Available inlet pressure must be handled carefully. A booster on a stable pressurized supply may add only the required pressure difference. A pump supplied from an atmospheric tank must create the full system head. Because inlet pressure can vary, check both the minimum-inlet condition and the maximum-inlet condition so the system neither underperforms nor overpressurizes the house.
Plot the required flow and head on the manufacturer’s pump curve. Select a model whose duty point sits in a stable, efficient region. Avoid choosing a pump that reaches the required head only at nearly zero flow or provides excessive pressure at normal household demand.
More pressure is not always better. Excessive pressure increases leak risk, water hammer, fixture wear, and water consumption. Confirm the maximum allowable pressure of every component. Install a pressure-reducing valve, relief valve, or appropriate control logic where required.
Use correctly located check and isolation valves, service unions, gauges where useful, a strainer for debris, and dry-run protection. Consider thermal expansion and local codes.
Keep the suction line short, airtight, and adequately sized. Air leaks on the suction side may not drip water, yet they can prevent priming and reduce output. Avoid loops that trap air, and install a reliable foot valve when the design requires one. Surface pumps should be protected from rain and flooding while receiving enough ventilation.
For quieter operation, use a rigid base, vibration isolators where appropriate, flexible pipe connections, and pipe supports that prevent vibration from reaching walls. Avoid placing a fixed-speed pump directly beside a bedroom. A pump that repeatedly starts and stops is often more disturbing than one that runs smoothly for a reasonable cycle.
At commissioning, record inlet and operating pressure, motor current, controller response, and tank pre-charge; check for leaks and verify dry-run protection.

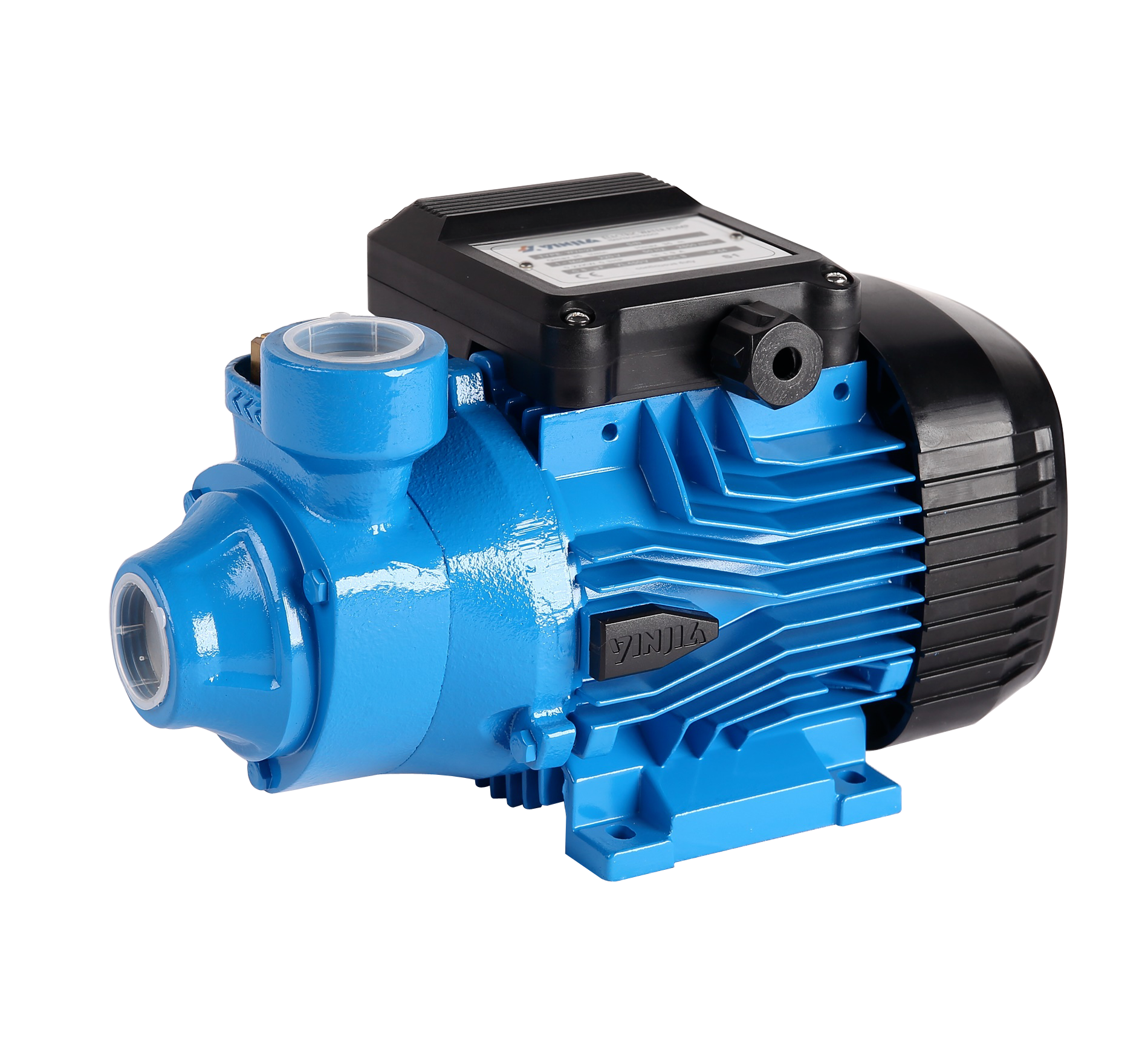

For low-pressure projects, YINJIA’s household portfolio can be positioned around the actual system rather than a generic horsepower recommendation. Relevant categories include peripheral pumps for modest flow and useful pressure, self-priming jet pumps for tanks or shallow suction duties, multistage and booster systems for higher head, plus pressure switches and pressure tanks for automatic control. YINJIA states that it has manufactured water pumps since 1990 and offers OEM, ODM, and CKD/SKD cooperation. A useful inquiry should include minimum inlet pressure or tank level, target pressure, peak flow, building height, pipe size, voltage, frequency, noise expectations, and preferred control method.
Do not boost an empty tank, low-yield well, leaking system, blocked service line, or closed valve. Intermittent municipal supply may require storage; weak hot water may point to the heater or mixing valve. Upstairs-only problems require an elevation and pipe-loss calculation.
A successful solution combines diagnosis, hydraulic sizing, pressure control, and safe installation. When these are correct, the pump can maintain useful pressure without excessive cycling or overloading the plumbing.
The correct setpoint depends on fixture requirements, building height, pipe losses, and component ratings. Many homes feel comfortable within a moderate pressure range, but the design must be calculated for the highest and most demanding outlet.
No. An oversized pump may cause excessive pressure, noise, water hammer, short cycling, and wasted energy. It cannot compensate for inadequate source flow or a blocked pipe.
Yes. The pump is normally installed after the tank and sized for the required flow and additional head. Add low-level or dry-run protection so it stops if the tank empties.
The pump or supply line may not provide the combined flow at the required head. Small pipes, filters, valves, or a low-yield source can also cause a large dynamic-pressure drop.
It is attractive when demand varies widely and steady pressure is important. For simple, predictable demand, a fixed-speed pump with a correctly sized pressure tank may be more economical and easier to service.
