A private well can provide dependable household water, but the pump must match the well rather than only the number of bathrooms. The most important measurements are well diameter, total depth, static water level, pumping water level, sustainable yield, water quality, and the flow and pressure required by the house. Without these data, choosing between a jet pump and a submersible pump becomes guesswork.

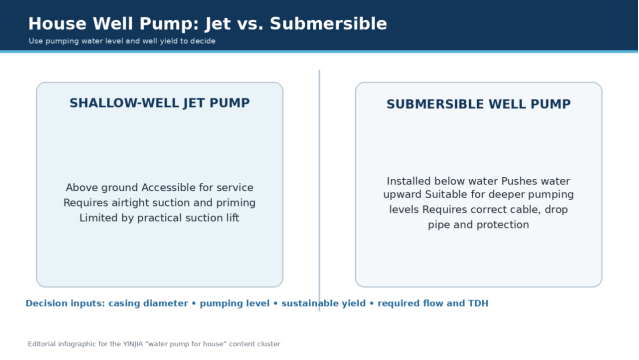

A shallow-well jet pump is installed above ground and draws water through a suction line. A submersible pump is installed below the water level and pushes water to the surface. Both can supply a house successfully when used within their hydraulic limits and combined with correct controls, storage, and protection.
The total drilled depth is not the same as the pumping lift. Static water level is the level when the well is at rest. Pumping water level is the lower level reached while the pump delivers water. The difference is drawdown. Size the pump using the expected pumping level at the design flow, because that is the condition the pump must overcome.
Well yield is the sustainable recovery rate. Use a qualified report or pumping test; storage can cover short peaks, but average withdrawal must match recovery.
Check casing diameter and condition, screen position, sand content, iron, hardness, salinity, and other water-quality factors. These affect pump diameter, materials, filtration, treatment, and maintenance. Also record the distance from the well to the house, elevation difference, pipe size, electrical supply, and local well regulations.

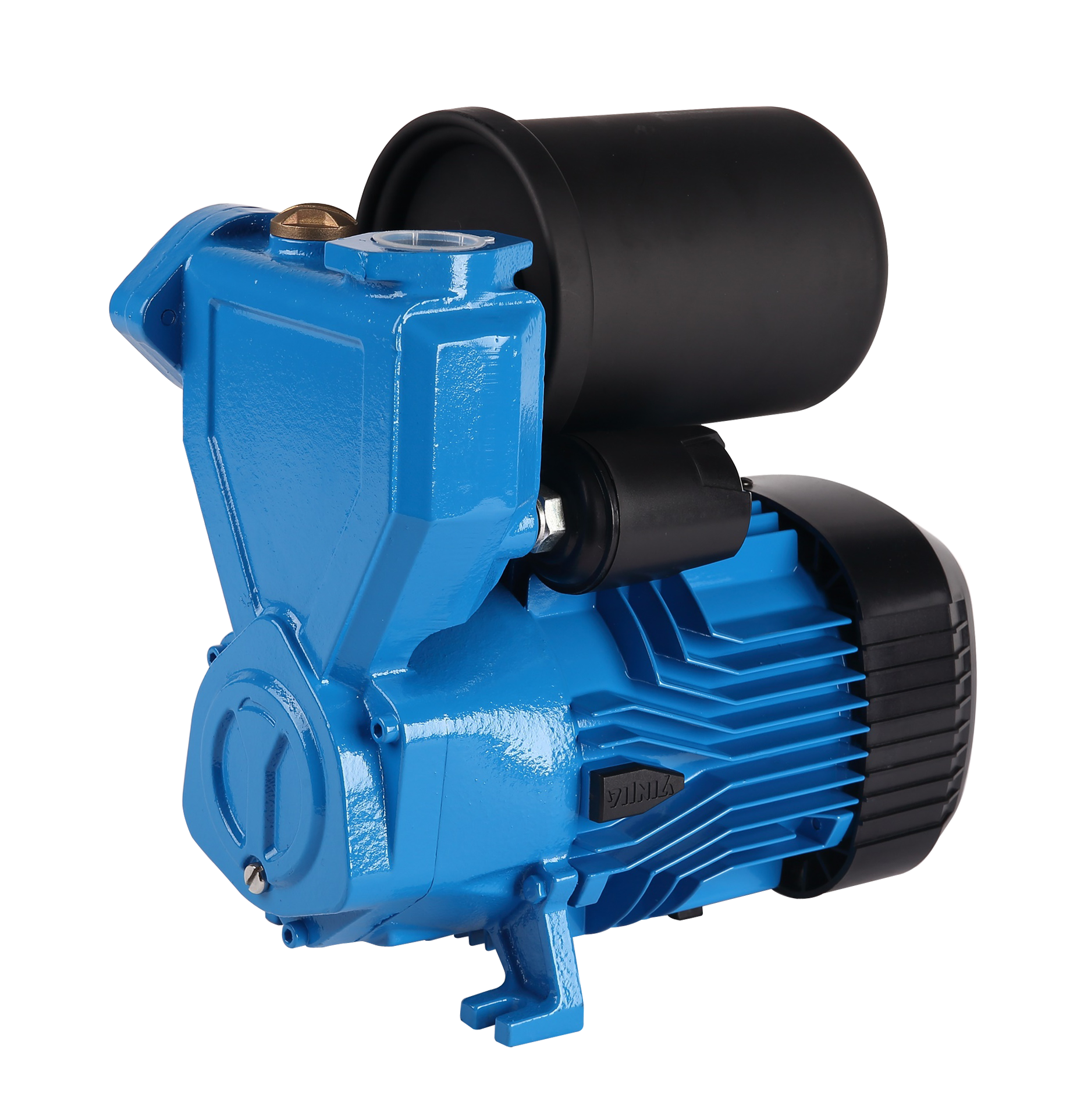

A jet pump is installed above ground, often in a pump house or utility room. It is easy to access for service and may be suitable when the pumping water level remains within a practical suction range. Atmospheric pressure limits how far any surface pump can lift water, and real installations achieve less than the theoretical maximum because of altitude, temperature, friction, and required suction margin.
Keep the suction line short, airtight, and adequately sized. Use a reliable foot valve or check valve and avoid high points that trap air. The pump casing and suction pipe must be filled during priming. “Self-priming” means the pump can handle a controlled amount of air after correct initial filling; it does not mean the pump can run dry.
A jet pump may serve a shallow well, driven point, cistern, or spring box. Its curve must deliver household peak flow at the sum of suction lift, discharge elevation, desired pressure, and friction loss. If the water level falls beyond reliable suction, a larger surface motor will not solve the physical limitation.
A submersible well pump operates below the water surface and pushes water upward. It is normally preferred for deep wells or any source whose pumping level is beyond surface-pump suction capability. Because the pump is submerged, it does not require a long suction lift and is generally quiet inside the house.
Select a pump that fits the casing and remains below the lowest pumping level but above sediment. Size the cable, drop pipe, supports, valves, and seal for the depth.
Because retrieval is specialized, correct sizing and protection matter. Oversizing, sand, poor cooling, and dry running shorten life.
A shallow-well jet pump offers above-ground accessibility and a relatively simple installation when suction conditions are favorable. It may produce more audible motor and hydraulic noise, and any suction leak can reduce performance. Priming and freeze protection also require attention.
A submersible pump handles greater lift and removes suction-line air-leak problems. It is quieter at the house and can be efficient when selected near its design point. Installation and retrieval are more specialized, and the electrical cable and drop pipe become part of the system design.
Choose from pumping level and duty: shallow accessible sources may favor jet pumps; deeper or fluctuating levels usually favor submersibles.
Estimate realistic simultaneous flow from showers, taps, toilets, appliances, and irrigation. Household water-use guidance often distinguishes average daily use from short peak demand. The pump and pressure system must handle the peak, while the well only needs to recover enough water over time if adequate storage is provided.
For a submersible pump, add the vertical distance from pumping water level to the highest fixture, desired residual pressure at that fixture, and friction through drop pipe, underground line, filters, treatment equipment, and house piping. For a jet pump, the same total head concept applies, but suction lift and suction performance must also be checked carefully.
Plot the required flow and head on the pump curve. Select a model operating inside its recommended range. Maximum head occurs near zero flow and is not the household working pressure. Confirm motor power, current, voltage, frequency, and starting method after the hydraulic model is selected.
If a house needs 35 liters per minute during a short peak but the well reliably yields only 12 liters per minute, installing a 35-liter-per-minute pump without storage may cause the water level to fall rapidly. A better system may pump the well at a controlled rate into a storage tank, then use a separate booster to supply household peaks.
A low-yield well system requires level or dry-well protection and a restart delay that allows recovery. The storage tank should be sized for the duration and frequency of peak use, not only the daily total. A level-control sequence prevents the well pump from short-cycling while ensuring the booster cannot empty the tank unnoticed.
A conventional system uses a pressure switch and captive-air pressure tank. The pump starts at cut-in pressure and stops at cut-out pressure. Correct tank pre-charge and drawdown reduce starts and protect the motor.
A constant-pressure system uses a variable-speed controller or a regulating device to maintain steadier pressure as flow changes. It can improve shower comfort and may allow a smaller pressure vessel, but it requires correct setup and compatible equipment. Minimum flow, sleep mode, sensor placement, and dry-well protection must be commissioned.
Do not increase switch settings without checking the pump curve and all component ratings. A worn or waterlogged tank can cause rapid cycling that resembles a pump problem. Test the tank with the water pressure removed.
Seal the wellhead against insects, runoff, and contamination. Use approved materials for potable water where applicable. If the well produces sand, determine whether the cause is pump placement, excessive flow, casing damage, or formation conditions before relying on a filter alone.
Install sampling points and treatment equipment according to water-test results. Filters, softeners, and ultraviolet systems add pressure loss, so include them in the head calculation. Maintain check valves and prevent stagnant bypasses or cross-connections.
Record static level, pumping level, flow, pressure, motor current, and water quality at commissioning. Future changes can reveal falling yield, pipe restriction, impeller wear, tank failure, or electrical problems before the house loses water completely.
YINJIA’s stated range includes self-priming jet pumps for suitable shallow-source duties and deep-well or solar pumps for submerged applications, as well as centrifugal pumps, booster systems, pressure switches, and pressure tanks. The company states that it has manufactured pumps since 1990 and supports OEM, ODM, and CKD/SKD cooperation. For a well-pump inquiry, provide casing diameter, total depth, static and pumping water levels, tested yield, required household flow and pressure, distance to the house, pipe size, voltage, frequency, water analysis, and preferred control system.
For a shallow-well jet configuration, practical suction lift depends on altitude, water temperature, pipe friction, and pump design and is always below the theoretical atmospheric limit. Deep-well jet systems use a down-well ejector and have different operating limits. Use the manufacturer’s data for the actual installation.
It can be advantageous for deeper water because it pushes rather than pulls. Overall efficiency still depends on the selected curve, motor, pipe size, control method, and operating point.
The water level may fall below the intake, causing air entry, dry running, sand production, cycling, or motor damage. Limit pumping rate or add storage and protection.
A conventional pressure-switch system requires one. Variable-speed systems may use a smaller vessel, but most still benefit from a correctly specified tank for stability and small demands.
During a long demand, a correctly sized pump may run steadily. Frequent short starts are less desirable. Controls and tank sizing should keep starts within the motor manufacturer’s limits.
