“What size water pump do I need for my house?” is usually answered too quickly with a horsepower number. Horsepower describes motor power, not pump performance at a specific duty point. It does not tell you how much water the pump will deliver at the pressure your home requires. Two pumps with the same horsepower can have very different curves, impeller designs, flow ranges, and maximum heads.
A dependable selection starts with a duty point: the required flow at the required total dynamic head. Once that point is known, the pump curve identifies a suitable model and the manufacturer assigns the correct motor. This method avoids oversizing, low pressure, rapid cycling, and unnecessary electrical cost.
Record the source and whether the pump supplies the whole house, upper floors, irrigation, a transfer tank, or selected fixtures.
Use the lowest expected tank level or the well’s pumping level. Record suction distance, discharge elevation, pipe size, electricity, and controls.
Peak flow is the realistic amount of water the house may use at one time. Do not add every outlet unless all can genuinely operate together. Instead, create a simultaneous-use scenario. A small home may be designed for one shower and one tap. A larger home might require two showers, a kitchen tap, and a washing machine inlet at the same time.
Use actual data for rain showers, bathtub fillers, irrigation, and treatment equipment. Allow modest future growth without multiplying demand arbitrarily.
Convert all flows to one unit. Common conversions are 1 cubic meter per hour equals about 16.7 liters per minute, and 1 US gallon per minute equals about 3.785 liters per minute. Keep the same units when reading the pump curve.
Static head is the vertical distance between the source water level and the discharge reference point. For household boosting, the reference is usually the highest or most demanding fixture. Measure vertical height, not pipe length.
If a pump draws from a tank whose minimum water level is 1 meter below the pump and supplies a shower 9 meters above the pump, the elevation head is about 10 meters. For a rooftop tank feeding a booster, the positive inlet head may reduce the additional pressure the pump must create.
For wells, use the pumping level under design flow; static level may understate the real head.
Fixtures need residual pressure while water is flowing. Convert the target pressure to meters of head and add it to elevation. As a practical approximation, 1 bar is about 10 meters of water head and 1 psi is about 0.703 meters.
Suppose the highest shower needs 2.5 bar during use. That equals roughly 25 meters of head. If elevation is 10 meters, the subtotal becomes 35 meters before friction is considered. Lower-floor pressure must then be checked to ensure it does not exceed component ratings.
Water loses pressure as it moves through pipe, fittings, valves, check valves, filters, heaters, and treatment equipment. Friction increases rapidly when flow rises through a small pipe. Long pipe runs and partially blocked filters can consume a large portion of the pump’s head.
Use a friction chart or calculator for actual diameter, flow, fittings, valves, and equipment. Percentage allowances are only for early planning.

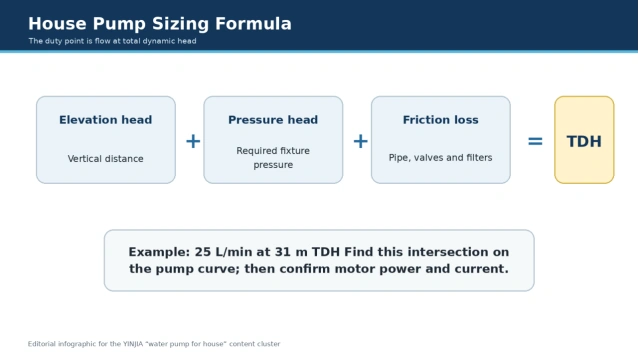

The total dynamic head formula is:
TDH = elevation head + required outlet pressure head + friction and equipment losses.
For suction from a pressurized source, available inlet pressure may reduce the head the booster must add. Because inlet pressure can vary, analyze minimum and maximum conditions.
A pump curve shows how flow changes as head changes. Head is highest near zero flow and falls as flow increases. Find the design flow on the horizontal axis and the TDH on the vertical axis. Their intersection is the duty point.
Choose a curve that passes through the duty point within its normal operating range, preferably near the efficient center. Do not select a model whose curve barely reaches the point, because small changes in pipe loss or source level may cause insufficient pressure. Also avoid a much larger pump throttled far away from its preferred range.
Check efficiency, power, current, suction limits, and recommended flow range. Variable-speed curves must cover both low and peak demand.
Surface pumps can only lift water by creating lower pressure at the inlet. The practical suction lift is always less than the theoretical atmospheric limit and becomes more restrictive at high altitude, high water temperature, long suction distance, or high friction.
Keep suction pipe short, airtight, and adequately sized. Count the vertical lift from the lowest water level, not from the tank floor. If the pumping level is too deep, use a submersible pump instead of expecting a larger surface motor to overcome the suction limit.
Check suction requirements where provided; cavitation causes noise, lost flow, and damage.
Assume a design flow of 25 liters per minute. The minimum tank level is 2 meters below the pump, the highest shower is 6 meters above it, desired shower pressure is 2 bar, and estimated friction is 3 meters.
TDH = 2 + 6 + 20 + 3 = 31 meters at 25 liters per minute.
The correct model is a pump whose curve delivers about 25 liters per minute at 31 meters. Horsepower is checked only after locating that curve.
Assume 40 liters per minute, 12 meters of elevation from tank level to highest fixture, 2.5 bar desired pressure, and 7 meters of friction through long distribution piping and filters.
TDH = 12 + 25 + 7 = 44 meters at 40 liters per minute.
A multistage or suitable booster may be more appropriate than a small peripheral pump because the duty requires both useful flow and higher head.
A 2,000-liter tank should fill in two hours, so the average flow is 1,000 liters per hour, or 16.7 liters per minute. Elevation is 14 meters and friction is estimated at 4 meters. No additional fixture pressure is required because the discharge enters an atmospheric tank.
TDH = 14 + 4 = 18 meters at 16.7 liters per minute.
This transfer duty is very different from pressurizing a house, even though the same tanks may be involved.
An oversized fixed-speed pump can reach cut-out quickly and short-cycle. Excess pressure causes water hammer, leaks, noise, and wasted water.
A pump operating far to the right of its curve may also overload, cavitate, or deliver inadequate pressure. “More horsepower” is not a substitute for selecting the correct hydraulic range, pipe size, and controls.
Match voltage, phase, frequency, current, breaker, cable, grounding, overload, and controller rating. Keep pressure-switch settings within the pump curve and component ratings, and size the tank to limit starts.
Add dry-run protection for tanks, wells, or intermittent sources. A level switch, pressure logic, flow sensor, or motor-protection device may be used depending on the application.
YINJIA’s household-related range can be evaluated by the same duty-point method. The company lists peripheral, self-priming jet, centrifugal, multistage, deep-well, and booster-system categories, along with pressure switches and tanks. YINJIA states that it has manufactured pumps since 1990 and supports OEM, ODM, and CKD/SKD projects. For model selection, send the required flow, calculated TDH, source level, suction layout, pipe size, voltage, frequency, control method, water quality, and expected operating hours rather than requesting horsepower alone.
It may be enough for a small, low-head duty, but horsepower alone cannot answer the question. Check whether the pump curve delivers the required flow at the calculated TDH.
It can be too large for a short, simple system and too small for a high-head or high-flow duty. Compare the actual curve, pressure settings, pipe ratings, and cycling behavior.
It depends on simultaneous fixtures and their actual flow rates. Design for a realistic peak, not the total number of outlets and not only average daily consumption.
Maximum head is usually measured near zero flow. Working head is the head at the flow the house needs. The pump must be selected at the working duty point.
Use a reasonable allowance for uncertain friction, source level, or future demand, but avoid arbitrary oversizing. A well-defined system and pump curve are better than a large blanket margin.
