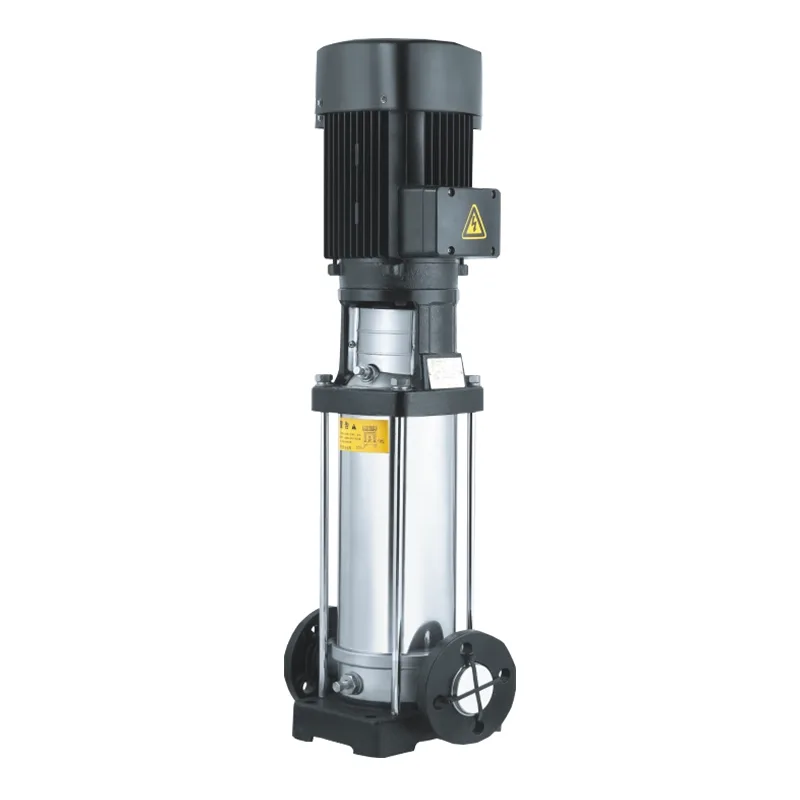

Multi-Stage Centrifugal Pump CDL/CDLF Series

Name: Multi-Stage Centrifugal Pump CDL/CDLF Series
Brand: Yinjia
Rating: 5.0 (97 reviews)


Availability:

Inquire Add to Basket

Model:
CDL/CDLF series
Brand:
Yinjia

YINJIA Multi-Stage Centrifugal Pump CDL/CDLF Series is designed for high-rise supply, filtration systems and industrial clean-water pressure. Key features include stainless vertical construction, multi-stage pressure stacking and professional booster-system compatibility, supporting project-level flow, pressure matching and service-friendly installation. Suitable for water treatment suppliers and high-rise booster projects. Contact YINJIA for configuration support and batch supply.

Centrifugal pumps for garden irrigation Horizontal multistage inline centrifugal water pump Stainless steel booster horizontal multistage water pump Vertical-muti-stage-pump Multistage centrifugal pump High pressure pump Stainless steel pump Water pumping Water pump price Water supplier pump

Product Description

YINJIA is China manufacturer & supplier who mainly produces horizontal multi-stage water pump with many years of experience. Hope to build business relationship with you. CDL series horizontal multi-stage water pump is a most popular type of centrifugal pumps, with three or more impellers, it can make higher pressure than single stage pump, widely used at various sites that request high pressure.

Product Feature And Application

APPLICATIONS
Employing superior hydraulic models and advanced manufacturing techniques significantly enhances the pump's performance and service life. The mechanical seal, utilising hard alloy and fluoro rubber materials, improves operational reliability and permits higher temperatures for conveyed media. The pump's wetted components are fabricated from stamped and welded stainless steel plates, rendering it suitable for mildly corrosive media. The overall structure is compact, featuring as mall footprint, light weight, low noise levels, and significant energy savings, Maintenance is straightforward, with the inlet and outlet situated on the same horizontal plane as the pump base, allowing direct integration into pipework. Standard motors are employed, enabling users to conveniently select motors according to their requirements. Intelligent protection devices can be fitted upon request, providing effective safeguards against dry running, phase failure, and overload conditions.
OPERATING LIMITS
Liquid temperature:
Ambient type: -15'c to +70'℃;
Hot water type: +70'C to +120'C;
Ambient temperature: Maximum +40°C;
Altitude: Maximum 1000m.

PERFORMANCE DATA

Model	Power P (kW)	Capacity Q (m³/h)	0.4	0.6	0.8	1.0	1.2	1.4	1.6	1.8	2.0	DN1	DN2
CDL/CDLF1-20	0.37	Head H (m)	13	12.5	12	11.5	11	10.5	10	9.5	9	1"	1"
CDL/CDLF1-30	0.37		19	18	17.5	17	16.5	16	15	14	12	1"	1"
CDL/CDLF1-40	0.37		24	23.5	23	22.5	21.5	21	19	18	16	1"	1"
CDL/CDLF1-50	0.37		30	29.6	29	28	27	26	24	22	20	1"	1"
CDL/CDLF1-60	0.37		36	35.5	35	33.5	33	31	28	26	23	1"	1"
CDL/CDLF1-70	0.37		42	41	40.5	39	38	36	33	30	27	1"	1"
CDL/CDLF1-80	0.55		48	47	46	45	43	41	38	34	30	1"	1"
CDL/CDLF1-90	0.55		54	53	52	51	49	46	43	39	33	1"	1"
CDL/CDLF1-100	0.55		60	59	58	57	54	51	48	43	36	1"	1"
CDL/CDLF1-110	0.55		66	65	63	61	59	56	52	47	40	1"	1"
CDL/CDLF1-120	0.75		72	71	69	67	64	61	57	51	44	1"	1"
CDL/CDLF1-130	0.75		78	77	75	73	69	66	62	55	47	1"	1"
CDL/CDLF1-150	0.75		89	88	86	84	79	76	71	63	55	1"	1"
CDL/CDLF1-170	1.1		101	99	97	95	89	86	80	71	62	1"	1"
CDL/CDLF1-190	1.1		113	110	108	106	99	96	89	79	69	1"	1"
CDL/CDLF1-210	1.1		124	122	120	117	110	106	98	87	75	1"	1"
CDL/CDLF1-230	1.1		137	133	131	128	121	116	107	96	82	1"	1"
CDL/CDLF1-250	1.5		149	145	143	139	131	126	116	104	89	1"	1"
CDL/CDLF1-270	1.5		161	157	155	150	141	136	125	112	95	1"	1"
CDL/CDLF1-300	1.5		178	175	171	166	157	150	139	124	106	1"	1"
CDL/CDLF1-330	2.2		196	192	188	183	173	165	154	137	118	1"	1"
CDL/CDLF1-360	2.2		214	210	205	200	190	181	169	151	130	1"	1"

Model	Power P (kW)	Capacity Q (m³/h)	1	1.2	1.6	2.0	2.4	2.8	3.2	3.5	DN1	DN2
CDL/CDLF2-20	0.37	Head H (m)	18	17	16	15	13	12	10	8	1"	1"
CDL/CDLF2-30	0.37		27	26	24	22	20	18	15	12	1"	1"
CDL/CDLF2-40	0.55		36	35	33	30	26	24	20	16	1"	1"
CDL/CDLF2-50	0.55		45	43	40	37	33	30	24	20	1"	1"
CDL/CDLF2-60	0.75		53	52	50	45	40	36	30	24	1"	1"
CDL/CDLF2-70	0.75		63	61	57	52	47	41	35	28	1"	1"
CDL/CDLF2-90	1.1		80	78	73	67	61	54	45	37	1"	1"
CDL/CDLF2-110	1.1		98	95	89	82	73	65	54	44	1"	1"
CDL/CDLF2-130	1.5		116	114	106	98	89	78	65	52	1"	1"
CDL/CDLF2-150	1.5		134	130	123	112	100	90	73	60	1"	1"
CDL/CDLF2-180	2.2		161	157	148	136	121	108	91	76	1"	1"
CDL/CDLF2-220	2.2		197	192	180	165	148	130	110	90	1"	1"
CDL/CDLF2-260	3.0		232	228	214	198	179	158	130	110	1"	1"

Model	Power P (kW)	Capacity Q (m³/h)	1.2	1.6	2.0	2.4	2.8	3.0	3.2	3.6	4.0	DN1	DN2
CDL/CDLF3-20	0.37	Head H (m)	12.5	11.5	11	10.5	10	9	8	7	6	1"	1"
CDL/CDLF3-30	0.37		19	18.5	17.5	16.5	15	14	13	11	9	1"	1"
CDL/CDLF3-40	0.37		25	24	23	21.5	20	19	18	15	12	1"	1"
CDL/CDLF3-50	0.37		31	30	29	27	25	23	22	19	16	1"	1"
CDL/CDLF3-60	0.55		36	35	34	32	30	28	27	23	19	1"	1"
CDL/CDLF3-70	0.55		43	41	39	37	34	32	31	27	22	1"	1"
CDL/CDLF3-80	0.75		49	47	45	43	39	37	35	31	25	1"	1"
CDL/CDLF3-90	0.75		55	53	51	48	45	42	40	35	28	1"	1"
CDL/CDLF3-100	0.75		61	59	57	54	50	47	45	39	31	1"	1"
CDL/CDLF3-110	1.1		67	64	61	58	54	51	49	42	34	1"	1"
CDL/CDLF3-120	1.1		73	70	67	63	58	55	52	45	37	1"	1"
CDL/CDLF3-130	1.1		78	76	73	69	64	60	57	49	40	1"	1"
CDL/CDLF3-150	1.1		90	88	84	79	73	69	66	57	46	1"	1"
CDL/CDLF3-170	1.5		103	100	96	90	83	79	75	64	52	1"	1"
CDL/CDLF3-190	1.5		115	112	107	100	92	88	83	72	58	1"	1"
CDL/CDLF3-210	2.2		128	124	119	112	102	98	91	79	64	1"	1"
CDL/CDLF3-230	2.2		140	135	130	122	112	107	100	86	70	1"	1"
CDL/CDLF3-250	2.2		151	147	141	131	122	116	109	94	76	1"	1"
CDL/CDLF3-270	2.2		164	159	152	143	132	124	117	101	82	1"	1"
CDL/CDLF3-290	2.2		175	170	163	153	142	133	126	109	88	1"	1"
CDL/CDLF3-310	3.0		187	182	175	165	153	142	135	116	94	1"	1"
CDL/CDLF3-330	3.0		199	191	187	176	163	151	145	125	100	1"	1"
CDL/CDLF3-360	3.0		218	212	204	192	178	168	159	137	109	1"	1"

Model	Power P (kW)	Capacity Q (m³/h)	1.5	2	3	4	5	6	7	8	DN1	DN2
CDL/CDLF4-20	0.37	Head H (m)	19	18	17	15	13	10	8	6	1.25"	1.25"
CDL/CDLF4-30	0.55		28	27	26	24	20	18	13	10	1.25"	1.25"
CDL/CDLF4-40	0.75		38	36	34	32	27	24	19	13	1.25"	1.25"
CDL/CDLF4-50	1.1		47	45	43	40	34	31	23	17	1.25"	1.25"
CDL/CDLF4-60	1.1		56	54	52	48	41	37	28	20	1.25"	1.25"
CDL/CDLF4-70	1.5		66	63	61	56	48	43	33	24	1.25"	1.25"
CDL/CDLF4-80	1.5		74	72	70	64	55	50	38	27	1.25"	1.25"
CDL/CDLF4-100	2.2		96	90	87	81	71	62	48	34	1.25"	1.25"
CDL/CDLF4-120	2.2		114	108	104	95	85	75	58	41	1.25"	1.25"
CDL/CDLF4-140	3.0		136	126	122	112	101	89	68	48	1.25"	1.25"
CDL/CDLF4-160	3.0		152	144	140	129	115	101	78	55	1.25"	1.25"
CDL/CDLF4-190	4.0		183	171	168	153	137	122	93	67	1.25"	1.25"
CDL/CDLF4-220	4.0		211	200	192	178	160	138	108	79	1.25"	1.25"

Model	Power P (kW)	Capacity Q (m³/h)	2.5	4	5	6	7	8.5	DN1	DN2
CDL/CDLF5-20	0.37	Head H (m)	12.5	11.5	10.5	9	7	3.5	1.25"	1.25"
CDL/CDLF5-30	0.55		19.5	17.5	15.5	13.5	11	6	1.25"	1.25"
CDL/CDLF5-40	0.55		26	23.5	21	18.5	15	8.5	1.25"	1.25"
CDL/CDLF5-50	0.75		32.5	29.5	26.5	23	18.5	11	1.25"	1.25"
CDL/CDLF5-60	1.1		38.5	34.5	31.5	28	23	14	1.25"	1.25"
CDL/CDLF5-80	1.1		50.5	46	42.5	38	31.5	20	1.25"	1.25"
CDL/CDLF5-100	1.5		63.5	58.5	54	48	41	27.5	1.25"	1.25"
CDL/CDLF5-120	2.2		76	71	65.5	58.5	50.5	35	1.25"	1.25"
CDL/CDLF5-140	2.2		89	82	76.5	68	58.5	40	1.25"	1.25"
CDL/CDLF5-160	2.2		101	94	87	77.5	66.5	46	1.25"	1.25"
CDL/CDLF5-180	3.0		115	107	99	88.5	77	53	1.25"	1.25"
CDL/CDLF5-200	3.0		129	120	112	100	87	62	1.25"	1.25"
CDL/CDLF5-220	4.0		142	132	123	111	96	69	1.25"	1.25"
CDL/CDLF5-240	4.0		156	144	134	121	105	75.5	1.25"	1.25"
CDL/CDLF5-260	4.0		169	157	145	131	113	81	1.25"	1.25"
CDL/CDLF5-290	4.0		189	175	162	146	125	88	1.25"	1.25"
CDL/CDLF5-320	5.5		209	194	180	162	141	102	1.25"	1.25"
CDL/CDLF5-360	5.5		232	216	201	181	158	114	1.25"	1.25"

Model	Power P (kW)	Capacity Q (m³/h)	5	6	7	8	9	10	11	12	DN1	DN2
CDL/CDLF8-20	0.75	Head H (m)	20	19.5	19	18	17	16	14	13	1.5"	1.5"
CDL/CDLF8-30	1.1		30	29.5	28.5	26	25	24	21	19	1.5"	1.5"
CDL/CDLF8-40	1.5		41	39.5	38	35	34	32	28	26	1.5"	1.5"
CDL/CDLF8-50	2.2		52	50	48	45	42	40	36	32	1.5"	1.5"
CDL/CDLF8-60	2.2		62	60	57	53	51	48	43	39	1.5"	1.5"
CDL/CDLF8-80	3.0		83	80	76	70	69	64	56	52	1.5"	1.5"
CDL/CDLF8-100	4.0		104	100	95	88	85	80	70	65	1.5"	1.5"
CDL/CDLF8-120	4.0		124	120	114	105	102	96	84	78	1.5"	1.5"
CDL/CDLF8-140	5.5		145	141	133	121	119	112	98	92	1.5"	1.5"
CDL/CDLF8-160	5.5		166	161	152	140	136	128	112	104	1.5"	1.5"
CDL/CDLF8-180	7.5		187	182	170	156	153	144	126	117	1.5"	1.5"
CDL/CDLF8-200	7.5		208	202	190	174	170	160	140	130	1.5"	1.5"

Model	Power P (kW)	Capacity Q (m³/h)	5	6	7	8	9	10	11	12	13	DN1	DN2
CDL/CDLF10-10	0.75	Head H (m)	9.7	9.3	8.9	8.3	7.7	7	6	5	4	1.5"	1.5"
CDL/CDLF10-20	0.75		19.5	19	18	17	16	15	13.5	11.5	10	1.5"	1.5"
CDL/CDLF10-30	1.1		29.5	29	28	27	25	23	21	18	16	1.5"	1.5"
CDL/CDLF10-40	1.5		39.5	38.5	37.5	36	34	31	28	25	22	1.5"	1.5"
CDL/CDLF10-50	2.2		49.5	48.5	47	44	42	39	35	32	28	1.5"	1.5"
CDL/CDLF10-60	2.2		60	58	56	54	51	48	43	39	34	1.5"	1.5"
CDL/CDLF10-70	3		70	68	66	63	60	56	51	45	39	1.5"	1.5"
CDL/CDLF10-80	3		80	78	75	73	69	64	58	52	44	1.5"	1.5"
CDL/CDLF10-90	3		90	87	85	81	77	72	66	58	50	1.5"	1.5"
CDL/CDLF10-100	4		100	97	95	90	85	80	74	66	56	1.5"	1.5"
CDL/CDLF10-120	4		120	117	114	109	104	96	89	79	68	1.5"	1.5"
CDL/CDLF10-140	5.5		140	137	134	129	122	113	103	92	79	1.5"	1.5"
CDL/CDLF10-160	5.5		160	158	153	148	140	129	119	106	91	1.5"	1.5"
CDL/CDLF10-180	7.5		180	177	172	166	156	145	133	119	102	1.5"	1.5"
CDL/CDLF10-200	7.5		200	196	191	184	173	162	147	132	114	1.5"	1.5"
CDL/CDLF10-220	7.5		220	216	210	202	190	178	162	145	126	1.5"	1.5"

Model	Power P (kW)	Capacity Q (m³/h)	7	8	9	10	11	12	13	14	15	16	DN1	DN2
CDL/CDLF12-20	1.5	Head H (m)	23.5	23	22.5	22	21	20	18.5	17	15.5	14	2"	2"
CDL/CDLF12-30	2.2		35.5	35	34	33	31.5	30	28	26	23.5	21	2"	2"
CDL/CDLF12-40	3		47	46	45	44	42	40	37	34	31	28	2"	2"
CDL/CDLF12-50	3		59.5	58	56.5	55	52.5	50	46.5	43	39	35	2"	2"
CDL/CDLF12-60	4		71.5	70	68	66	63	60	56	52	47	42	2"	2"
CDL/CDLF12-70	5.5		83.5	82	79.5	77	73.5	70	65.5	61	55	49	2"	2"
CDL/CDLF12-80	5.5		95.5	94	91	88	84	80	75	70	63	56	2"	2"
CDL/CDLF12-90	5.5		108	106	103	100	95.5	91	85	79	71.5	64	2"	2"
CDL/CDLF12-100	7.5		120	118	114.5	111	106	101	94.5	88	80	72	2"	2"
CDL/CDLF12-120	7.5		143.5	141	137	133	127	121	113.5	106	96	86	2"	2"
CDL/CDLF12-140	11		168	165	160	155	148	141	132.5	124	112	100	2"	2"
CDL/CDLF12-160	11		192.5	189	183.5	178	170	162	152	142	128.5	115	2"	2"
CDL/CDLF12-180	11		217	213	207.5	202	192.5	183	171.5	160	145	130	2"	2"

Model	Power P (kW)	Capacity Q (m³/h)	8	10	12	14	15	16	18	20	22	DN1	DN2
CDL/CDLF15-10	1.1	Head H (m)	12	11.5	11	10.5	10	9.5	8.5	7.5	6.5	2"	2"
CDL/CDLF15-20	2.2		25	24.5	24	23	22.5	21.5	20	18	16	2"	2"
CDL/CDLF15-30	3		39	38	37	35	34	33	30	28	25	2"	2"
CDL/CDLF15-40	4		52	51	49	46	45	44	40	37	33	2"	2"
CDL/CDLF15-50	4		65	63	61	59	57	55	51	47	42	2"	2"
CDL/CDLF15-60	5.5		78	76	74	71	69	67	62	57	51	2"	2"
CDL/CDLF15-70	5.5		92	90	87	83	81	79	73	67	60	2"	2"
CDL/CDLF15-80	7.5		106	103	100	96	93	90	84	77	69	2"	2"
CDL/CDLF15-90	7.5		120	117	114	109	106	103	95	87	79	2"	2"
CDL/CDLF15-100	11		133	130	126	121	118	114	106	97	88	2"	2"
CDL/CDLF15-120	11		160	157	152	146	142	138	128	117	106	2"	2"
CDL/CDLF15-140	11		187	182	177	169	165	160	149	137	124	2"	2"
CDL/CDLF15-170	15		227	222	215	206	201	195	182	167	151	2"	2"

Model	Power P (kW)	Capacity Q (m³/h)	8	10	12	14	16	18	20	22	DN1	DN2
CDL/CDLF16-20	2.2	Head H (m)	27	26	25	24	22	21	19	16	2"	2"
CDL/CDLF16-30	3.0		41	40	38	37	34	32	29	25	2"	2"
CDL/CDLF16-40	4.0		54	53	52	49	46	43	38	34	2"	2"
CDL/CDLF16-50	5.5		68	67	65	62	58	54	48	43	2"	2"
CDL/CDLF16-60	5.5		82	80	78	74	70	64	58	52	2"	2"
CDL/CDLF16-70	7.5		96	95	91	87	82	76	68	61	2"	2"
CDL/CDLF16-80	7.5		110	108	104	99	94	86	77	70	2"	2"
CDL/CDLF16-100	11		138	136	131	125	118	109	97	87	2"	2"
CDL/CDLF16-120	11		166	162	157	150	141	130	116	105	2"	2"
CDL/CDLF16-140	15		194	190	184	175	166	152	136	122	2"	2"
CDL/CDLF16-160	15		222	217	210	200	189	174	156	140	2"	2"

Model	Power P (kW)	Capacity Q (m³/h)	10	12	14	16	18	20	22	24	26	28	DN1	DN2
CDL/CDLF20-10	1.1	Head H (m)	13.5	13	12.5	12	11	10	9	8	7	6	2"	2"
CDL/CDLF20-20	2.2		27	26.5	26	25	24	23	22	20	18	15	2"	2"
CDL/CDLF20-30	4.0		40	39.5	39	38	37	35	33	30	27	24	2"	2"
CDL/CDLF20-40	5.5		54	53	52	51	49	47	44	41	37	33	2"	2"
CDL/CDLF20-50	5.5		67	66	64	62	60	58	55	50	45	40	2"	2"
CDL/CDLF20-60	7.5		81	79	77	75	73	70	66	61	55	49	2"	2"
CDL/CDLF20-70	7.5		95	93	91	89	86	82	77	71	65	58	2"	2"
CDL/CDLF20-80	11		109	107	105	102	99	94	89	82	75	67	2"	2"
CDL/CDLF20-100	11		136	134	131	128	124	118	111	103	95	85	2"	2"
CDL/CDLF20-120	15		164	162	158	154	149	142	133	124	114	102	2"	2"
CDL/CDLF20-140	15		192	189	185	180	174	166	156	145	133	119	2"	2"
CDL/CDLF20-170	18.5		234	230	225	219	212	202	190	177	162	145	2"	2"

Model	Power P (kW)	Capacity Q (m³/h)	16	20	24	28	32	36	40	DN1	DN2
32-10-1	1.5	Head H (m)	14	13	12	11	9	7	4	2.5"	2.5"
32-10	2.2		18	17	15	14	13	11	8	2.5"	2.5"
32-20-2	3.0		29	28	26	23	20	16	11	2.5"	2.5"
32-20	4.0		36	34	32	29	27	23	18	2.5"	2.5"
32-30-2	5.5		47	44	41	38	33	28	21	2.5"	2.5"
32-30	5.5		54	51	48	44	40	35	27	2.5"	2.5"
32-40-2	7.5		65	62	58	53	46	40	30	2.5"	2.5"
32-40	7.5		72	69	65	59	53	47	37	2.5"	2.5"
32-50-2	11		83	79	74	68	60	52	41	2.5"	2.5"
32-50	11		90	86	81	74	67	59	47	2.5"	2.5"
32-60-2	11		101	97	90	83	74	65	51	2.5"	2.5"
32-60	11		108	104	97	90	81	72	57	2.5"	2.5"
32-70-2	15		119	114	107	98	88	78	60	2.5"	2.5"
32-70	15		126	121	113	105	95	85	67	2.5"	2.5"
32-80-2	15		136	131	123	114	102	90	71	2.5"	2.5"
32-80	15		144	138	130	120	109	97	77	2.5"	2.5"
32-90-2	18.5		154	148	140	129	117	102	82	2.5"	2.5"
32-90	18.5		162	156	147	136	124	109	88	2.5"	2.5"
32-100-2	18.5		175	166	157	146	131	115	91	2.5"	2.5"
32-100	18.5		182	173	164	152	138	122	98	2.5"	2.5"
32-110-2	22		193	184	173	164	146	128	102	2.5"	2.5"
32-110	22		200	191	180	168	153	135	109	2.5"	2.5"
32-120-2	22		211	201	189	178	160	140	113	2.5"	2.5"
32-120	22		218	208	196	184	167	147	120	2.5"	2.5"
32-130-2	30		230	218	206	193	174	153	124	2.5"	2.5"
32-130	30		237	225	213	200	181	160	131	2.5"	2.5"
32-140-2	30		247	235	222	210	189	165	135	2.5"	2.5"
32-140	30		255	242	229	216	196	172	142	2.5"	2.5"
32-150-2	30		266	253	239	224	203	178	145	2.5"	2.5"
32-150	30		274	260	246	231	210	185	152	2.5"	2.5"
32-160-2	30		284	270	255	240	218	190	156	2.5"	2.5"
32-160	30		292	277	262	246	225	197	163	2.5"	2.5"

Model	Power P (kW)	Capacity Q (m³/h)	25	30	35	40	42	45	50	55	DN1	DN2
CDL/CDLF42-10-1	3.0	Head H (m)	20	19	18	17	16	15	13	11	3"	3"
CDL/CDLF42-10	4.0		24	23	22	21	20	19	18	16	3"	3"
CDL/CDLF42-20-2	5.5		40	38	36	33	32	30	27	23	3"	3"
CDL/CDLF42-20	7.5		48	46	44	42	41	39	35	31	3"	3"
CDL/CDLF42-30-2	11		63	61	58	54	52	50	44	38	3"	3"
CDL/CDLF42-30	11		71	69	66	63	61	58	53	47	3"	3"
CDL/CDLF42-40-2	15		87	84	80	75	73	69	62	54	3"	3"
CDL/CDLF42-40	15		95	92	88	84	81	78	71	62	3"	3"
CDL/CDLF42-50-2	18.5		111	107	102	96	93	88	80	69	3"	3"
CDL/CDLF42-50	18.5		119	115	110	105	101	97	88	78	3"	3"
CDL/CDLF42-60-2	22		135	130	124	117	113	108	97	85	3"	3"
CDL/CDLF42-60	22		143	138	132	125	122	116	106	93	3"	3"
CDL/CDLF42-70-2	30		158	152	146	138	134	127	115	100	3"	3"
CDL/CDLF42-70	30		166	161	154	146	142	135	124	109	3"	3"
CDL/CDLF42-80-2	30		182	175	168	159	154	146	133	116	3"	3"
CDL/CDLF42-80	30		190	184	176	167	162	154	141	124	3"	3"
CDL/CDLF42-90-2	30		205	198	190	180	174	166	150	132	3"	3"
CDL/CDLF42-90	37		214	207	198	188	183	174	159	140	3"	3"
CDL/CDLF42-100-2	37		230	221	212	200	194	185	168	147	3"	3"
CDL/CDLF42-100	37		238	230	220	209	203	193	177	155	3"	3"
CDL/CDLF42-110-2	45		255	246	236	223	217	206	188	165	3"	3"
CDL/CDLF42-110	45		263	255	244	232	225	214	196	173	3"	3"
CDL/CDLF42-120-2	45		280	270	259	245	238	226	206	181	3"	3"
CDL/CDLF42-120	45		289	280	268	255	247	236	216	190	3"	3"
CDL/CDLF42-130-2	45		305	294	282	267	259	247	225	198	3"	3"

Model	Power P (kW)	Capacity Q (m³/h)	30	40	50	60	65	70	80	DN1	DN2
CDL/CDLF65-10-1	4.0	Head H (m)	19	18	16	14	13	11	8	4"	4"
CDL/CDLF65-10	5.5		27	25	23	21	20	18	15	4"	4"
CDL/CDLF65-20-2	7.5		39	36	33	29	26	23	17	4"	4"
CDL/CDLF65-20-1	11		46	44	40	36	33	30	24	4"	4"
CDL/CDLF65-20	11		53	51	47	43	40	37	30	4"	4"
CDL/CDLF65-30-2	15		66	62	56	50	46	41	32	4"	4"
CDL/CDLF65-30-1	15		73	69	63	57	53	48	39	4"	4"
CDL/CDLF65-30	18.5		80	76	70	64	60	55	46	4"	4"
CDL/CDLF65-40-2	18.5		92	87	80	71	66	60	47	4"	4"
CDL/CDLF65-40-1	22		100	94	87	78	73	67	54	4"	4"
CDL/CDLF65-40	22		107	101	94	85	80	74	61	4"	4"
CDL/CDLF65-50-2	30		121	114	105	95	88	80	64	4"	4"
CDL/CDLF65-50-1	30		128	121	112	102	95	87	71	4"	4"
CDL/CDLF65-50	30		136	129	119	109	102	94	78	4"	4"
CDL/CDLF65-60-2	30		150	142	131	118	110	101	81	4"	4"
CDL/CDLF65-60-1	37		157	149	138	125	117	108	88	4"	4"
CDL/CDLF65-60	37		164	156	145	132	124	115	95	4"	4"
CDL/CDLF65-70-2	37		179	169	156	141	132	121	99	4"	4"
CDL/CDLF65-70-1	37		186	176	163	148	139	128	106	4"	4"
CDL/CDLF65-70	45		193	183	170	155	146	135	112	4"	4"
CDL/CDLF65-80-2	45		207	196	182	164	154	142	116	4"	4"
CDL/CDLF65-80-1	45		215	203	189	171	161	149	123	4"	4"

Model	Power P (kW)	Capacity Q (m³/h)	50	60	70	80	85	90	100	110	DN1	DN2
CDL/CDLF85-10-1	5.5	Head H (m)	22	19	17	16	14	13	10	6	4"	4"
CDL/CDLF85-10	7.5		25	24	22	21	20	19	16	12	4"	4"
CDL/CDLF85-20-2	11		41	39	36	32	30	28	22	15	4"	4"
CDL/CDLF85-20	15		53	50	47	44	41	40	36	30	4"	4"
CDL/CDLF85-30-2	18.5		68	65	60	55	52	49	41	32	4"	4"
CDL/CDLF85-30	22		81	77	72	67	64	62	55	48	4"	4"
CDL/CDLF85-40-2	30		98	93	87	80	75	72	62	50	4"	4"
CDL/CDLF85-40	30		110	105	100	92	86	84	76	66	4"	4"
CDL/CDLF85-50-2	37		126	120	113	104	98	93	81	68	4"	4"
CDL/CDLF85-50	37		139	131	124	115	110	106	94	83	4"	4"
CDL/CDLF85-60-2	45		155	148	139	129	122	117	102	86	4"	4"
CDL/CDLF85-60	45		168	160	150	141	134	130	117	103	4"	4"

Model	Power P (kW)	Capacity Q (m³/h)	60	70	80	90	100	110	120	130	140	150	DN1	DN2
CDL/CDLF120-10	11	Head H (m)	22	21.8	21.6	21	20.5	19.5	18.5	17	16	15	5"	5"
CDL/CDLF120-20-2	15		34	33.6	33	31	30.2	30	28.5	27	25	24	5"	5"
CDL/CDLF120-20-1	18.5		41	40	39.5	38.5	37	36.5	34.5	32.5	30	27.5	5"	5"
CDL/CDLF120-20	22		46	45	44.5	43.5	42.4	41	40	38	36	33.5	5"	5"
CDL/CDLF120-30-2	30		57	56	55	53.5	52	51	49	46.5	43.5	41	5"	5"
CDL/CDLF120-30-1	30		64	63	62	60	58.5	57.5	55.5	52	49	46	5"	5"
CDL/CDLF120-30	30		69.5	68.5	67.5	66	64.4	62.5	61	57.5	54.5	51	5"	5"
CDL/CDLF120-40-2	37		80.5	79	78	76	73.5	72	69	66	61.5	58	5"	5"
CDL/CDLF120-40-1	37		87	86	84.5	82	80	78	76	72	68	64.5	5"	5"
CDL/CDLF120-40	45		92.5	91	90	88	85.5	83	81	77	73	68.5	5"	5"
CDL/CDLF120-50-2	45		104.5	103	101	99	96	93	90	85.5	80.5	75.5	5"	5"
CDL/CDLF120-50-1	45		110.5	109	107.5	105	102	100	97	92	86.5	83	5"	5"
CDL/CDLF120-50	55		115.5	114	113	110	107.5	104.5	101.5	96	91	86	5"	5"
CDL/CDLF120-60-2	55		128	125.5	123	121	117.3	113.5	110	104.5	98.5	92.5	5"	5"
CDL/CDLF120-60-1	55		134	132	130.5	127	124	121	118	111	105	100	5"	5"
CDL/CDLF120-60	75		139	137	135	132	128.8	126	123	116	110	104	5"	5"
CDL/CDLF120-70-2	75		151	148	145.5	143	138.6	134	130	123.5	116.5	109	5"	5"
CDL/CDLF120-70-1	75		156.5	154	152	148.5	144.5	141	137.5	130	123	116.5	5"	5"
CDL/CDLF120-70	75		162.5	160.5	158.5	155	151	148	145	137	129	123	5"	5"

Model	Power P (kW)	Capacity Q (m³/h)	80	90	100	110	120	130	140	150	160	170	180	DN1	DN2
CDL/CDLF150-10-1	11	Head H (m)	18.3	17.8	17.3	17	16	15	14	12.5	11	10	8.5	5"	5"
CDL/CDLF150-10	15		24	23	22.5	22	21.5	20.5	20	18.5	17	16	15	5"	5"
CDL/CDLF150-20-2	18.5		37	35.5	34	33	32	31	29	27.5	26	23	21	5"	5"
CDL/CDLF150-20-1	22		44.3	43	42	40	39	38.5	37.5	35	33	30	27	5"	5"
CDL/CDLF150-20	30		50	49	48	47	45.5	44	42	40	37	34	32	5"	5"
CDL/CDLF150-30-2	30		63.5	61	59	57.5	56	54.5	53	49	45.5	42	39	5"	5"
CDL/CDLF150-30-1	37		70	68	67	65	63	62	60	56	53	49	45	5"	5"
CDL/CDLF150-30	37		78	76.5	75	73	70.5	68	66	63	59	55	50.5	5"	5"
CDL/CDLF150-40-2	45		89	87	84	81.5	79	77	74.5	70.5	65.5	60	56	5"	5"
CDL/CDLF150-40-1	45		96.5	94	91.5	89	86.5	84	81.5	77	72.5	67	62	5"	5"
CDL/CDLF150-40	55		104	102	100	97	95	91	88	84	79.5	74	68	5"	5"
CDL/CDLF150-50-2	55		115.5	112	109	106	102.5	100	97	92	86	79	73.5	5"	5"
CDL/CDLF150-50-1	75		122.5	119.5	117	113.5	111.5	107.5	104.5	99	93.5	87	80	5"	5"
CDL/CDLF150-50	75		130	127.5	125	121	119	115	111.5	106.5	101	94.5	86.5	5"	5"
CDL/CDLF150-60-2	75		140	137	133	130	126	121	118	112	106	98	91	5"	5"
CDL/CDLF150-60-1	75		148.5	145	141.7	137.5	135	131	127	120.5	114.5	106.5	97.5	5"	5"
CDL/CDLF150-60	75		157	153	149	145	142	139.5	137	130	123.5	116	109	5"	5"

Model	Power P (kW)	Capacity Q (m³/h)	100	120	140	160	180	200	220	240	DN1	DN2
CDL/CDLF200-10-B	18.5	Head H (m)	25.5	25	24	23	21.5	20	18	15.5	6"	6"
CDL/CDLF200-10-A	22		29	28.5	27.5	26.5	25.5	24	22	20	6"	6"
CDL/CDLF200-10	30		38.5	38	37.5	36.5	35	34	32.5	30	6"	6"
CDL/CDLF200-20-2B	37		53	51	49	47	44	41	37	32	6"	6"
CDL/CDLF200-20-2A	45		59.5	58	56	54	52.5	49	44.5	40.5	6"	6"
CDL/CDLF200-20-A	55		69	68	66	64	62	59	55.5	51	6"	6"
CDL/CDLF200-20	55		78.5	77.5	76	74	71.5	69	66	61.5	6"	6"
CDL/CDLF200-30-2B	75		91.5	89	86.5	83.5	79	75	70	63	6"	6"
CDL/CDLF200-30-A-B	75		95	93	90	87	83.5	79	73.5	67	6"	6"
CDL/CDLF200-30-2A	75		99.5	97.5	94.5	91.5	89	84	78.5	72	6"	6"
CDL/CDLF200-30-B	75		104.5	102.5	100	97	93	89	84.5	77.5	6"	6"
CDL/CDLF200-30-A	75		108	106	103.5	100.5	97.5	93	88	81.5	6"	6"
CDL/CDLF200-30	90		117.5	116	113.5	110.5	107	103	99	92	6"	6"
CDL/CDLF200-40-2B	90		131.5	129	125.5	121	115.5	110	103.5	94	6"	6"
CDL/CDLF200-40-2A	110		138.5	136	132	128	124	118	111	102.5	6"	6"
CDL/CDLF200-40-A	110		148	145.5	142.5	138	134	128	122	113	6"	6"
CDL/CDLF200-40	110		157.5	155.5	152.5	148	143.5	138	132.5	123.5	6"	6"
