YINJIA is industrial standard pump manufacturers and suppliers in China who can wholesale industrial standard pump. We can provide professional service and better price for you. CM series industrial standard pump is a popular commercial pump in the global market,as well as close coupled monoblock industrial centrifugal pump. It is with single impeller and horizontal design, which manufactured according to DIN24255/EN733.They are widely used on industrial applications, water supply systems, circulating and booster installations.
APPLICATIONS
-Centrifugal,monoblock and single-impeller electrical pumps with pump body,with connection to the motor by means of a support unit.With flanged inlet and delivery openings (to UNI 2237 PN 10 standards) and threaded counter-flanges.
-These machines are idea for pumping clean water and other chemically and mechamically non-aggressive liquiids.
-To be used for a wide variety of applications in civil,agricultural,industrial or general plant uses.Water supply,spray of flowing irrigation,high pressure system,firefigting sets,heating,conditioning and any other general serbice requiring transfer of clean liquids
OPERATING LIMITS
-Temperature of liquid form -10℃ TO +120℃
-Ambient temperature form -10℃ TO +40℃
DESIGN FEATURES
-Max perting pressure 10 bar
-Pump body/motor bracker:cast iron
-Impeller:cast iron
-Bearing:C&U
-100%copper winding
-Mechanical seal:Sic/Graphite/NBR
-Motor shaft:AISI 304 welded shaft

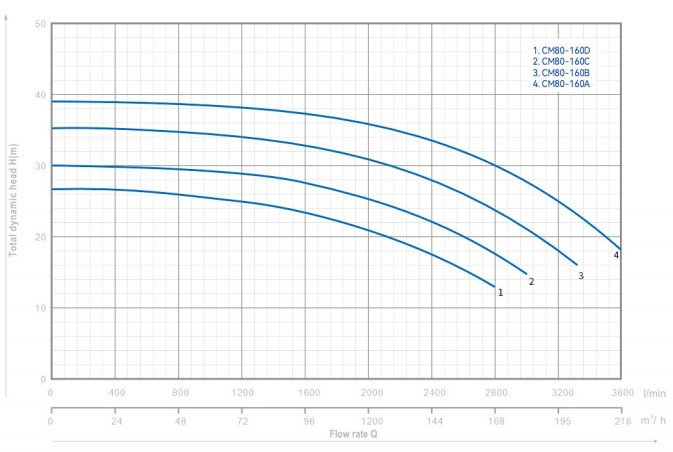

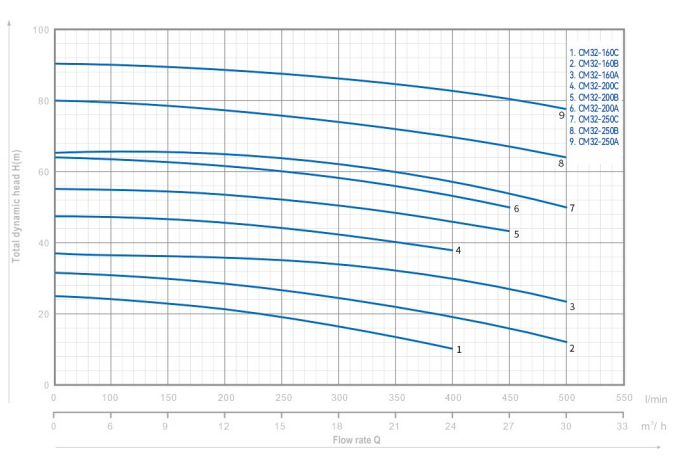

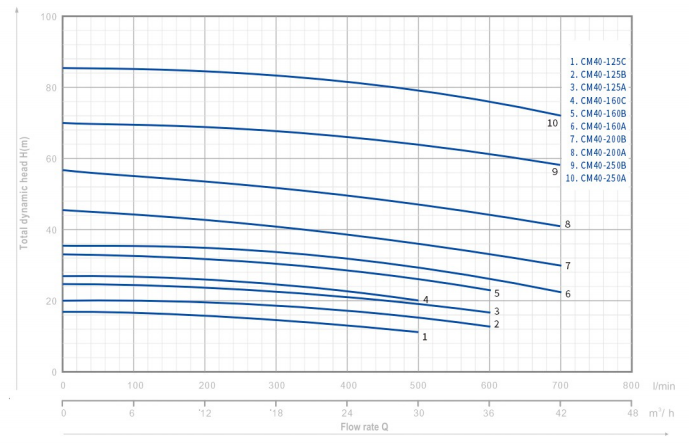

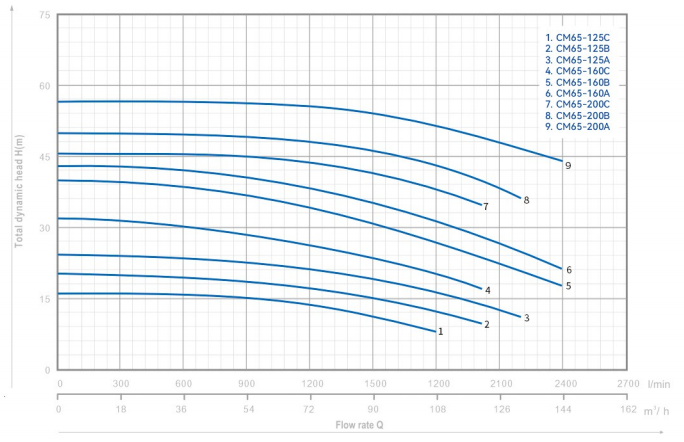

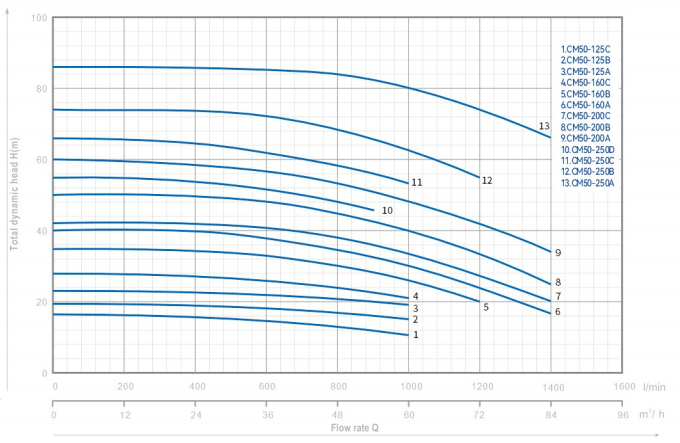

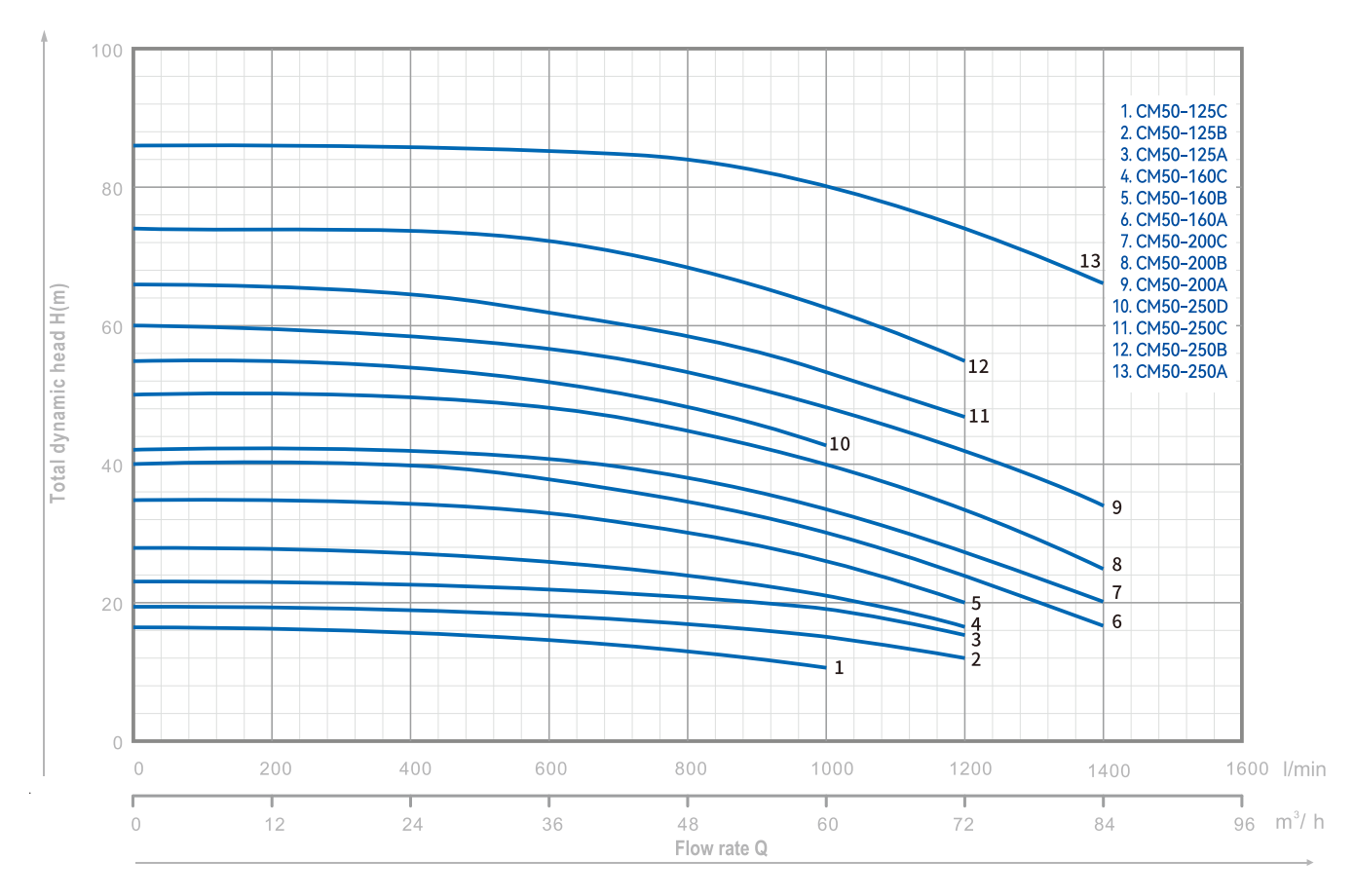

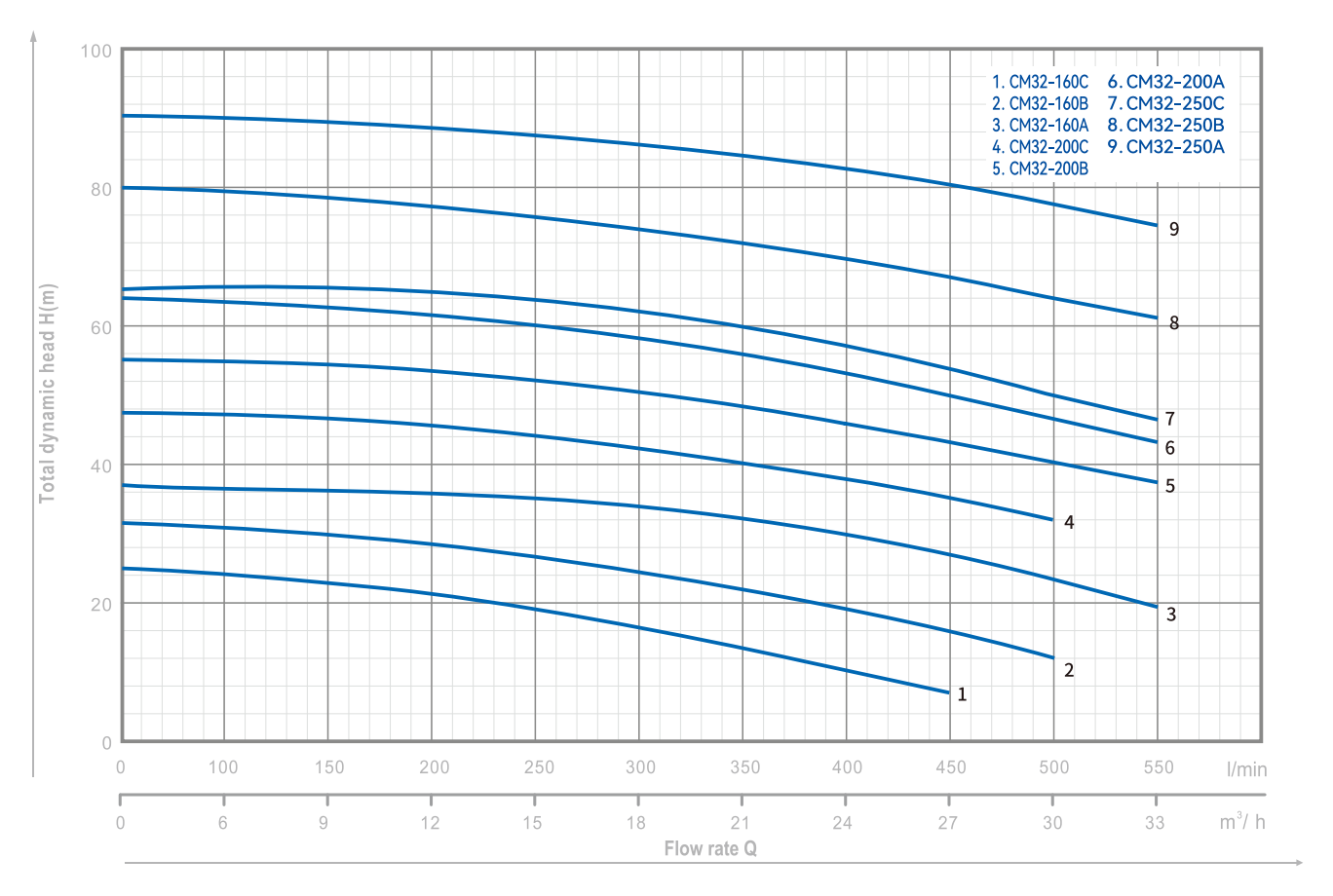

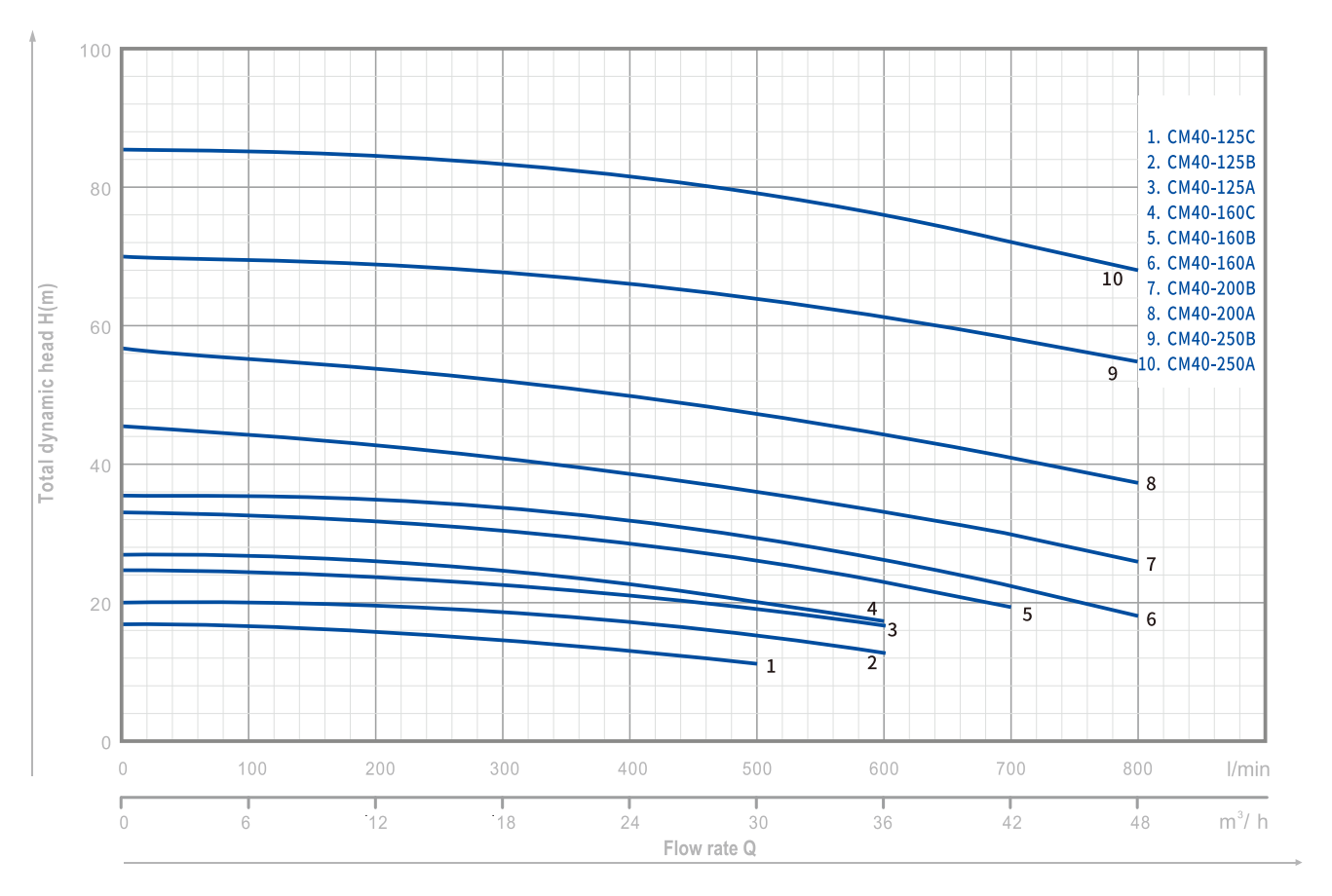

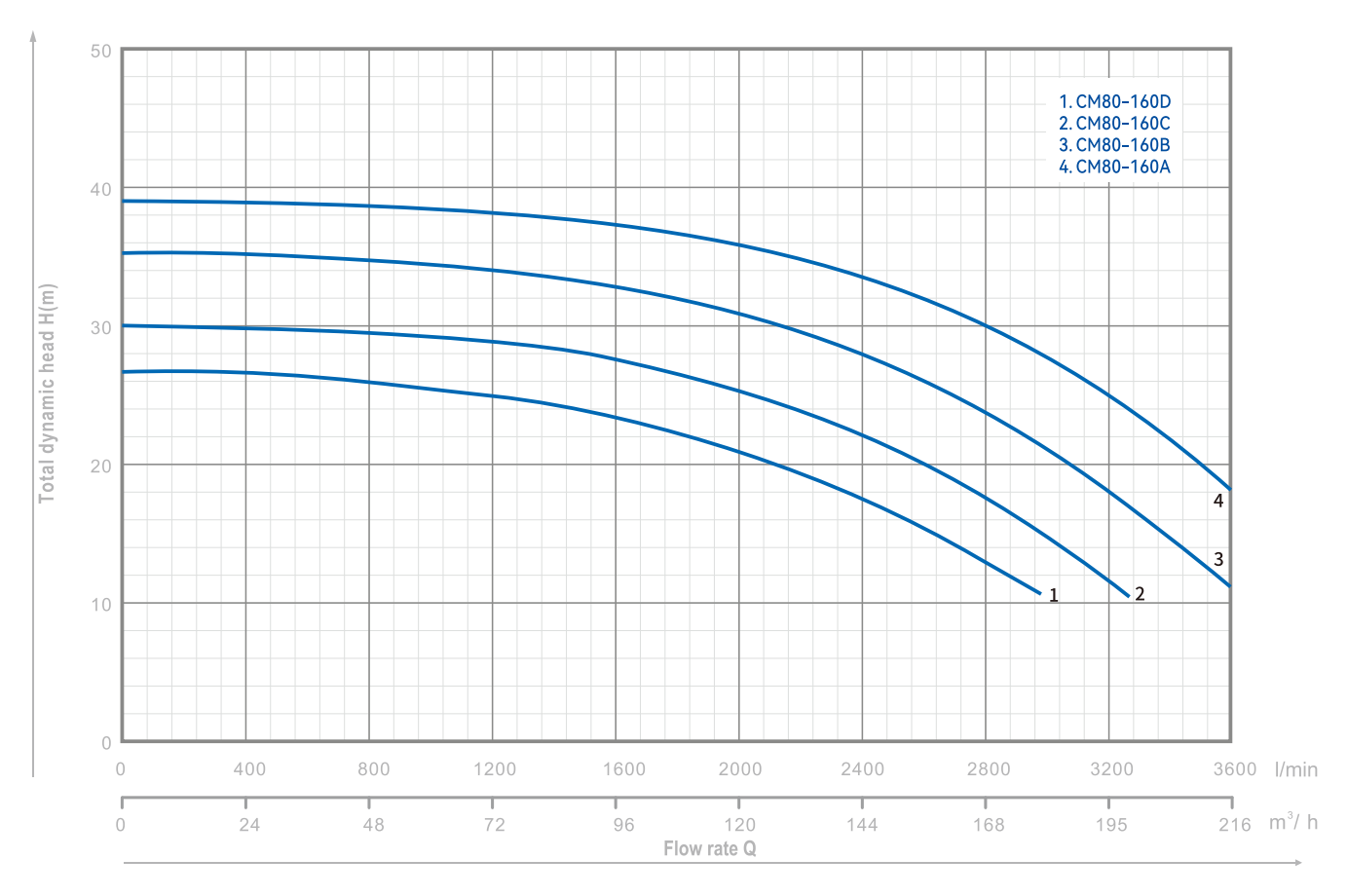

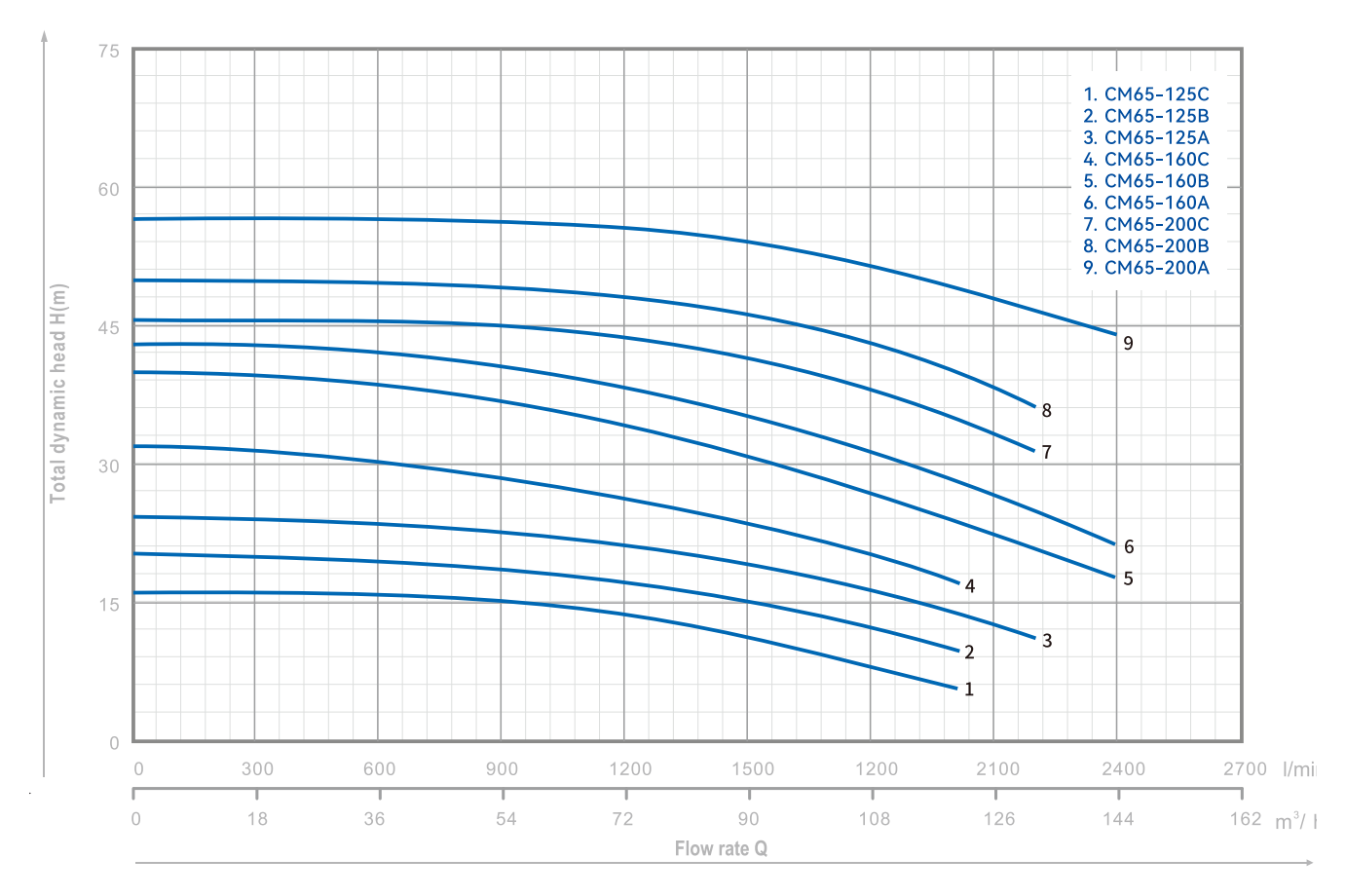

PERFORMANCE RANGE
-Speed: 2900 rpm
-Max. Flow: 216 m³/h
-Max. Head: 100 mt
-Power range: 1.5-22 kW
-Inlet/Outlet:50x32mm-100x80mm
MOTOR
-2-pole induction motor
-Insulation class:B
-Protection:IP44
-Continuous duty:S1
SPECIAL FEATURES ON REQUEST
-Anti -rust- treatment for casting
-AISI 304 pump body
-AISI 304 or Brass impeller
-AISI 1045 motor shaft
-Other voltage and frequnecy
-Insulation class:F

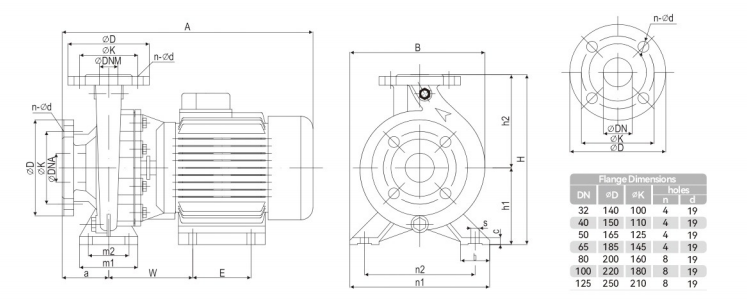

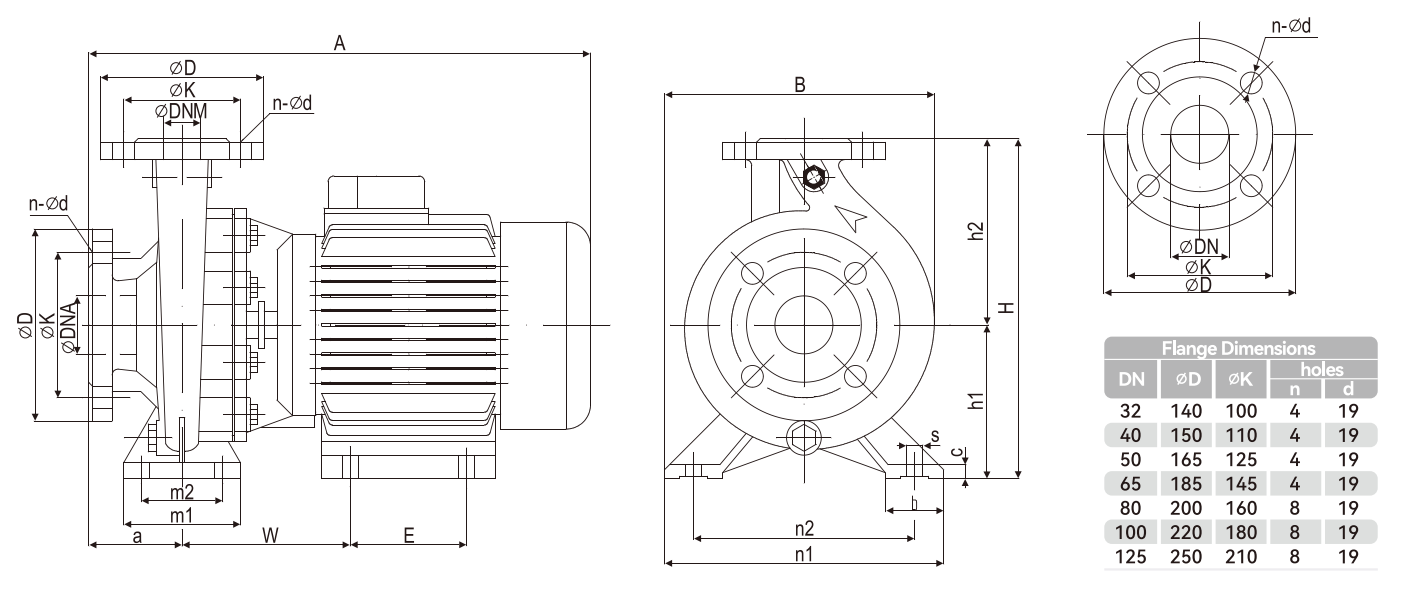

DIMENSIONS

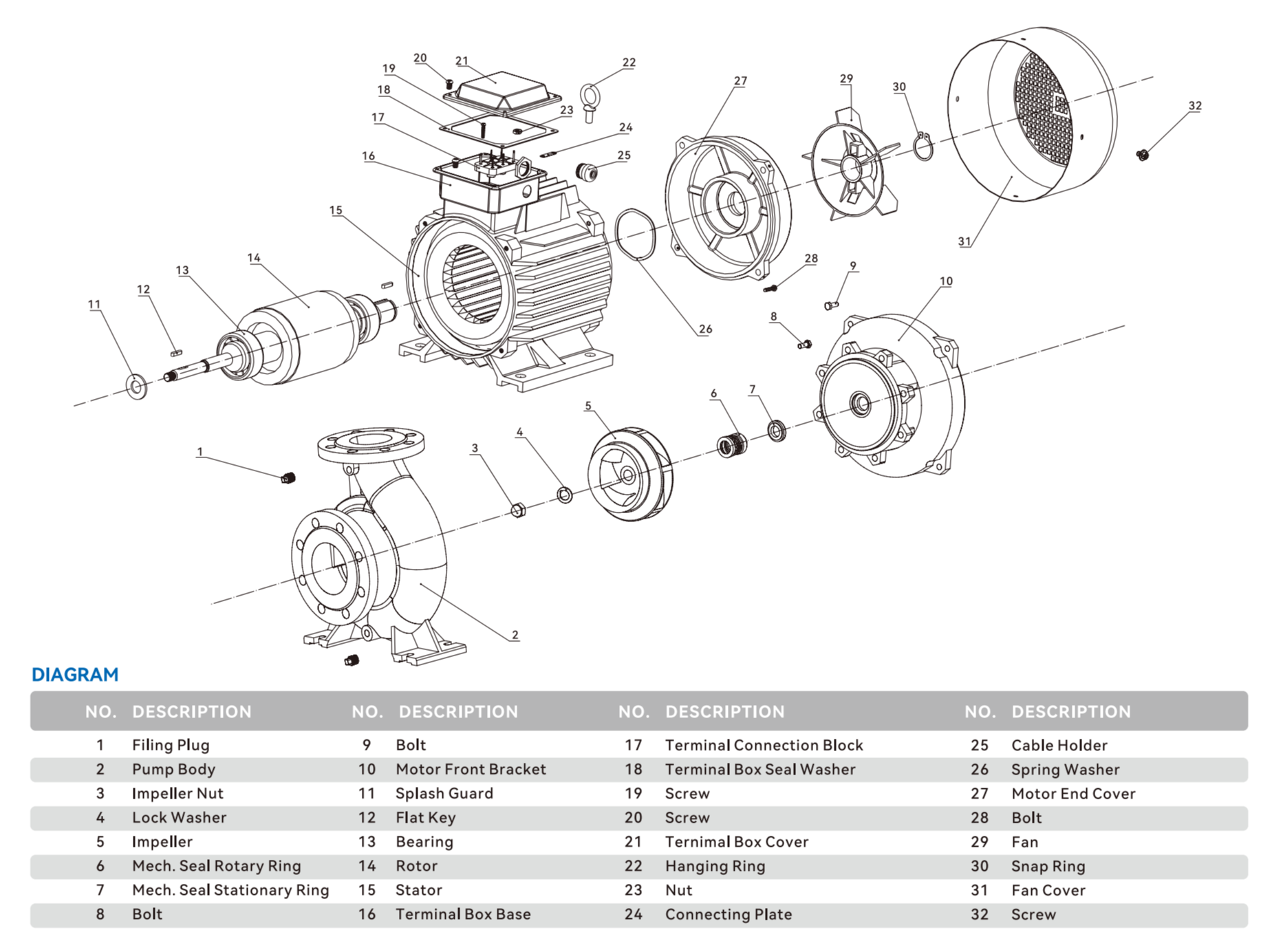

CM Series Exploding Drawing
