Home » Products » Water Pump » Centrifugal Pump » Centrifugal Pump ZS Series

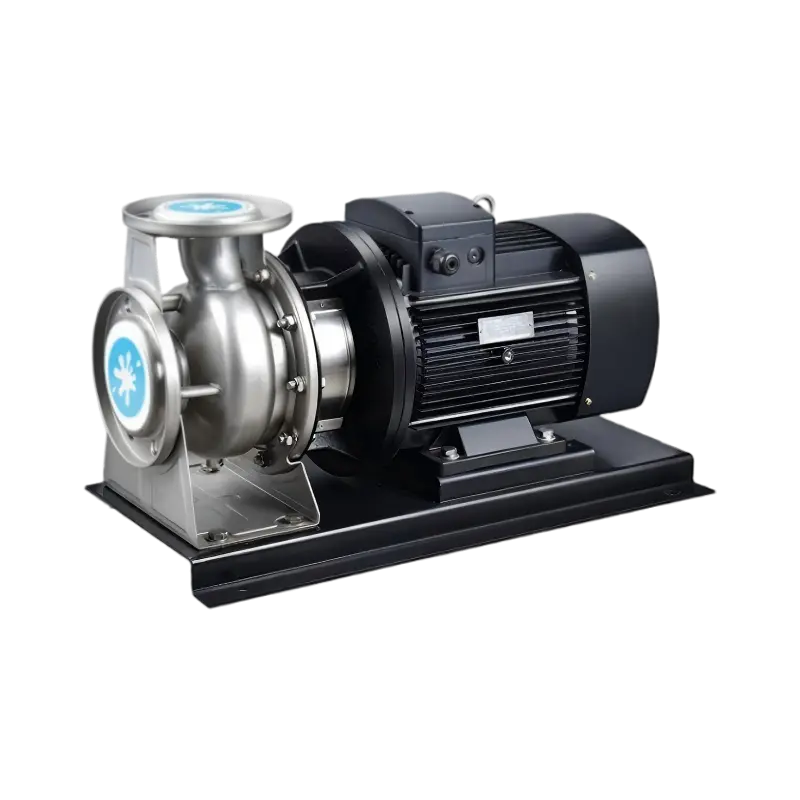

YINJIA ZS stainless steel horizontal centrifugal pump for industrial water treatment and transfer

loading

YINJIA ZS stainless steel horizontal centrifugal pump for industrial water treatment and transfer YINJIA ZS stainless steel horizontal centrifugal pump for industrial water treatment and transfer

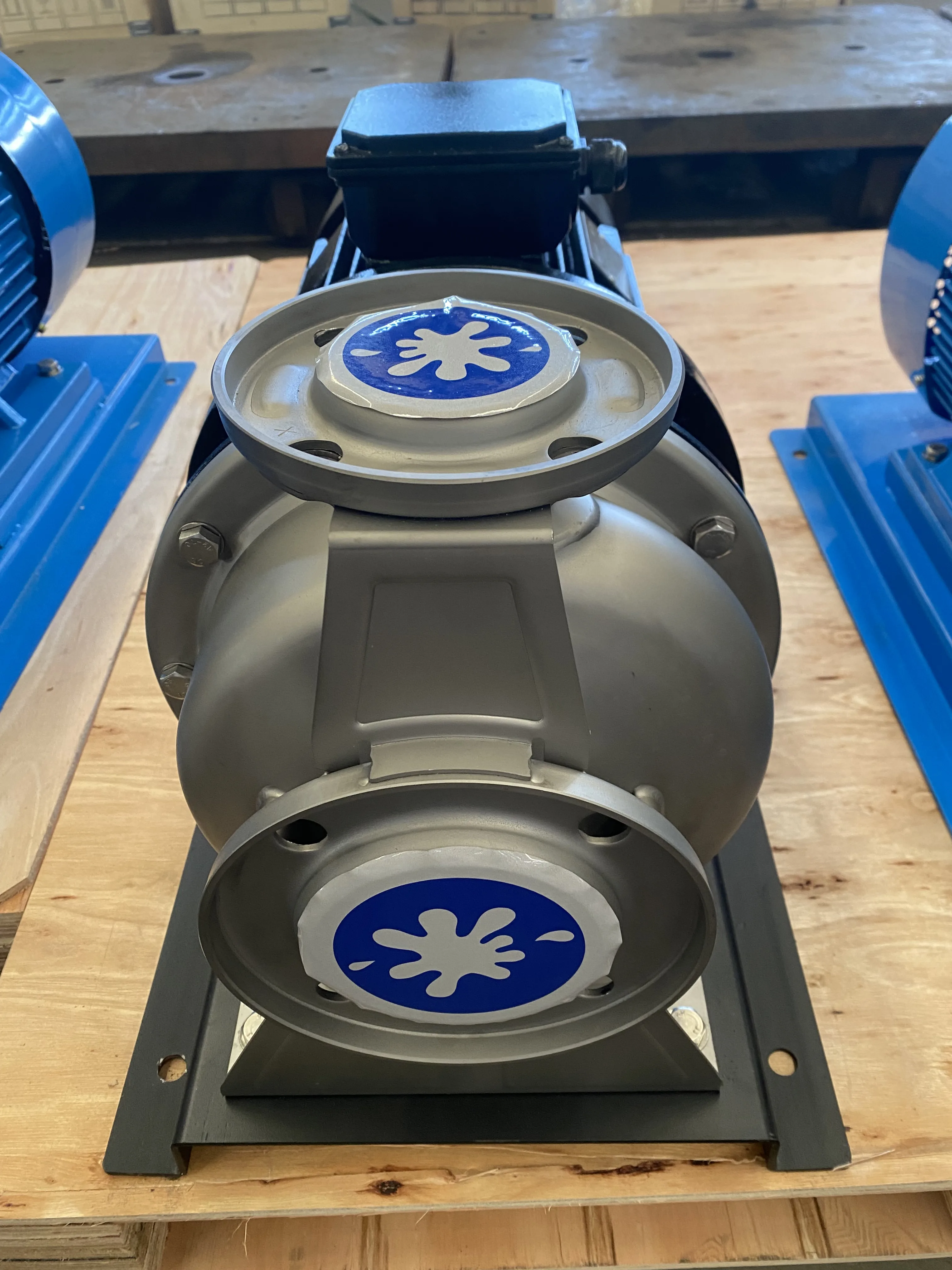

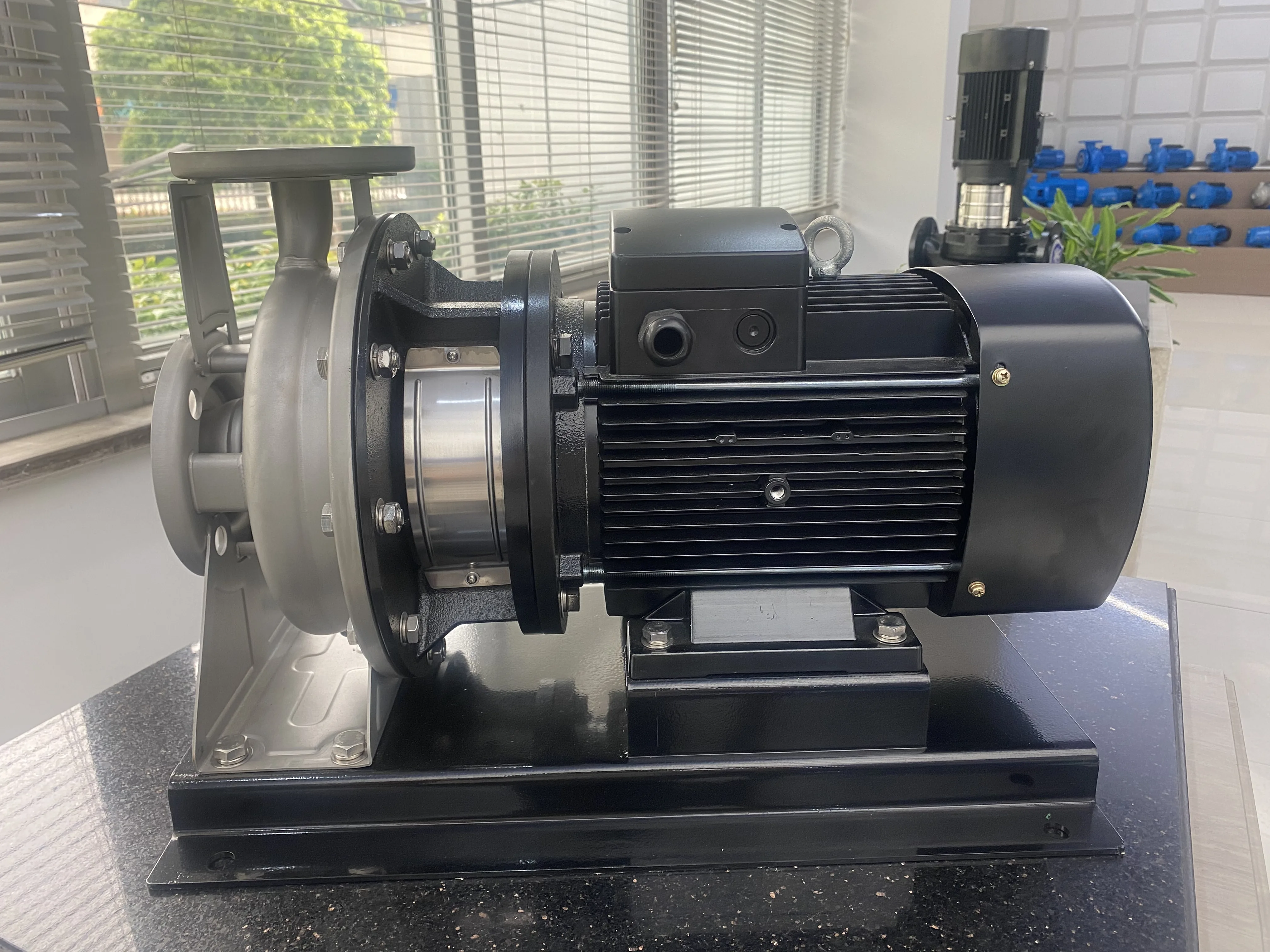

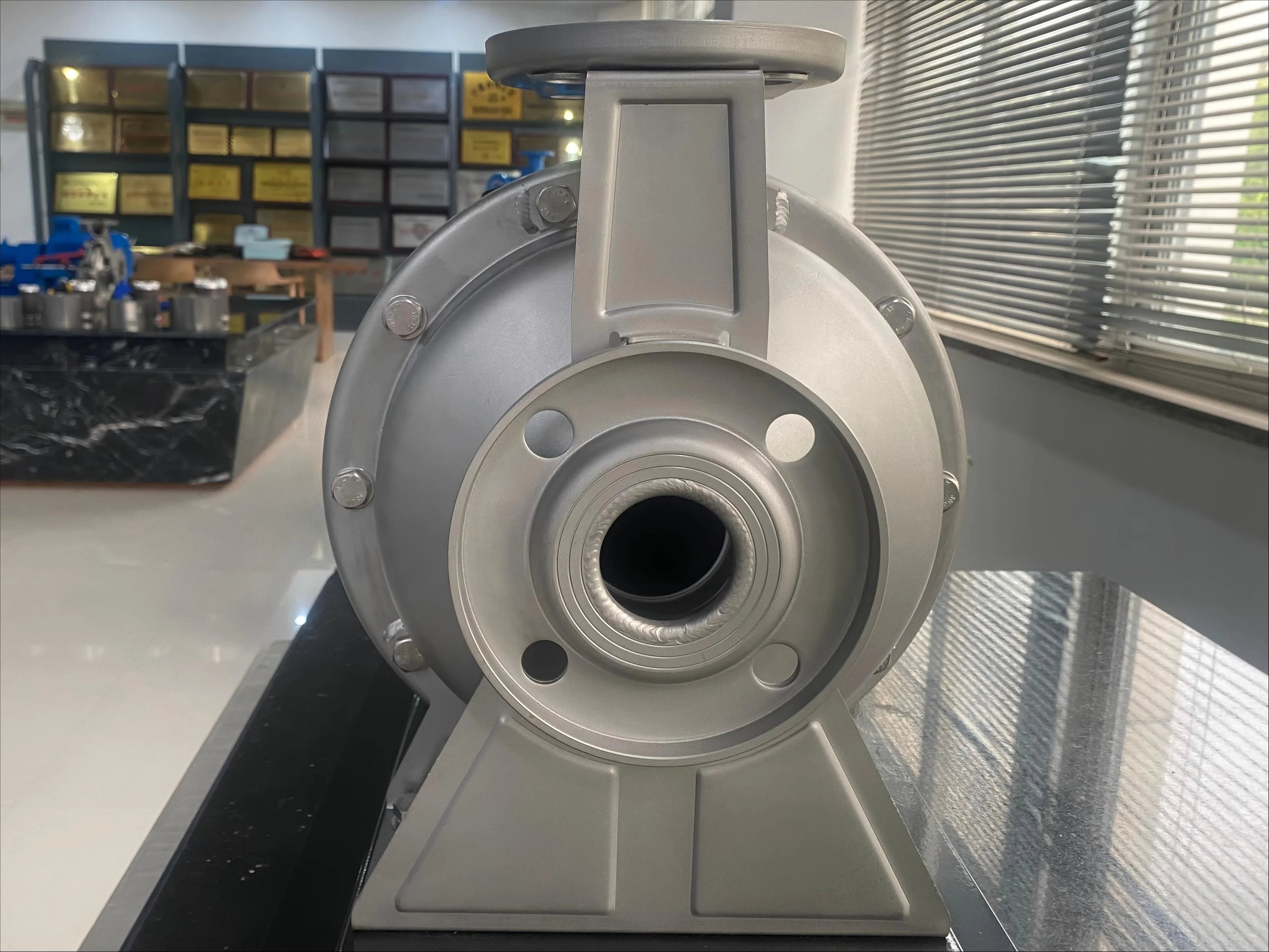

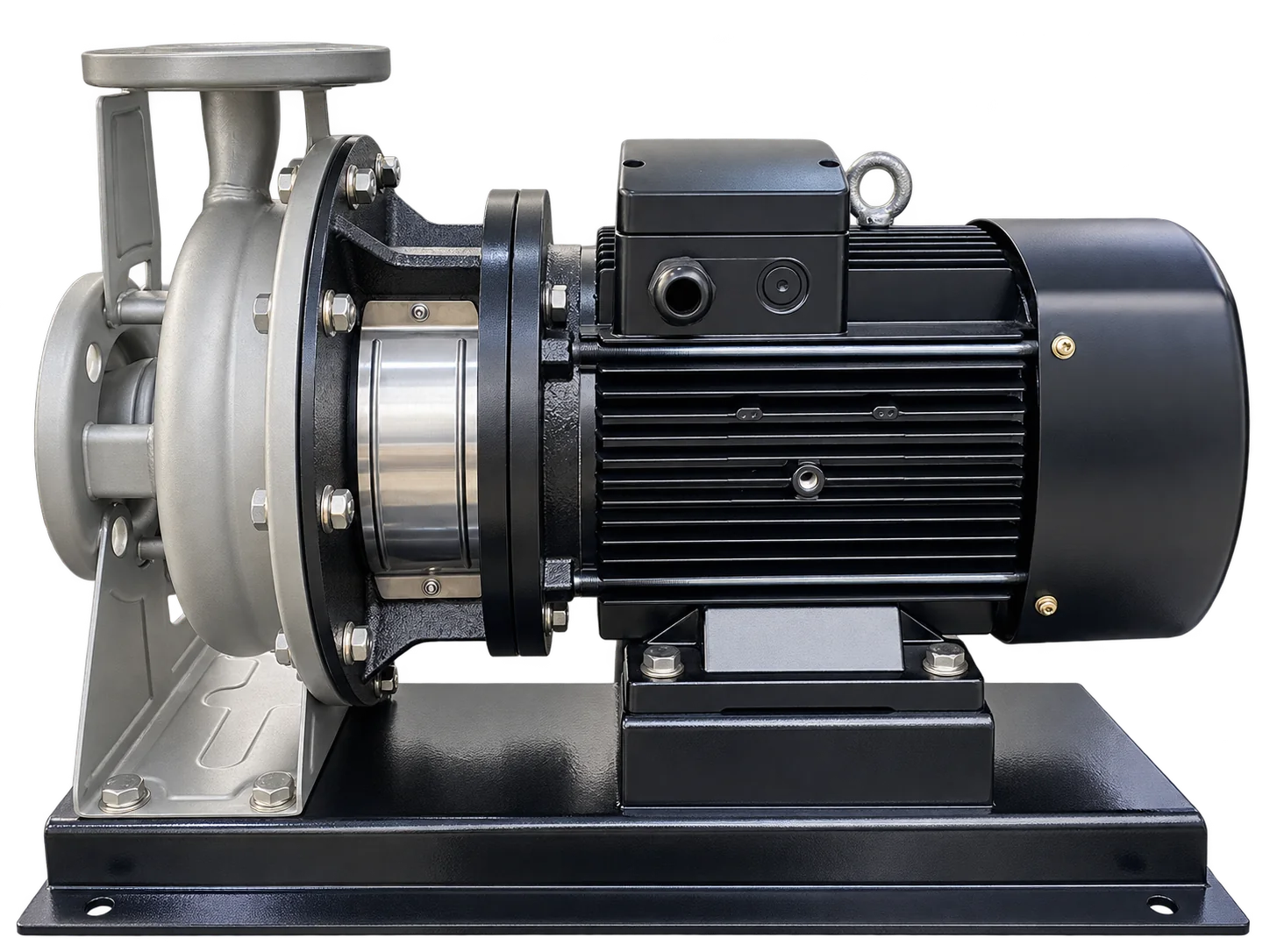

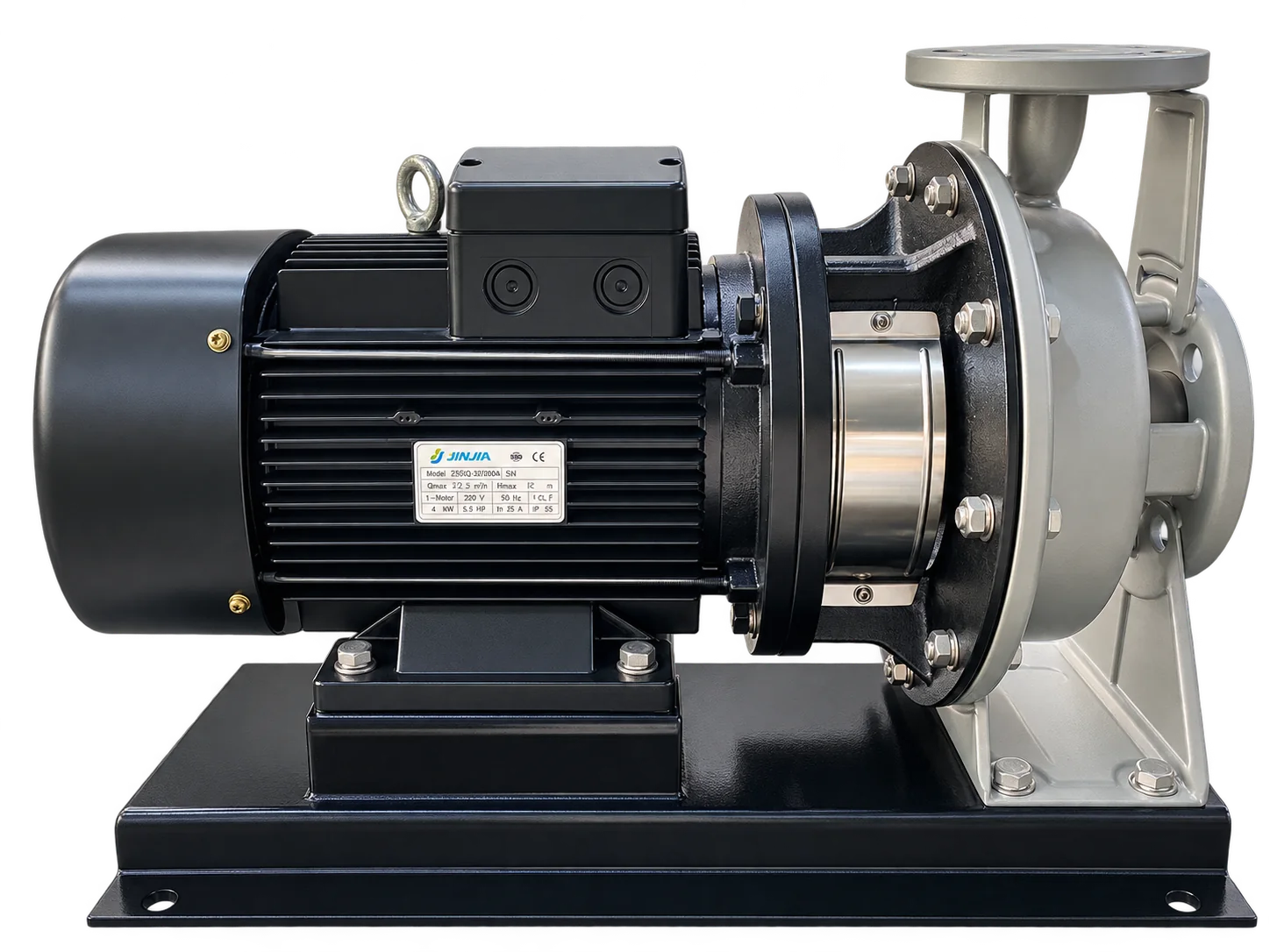

Centrifugal Pump ZS Series

Availability:
Inquire Add to Basket

  • ZS Series

  • YINJIA

YINJIA Centrifugal Pump ZS Series is designed for clean-water circulation, equipment supply and compact booster layouts. Built with stainless steel hydraulic parts, horizontal single-stage structure and neat installation for pump rooms, the series supports clean-water flow, pressure stability and reseller-friendly model selection. Suitable for equipment builders and stainless pump distributors. Contact YINJIA for model selection and OEM/ODM cooperation.
sharethis sharing button
Electric Motor Pump stainless steel horizontal single-stage centrifugal pump Centrifugal pump Single Phase Centrifugal Pump Water Pressure Pump Electric Liquid Pump Agricultural Electric Pump Water Pumps Single-Stage Centrifugal Pump
Product Description


    ZS Series Stainless Steel Horizontal Single-Stage Centrifugal Pump stainless steel horizontal single-stage centrifugal pump utilizes advanced manufacturing processes such as sheet metal stamping, hydro forming, and welding. As a pioneering next-generation centrifugal pump in China, it replaces traditional Is pumps and conventional corrosion-resistant pumps.



Product Feature And Application

Key Advantages

    ✔High efficiency with energy-saving performanc.

    ✔ Extended service life with light corrosion resistance.

    ✔ Low noise operation.

    ✔ Aesthetic appearance and compact structure.


APPLICATIONS

  • -Water Supply: Filtration, transfer, district distribution, and mainline boosting in water plants；

  • -Industrial Pressurization: Process water systems, cleaning systems；

  • lndustrial fluid Transfer: Boiler feedwater, condensation systems, cooling/AC systems, machine tool integration, weakacid/alkali transfer；

  • Water Treatment: Distillation systems, separators, swimming poolsAgricultural lrrigation & Medical Applications；

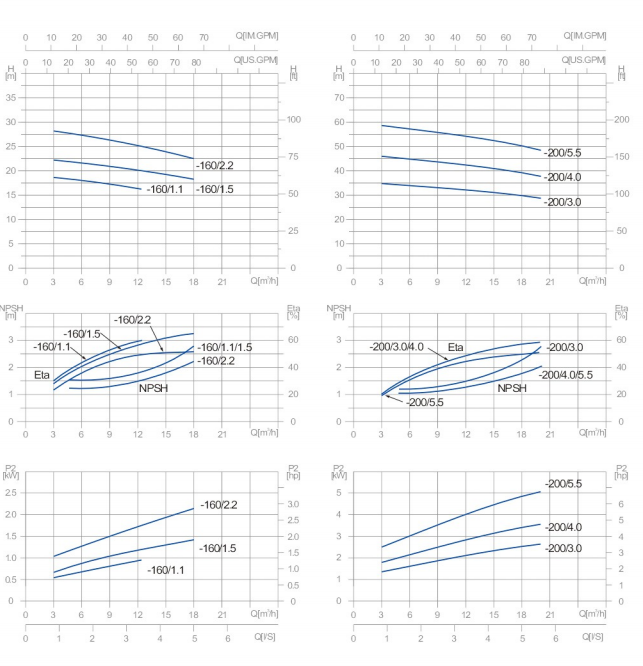

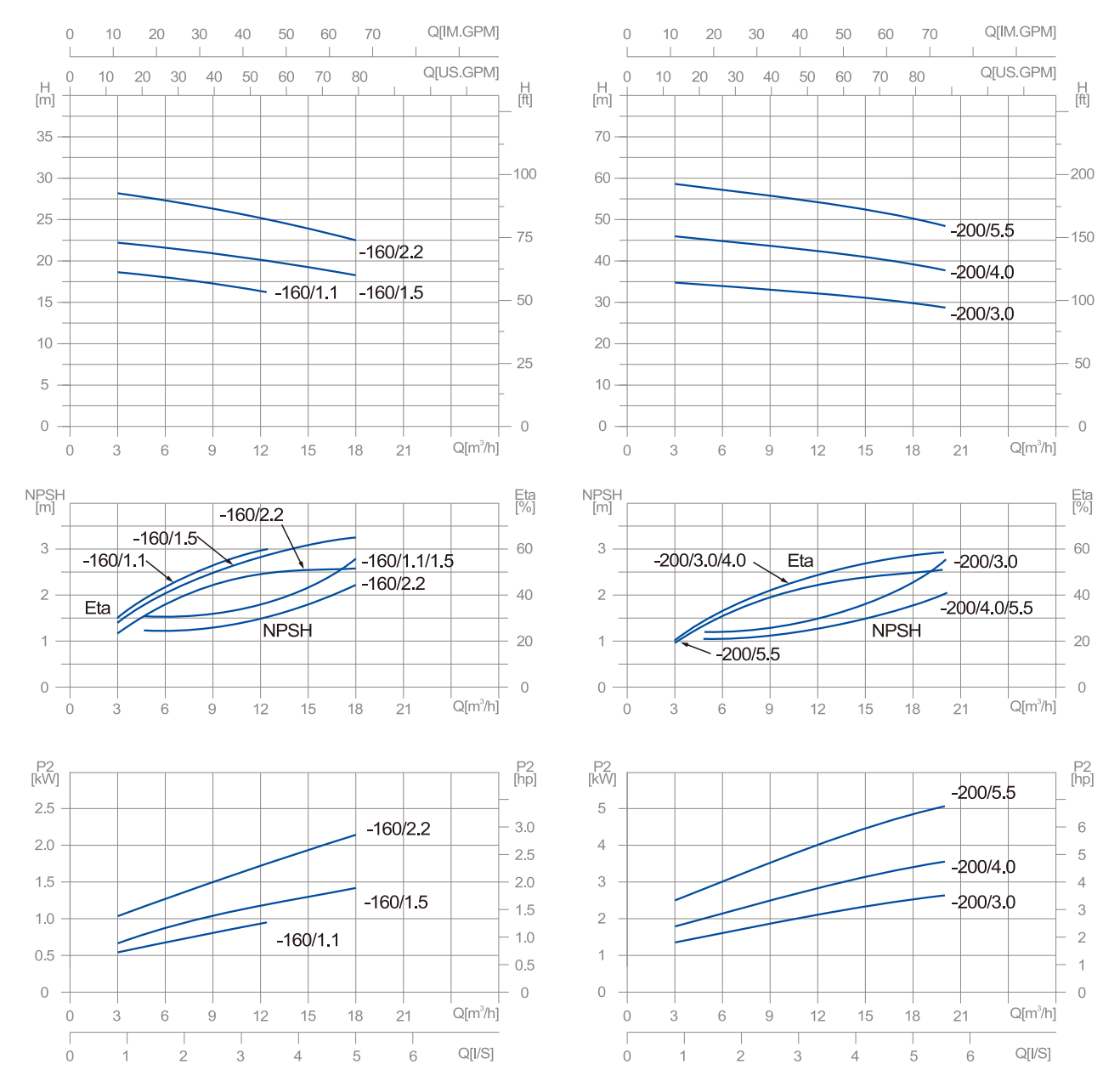

ZS chart1


PERFORMANCE DATA


Model Driving motor Q
(m³/h)		 3 6.3 9 12.5 15 18 20
(kW) (HP)
ZS50-32-160/1.1 1.1 1.5 H
(m)		 18.7 18 17.2 16.4 - - -
ZS50-32-160/1.5 1.5 2 22.5 22 21 20 19 18 -
ZS50-32-160/2.2 2.2 3 28 27 26.3 25 24 22.5 -
ZS50-32-200/3.0 3 4 34.9 34.1 33.3 32 31 29.8 28.9
ZS50-32-200/4.0 4 5.5 45.7 44.8 43.7 42 40.7 39 37.3
ZS50-32-200/5.5 5.5 7.5 58.5 57.2 56 54 52.5 50 48.5

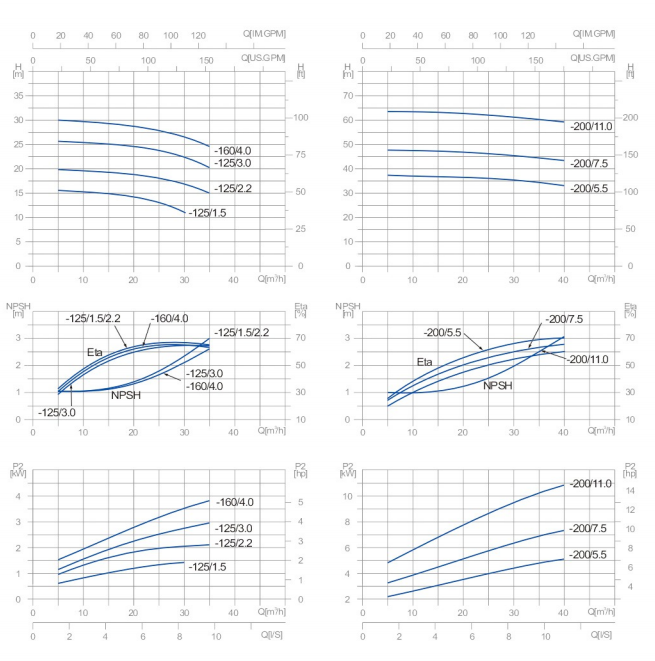

ZS chart2


PERFORMANCE DATA

Model Driving motor Q
(m³/h)		 5 10 15 20 25 30 35 40
(kW) (HP)
ZS65-40-125/1.5 1.5 2 H
(m)		 15.5 15.4 15 14.4 13 11.3 - -
ZS65-40-125/2.2 2.2 3 20 19.7 19.5 19 10 16.7 15.2 -
ZS65-40-125/3.0 3 4 25.7 25.3 25.1 24.8 24 22.3 20.3 -
ZS65-40-160/4.0 4 5.5 30 29.7 29.3 28.9 28 26.5 24.5 -
ZS65-40-200/5.5 5.5 7.5 37.4 37.2 36.7 36.4 36 35.3 34.6 33.3
ZS65-40-200/7.5 7.5 10 48 47.5 47 46.6 46 45.2 44.5 43.3
ZS65-40-200/11.0 11 15 64 63.5 63 62.5 62 61.5 60.5 59

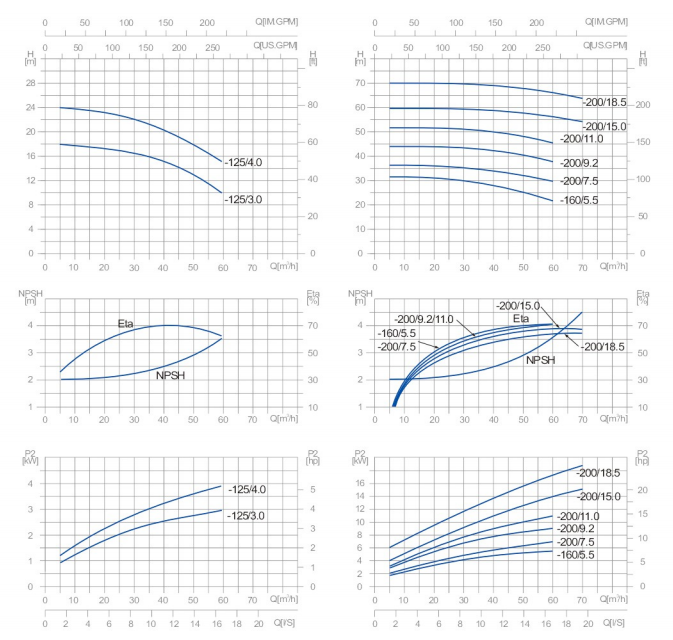

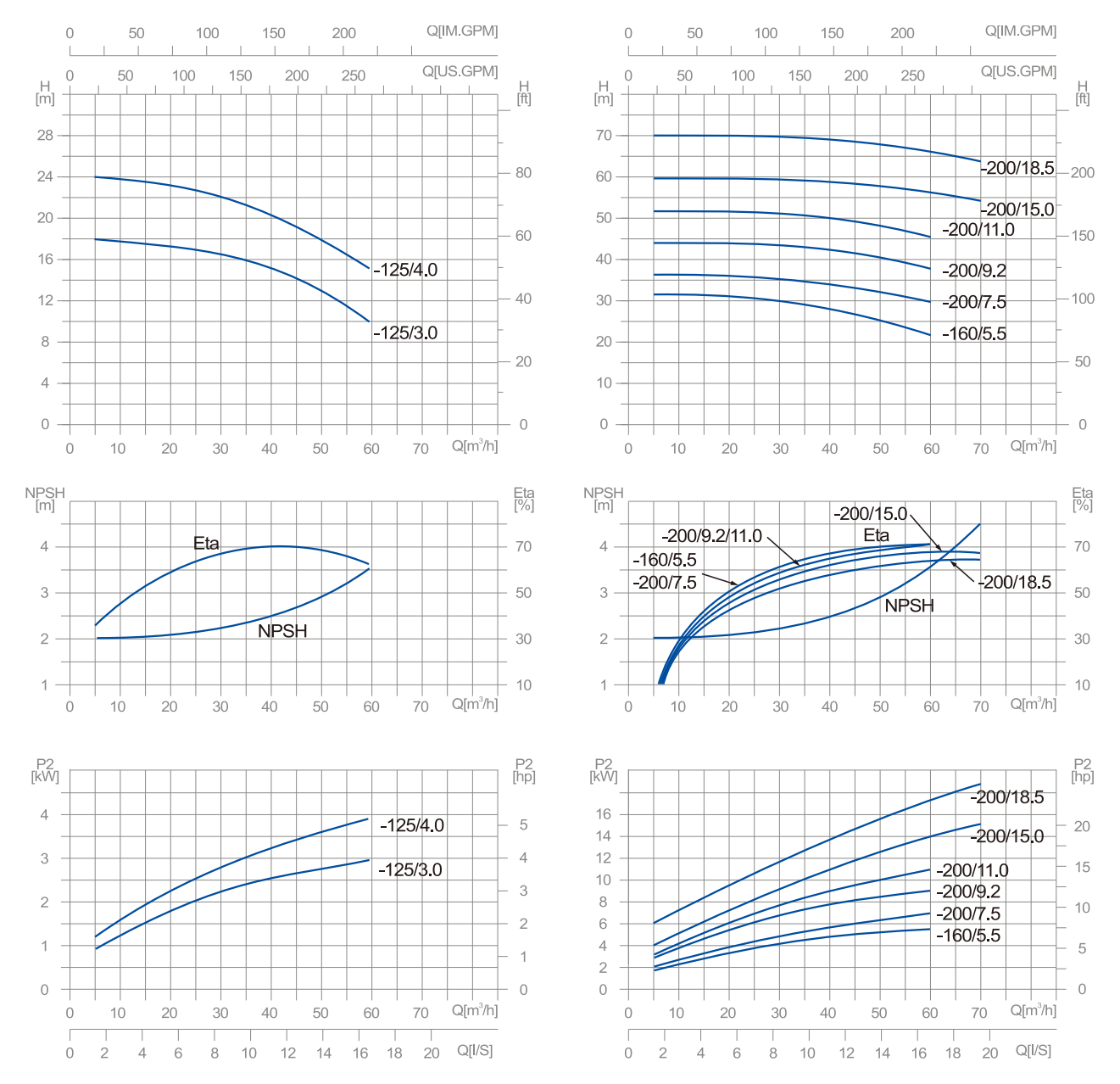

ZS chaet3

PERFORMANCE DATA


Model Driving motor Q
(m³/h)		 5 10 20 30 40 50 60 70
(kW) (HP)
ZS65-50-125/3.0 3 4 H
(m)		 18 17.8 17.2 16.4 15.1 13 10 -
ZS65-50-125/4.0 4 5.5 24.2 24.2 23.6 22.6 20.7 18 14.8 -
ZS65-50-160/5.5 5.5 7.5 31.6 31.5 31 30 28 25 21.5 -
ZS65-50-200/7.5 7.5 10 36.3 36.6 36.4 35.6 34.1 32 29.6 -
ZS65-50-200/9.2 9.2 12.5 43.5 43.5 43.5 43 42 40 37.5 -
ZS65-50-200/11.0 11 15 51.5 51.5 51 50 49.3 48 45.6 -
ZS65-50-200/15.0 15 20 59.7 59.7 59.6 59.5 59 58 56.2 53
ZS65-50-200/18.5 18.5 25 70.2 70.2 70.1 70 69.1 68 66.4 64

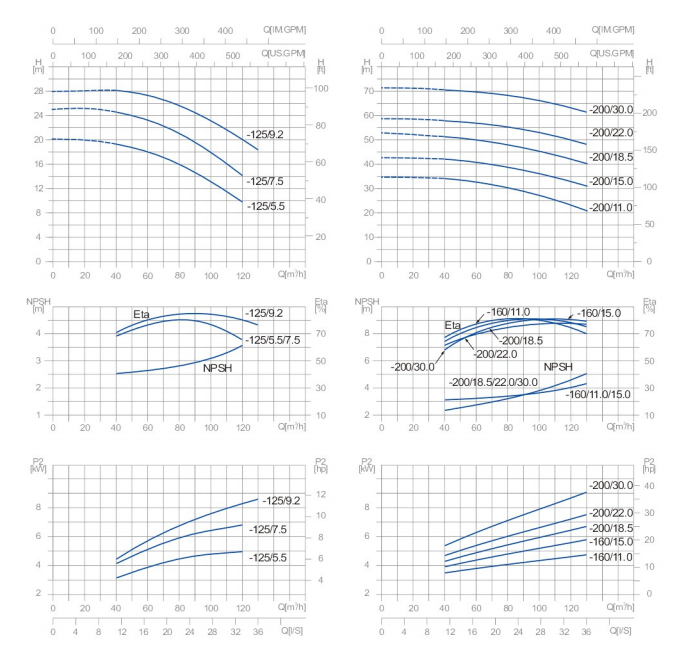

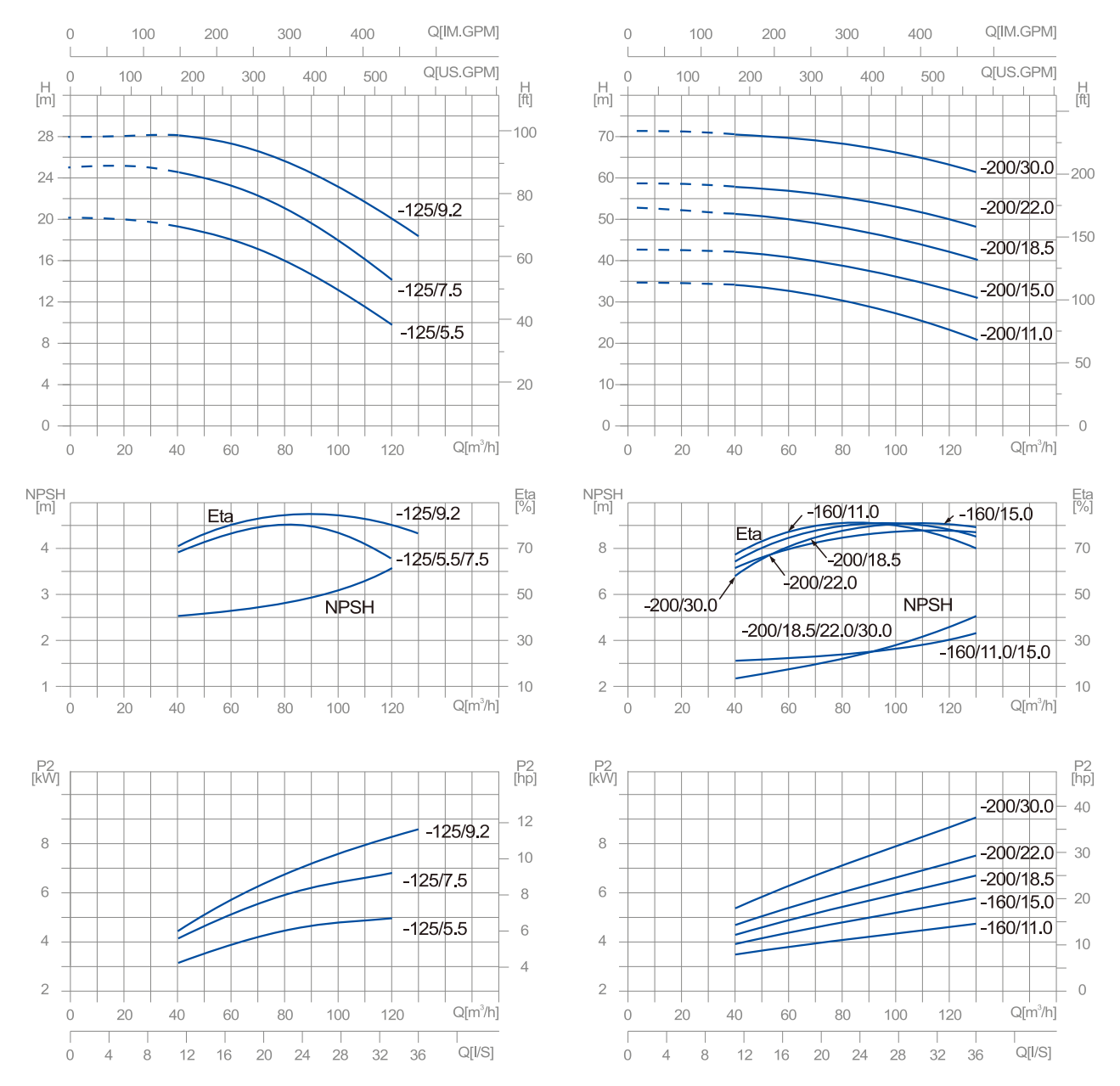

ZS chart4

PERFORMANCE DATA

Model Driving motor Q
(m³/h)		 40 50 60 70 80 90 100 110 120 130
(kW) (HP)
ZS80-65-125/5.5 5.5 7.5 H
(m)		 19.3 18.7 18 17 15.8 14.8 13 11.4 9.7 -
ZS80-65-125/7.5 7.5 10 24.5 23.8 23.1 22.2 21 19.6 18 16.2 14.1 -
ZS80-65-125/9.2 9.2 12.5 28.1 27.8 27.3 26.6 25.7 24.3 23 21.8 20.1 18.3
ZS80-65-160/11.0 11 15 33.9 33 32.2 31.3 29.9 28.8 27 25.1 22.9 20.7
ZS80-65-160/15.0 15 20 41.8 41.1 40.4 39.5 38.6 37.6 36 34.8 33 31
ZS80-65-200/18.5 18.5 25 51 50.5 49.6 48.7 47.6 46.3 45 43.5 42.2 40.2
ZS80-65-200/22.0 22 30 57.7 57.2 56.8 55.9 55.1 54 53 51.6 49.7 48.2
ZS80-65-200/30.0 30 40 70.2 70.2 69.6 68.9 68.2 67.1 66 64.6 63.3 61.4

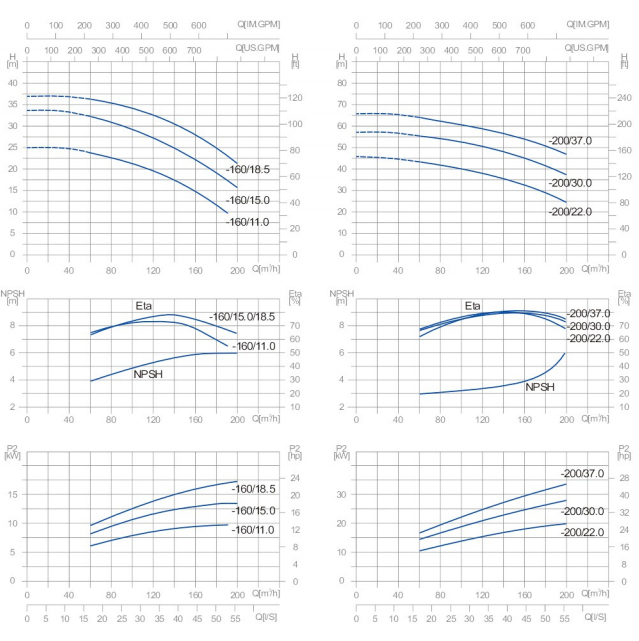

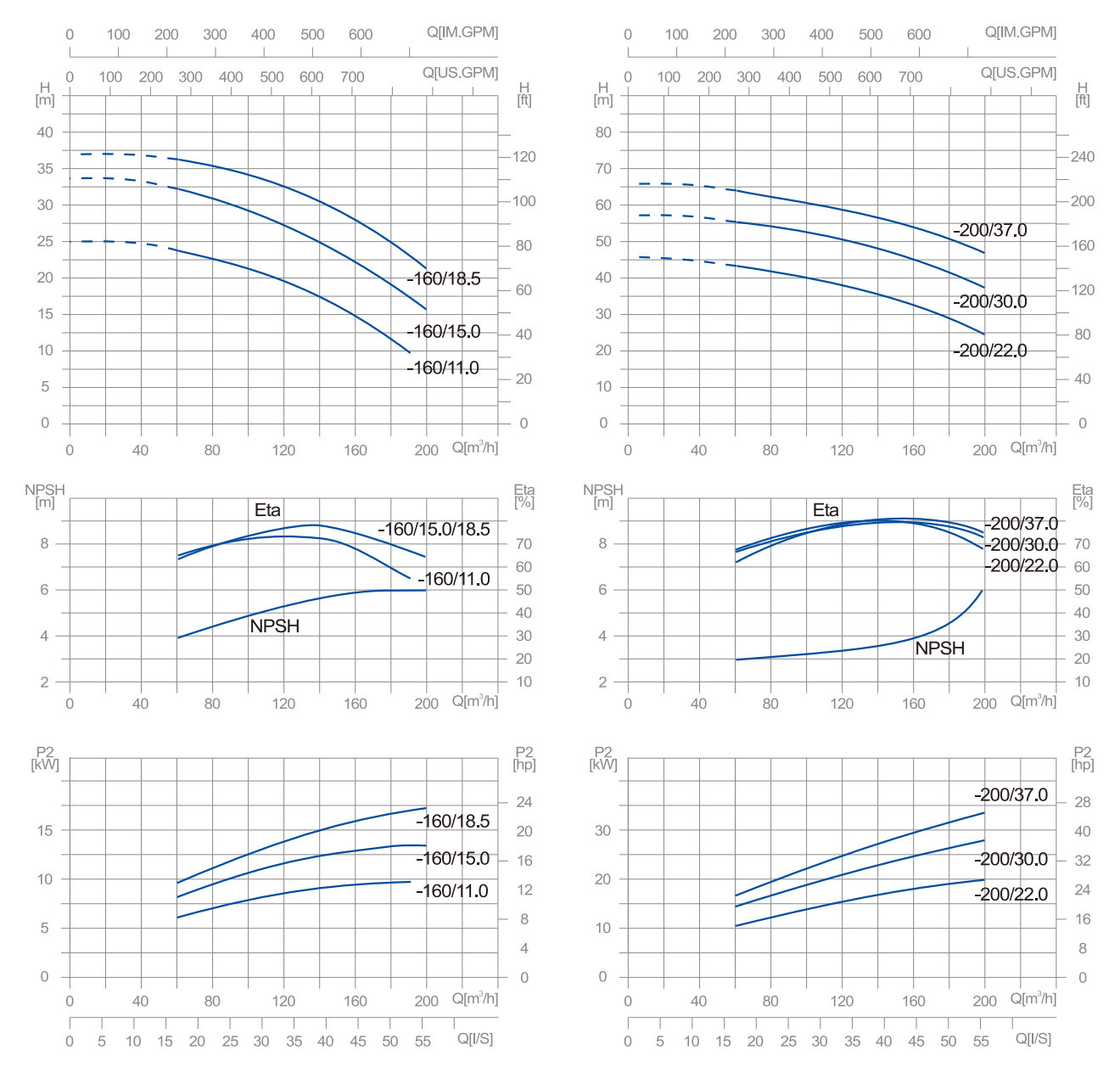

ZS chart5

PERFORMANCE DATA


Model Driving motor Q
(m³/h)		 60 80 100 120 140 160 180 192 200
(kW) (HP)
ZS100-80-160/11.0 11 15 H
(m)		 23.8 22.7 21.1 19.7 17.6 15 11.8 9.7 -
ZS100-80-160/15.0 15 20 32.3 30.8 29.1 27.2 25.1 22 18.8 - 16.1
ZS100-80-160/18.5 18.5 25 36.2 35.2 33.8 32.7 31 28 24.8 - 21.5
ZS100-80-200/22.0 22 30 43.5 42 39.7 38.3 35.9 33 29 - 24.9
ZS100-80-200/30.0 30 40 55.4 54.1 52.6 50.5 48.2 45 41.9 - 37.6
ZS100-80-200/37.0 37 50 64.1 62.5 61 59 57.4 54 51.2 - 47.1

PERFORMANCE DATA

Model Capacity
Q
(m³/h)		 3 6 9 13 15 18 20


Speed
n
(rpm)		 Standard motor voltage
(V)
1x220V 3x380V
P2(kW) P2(kW)
ZS50-32-160/1.1 H
(m)		 18.7 18 17.2 16.4 / / /


2900 1.1 1.1
ZS50-32-160/1.5 22.5 22 21 20 19 18 /


1.5 1.5
ZS50-32-160/2.2 28 27 26.3 25 24 22.5 /


2.2 2.2
ZS50-32-200/3.0 34.9 34.1 33.3 32 3 29.8 28.9



3
ZS50-32-200/4.0 45.7 44.8 43.7 42 40.7 39 37.7



4
ZS50-32-200/5.5 58.5 57.2 56 54 52.5 50 48.5



5.5

Q (m³/h) 5 10 15 20 25 30 35 40




ZS65-40-125/1.5 H
(m)		 15.5 15.4 15 14.4 13 11.3 / /

2900 1.5 1.5
ZS65-40-125/2.2 20 19.7 19.5 19 18 16.7 15.2 /

2.2 2.2
ZS65-40-125/3.0 25.7 25.3 25.1 24.8 24 22.3 20.3 /


3
ZS65-40-160/4.0 30 29.7 29.3 28.9 28 26.5 24.5 /


4
ZS65-40-200/5.5 37.4 37.2 36.7 36.4 36 35.5 34.6 33.3


5.5
ZS65-40-200/7.5 48 47.5 47 46.6 46 45.2 44.5 43.3


7.5
ZS65-40-200/11.0 64 63.5 63 62.5 62 61.5 60.5 59


11

Q (m³/h) 5 10 20 30 40 50 60 70




ZS65-50-125/3.0 H
(m)		 18.0 17.8 17 16.4 15.1 13 10.0 /

2900
3
ZS65-50-125/4.0 24.2 24.2 23.6 22.6 20.7 18.0 14.8 /


4
ZS65-50-160/5.5 31.6 31.5 31.0 30.0 28.0 25.0 21.5 /


5.5
ZS65-50-200/7.5 36.3 37 36.4 35.6 34 32.0 29.6 /


7.5
ZS65-50-200/9.2 43.5 43.5 44 43.0 42.0 40 37.5 /


9.2
ZS65-50-200/11.0 51.5 51.5 51.0 50.0 49.3 48.0 45.6 /


11
ZS65-50-200/15.0 59.7 59.7 59.6 59.5 59.0 58.0 56.2 53.0


15
ZS65-50-200/18.5 70.2 70 70.1 70.0 69 68.0 66.4 64


18.5

Q (m³/h) 40 50 60 70 80 90 100 110 120 130


ZS80-65-125/5.5 H
(m)		 19.3 18.7 18 17 15.8 14.8 13 11.4 9.7 / 2900
5.5
ZS80-65-125/7.5 24.5 23.8 23.1 22.2 21 19.6 18 16.2 14.7 /
7.5
ZS80-65-125/9.2 28.1 27.8 27.3 26.6 25.7 24.3 23 21.8 20.1 18.3
9.2
ZS80-65-160/11.0 33.9 33 32.2 31.3 29.9 28.8 27 25.1 22.9 20.7
11
ZS80-65-160/15.0 41.8 41.1 40.4 39.5 38.6 37.6 36 34.8 33 31
15
ZS80-65-200/18.5 51 50.5 49.6 48.7 47.6 46.3 45 43.5 42.2 40.2
18.5
ZS80-65-200/22.0 57.7 57.2 56.8 55.9 55.1 54 53 51.6 49.7 48.2
22
ZS80-65-200/30.0 70.2 70.2 69.6 68.9 68.2 67.1 66 64.6 63.3 61.4
30

Q (m³/h) 60 80 100 120 140 160 180 192 200



ZS100-80-160/11.0 H
(m)		 23.8 22.7 21 19.7 17.6 15 11.8 9.7 /
2900
11
ZS100-80-160/15.0 32.3 30.8 29.1 27.2 25.1 22.0 18.8 / 16.1

15
ZS100-80-160/18.5 36.2 35.2 33.8 32.7 31.0 28.0 24.8 / 21.5

18.5
ZS100-80-200/22.0 43.5 42 39.7 383.0 36 33.0 29.0 / 24.9

22
ZS100-80-200/30.0 55.4 54.1 53 50.5 48.2 45 41.9 / 38

30
ZS100-80-200/37.0 64.1 62.5 61.0 59.0 57.4 54.0 51.2 / 47.1

37

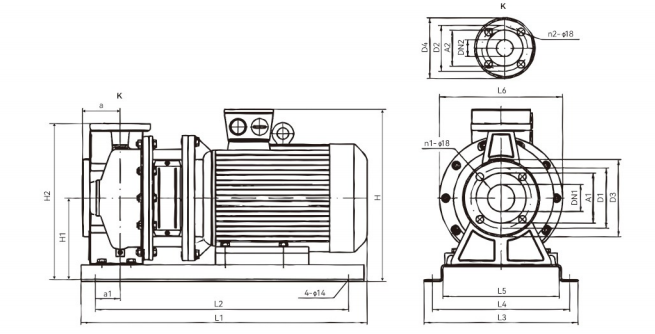

DIMENSIONS

ZS dimensions

Model Dimension(mm) Weight
(Kg)
Dn1 Dn2 A1 A2 D1 D2 D3 D4 N1 N2 A A1 H H1 H2 L1 L2 L3 L4 L5 L6
ZS50-32-160/1.1 50 32 98 75 125 100 160 139 4 4 80 32 290 152 296 470 370 280 240 192 210 31
ZS50-32-160/1.5 50 32 98 75 125 100 160 139 4 4 80 46 307 152 296 500 430 280 240 192 210 37
ZS50-32-160/2.2 50 32 98 75 125 100 160 139 4 4 80 46 307 152 296 500 430 280 240 192 210 39
ZS50-32-200/3.0 50 32 98 75 125 100 160 139 4 4 84 42 370 200 386 550 460 330 290 242 300 53
ZS50-32-200/4.0 50 32 98 75 125 100 160 139 4 4 84 47 393 200 386 560 480 330 290 242 300 58
ZS50-32-200/5.5 50 32 98 75 125 100 160 139 4 4 84 50 413 200 386 660 580 370 330 280 300 77
ZS65-40-125/1.5 65 40 118 84 145 110 185 145 4 4 80 45 307 152 294 502 430 280 240 192 210 33
ZS65-40-125/2.2 65 40 118 84 145 110 185 145 4 4 80 45 307 152 294 502 430 280 240 192 210 35
ZS65-40-125/3.0 65 40 118 84 145 110 185 145 4 4 80 45 322 152 294 532 460 300 260 212 250 47
ZS65-40-160/4.0 65 40 118 84 145 110 185 145 4 4 80 45 345 152 294 557 480 330 290 242 250 52
ZS65-40-200/5.5 65 40 118 84 145 110 185 145 4 4 100 50 413 200 380 680 580 370 330 280 300 78
ZS65-40-200/7.5 65 40 118 84 145 110 185 145 4 4 100 50 413 200 380 680 580 370 330 280 300 82
ZS65-40-200/11.0 65 40 118 84 145 110 185 145 4 4 100 50 456 200 380 790 690 420 380 330 350 161
ZS65-50-125/3.0 65 50 118 98 145 125 185 160 4 4 86 45 342 172 338 548 468 330 290 242 250 49
ZS65-50-125/4.0 65 50 118 98 145 125 185 160 4 4 86 45 365 172 338 570 490 330 290 242 250 54
ZS65-50-160/5.5 65 50 118 98 145 125 185 160 4 4 100 50 413 200 380 680 580 370 330 280 300 78
ZS65-50-200/7.5 65 50 118 98 145 125 185 160 4 4 100 50 413 200 380 680 580 370 330 280 300 82
ZS65-50-200/9.2 65 50 118 98 145 125 185 160 4 4 100 50 413 200 380 680 580 370 330 280 300 85
ZS65-50-200/11.0 65 50 118 98 145 125 185 160 4 4 100 50 456 200 380 790 690 420 380 330 350 161
ZS65-50-200/15.0 65 50 118 98 145 125 185 160 4 4 100 50 456 200 380 790 690 420 380 330 350 171
ZS65-50-200/18.5 65 50 118 98 145 125 185 160 4 4 100 50 456 200 380 830 730 420 380 330 350 188
ZS80-65-125/5.5 80 65 130 118 160 145 200 185 8 4 100 50 413 200 380 690 590 370 330 280 300 79
ZS80-65-125/7.5 80 65 130 118 160 145 200 185 8 4 100 50 413 200 380 690 590 370 330 280 300 83
ZS80-65-125/9.2 80 65 130 118 160 145 200 185 8 4 100 50 413 200 380 690 590 370 330 280 300 87
ZS80-65-160/11.0 80 65 130 118 160 145 200 185 8 4 100 50 456 200 400 790 590 420 380 330 350 163
ZS80-65-160/15.0 80 65 130 118 160 145 200 185 8 4 100 50 456 200 400 790 590 420 380 330 350 173
ZS80-65-200/18.5 80 65 130 118 160 145 200 185 8 4 100 50 476 220 445 830 730 420 380 330 350 190
ZS80-65-200/22.0 80 65 130 118 160 145 200 185 8 4 100 50 500 220 445 880 780 455 415 365 350 220
ZS50-65-200/30.0 80 65 130 118 160 145 200 185 8 4 100 50 550 240 465 950 850 495 455 405 400 292
ZS100-80-160/11.0 100 80 150 130 180 160 220 200 8 8 125 75 476 220 445 830 730 420 380 330 350 163
ZS100-80-160/15.0 100 80 150 130 180 160 220 200 8 8 125 75 476 220 445 830 730 420 380 330 350 173
ZS100-80-160/18.5 100 80 150 130 180 160 220 200 8 8 125 75 476 220 445 870 770 420 380 330 350 185
ZS100-80-200/22.0 100 80 150 130 180 160 220 200 8 8 125 75 500 220 470 915 810 455 415 365 350 223
ZS100-80-200/30.0 100 80 150 130 180 160 220 200 8 8 125 75 550 240 490 985 880 495 455 405 400 295
ZS100-80-200/37.0 100 80 150 130 180 160 220 200 8 8 125 75 550 240 490 985 880 495 455 405 400 315
