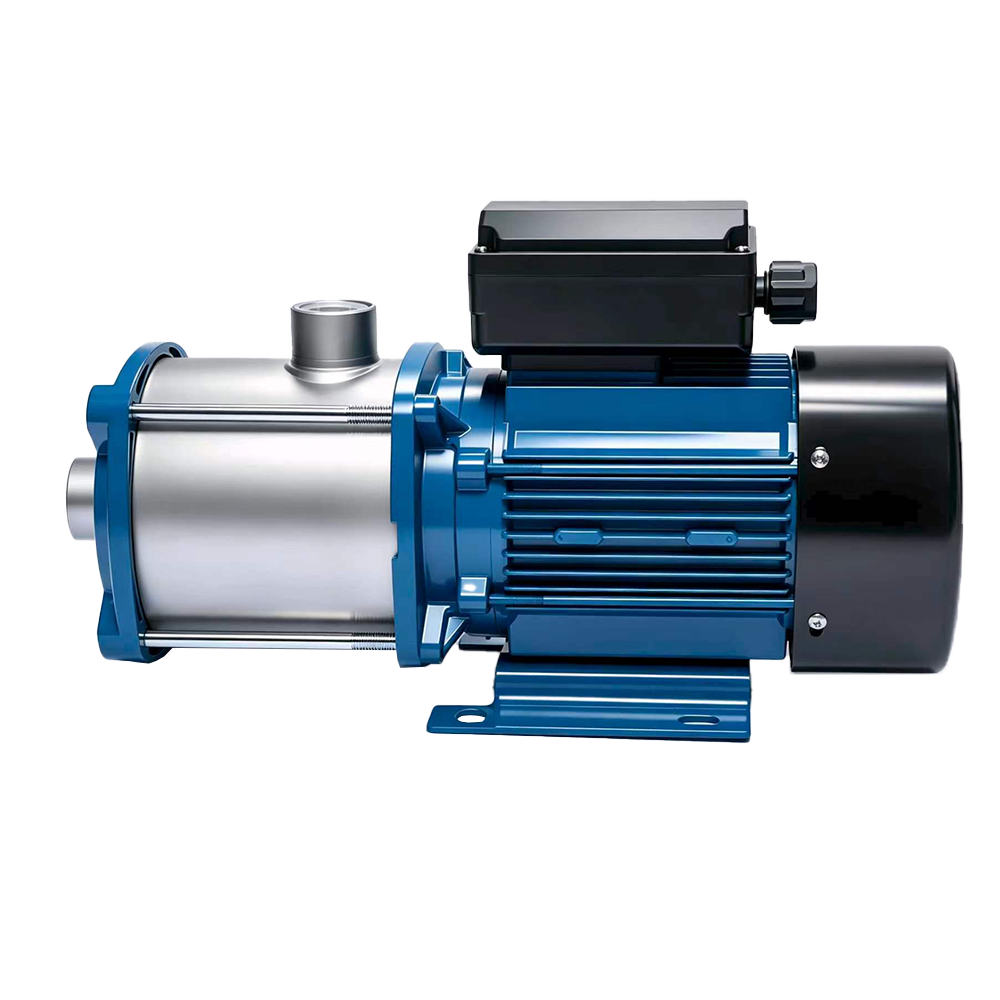

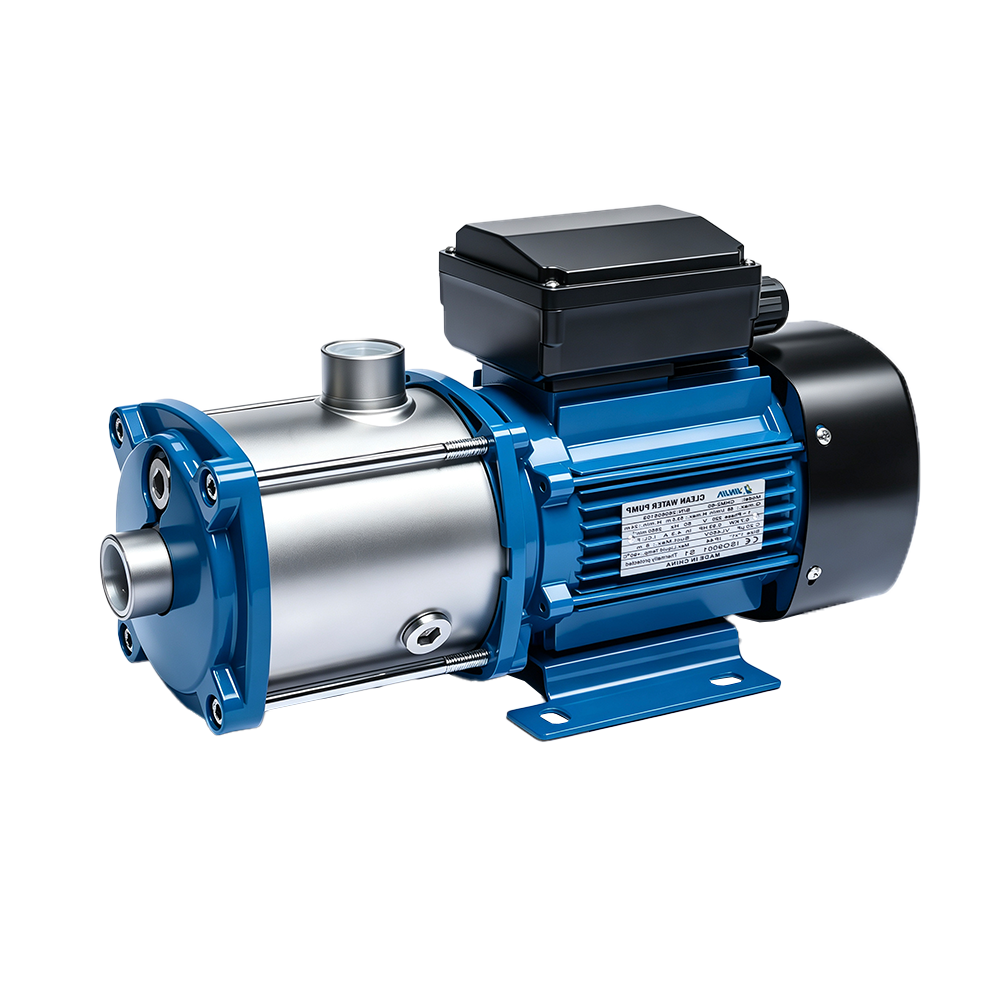

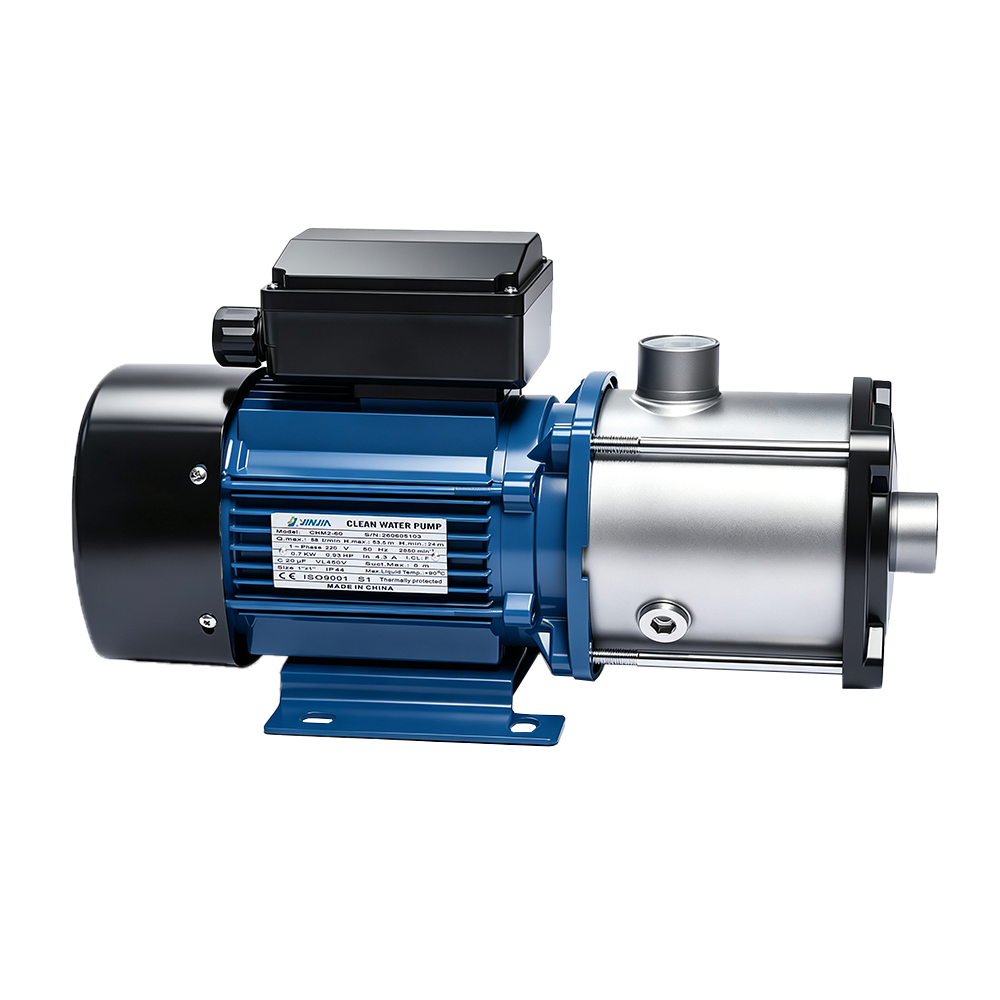

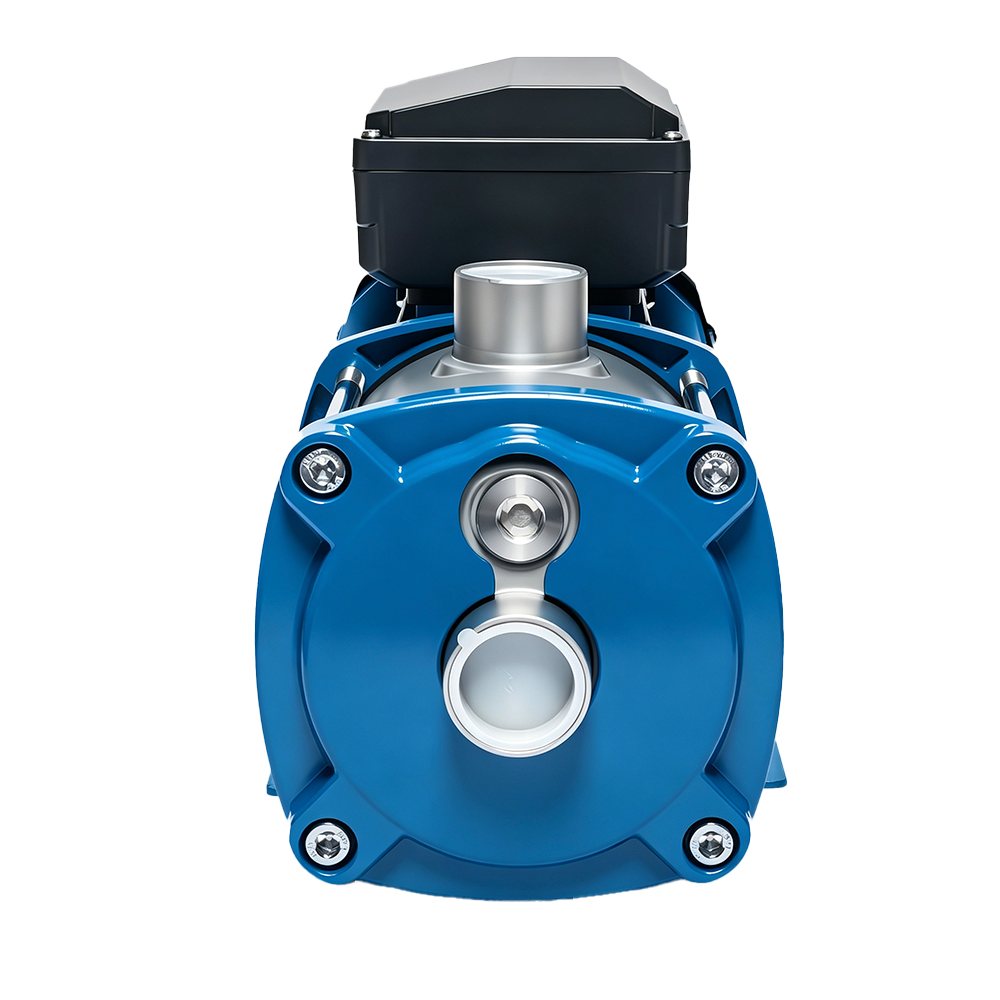

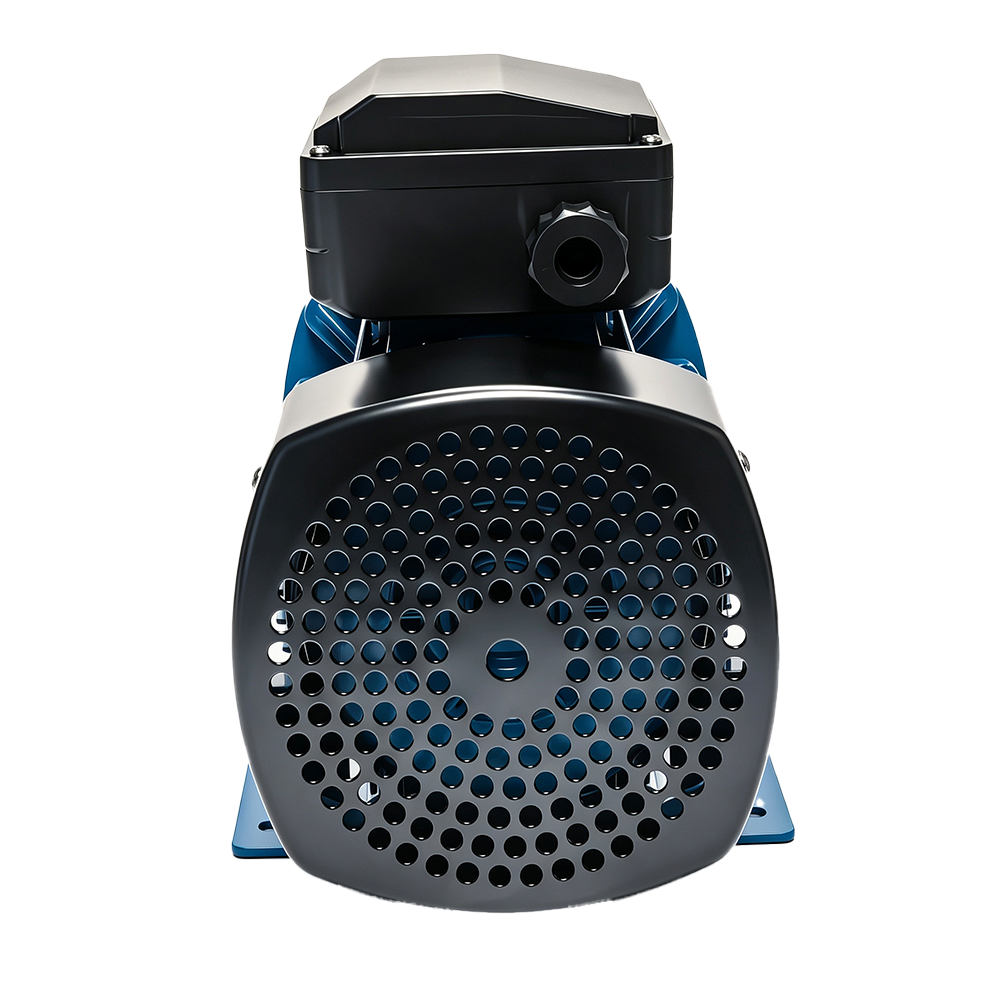

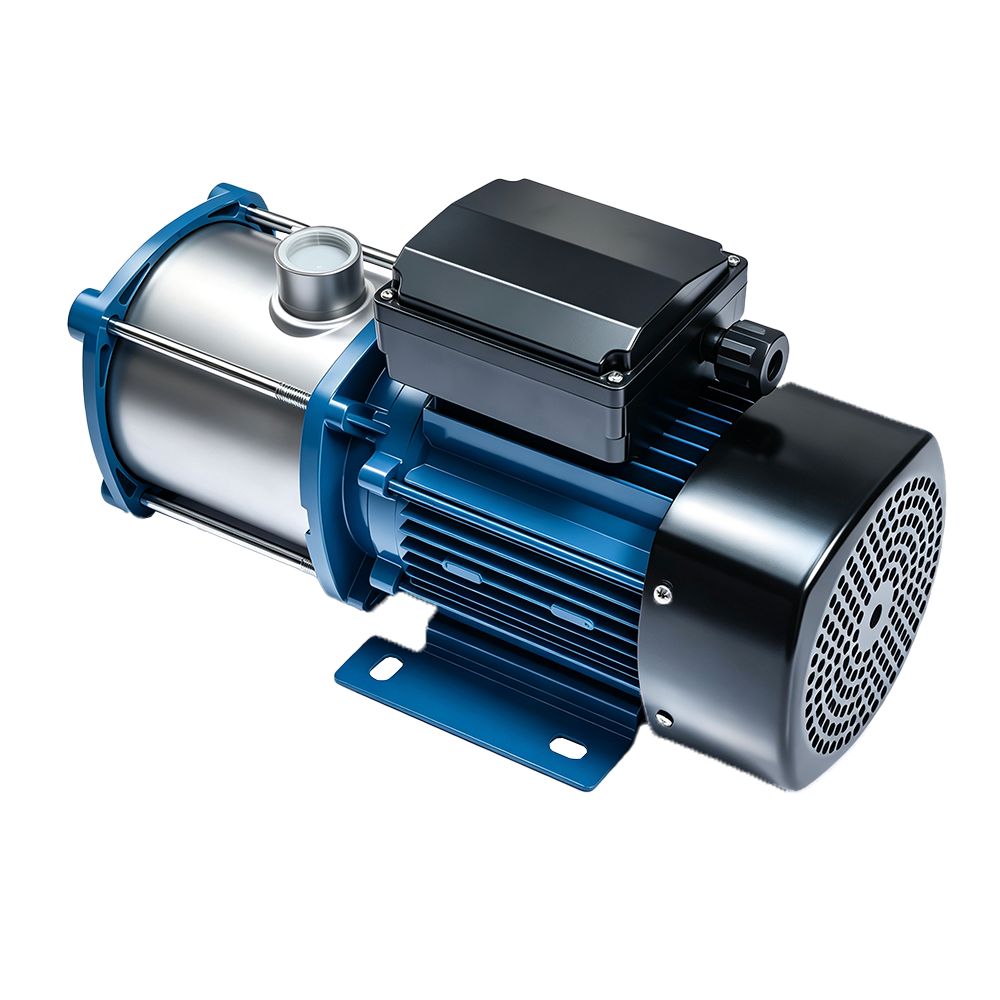

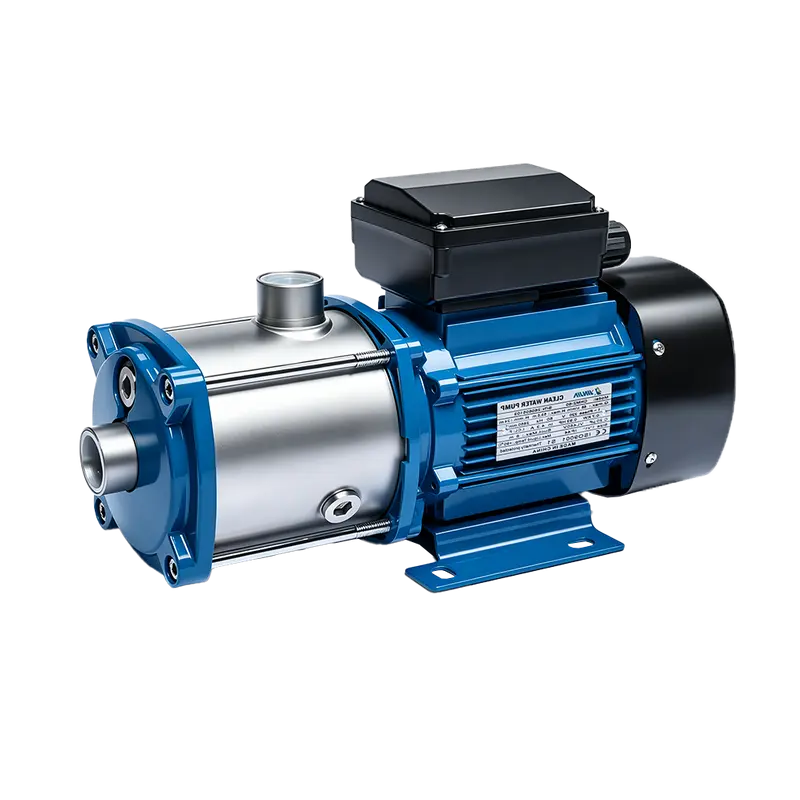

The YSH pump is a multi purpose pump for both industry andwaterboosting in general.It is compact, noiseless,reliable and flexible., and these make itanoptimal solution for installation and interaction with othercomponents insmall and large systems or as a stand-alone pump.Pumps should be installed in a covered area, protectedagainstthe weather.
APPLICATIONS
Pressure Boosting
Washing and Cleaning
Water Treatment
Chemical and Phamaceutical Industries
Heating and cooling system

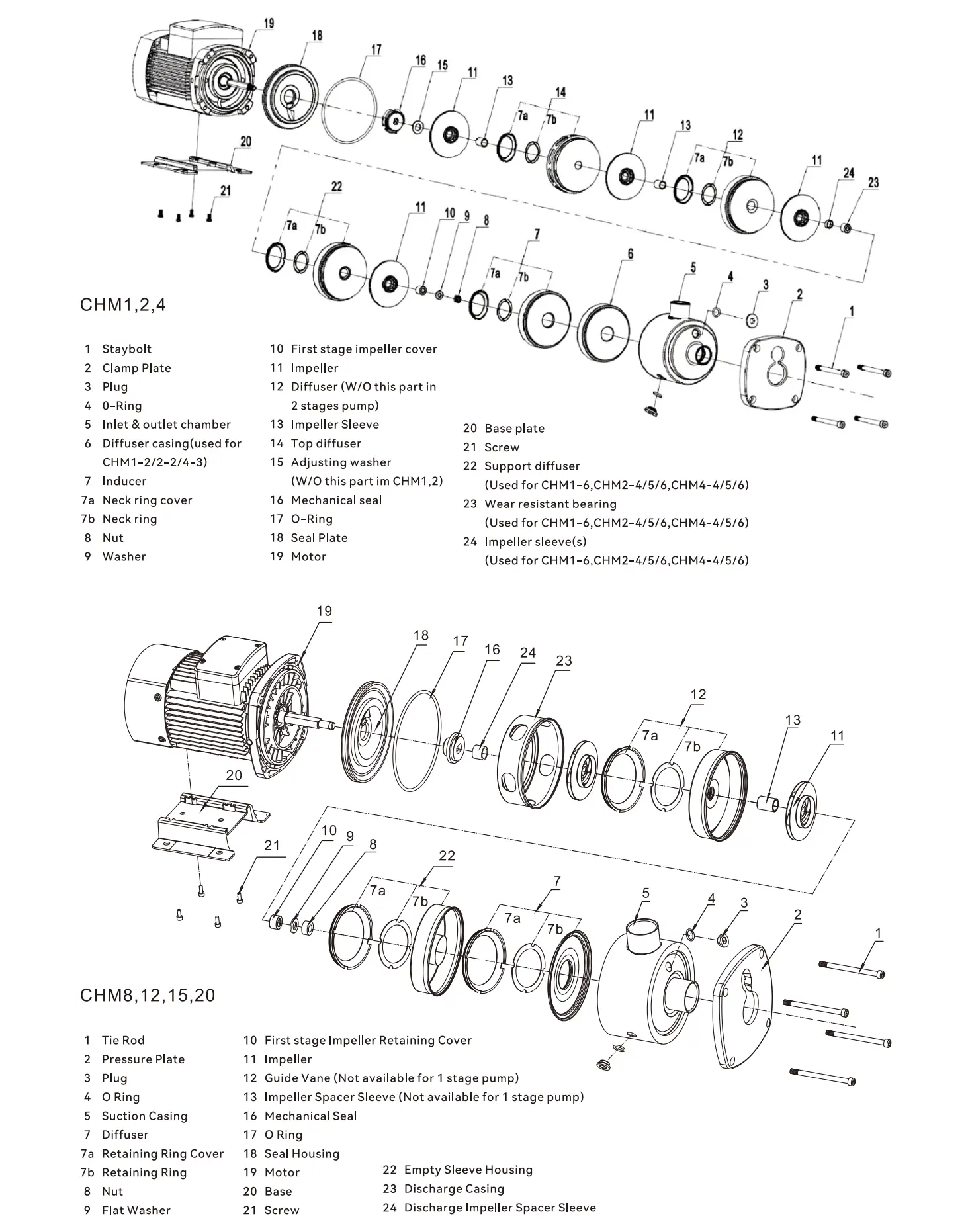

CONSTRUCTION FEATURES
Impeller: Stainless steelIViddle Section: Stainless steel
Insulation Class: FProtection Class: IP55
Thermal Protector: Sinale phase
OPERATING LIMITATIONS
Min liquid temperature. -20°C
Max liquid temperature: +104°C
Environmental temperature: ≤50°C
Max working pressure: 1.0MPa
Ambient temperature: 0~40°C

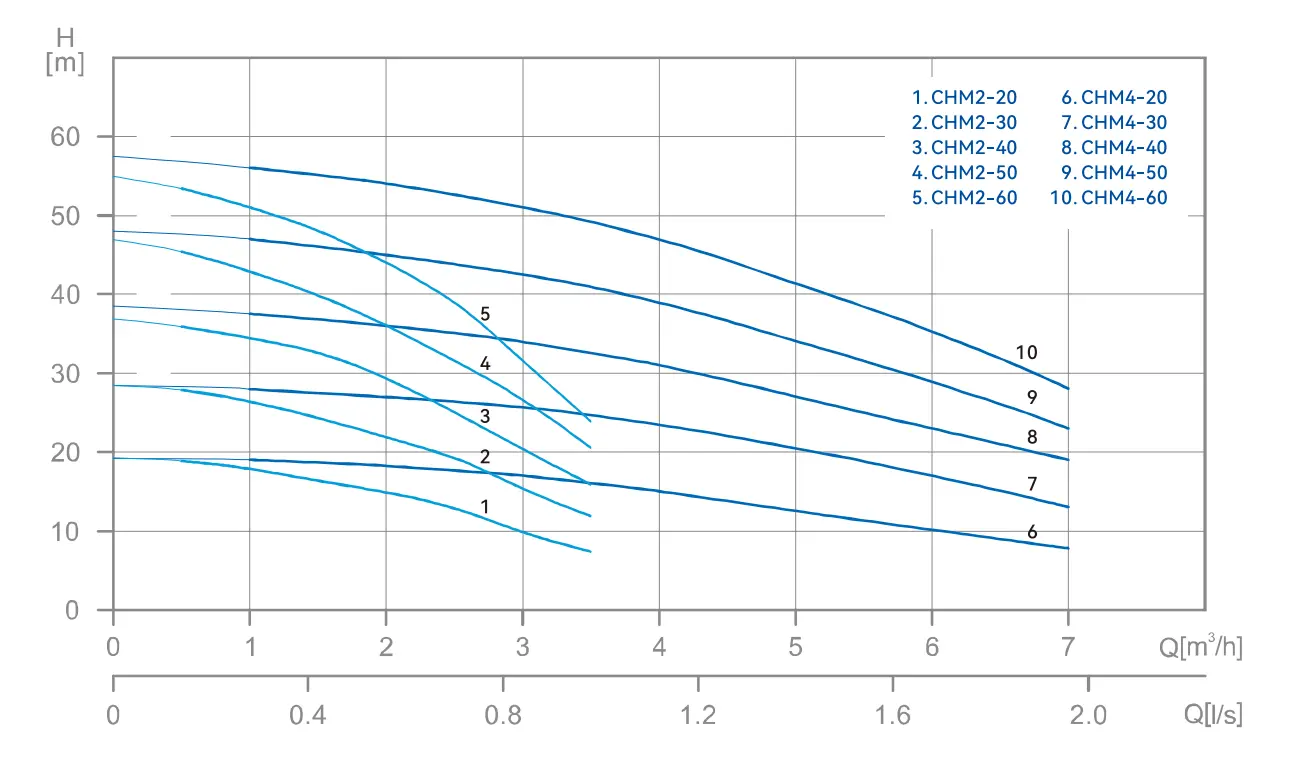

PERFORMANCE DATA

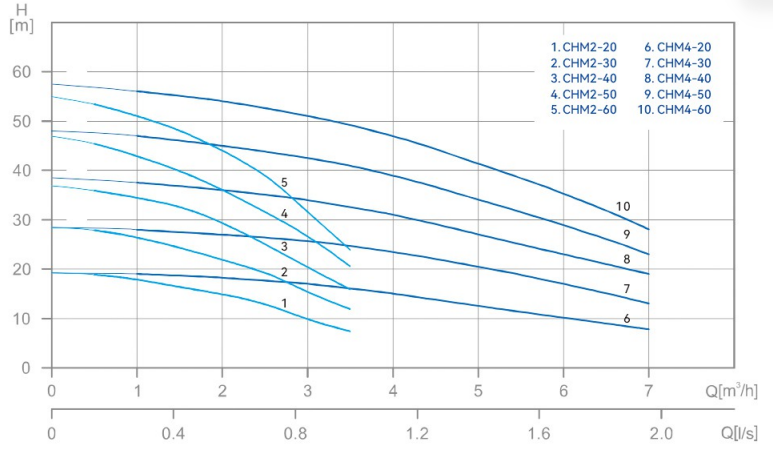

| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | |||||||||
| 1~ | 3~ | HP | kW | 1~ 1x220V 50HZ | 3~ 1x380V 50HZ | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | ||
| CHM2-20 | CHMT2-20 | 0.3 | 0.22 | 1.39 | 0.44 | 19 | 18 | 16.5 | 15 | 13 | 10 | 7.5 | 1" | 1" |
| CHM2-30 | CHMT2-30 | 0.44 | 0.33 | 2.03 | 0.66 | 28 | 26.5 | 24.5 | 22 | 19 | 15.5 | 12 | 1" | 1" |
| CHM2-40 | CHMT2-40 | 0.5 | 0.37 | 2.37 | 0.74 | 36 | 34.5 | 33 | 29 | 25 | 20.5 | 16 | 1" | 1" |
| CHM2-50 | CHMT2-50 | 0.75 | 0.55 | 3.51 | 1.3 | 45.5 | 43 | 40 | 36 | 31.5 | 26.5 | 20.5 | 1" | 1" |
| CHM2-60 | CHMT2-60 | 0.93 | 0.7 | 4.3 | 1.4 | 53.5 | 51 | 48 | 44 | 39 | 32 | 24 | 1" | 1" |
| CHM2-70 | 1 | 0.75 | 4.62 | 63 | 61 | 57 | 53 | 47 | 40 | 31 | 1" | 1" | ||
| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | |||||||||
| 1~ | 3~ | HP | kW | 1~ 1x220V 50HZ | 3~ 1x380V 50HZ | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| CHM4-20 | CHMT4-20 | 0.44 | 0.33 | 2.03 | 0.66 | 19 | 18 | 17 | 15 | 12.5 | 10 | 8 | 1.25" | 1" |
| CHM4-30 | CHMT4-30 | 0.75 | 0.55 | 3.51 | 1.3 | 28 | 27 | 26 | 23.5 | 20.5 | 17 | 13 | 1.25" | 1" |
| CHM4-40 | CHMT4-40 | 0.93 | 0.7 | 4.3 | 1.4 | 37.5 | 36 | 34 | 31 | 27 | 23 | 19 | 1.25" | 1" |
| CHM4-50 | CHMT4-50 | 1 | 0.75 | 4.62 | 1.7 | 47 | 45 | 42.5 | 39 | 34 | 29 | 23 | 1.25" | 1" |
| CHM4-60 | CHMT4-60 | 1.2 | 0.9 | 5.3 | 2 | 56 | 54 | 51 | 47 | 41.5 | 35.5 | 28 | 1.25" | 1" |
| CHM4-70 | 1.5 | 1.1 | 6.75 | 63 | 61 | 55 | 49 | 42 | 33 | 24 | 1.25" | 1" | ||

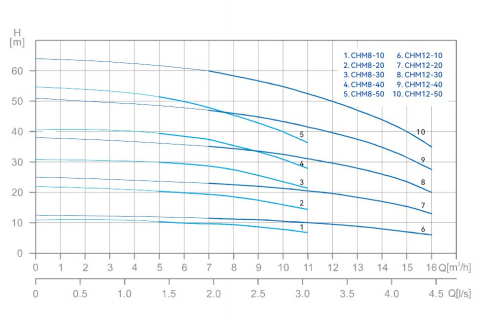

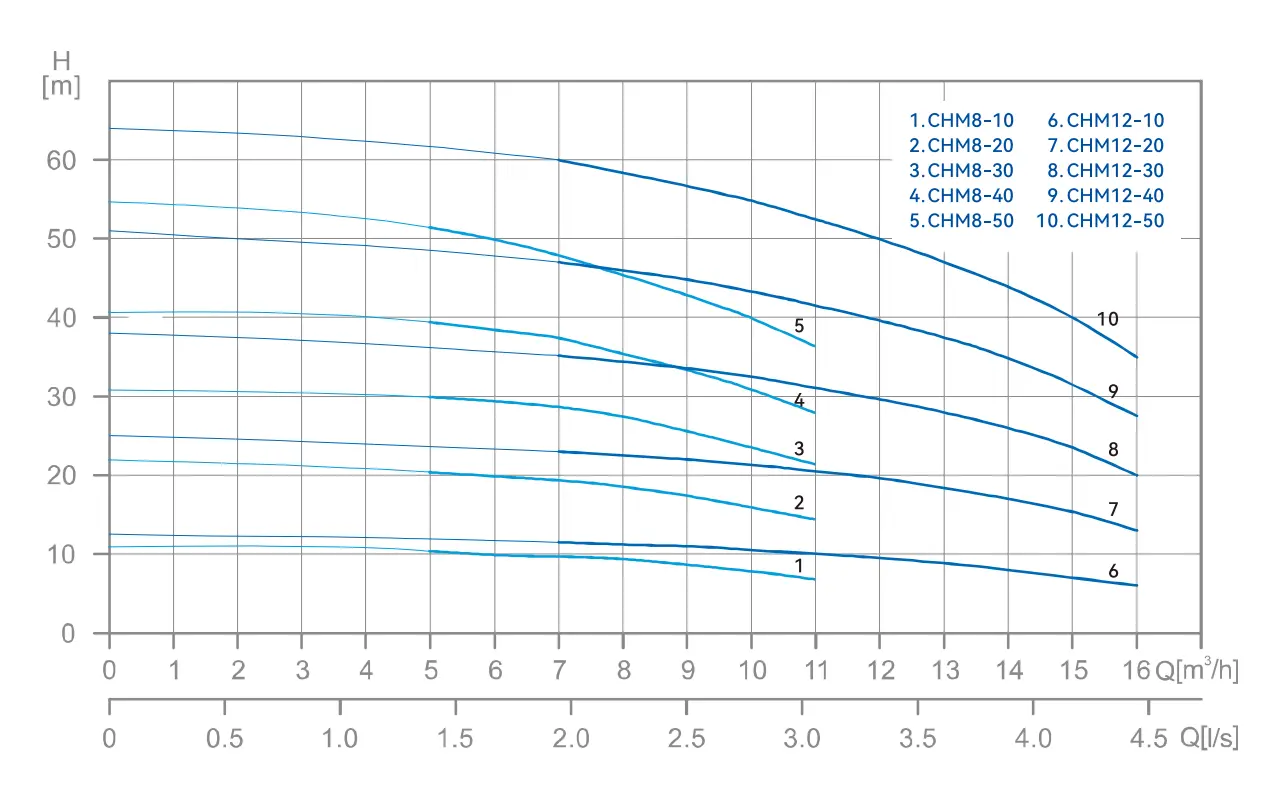

PERFORMANCE DATA
| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | |||||||||
| 1~ | 3~ | HP | kW | 1~ 1x220V 50HZ | 3~ 1x380V 50HZ | 5 | 6 | 7 | 8 | 9 | 10 | 11 | ||
| CHM8-10 | CHMT8-10 | 1 | 0.75 | 4.62 | 1.7 | 10 | 9.5 | 9.3 | 9 | 8 | 7.5 | 7 | 1" | 1" |
| CHM8-20 | CHMT8-20 | 1 | 0.75 | 4.62 | 1.7 | 20 | 19.5 | 19 | 18 | 17 | 15.5 | 14 | 1" | 1" |
| CHM8-30 | CHMT8-30 | 1.5 | 1.1 | 6.75 | 2.2 | 29.5 | 29 | 28 | 27 | 25 | 23 | 21 | 1" | 1" |
| CHM8-40 | CHMT8-40 | 2 | 1.5 | 8.95 | 3 | 39 | 38 | 37 | 35 | 33 | 30.5 | 27.5 | 1" | 1" |
| CHM8-50 | CHMT8-50 | 3 | 2.2 | 13.46 | 4.4 | 51 | 49.5 | 47.5 | 45 | 42.5 | 39.5 | 36 | 1" | 1" |
| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | ||||||||||||
| 1~ | 3~ | HP | kW | 1~ 1x220V 50HZ | 3~ 1x380V 50HZ | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | ||
| CHM12-10 | CHMT12-10 | 1 | 0.75 | 4.62 | 1.7 | 11.5 | 11.2 | 11 | 10.5 | 10 | 9.5 | 9 | 8 | 7 | 6 | 1" | 1" |
| CHM12-20 | CHMT12-20 | 1.6 | 1.2 | 7.39 | 2.4 | 23 | 22.5 | 22 | 21.5 | 20.5 | 19.5 | 18.5 | 17 | 15.5 | 13 | 1" | 1" |
| CHM12-30 | CHMT12-30 | 2.5 | 1.8 | 10.76 | 3.6 | 35 | 34.5 | 33.5 | 32.5 | 31 | 29.5 | 28 | 26 | 23.5 | 20 | 1" | 1" |
| CHM12-40 | CHMT12-40 | 3.2 | 2.4 | 8.31 | 4.8 | 47 | 46 | 45 | 43.5 | 41.5 | 39.5 | 37.5 | 35 | 31.5 | 27.5 | 1" | 1" |
| CHM12-50 | CHMT12-50 | 4 | 3 | 16.36 | 6.2 | 60 | 58 | 56.5 | 55 | 52.5 | 50 | 47 | 44 | 40 | 35 | 1" | 1" |

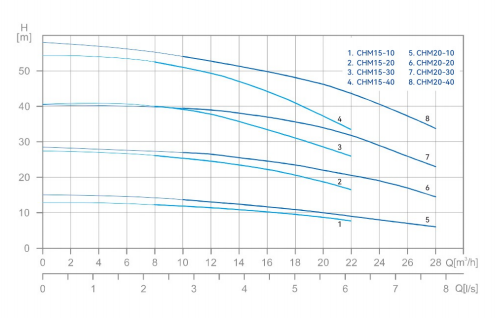

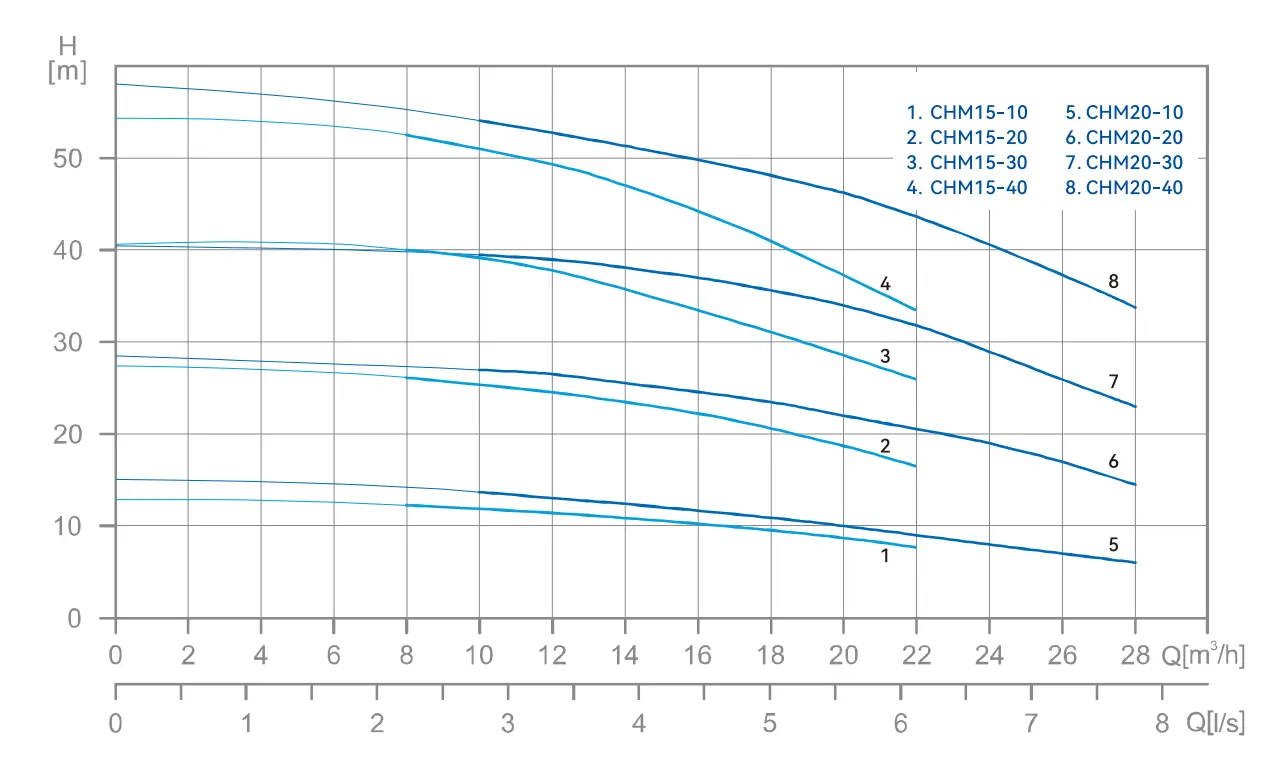

PERFORMANCE DATA
| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | |||||||||||
| 1~ | 3~ | |||||||||||||||
| 1~ | 3~ | HP | kW | 1x220V 50HZ | 1x380V 50HZ | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 20 | 22 | ||
| CHM15-10 | CHMT15-10 | 1.5 | 1.1 | 6.75 | 2.2 | 12 | 11 | 10.5 | 9.5 | 9 | 8.5 | 7.5 | 6.5 | 6 | 1" | 1" |
| CHM15-20 | CHMT15-20 | 3 | 2.2 | 13.46 | 4.4 | 24.5 | 24 | 23 | 22 | 21 | 20.5 | 19 | 18 | 16 | 1" | 1" |
| CHM15-30 | CHMT15-30 | 4 | 3 | 16.36 | 6.2 | 38 | 37 | 35.5 | 34 | 33 | 32 | 30 | 28 | 25 | 1" | 1" |
| CHM15-40 | CHMT15-40 | 5.33 | 4 | 13.86 | 8 | 51 | 50 | 48 | 46 | 45 | 43 | 40 | 37 | 33 | 1" | 1" |
| MODEL | P2 | Ampere | Q(m³/h) | DN1 | DN2 | ||||||||||||
| 1~ | 3~ | ||||||||||||||||
| 1~ | 3~ | HP | kW | 1x220V 50HZ | 1x380V 50HZ | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | ||
| CHM20-10 | CHMT20-10 | 1.5 | 1.1 | 6.75 | 2.2 | 13.5 | 13 | 12.5 | 12 | 11 | 10 | 9 | 8 | 7 | 6 | 1" | 1" |
| CHM20-20 | CHMT20-20 | 3 | 2.2 | 13.46 | 4.4 | 27 | 26.5 | 25.5 | 25 | 23.5 | 22 | 20.5 | 18.5 | 17 | 14.5 | 1" | 1" |
| CHM20-30 | CHMT20-30 | 5.33 | 4 | 13.86 | 6.2 | 39.5 | 39 | 38 | 37.5 | 35.5 | 34 | 31.5 | 29 | 26 | 23 | 1" | 1" |
| CHM20-40 | CHMT20-40 | 5.86 | 4.4 | 27.10 | 8.8 | 53 | 52 | 51 | 50 | 48.5 | 46.5 | 43 | 40 | 36 | 32.5 | 1" | 1" |
