1) Outlet/connection: stainless steel
2) Pump body: stainless steel
3) Impeller: centrifugal(ppo)
4) Cylinder: iron cylinder
5) Brushless permanent magnet DC motor
6) Oil cooling
1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.
2) Easy installation, maintenance-free, noiseless.
1) Clean water with no more than 1% particles
and the size is smaller than 0.2mm.
2) Liquid PH value 6.5-8.5
3) Liquid temperature: 0-40℃
4) Must be immersed in water when it work as rated performance.

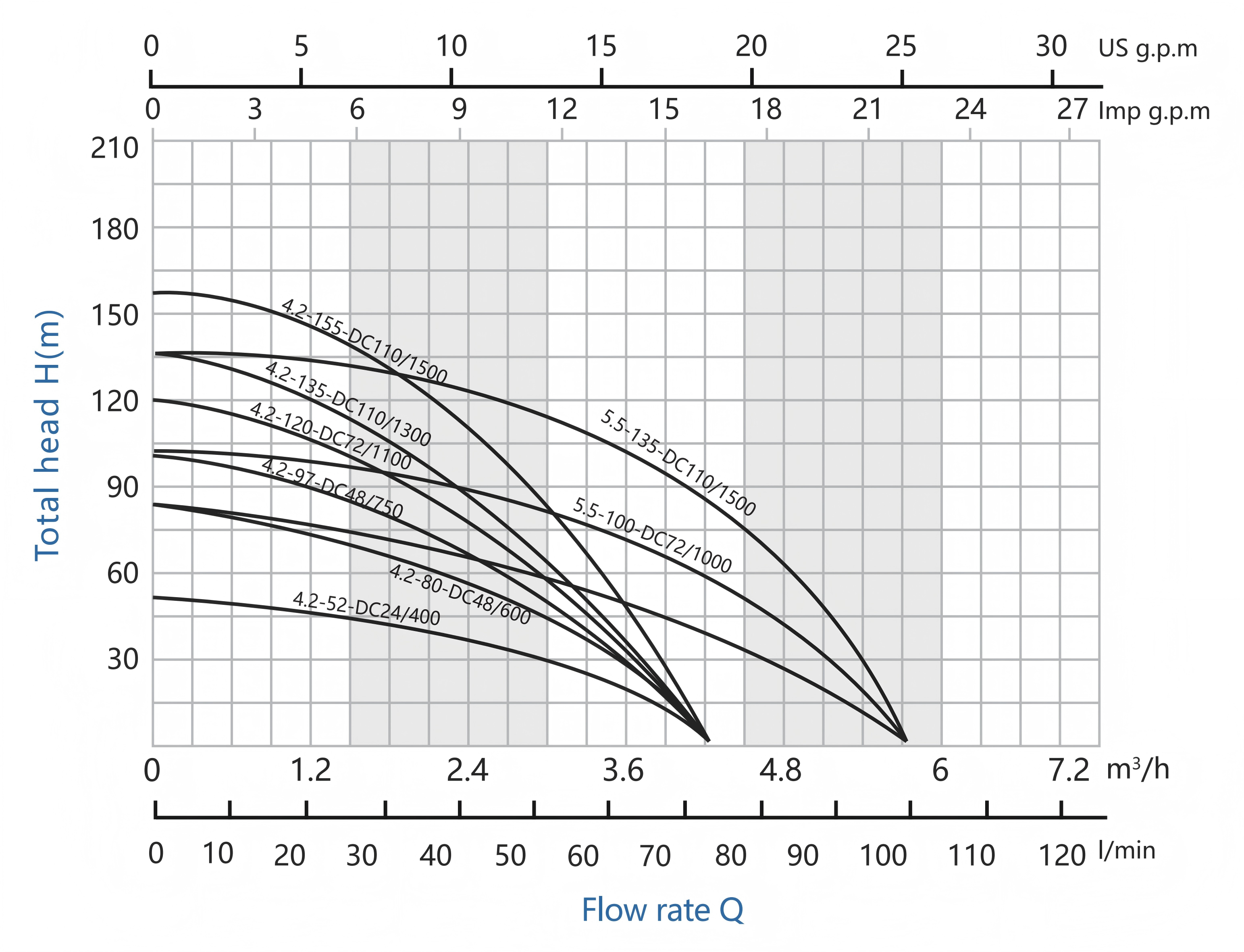

Model | Impeller | Solar array voltage | Solar array power | Best input voltage | Max. Flow | Max. Head | Outlet | Open circuit voltage |
（V） | （W） | （DC） | (m3/h) | (m) | (IN) | （VOC） | ||
3YSC4.2-52-D24/400 | Centrifugal | 36 | 450 | 30-48 | 4.2 | 52 | 1.25" | <100V |
3YSC5.5-42-D24/400 | 36 | 450 | 30-48 | 5.5 | 42 | 1.25" | <100V | |
3YSC4.2-80-D48/600 | 72 | 900 | 60-90 | 4.2 | 80 | 1.25" | <100V | |
3YSC5.5-65-D48/600 | 72 | 900 | 60-90 | 5.5 | 65 | 1.25" | <100V | |
3YSC4.2-97-D48/750 | 72 | 1125 | 90-120 | 4.2 | 97 | 1.25" | <150V | |
3YSC5.5-80-D48/750 | 72 | 1125 | 60-90 | 5.5 | 80 | 1.25" | <100V | |
3YSC4.2-97-D72/750 | 108 | 1125 | 90-120 | 4.2 | 97 | 1.25" | <150V | |
3YSC5.5-80-D72/750 | 108 | 1125 | 90-120 | 5.5 | 80 | 1.25" | <150V | |
3YSC4.2-120-D72/1100 | 108 | 1650 | 90-120 | 4.2 | 120 | 1.25" | <150V | |
3YSC5.5-100-D72/1000 | 108 | 1650 | 90-120 | 5.5 | 100 | 1.25" | <150V | |
3YSC4.2-120-D110/1100 | 144 | 1650 | 110-150 | 5.8 | 120 | 1.25" | <200V | |
3YSC5.5-100-D110/1100 | 144 | 1650 | 110-150 | 5.5 | 100 | 1.25" | <200V | |
3YSC4.2-135-D110/1300 | 144 | 1950 | 110-150 | 4.2 | 135 | 1.25" | <200V | |
3YSC5.5-115-D110/1300 | 144 | 1950 | 110-150 | 5.5 | 115 | 1.25" | <200V | |
3YSC4.2-155-D110/1500 | 144 | 2250 | 110-150 | 4.5 | 155 | 1.25" | <200V | |
3YSC5.5-135-D110/1500 | 144 | 2250 | 110-150 | 4.5 | 135 | 1.25" | <200V |
