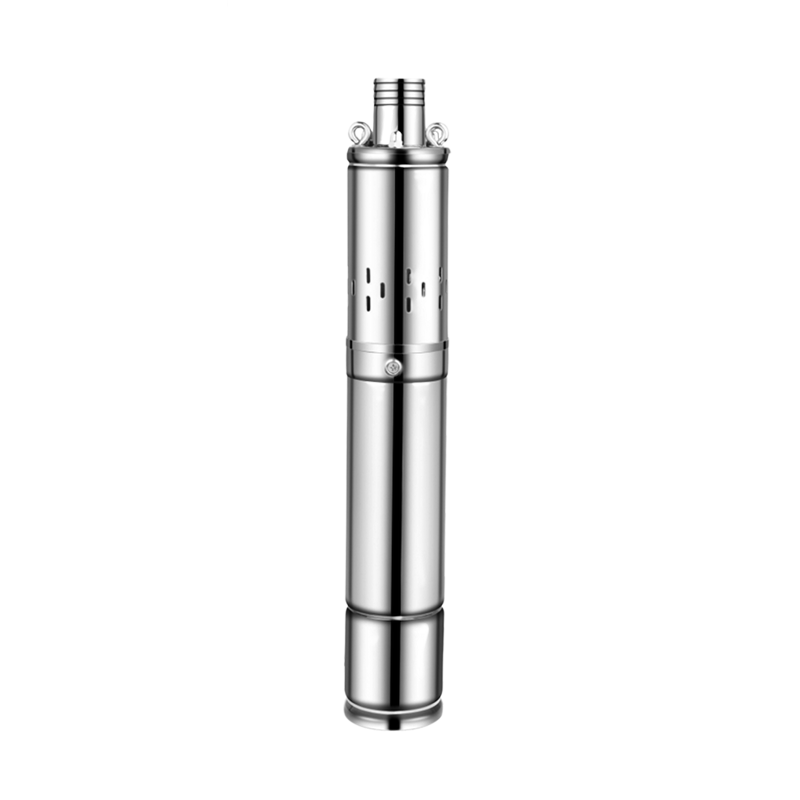

Solar Deep Well Pump 3YS(T) Series

Name: Solar Deep Well Pump 3YS(T) Series
Brand: YINJIA
Rating: 5.0 (32 reviews)


Availability:

Inquire Add to Basket

Model:
3YS(T)
Brand:
YINJIA

YINJIA solar deep well pumps provide an efficient, reliable, and eco-friendly solution for extracting water from deep wells. Powered by solar energy, they help reduce electricity costs and are especially suitable for farms, livestock watering, irrigation systems, residential water supply, and remote areas with limited access to the power grid. Their durable construction and efficient operation ensure dependable performance with minimal maintenance.

borehole pump DC solar pump submersible pump 24V 48V 72V DC solar pump BLDC Motor deep well pump solar pump Compact structure Solar Irrigation Pump System

Product Description

Pump & Motor:

1) Outlet/connection: stainless steel

2) Pump body: stainless steel

3) Impeller: screw

4) Cylinder: iron cylinder

5) Brushless permanent magnet DC motor

6) Oil cooling

Product Feature:

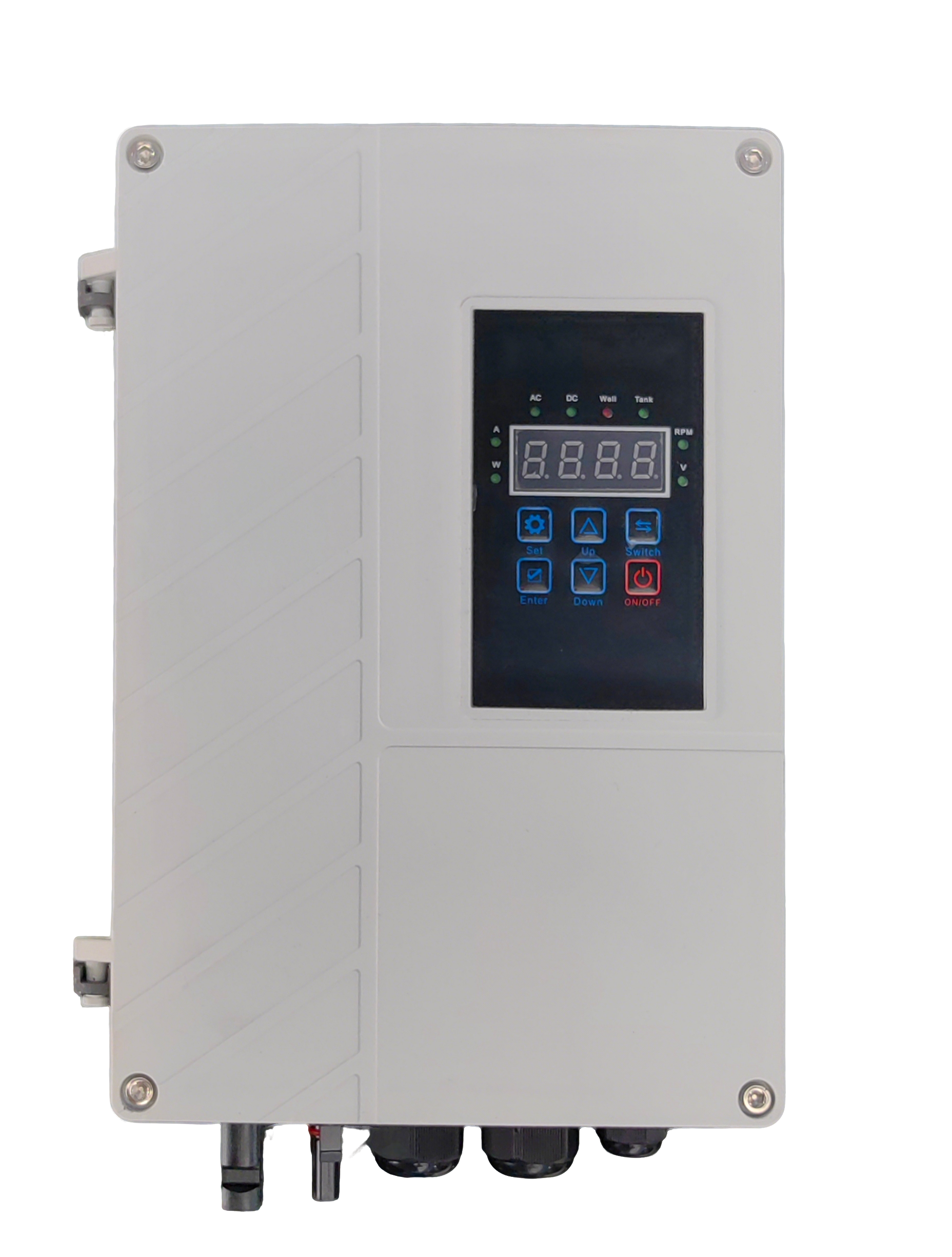

1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.

2) Easy installation, maintenance-free, noiseless.

Working condition:

1) Clean water with no more than 1% particles

and the size is smaller than 0.2mm.

2) Liquid PH value 6.5-8.5

3) Liquid temperature: 0-40℃

4) Must be immersed in water when it work as rated performance.

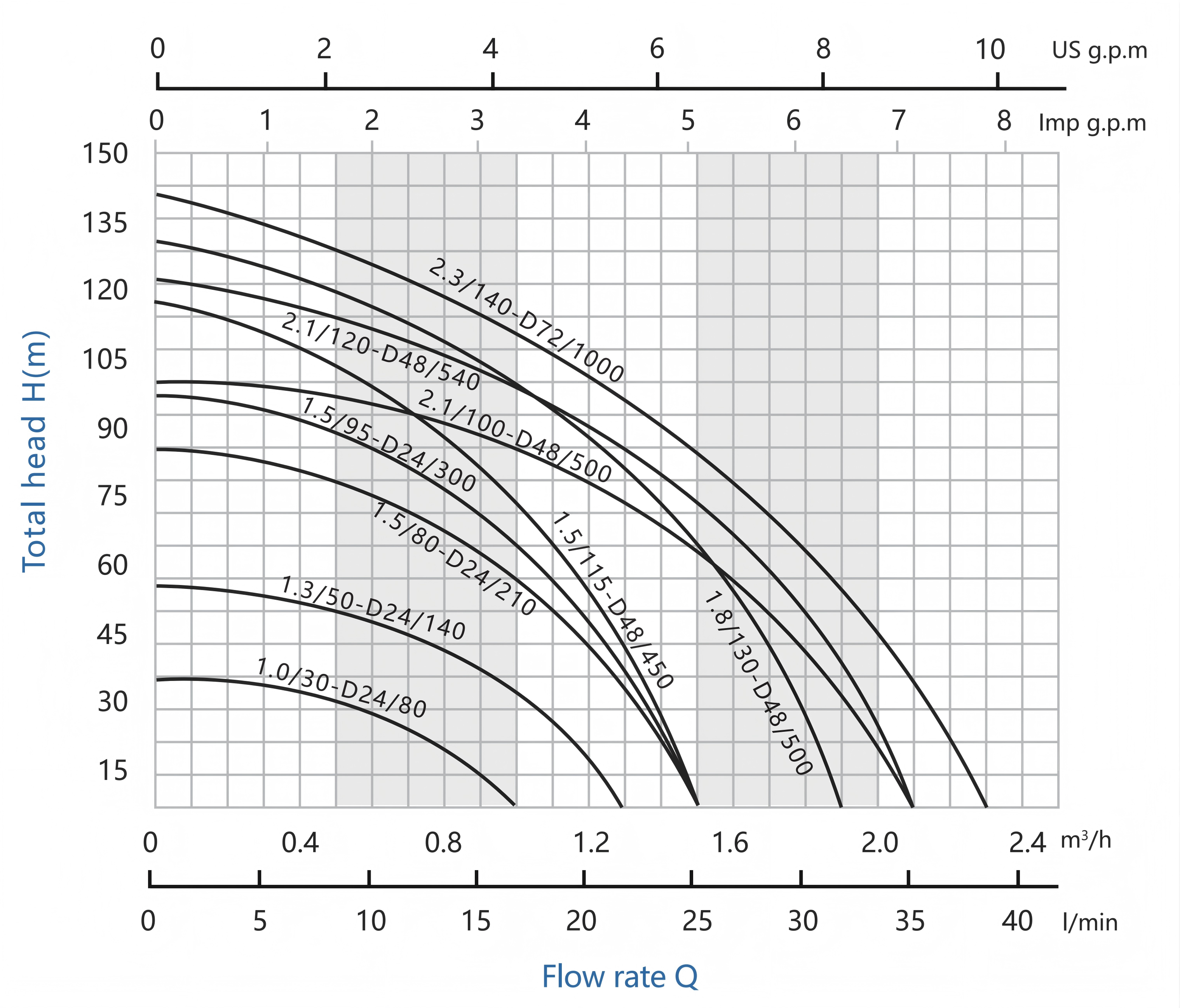

Performance Data

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
Model	Impeller	（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
3YS(T)1.0-30-D24/80	Screw	36	120	30-48	1	30	0.75"	<100V
3YS(T)1.3-50-D24/140		36	210	30-48	1.3	50	0.75"	<100V
3YS(T)1.5-80-D24/210		36	315	30-48	1.5	80	0.75"	<100V
3YS(T)1.5-95-D24/300		36	450	30-48	1.5	95	0.75"	<100V
3YS(T)1.5-115-D48/450		72	700	60-90	1.8	115	0.75"	<100V
3YS(T)1.8-130-D48/500		72	750	60-90	2.3	80	0.75"	<100V
3YS(T)2.1-100-D48/500		72	750	60-90	2.1	100	0.75"	<100V
3YS(T)2.1-120-D48/540		72	800	60-90	2.1	120	0.75"	<100V
3YS(T)2.3-120-D72/800		108	1500	90-120	2.3	120	0.75"	<150V
3YS(T)2.3-140-D72/1000		108	1950	90-120	2.3	140	0.75"	<150V

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
Model	Impeller	（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
3YS(T)1.0-30-D24/80	Screw	36	120	30-48	1	30	0.75"	<100V
3YS(T)1.3-50-D24/140	Screw	36	210	30-48	1.3	50	0.75"	<100V
3YS(T)1.5-80-D24/210	Screw	36	315	30-48	1.5	80	0.75"	<100V
3YS(T)1.5-95-D24/300	Screw	36	450	30-48	1.5	95	0.75"	<100V
3YS(T)1.5-115-D48/450	Screw	72	700	60-90	1.8	115	0.75"	<100V
3YS(T)1.8-130-D48/500	Screw	72	750	60-90	2.3	80	0.75"	<100V
3YS(T)2.1-100-D48/500	Screw	72	750	60-90	2.1	100	0.75"	<100V
3YS(T)2.1-120-D48/540	Screw	72	800	60-90	2.1	120	0.75"	<100V
3YS(T)2.3-120-D72/800	Screw	108	1500	90-120	2.3	120	0.75"	<150V
3YS(T)2.3-140-D72/1000	Screw	108	1950	90-120	2.3	140	0.75"	<150V
