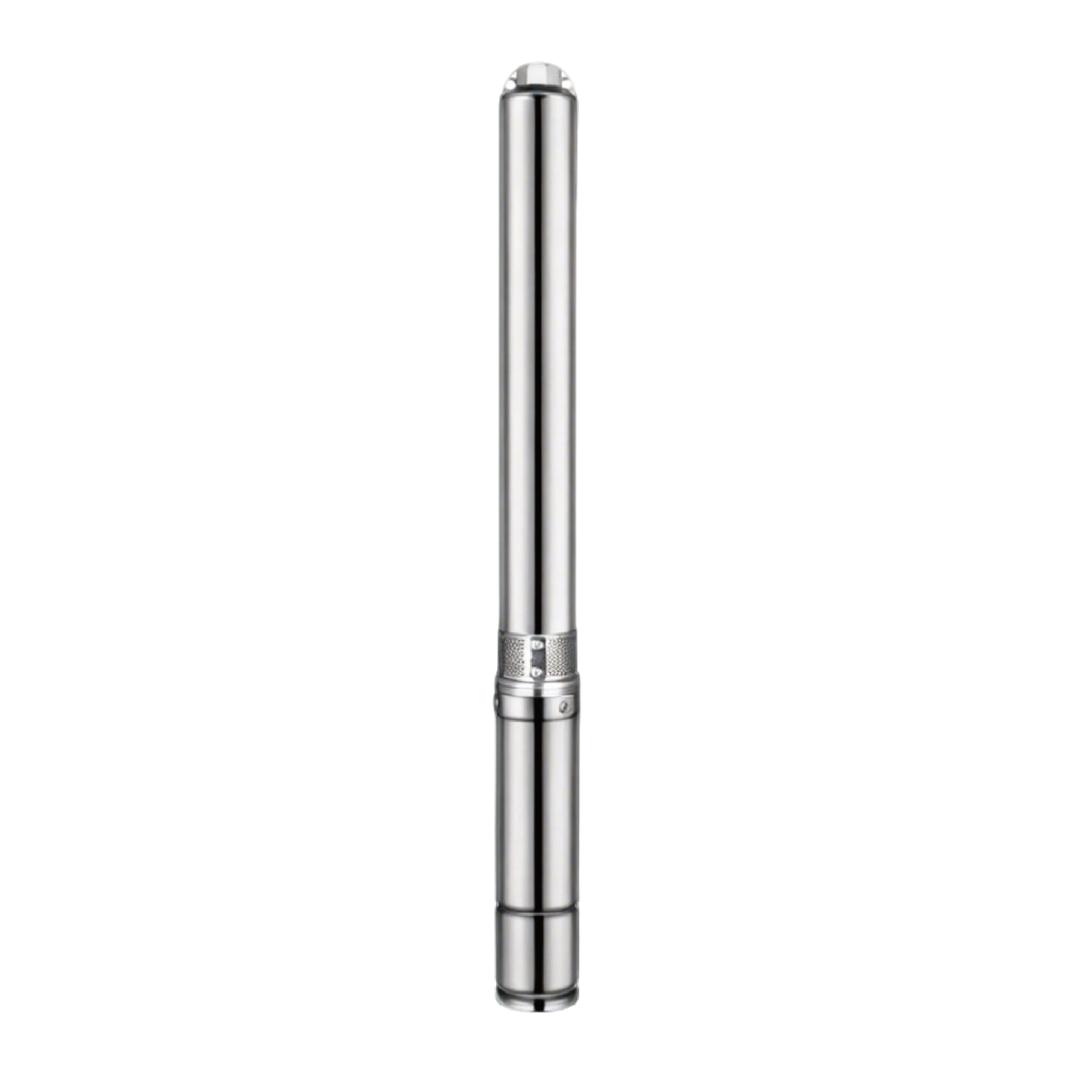

Solar Deep Well Pump 3YTC-AD Series

Name: Solar Deep Well Pump 3YTC-AD Series
Brand: YINJIA
Rating: 5.0 (45 reviews)


Availability:

Inquire Add to Basket

Model:
3ytc-ad
Brand:
YINJIA

YINJIA solar deep well pumps provide an efficient, reliable, and eco-friendly solution for extracting water from deep wells. Powered by solar energy, they help reduce electricity costs and are especially suitable for farms, livestock watering, irrigation systems, residential water supply, and remote areas with limited access to the power grid. Their durable construction and efficient operation ensure dependable performance with minimal maintenance.

borehole pump DC solar pump submersible pump 24V 48V 72V DC solar pump BLDC Motor deep well pump solar pump Compact structure Solar Irrigation Pump System

Product Description

Pump & Motor:

1) Outlet/connection: stainless steel

2) Pump body: stainless steel

3) Impeller: centrifugal(ppo)

4) Cylinder: iron cylinder

5) Brushless permanent magnet DC motor

6) Oil cooling

Product Feature:

1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.

2) Easy installation, maintenance-free, noiseless.

Working condition:

1) Clean water with no more than 1% particles

and the size is smaller than 0.2mm.

2) Liquid PH value 6.5-8.5

3) Liquid temperature: 0-40℃

4) Must be immersed in water when it work as rated performance.

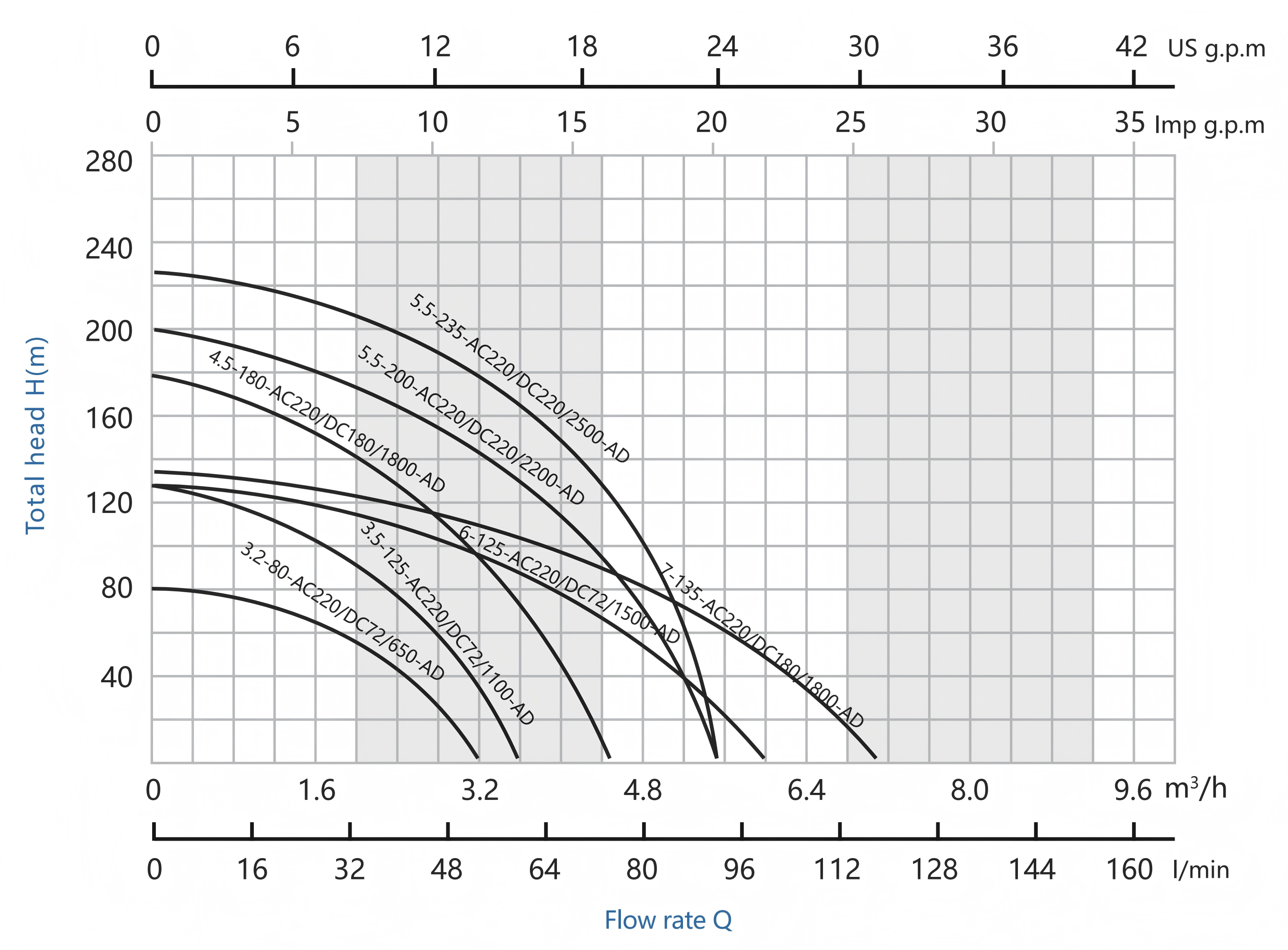

Performance Data

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
		（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
3YTC3.2-80-AC220/DC72/650-AD	Centrifugal (ppo)	108	975	90~120	3.2	80	1.25"	<150V
3YTC3.5-95-AC220/DC72-750-AD		108	1125	90~120	3.5	95	1.25"	<150V
3YTC3.5-125-AC220/DC72/1100-AD		108	1650	90~120	3.5	125	1.25"	<150V
3YTC5-100-AC220/DC72/1100-AD		108	1650	90~120	5	100	1.25"	<150V
3YTC7-80-AC220/DC72/1100-AD		144	1650	110~150	7	80	1.5"	<200V
3YTC3.5-125-AC220/DC110/1100-AD		108	1650	90~120	3.5	125	1.25"	<150V
3YTC3.5-150-AC220/DC110/1300-AD		144	1950	110~150	3.5	150	1.25"	<200V
3YTC3.5-175-AC220/DC110/1500-AD		144	2250	110~150	3.5	175	1.25"	<450V
3YTC6-125-AC220/DC110/1500-AD		144	2250	180~324	6	125	1.5"	<400V
3YTC4.5-180-AC220/DC180/1800-AD		288	2700	180~324	4.5	180	1.25"	<400V
3YTC7-135-AC220/DC180/1800-AD		288	2700	180~324	7	135	1.5"	<400V
3YTC3.8-230-AC220/DC220/2200-AD		288	3300	180~324	3.5	230	1.25"	<400V
3YTC5.5-200-AC220/DC220/2200-AD		288	3300	180~324	5.5	200	1.25"	<400V
3YTC5.5-235-AC220/DC220/2500-AD		288	3750	180~324	5.5	255	1.25"	<400V
3YTC7-180-AC220/DC220/2500-AD		288	3750	180~324	7	180	1.5"	<400V

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
		（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
4YTC3.8-95-AC220/DC72/750-AD	Centrifugal (ppo)	108	1125	90-120	3.8	95	1.25"	<150V
4YTC7-55-AC220/DC72/750-AD		108	1125	90-120	7	55	1.5"	<150V
4YTC12-40-AC220/DC72/750-AD		108	1125	90-120	12	40	2"	<150V
4YTC3.8-135-AC220/DC72/1100-AD		108	1650	90-120	3.8	135	1.25"	<200V
4YTC5-105-AC220/DC72/1100-AD		108	1650	90-120	5	105	1.25"	<200V
4YTC9-60-AC220/DC72/1100-AD		108	1650	90-120	9	60	2"	<200V
4YTC5-135-AC220/DC110/1300-AD		144	1950	110-150	5	135	1.25"	<200V
4YTC7-110-AC220/DC110/1300-AD		144	1950	110-150	7	110	1.5"	<200V
4YTC5-155-AC220/DC110/1500-AD		144	2250	110-150	5	155	1.25"	<200V
4YTC7-125-AC220/DC110/1500-AD		144	2250	110-150	7	125	1.5"	<200V
4YTC9-90-AC220/DC110/1500-AD		144	2250	110-150	9	90	2"	<200V
4YTC12.5-78-AC220/DC110/1500-AD		144	2250	110-150	12.5	78	2"	<200V
4YTC3.8-214-AC220/DC180/1800-AD		288	2700	180-324	3.8	214	1.25"	<400V
4YTC5-175-AC220/DC180/1800-AD		288	2700	180-324	5	175	1.25"	<400V
4YTC7-158-AC220/DC180/1800-AD		288	2700	180-324	7	158	1.25"	<400V
4YTC9-110-AC220/DC180/1800-AD		288	2700	180-324	9	110	1.5"	<400V
4YTC16-75-AC220/DC180/1800-AD		288	2700	180-324	16	75	2"	<400V
4YTC3.8-245-AC220/DC220/2200-AD		288	3300	180-324	3.8	245	1.25"	<400V
4YTC5-205-AC220/DC220/2200-AD		288	3300	180-324	5	205	1.25"	<400V
4YTC7-185-AC220/DC220/2200-AD		288	3300	180-324	7	185	1.25"	<400V
4YTC9-135-AC220/DC220/2200-AD		288	3300	180-324	9	135	1.25"	<400V
4YTC13-110-AC220/DC220/2200-AD		288	3300	180-324	13	110	2"	<400V
4YTC5-252-AC220/DC220/2500-AD		288	3750	180-324	5	252	1.25"	<400V
4YTC6.5-220-AC220/DC220/2500-AD		288	3750	180-324	6.5	220	1.25"	<400V
4YTC9-160-AC220/DC220/2500-AD		288	3750	180-324	9	160	2"	<400V
4YTC13-125-AC220/DC220/2500-AD		288	3750	180-324	13	125	2"	<400V
4YTC16-105-AC220/DC220/2500-AD		288	3750	180-324	16	105	2"	<400V
4YTC38-40-AC220/DC220/2500-AD		288	3750	180-324	38	40	3"	<400V

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
		（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
4YTC7-235-AC380/DC540/3000-AD	Centrifugal (ppo)	540	4500	480-620	7	235	1.5"	<750V
4YTC9.5-195-AC380/DC540/3000-AD		540	4500	480-620	9.5	195	2"	<750V
4YTC12-176-AC380/DC540/3000-AD		540	4500	480-620	12	176	2"	<750V
4YTC17-120-AC380/DC540/3000-AD		540	4500	480-620	17	120	2"	<750V
4YTC21-80-AC380/DC540/3000-AD		540	4500	480-620	21	80	2"	<750V
4YTC25-65-AC380/DC540/3000-AD		540	4500	480-620	30	60	2"	<750V
4YTC30-53-AC380/DC540/3000-AD		540	4500	480-620	30	53	2"	<750V
4YTC39-45-AC380/DC540/3000-AD		540	4500	480-620	39	53	2"	<750V
4YTC7-300-AC380/DC540/4000-AD		540	6000	480-620	7	300	1.5"	<750V
4YTC9.5-252-AC380/DC540/4000-AD		540	6000	480-620	9.5	252	2"	<750V
4YTC12-215-AC380/DC540/4000-AD		540	6000	480-620	12	215	2"	<750V
4YTC17-160-AC380/DC540/4000-AD		540	6000	480-620	17	160	2"	<750V
4YTC21-115-AC380/DC540/4000-AD		540	6000	480-620	21	115	2"	<750V
4YTC24-90-AC380/DC540/4000-AD		540	6000	480-620	24	90	2"	<750V
4YTC32-70-AC380/DC540/4000-AD		540	6000	480-620	32	70	2"	<750V
4YTC39-63-AC380/DC540/4000-AD		540	6000	480-620	39	63	3"	<750V
