1) Outlet/connection: stainless steel
2) Pump body: stainless steel
3) Impeller: centrifugal(ppo)
4) Cylinder: iron cylinder
5) Brushless permanent magnet DC motor
6) Oil cooling
1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.
2) Easy installation, maintenance-free, noiseless.
1) Clean water with no more than 1% particles
and the size is smaller than 0.2mm.
2) Liquid PH value 6.5-8.5
3) Liquid temperature: 0-40℃
4) Must be immersed in water when it work as rated performance.

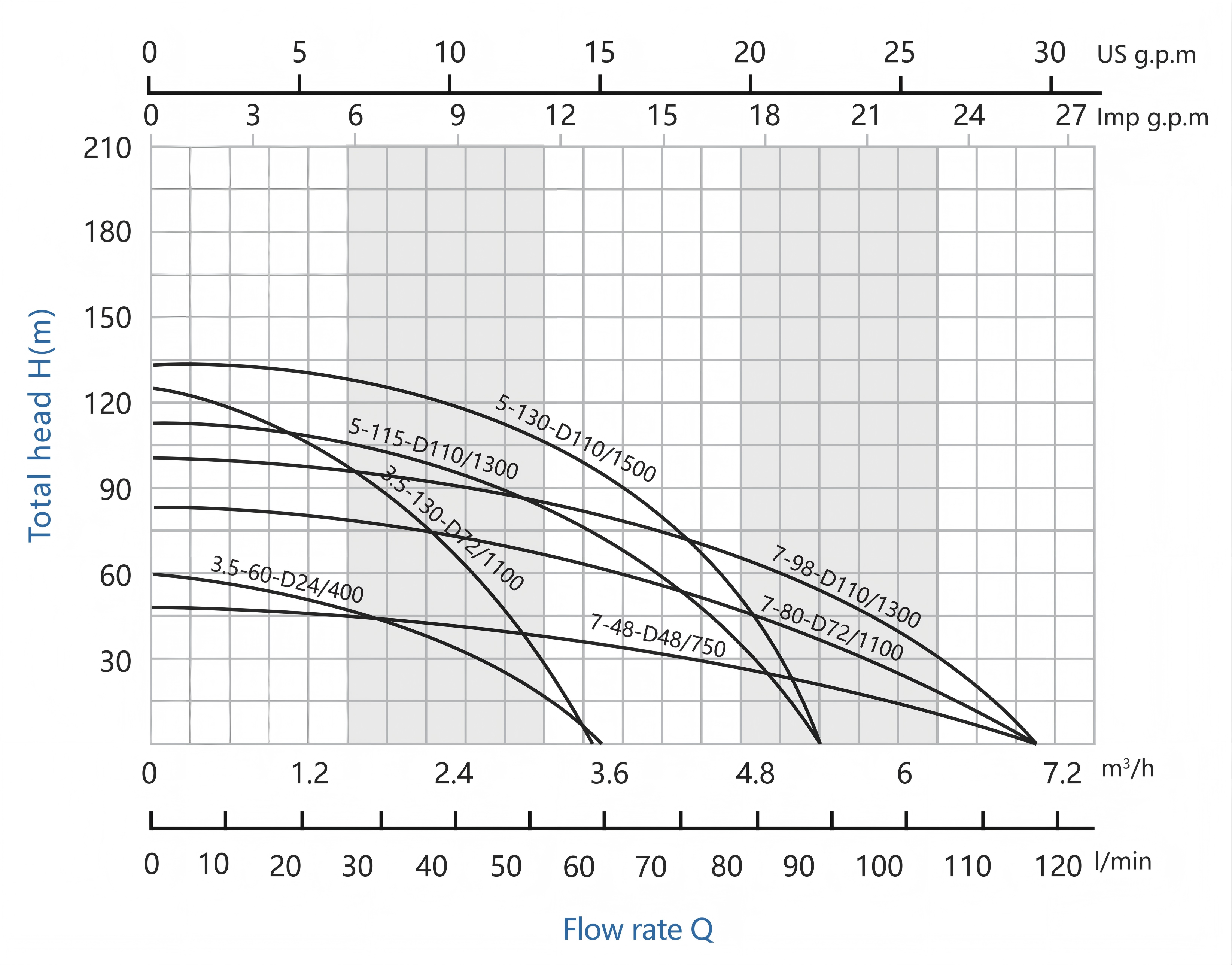

Model | Impeller | Solar array voltage | Solar array power | Best input voltage | Max. Flow | Max. Head | Outlet | Open circuit voltage |
（V） | （W） | （DC） | (m3/h) | (m) | (IN) | （VOC） | ||
3YTC3.5-60-D24/400 | Centrifugal | 36 | 550 | 30-48 | 3.5 | 60 | 1.25" | <150V |
3YTC7-48-D48/750 | 72 | 1100 | 60-90 | 7 | 48 | 1.5" | <150V | |
3YTC3.5-130-D72/1100 | 108 | 1500 | 90-120 | 3.5 | 130 | 1.25" | <150V | |
3YTC7-80-D72/1100 | 108 | 1500 | 90-120 | 7 | 80 | 1.5" | <150V | |
3YTC3.5-125-D110/1100 | 144 | 1500 | 90-120 | 3.5 | 125 | 1.25" | <150V | |
3YTC7-80-D110/1100 | 144 | 1500 | 90-120 | 7 | 80 | 1.5" | <150V | |
3YTC3.5-150-D110/1300 | 144 | 1900 | 110-150 | 3.5 | 150 | 1.25" | <200V | |
3YTC5-115-D110/1300 | 144 | 1900 | 110-150 | 5 | 115 | 1.25" | <200V | |
3YTC7-98-D110/1300 | 144 | 1900 | 110-150 | 7 | 98 | 1.5" | <200V | |
3YTC3.5-175-D110/1500 | 144 | 2200 | 110-150 | 3.5 | 175 | 1.25" | <200V | |
3YTC5-130-D110/1500 | 144 | 2200 | 110-150 | 5 | 130 | 1.25" | <200V |
