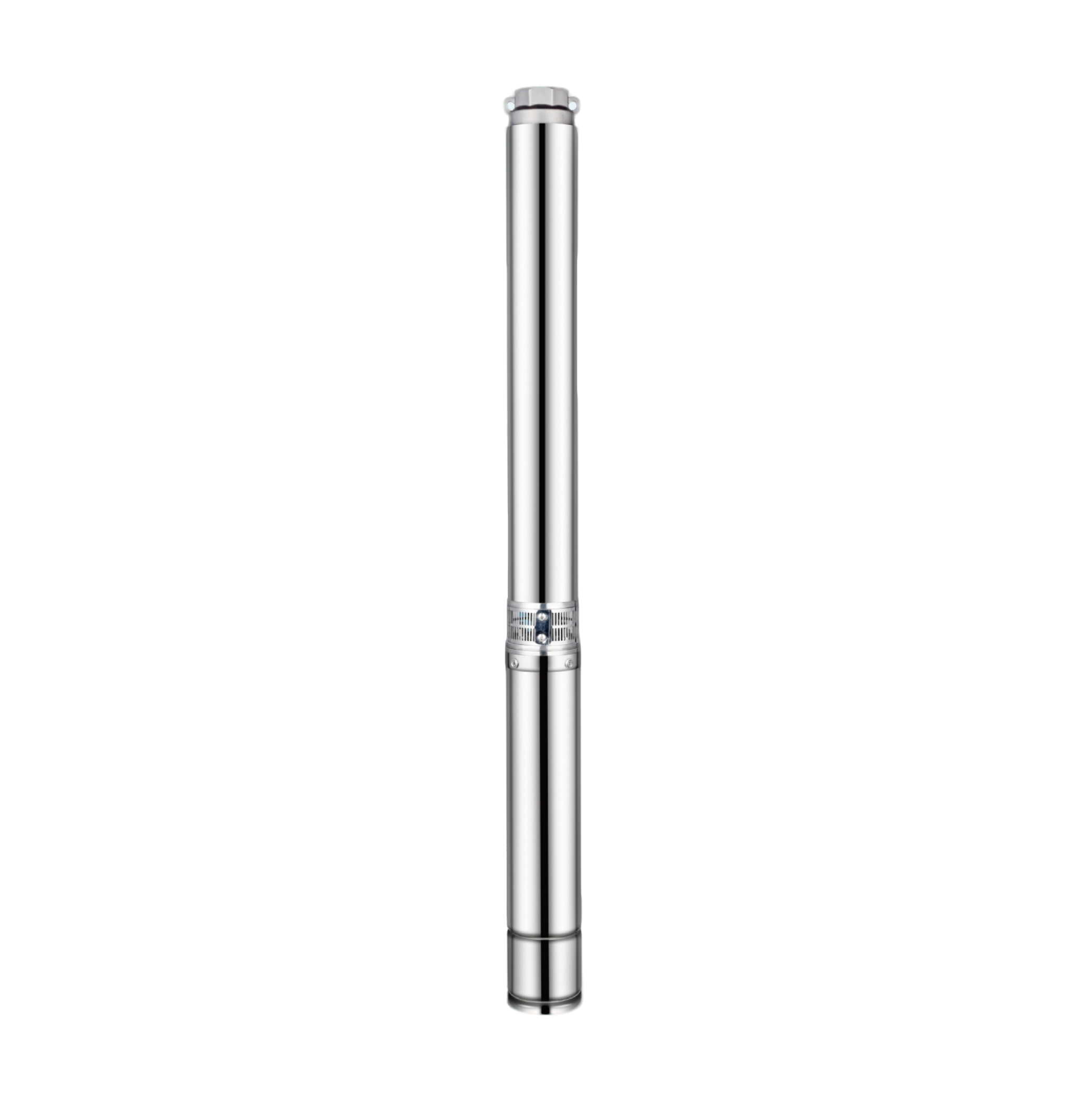

Solar Deep Well Pump 4YGC 220V Series

loading

Solar Deep Well Pump 4YGC 220V Series Solar Deep Well Pump 4YGC 220V Series
Solar Deep Well Pump 3YS(T) Series Solar Deep Well Pump 3YS(T) Series
Solar Deep Well Pump 3YS(T) Series Solar Deep Well Pump 3YS(T) Series
Solar Deep Well Pump 4YS(T) Series Solar Deep Well Pump 4YS(T) Series
Solar Deep Well Pump 4YS(T) Series Solar Deep Well Pump 4YS(T) Series
Solar Deep Well Pump 4YS(T) Series Solar Deep Well Pump 4YS(T) Series

Solar Deep Well Pump 4YGC 220V Series

Availability:
Inquire Add to Basket

  • 4YGC 200V

  • YINJIA

YINJIA solar deep well pumps provide an efficient, reliable, and eco-friendly solution for extracting water from deep wells. Powered by solar energy, they help reduce electricity costs and are especially suitable for farms, livestock watering, irrigation systems, residential water supply, and remote areas with limited access to the power grid. Their durable construction and efficient operation ensure dependable performance with minimal maintenance.
sharethis sharing button
borehole pump DC solar pump submersible pump 24V 48V 72V DC solar pump BLDC Motor deep well pump solar pump Compact structure Solar Irrigation Pump System
Product Description
Pump & Motor:

1) Outlet/connection: stainless steel

2) Pump body: stainless steel

3) Impeller: centrifugal(ppo)

4) Cylinder: iron cylinder

5) Brushless permanent magnet DC motor

6) Oil cooling

Product Feature:

1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.

2) Easy installation, maintenance-free, noiseless.

Working condition:

1) Clean water with no more than 1% particles

and the size is smaller than 0.2mm.

2) Liquid PH value 6.5-8.5

3) Liquid temperature: 0-40℃

4) Must be immersed in water when it work as rated performance.

detailed page1.webp
detailed page2.webp
detailed page3.webp
detailed page4.webp

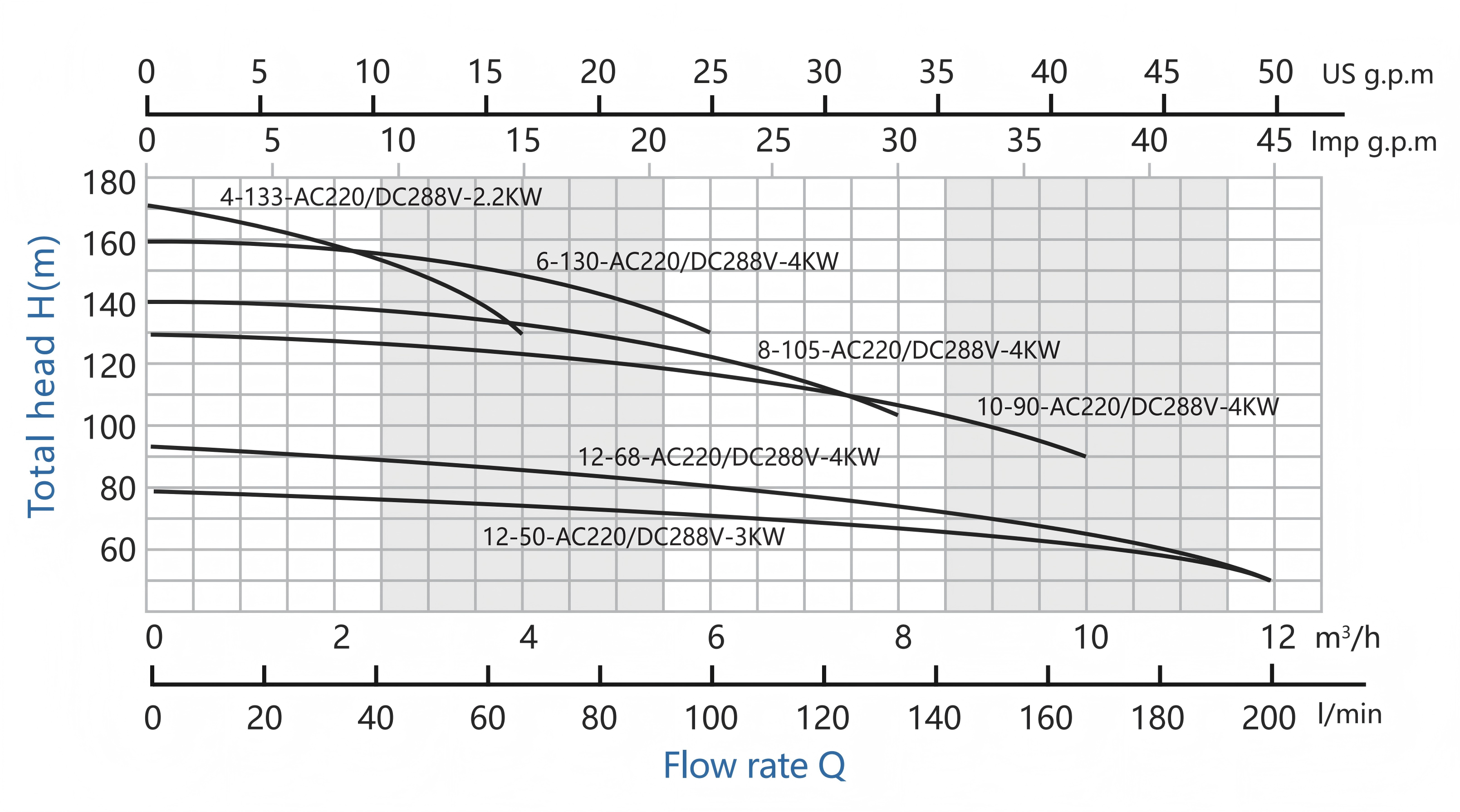

Performance Data

Model

Impeller

Solar array voltage

Solar array power

Best input voltage

Max. Flow

Max. Head

Outlet

Open circuit voltage

（V）

（W）

（DC）

(m3/h)

(m)

(IN)

（VOC）

4YGC2-100-AC220/DC288/1100-AD

Centrifugal
(ppo)

288

1980

180-324

2

100

1.25"

<400V

4YGC3-82-AC220/DC288/1100-AD

288

1980

180-324

3

82

1.25"

<400V

4YGC4-66-AC220/DC288/1100-AD

288

1980

180-324

4

66

1.25"

<400V

4YGC6-40-AC220/DC288/1100-AD

288

1980

180-324

6

40

1.25"

<400V

4YGC2-150-AC220/DC288/1500-AD

288

2700

180-324

2

150

1.25"

<400V

4YGC3-105-AC220/DC288/1500-AD

288

2700

180-324

3

105

1.25"

<400V

4YGC4-90-AC220/DC288/1500-AD

288

2700

180-324

4

90

1.25"

<400V

4YGC6-55-AC220/DC288/1500-AD

288

2700

180-324

6

55

1.25"

<400V

4YGC2-220-AC220/DC288/2200-AD

288

3960

180-324

2

220

1.25"

<400V

4YGC3-150-AC220/DC288/2200-AD

288

3960

180-324

3

150

1.25"

<400V

4YGC4-133-AC220/DC288/2200-AD

288

3960

180-324

4

133

1.25"

<400V

4YGC6-90-AC220/DC288/2200-AD

288

3960

180-324

6

90

1.25"

<400V

4YGC8-66-AC220/DC288/2200-AD

288

3960

180-324

8

66

1.5"

<400V

4YGC10-55-AC220/DC288/2200-AD

288

3960

180-324

10

55

1.5"

<400V

4YGC12-42-AC220/DC288/2200-AD

288

3960

180-324

12

42

1.5"

<400V

4YGC2-245-AC220/DC288/3000-AD

288

5400

180-324

2

245

1.5"

<400V

4YGC3-185-AC220/DC288/3000-AD

288

5400

180-324

3

185

1.25"

<400V

4YGC4-150-AC220/DC288/3000-AD

288

5400

180-324

4

150

1.25"

<400V

4YGC6-105-AC220/DC288/3000-AD

288

5400

180-324

6

105

1.25"

<400V

4YGC8-80-AC220/DC288/3000-AD

288

5400

180-324

8

80

1.5"

<400V

4YGC10-65-AC220/DC288/3000-AD

288

5400

180-324

10

65

1.5"

<400V

4YGC12-50-AC220/DC288/3000-AD

288

5400

180-324

12

50

1.5"

<400V

4YGC2-330-AC220/DC288/4000-AD

288

7200

180-324

2

330

1.25"

<400V

4YGC3-280-AC220/DC288/4000-AD

288

7200

180-324

3

280

1.25"

<400V

4YGC4-170-AC220/DC288/4000-AD

288

7200

180-324

4

170

1.25"

<400V

4YGC6-130-AC220/DC288/4000-AD

288

7200

180-324

6

130

1.25"

<400V

4YGC8-105-AC220/DC288/4000-AD

288

7200

180-324

8

105

1.5"

<400V

4YGC10-90-AC220/DC288/4000-AD

288

7200

180-324

10

90

1.5"

<400V

4YGC12-68-AC220/DC288/4000-AD

288

7200

180-324

12

68

1.5"

<400V

Model

Impeller

Solar array voltage

Solar array power

Best input voltage

Max. Flow

Max. Head

Outlet

Open circuit voltage

（V）

（W）

（DC）

(m3/h)

(m)

(IN)

（VOC）

4YGC6-180-AC380/DC540/5500-AD

Centrifugal
(ppo)

540

9900

480-620

6

180

1.5"

<780V

4YGC10-130-AC380/DC540/5500-AD

540

9900

480-620

10

130

2"

<780V

4YGC17-75-AC380/DC540/5500-AD

540

9900

480-620

20

75

2"

<780V

4YGC28-46-AC380/DC540/5500-AD

540

9900

480-620

30

46

3"

<780V

4YGC6-235-AC380/DC540/7500-AD

540

13500

480-620

6

235

1.5"

<780V

4YGC10-175-AC380/DC540/7500-AD

540

13500

480-620

10

175

2"

<780V

4YGC17-100-AC380/DC540/7500-AD

540

13500

480-620

17

100

2"

<780V

4YGC28-67-AC380/DC540/7500-AD

540

13500

480-620

28

67

3"

<780V

4YGC6-300-AC380/DC540/9200-AD

540

16560

480-620

6

300

1.5"

<780V

4YGC10-200-AC380/DC540/9200-AD

540

16560

480-620

10

200

2"

<780V

4YGC17-115-AC380/DC540/9200-AD

540

16560

480-620

17

115

2"

<780V

4YGC28-75-AC380/DC540/9200-AD

540

16560

480-620

28

75

3"

<780V

4YGC6-330-AC380/DC540/11000-AD

540

19800

480-620

6

340

1.5"

<780V

4YGC10-240-AC380/DC540/11000-AD

540

19800

480-620

10

265

2"

<780V

4YGC17-130-AC380/DC540/11000-AD

540

19800

480-620

17

145

2"

<780V

4YGC28-80-AC380/DC540/11000-AD

540

19800

480-620

28

80

3"

<780V

4YGC6-365-AC380/DC540/13000-AD

540

23400

480-620

6

187

1.5"

<780V

4YGC10-265-AC380/DC540/13000-AD

540

23400

480-620

10

265

2"

<780V

4YGC17-145-AC380/DC540/13000-AD

540

23400

480-620

17

145

2"

<780V

4YGC28-90-AC380/DC540/13000-AD

540

23400

480-620

28

90

3"

<780V

4YGC6-400-AC380/DC540/15000-AD

540

27000

480-620

6

400

1.5"

<780V

4YGC10-300-AC380/DC540/15000-AD

540

27000

480-620

10

3000

2"

<780V

4YGC17-180-AC380/DC540/15000-AD

540

27000

480-620

17

180

2"

<780V

4YGC28-100-AC380/DC540/15000-AD

540

27000

480-620

28

100

3"

<780V

4YGC10-360-AC380/DC540/18500-AD

540

33300

480-620

10

360

2"

<780V

4YGC17-220-AC380/DC540/18500-AD

540

33300

480-620

17

220

2"

<780V

4YGC28-120-AC380/DC540/18500-AD

540

33300

480-620

28

120

3"

<780V

4YGC10-420-AC380/DC540/22000-AD

540

39600

480-620

10

420

2"

<780V

4YGC17-255-AC380/DC540/22000-AD

540

39600

480-620

17

255

2"

<780V

4YGC28-155-AC380/DC540/22000-AD

540

39600

480-620

28

155

3"

<780V
