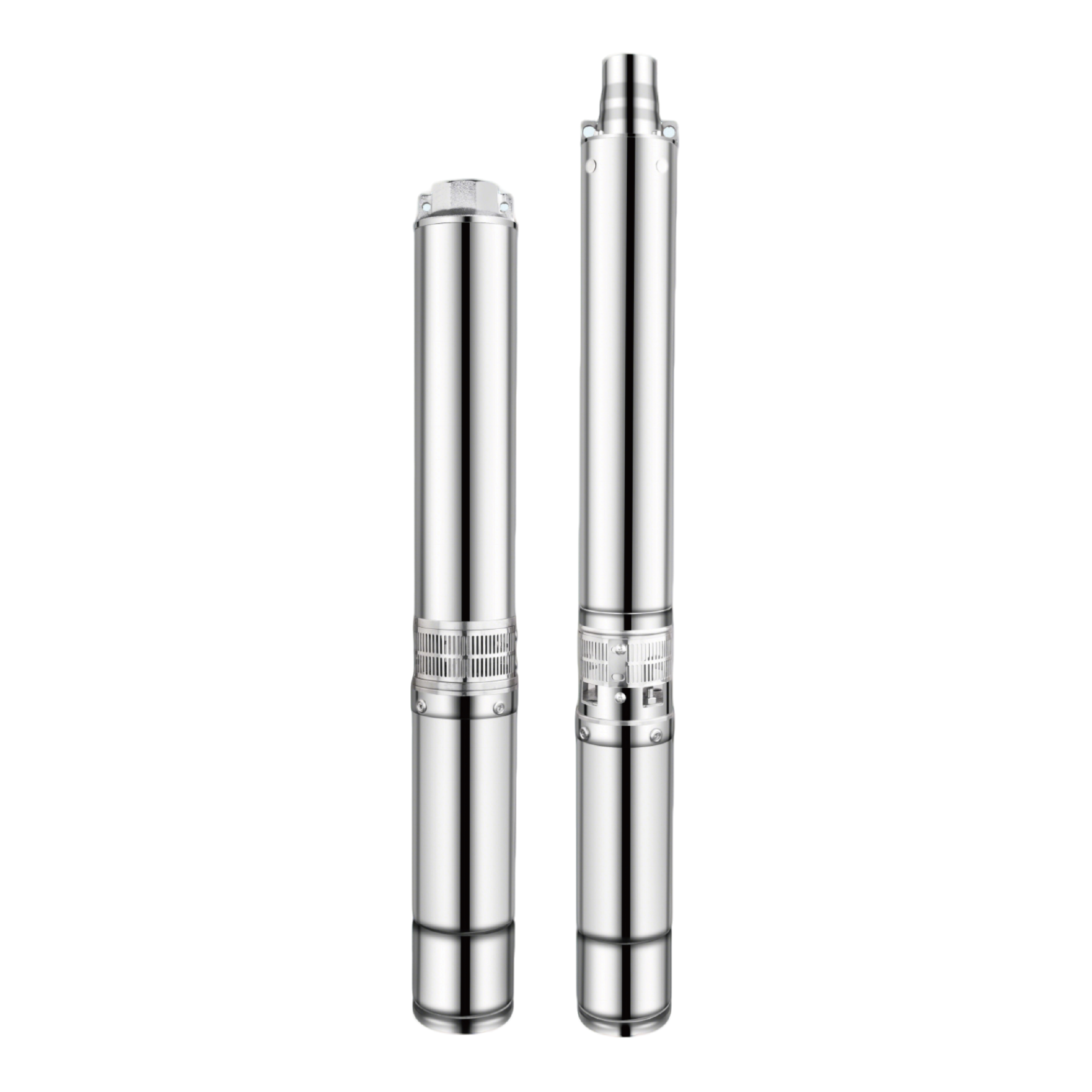

Solar Deep Well Pump 4YTC Series

Name: Solar Deep Well Pump 4YTC Series
Brand: YINJIA
Rating: 5.0 (80 reviews)


Availability:

Inquire Add to Basket

Model:
4ytc
Brand:
YINJIA

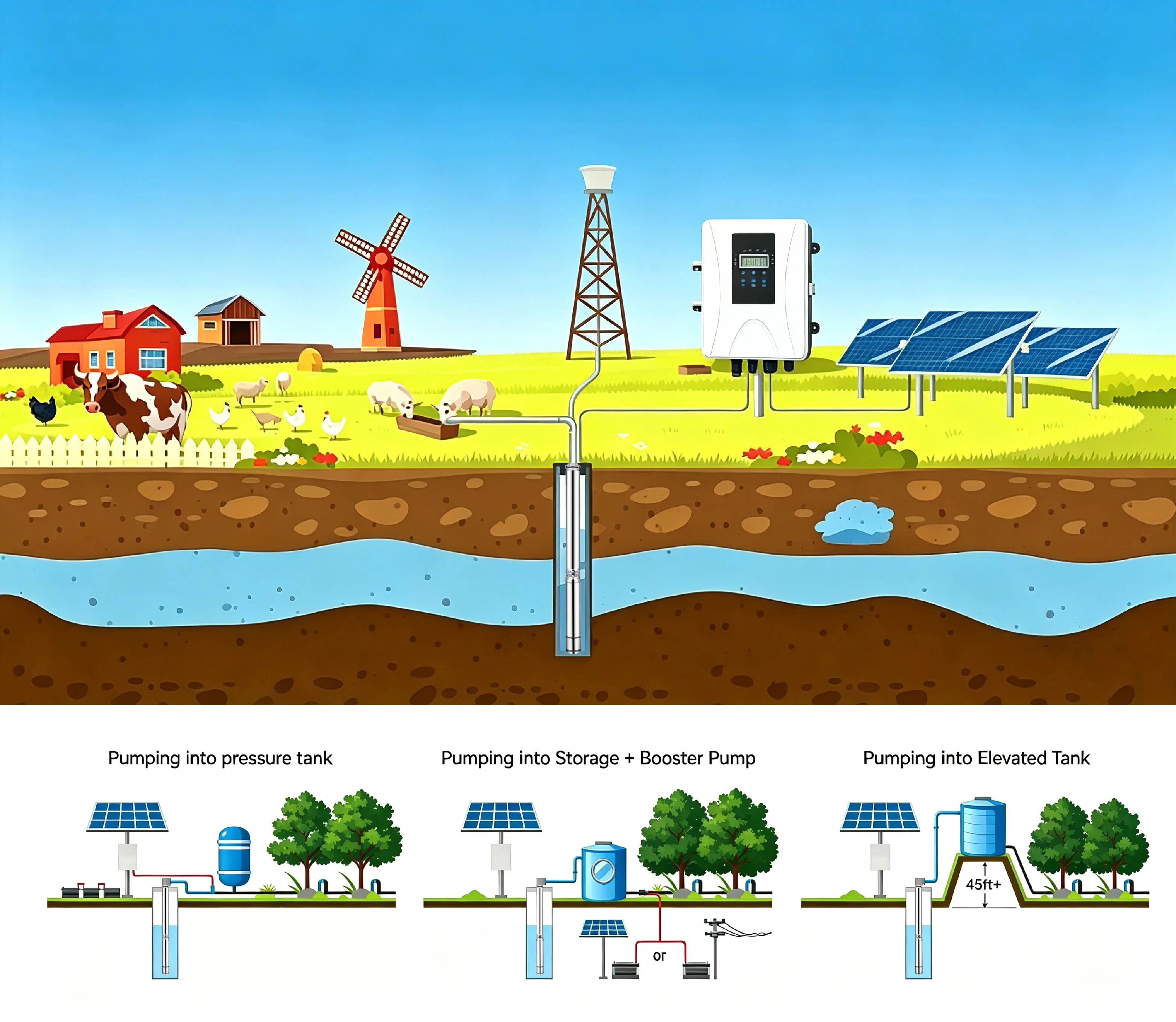

YINJIA solar deep well pumps provide an efficient, reliable, and eco-friendly solution for extracting water from deep wells. Powered by solar energy, they help reduce electricity costs and are especially suitable for farms, livestock watering, irrigation systems, residential water supply, and remote areas with limited access to the power grid. Their durable construction and efficient operation ensure dependable performance with minimal maintenance.

borehole pump DC solar pump submersible pump 24V 48V 72V DC solar pump BLDC Motor deep well pump solar pump Compact structure Solar Irrigation Pump System

Product Description

Pump & Motor:

1) Outlet/connection: stainless steel

2) Pump body: stainless steel

3) Impeller: centrifugal(ppo)

4) Cylinder: iron cylinder

5) Brushless permanent magnet DC motor

6) Oil cooling

Product Feature:

1) Controller for detecting under-voltage, over-voltage, over-flow, overload, waterless and automatically adjusting water height as demand.

2) Easy installation, maintenance-free, noiseless.

Working condition:

1) Clean water with no more than 1% particles

and the size is smaller than 0.2mm.

2) Liquid PH value 6.5-8.5

3) Liquid temperature: 0-40℃

4) Must be immersed in water when it work as rated performance.

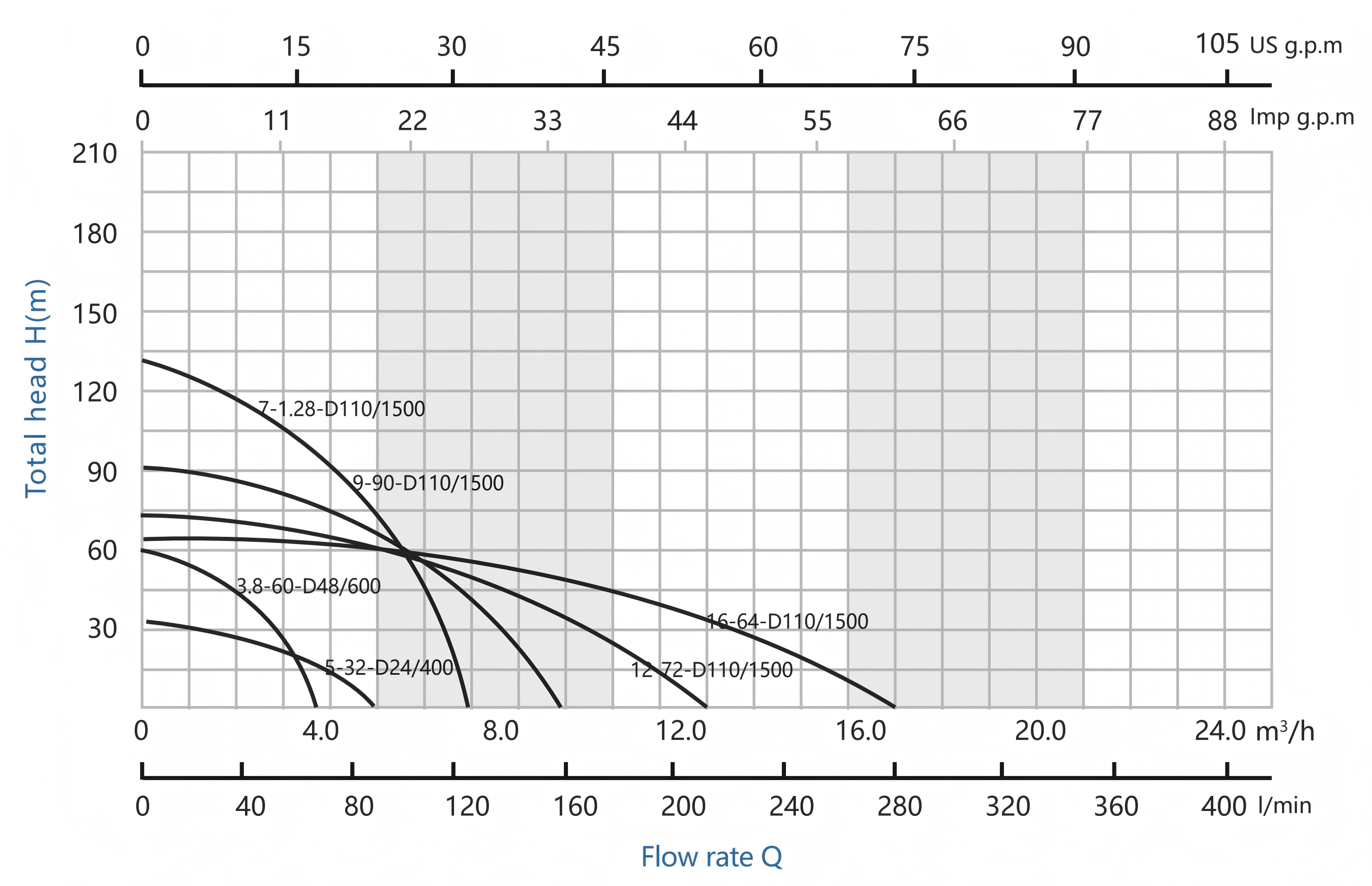

Performance Data

Model	Impeller	Solar array voltage	Solar array power	Best input voltage	Max. Flow	Max. Head	Outlet	Open circuit voltage
		（V）	（W）	（DC）	(m3/h)	(m)	(IN)	（VOC）
4YTC5-32-D24/400	Centrifugal (ppo)	36	550	60-90	5	32	1.25"	<100V
4YTC3.8-60-D48/600		72	900	60-90	3.8	60	1.25"	<100V
4YTC3.8-95-D48/750		72	1100	60-90	3.8	95	1.25"	<100V
4YTC12-40-D48/750		72	1100	60-90	12	40	2"	<100V
4YTC3.8-95-D72/750		108	1100	60-90	3.8	95	1.25"	<100V
4YTC12-40-D72/750		108	1100	60-90	12	40	2"	<100V
4YTC3.8-135-D72/1100		108	1500	90-120	3.5	140	1.25"	<150V
4YTC5-105-D72/1100		108	1500	90-120	5	105	1.25"	<150V
4YTC16-42-D72/1100		108	1500	90-120	16	42	2"	<150V
4YTC3.8-135-D110/1100		144	1500	90-120	3.5	140	1.25"	<150V
4YTC9-60-D110/1100		144	1500	90-120	9	60	1.5"	<150V
4YTC3.8-155-D110/1300		144	2025	110-150	3.8	155	1.25"	<200V
4YTC5-135-D110/1300		144	2025	110-150	5	135	1.25"	<200V
4YTC7-110-D110/1300		144	2025	110-150	7	110	1.5"	<200V
4YTC16-52-D110/1300		144	2025	110-150	16	52	2"	<200V
4YTC30-22-D110/1300		144	2025	110-150	30	22	2"	<200V
4YTC3.8-180-D110/1500		144	2250	110-150	3.8	180	1.25"	<200V
4YTC7-128-D110/1500		144	2250	110-150	7	128	1.5"	<200V
4YTC9-90-D110/1500		144	2250	110-150	9	90	1.5"	<200V
4YTC12-72-D110/1500		144	2250	110-150	12	72	2"	<200V
4YTC16-64-D110/1500		144	2250	110-150	16	64	2"	<200V
