A pump that works well on the ground floor may produce a weak shower upstairs. The main reason is elevation: every meter the water rises consumes part of the pump’s available head. Long pipes, small diameters, filters, heaters, and multiple open fixtures consume additional pressure. Selecting a water pump for a two-story or multi-story house therefore requires more than counting floors or choosing a larger horsepower.
The design identifies the highest outlet, simultaneous flow, total head, lower-floor pressure, and a stable control method.
Water pressure created by a pump must first overcome vertical lift. About 10 meters of elevation is equivalent to approximately 1 bar of pressure. If an upper shower is 8 meters above the source water level, roughly 0.8 bar is consumed before pipe friction or useful shower pressure is considered.
Dynamic pressure falls when several fixtures open. A narrow riser or dirty filter creates high peak-flow friction, so static pressure alone cannot confirm upstairs performance.
The source also matters. A rooftop tank may provide positive gravity pressure, while a basement tank increases the lift. A well’s pumping water level may fall during use. Measure from the lowest realistic source level to the highest fixture under the design condition.
List the fixtures that may run together. A two-story family home might require two showers and a kitchen tap. A larger villa may need three showers, a washing machine, or outdoor irrigation at the same time. Use actual fixture data for rain showers and bathtub fillers because their flow can be much higher than standard outlets.
Do not add every fixture unless it is truly simultaneous. Overestimation oversizes the system; designing for one tap causes pressure collapse during family use.
Total dynamic head consists of elevation, required residual pressure, and friction loss. Suppose the lowest tank level is 2 meters below the pump and the highest shower is 10 meters above it. The vertical component is 12 meters. If the shower requires 2.5 bar, add about 25 meters. If pipe, valves, and filters lose another 6 meters at peak flow, the total is approximately 43 meters of head.
The duty point would therefore be the design flow at 43 meters, not the pump’s maximum head. Select a model whose curve passes through that point within a stable operating range.
Check the lower floor as well. It experiences less elevation loss and may receive excessive pressure when only one small outlet is open. Verify the pressure ratings of pipes, water heaters, mixers, filters, appliances, and valves. A pressure-reducing valve or separate pressure zone may be necessary.
Where local rules require separation from the public main, municipal water fills a storage tank and a booster supplies the house. Calculate head from the tank’s minimum level. Add low-level protection so the pump cannot run dry.
A low tank creates the greatest elevation requirement. A self-priming jet pump may suit modest duties with suction lift, while a centrifugal or multistage booster may suit higher flow and head when flooded suction is available. Keep suction piping short and airtight.
A roof tank provides gravity head. Lower floors may have acceptable pressure while the top floor remains weak because the vertical distance between tank water level and shower is small. A booster after the tank can add pressure. Use the minimum tank level in the calculation and check maximum lower-floor pressure.
For a deep well, a submersible pump generally supplies a pressure tank or constant-pressure controller. For a shallow well, a jet pump may be used. The design must include pumping water level and well yield. A multi-story home may need storage if household peak flow exceeds the well’s sustainable output.

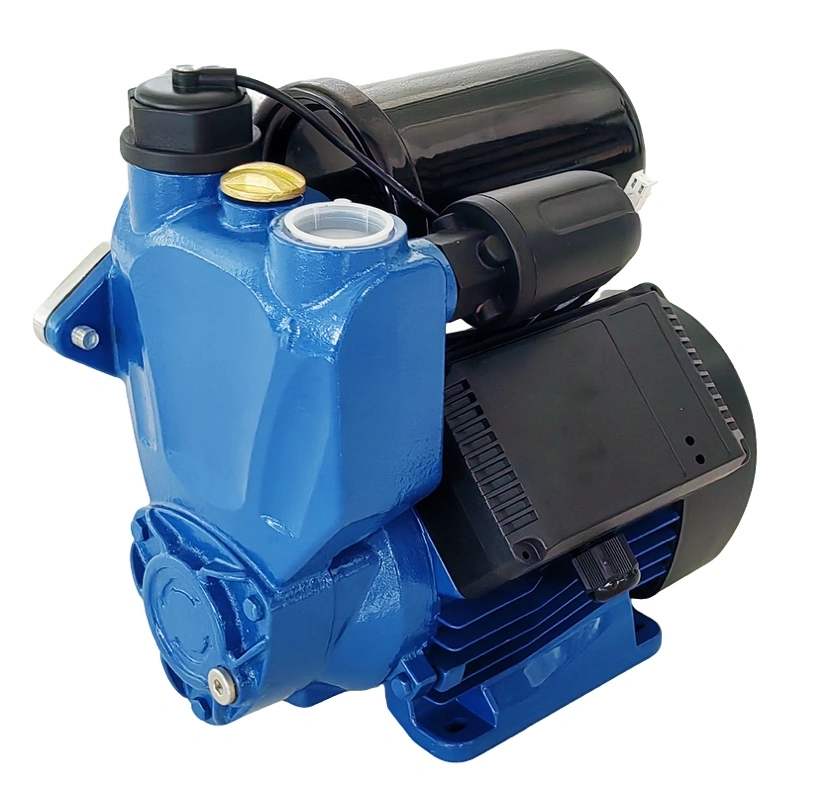

A peripheral pump can create useful pressure at limited flow and may suit a small two-story house with modest demand. A self-priming jet pump is practical for tanks or shallow suction. A centrifugal pump is suitable for general supply and transfer, while a multistage pump is often preferred when the building needs higher head at a meaningful flow. Deep wells normally use submersible pumps.
Compare curves at the required duty and check efficiency, current, suction limits, pressure, noise, and service.

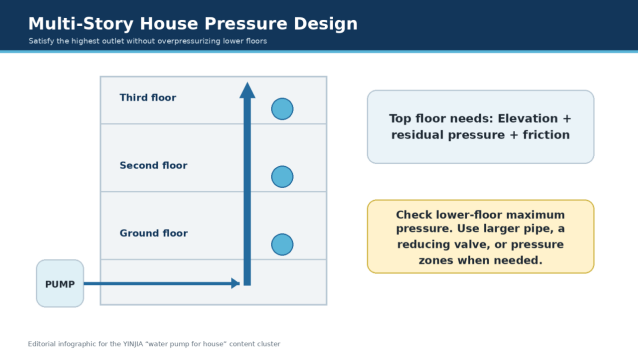

Many two- or three-story homes can use one correctly sized booster. The setpoint must satisfy the top floor without overpressurizing the bottom floor. Where the elevation difference is large, separate pressure zones may provide better control.
Zones may use separate pumps, reducing valves, or break tanks. They control excessive lower-floor pressure but add components and maintenance.
In very tall residential buildings, professional hydraulic design is essential. Fire systems, domestic water, hot-water circulation, and pressure zoning must be coordinated rather than treated as one household pump application.
A pressure switch and pressure tank create a pressure range between cut-in and cut-out. This is simple and robust, but the pressure variation is more noticeable on upper floors because they already have less available head. A correctly sized tank reduces cycling.
An electronic controller provides automatic start and stop and may include dry-run protection. It is compact but must be matched to motor current and minimum-flow behavior. Tiny leaks can cause repeated starts, so a small vessel may be useful.
A variable-speed booster maintains a more constant discharge pressure by changing motor speed. It is often attractive for multi-story houses where demand ranges from one basin tap to several showers. The setpoint should be high enough for the top floor but not unnecessarily high. Commission minimum speed, sleep mode, acceleration, pressure sensor, and protection settings correctly.
Increasing pipe diameter can improve top-floor performance and reduce energy use. Size the main riser for peak flow at a reasonable velocity, then size branches for their fixture groups. Avoid excessive elbows and restrictive valves. Use full-bore isolation valves and check filters regularly.
Hot-water systems may show different pressure from cold water because heaters, mixing valves, and smaller hot-water pipes add losses. Balance hot and cold supply so mixers remain stable. If only hot water is weak upstairs, the booster may not be the root cause.
Support pipes, isolate vibration, keep the pump away from bedrooms, and protect it from flooding and weather.
Assume the house needs 45 liters per minute at peak. The minimum tank level is 2 meters below the pump, the highest shower is 13 meters above it, desired residual pressure is 2.5 bar, and calculated friction is 5 meters.
TDH = 2 + 13 + 25 + 5 = 45 meters at 45 liters per minute.
The selected pump should deliver that duty inside its normal curve. Next check pressure at the ground floor during low demand. If the control setpoint would exceed fixture ratings or comfort, use a pressure-reducing valve, a lower setpoint with larger pipe, or separate zones.
Measure pressure at the pump and highest outlet with one and several fixtures open. Confirm flow, motor current, tank pre-charge, cut-in and cut-out values, variable-speed setpoint, and dry-run response. Check for air in the suction line, water hammer, leaks, and repeated starts. Record the readings for future comparison.
For two-story and multi-story residential projects, YINJIA’s listed categories include peripheral, self-priming jet, centrifugal, multistage, deep-well, and booster-system products, together with pressure switches and pressure tanks. YINJIA states that it has manufactured pumps since 1990 and supports OEM, ODM, and CKD/SKD cooperation. A project brief should include the number of floors, minimum source level, height to the highest fixture, peak flow, target pressure, friction estimate, pipe sizes, electricity, preferred control, and maximum acceptable lower-floor pressure.
The best pump is the model that delivers the simultaneous flow at the calculated head. Peripheral or jet pumps may suit modest duties; multistage or integrated boosters may suit higher flow and head.
Pressure loss depends on actual vertical height, not the word “floor.” About 10 meters of rise consumes roughly 1 bar, plus friction loss in the piping.
Often yes, provided the top-floor duty is met and lower-floor pressure remains safe. Large elevation differences may justify pressure zoning.
Elevation consumes pressure, and the riser may have high friction. Measure dynamic pressure at both levels while several fixtures run.
No, but it can improve comfort when demand varies widely. A correctly sized fixed-speed pump and pressure tank may be sufficient for simpler homes.
