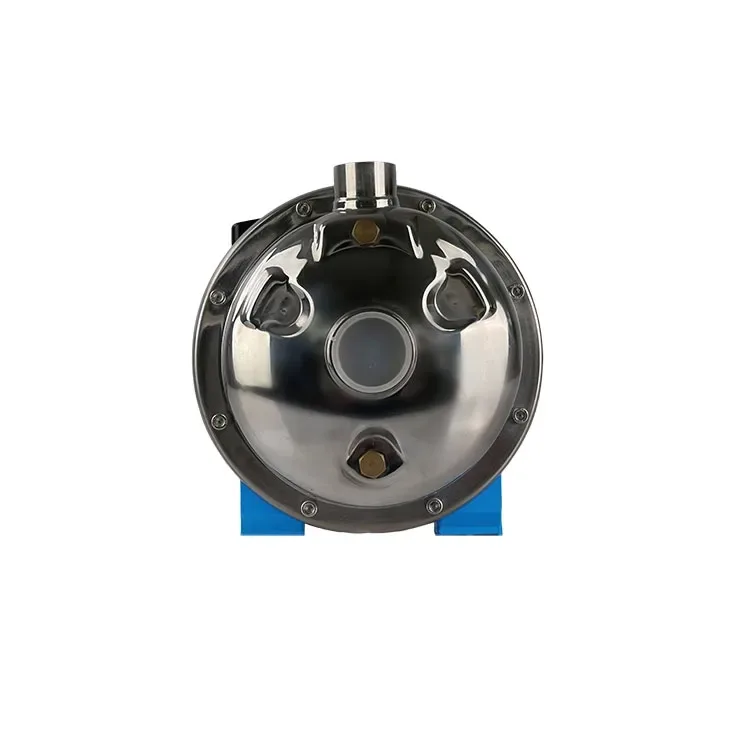

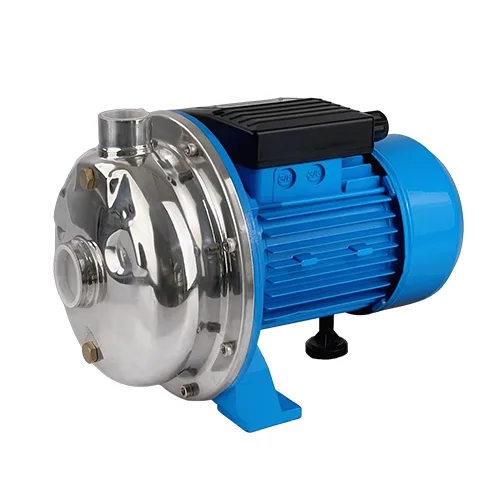

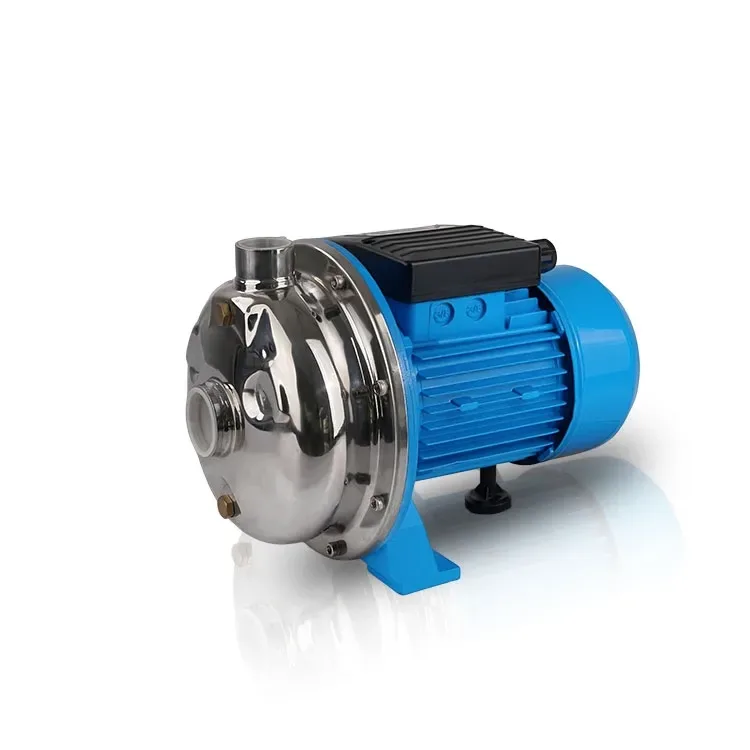

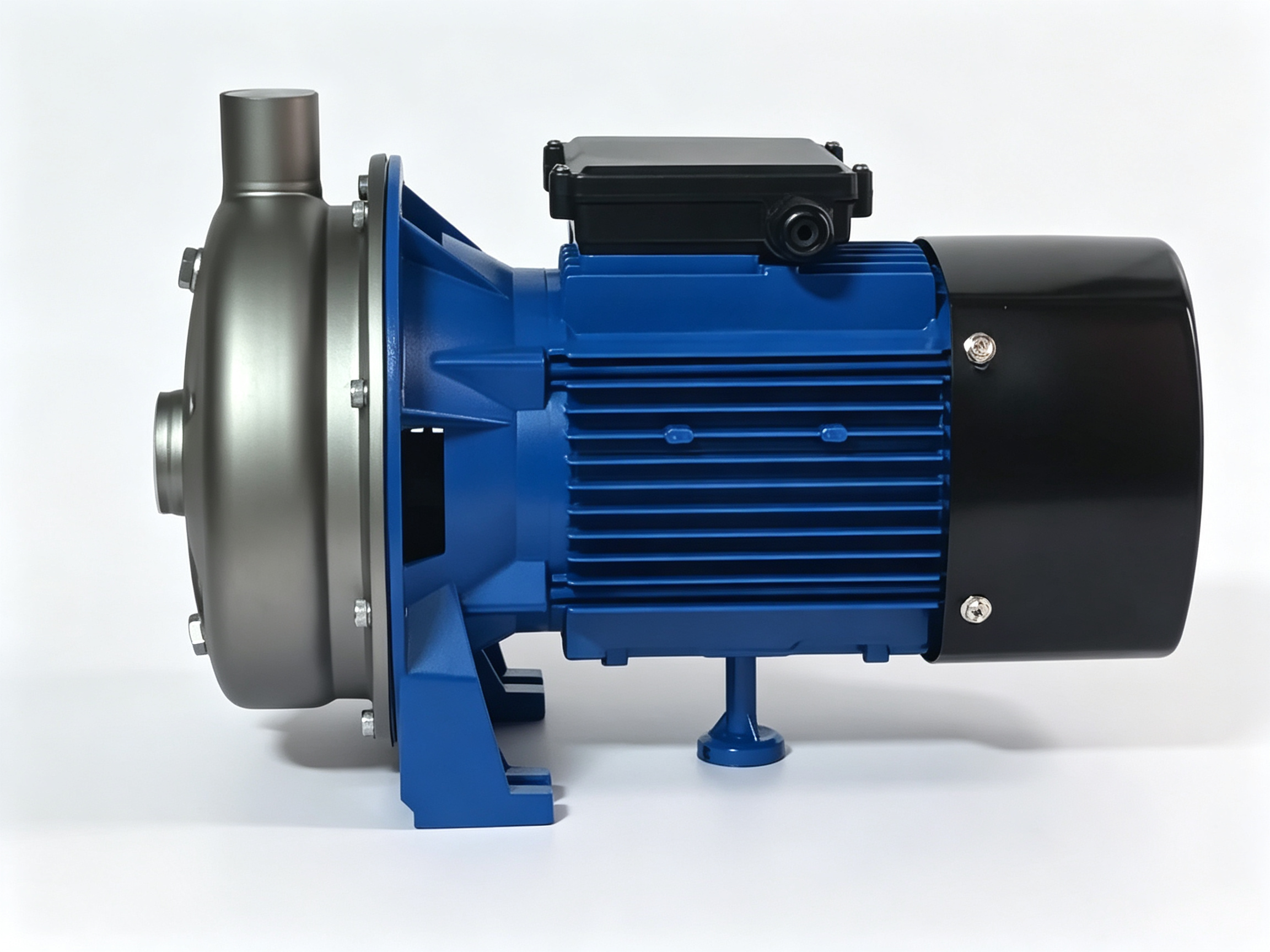

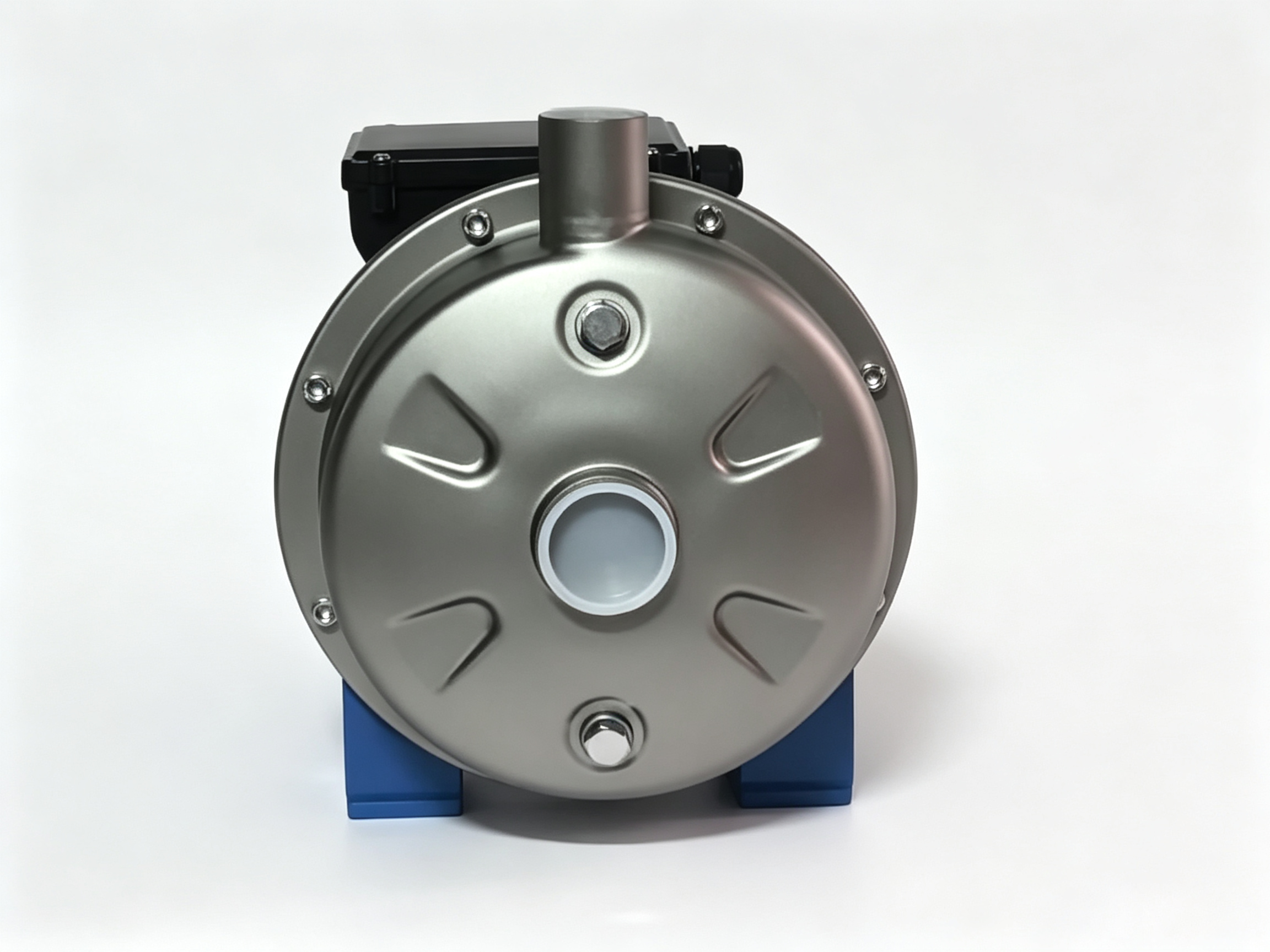

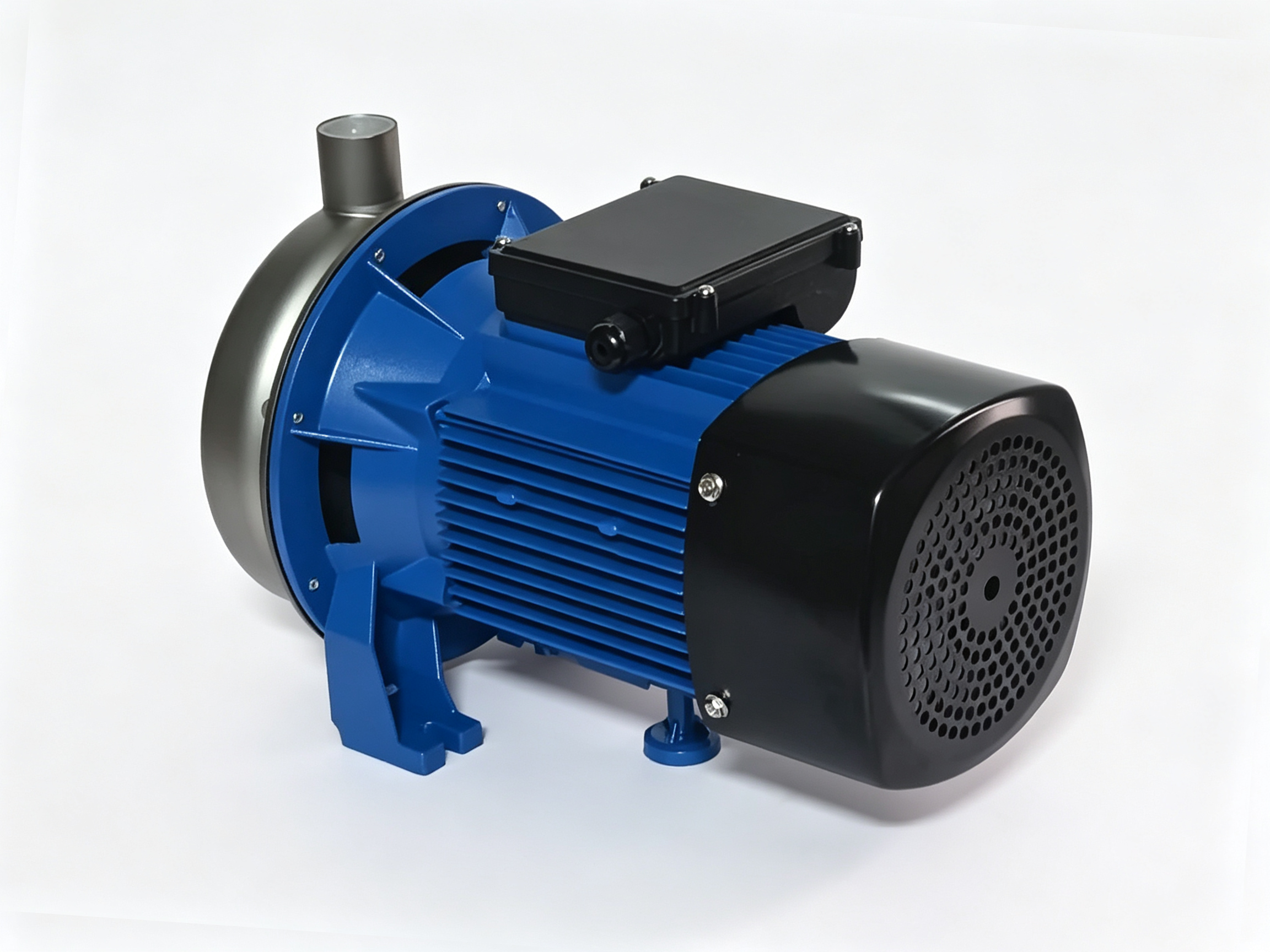

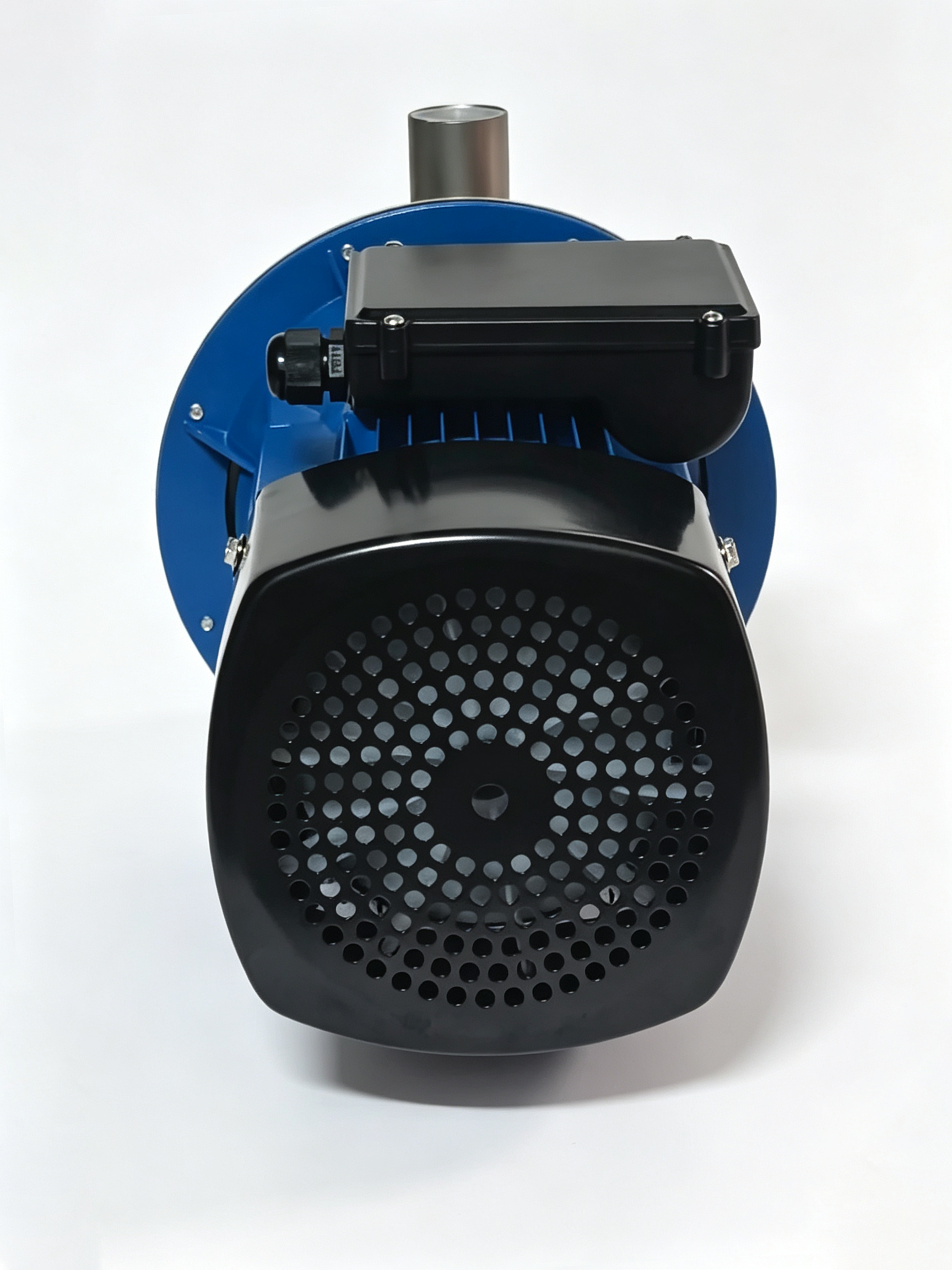

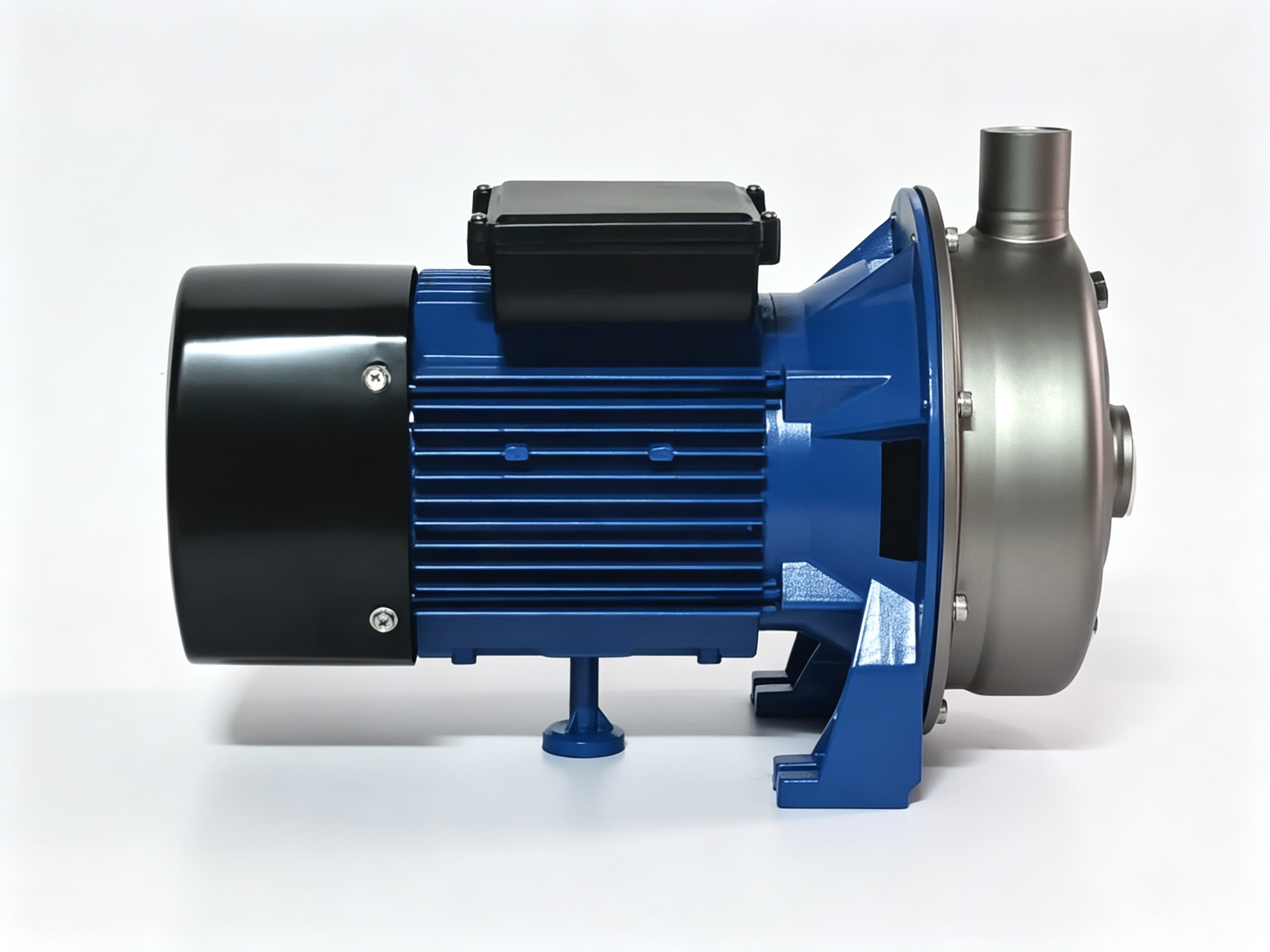

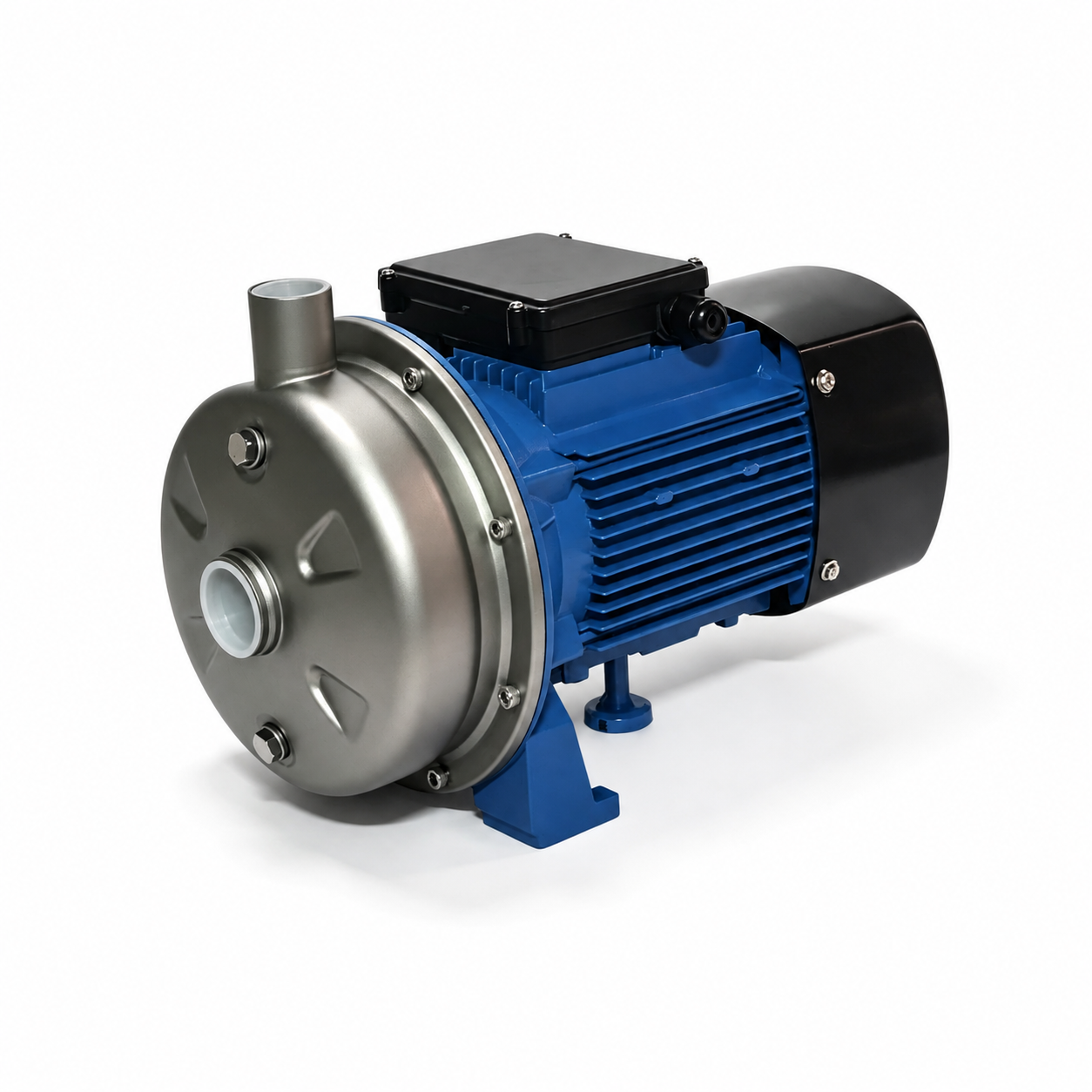

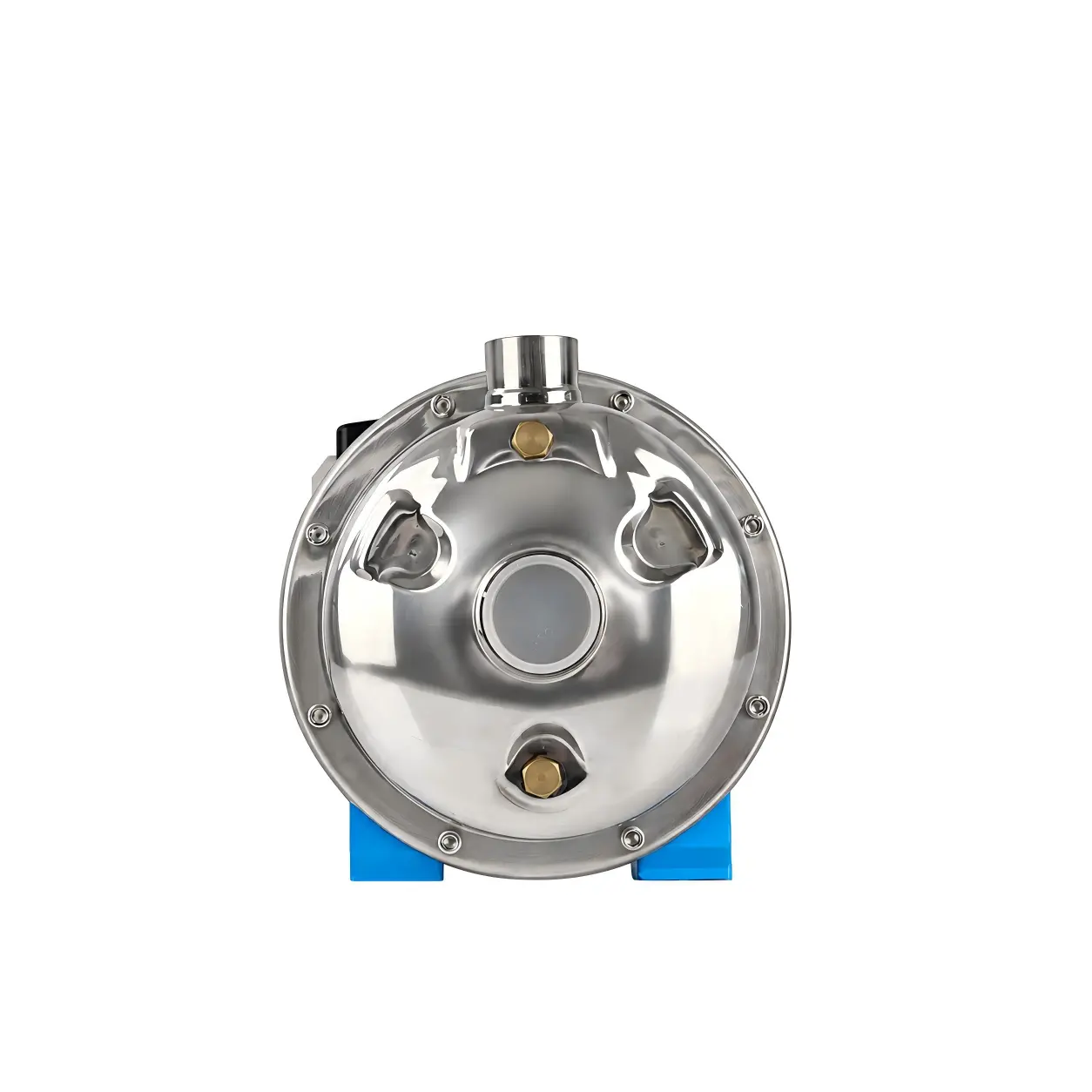

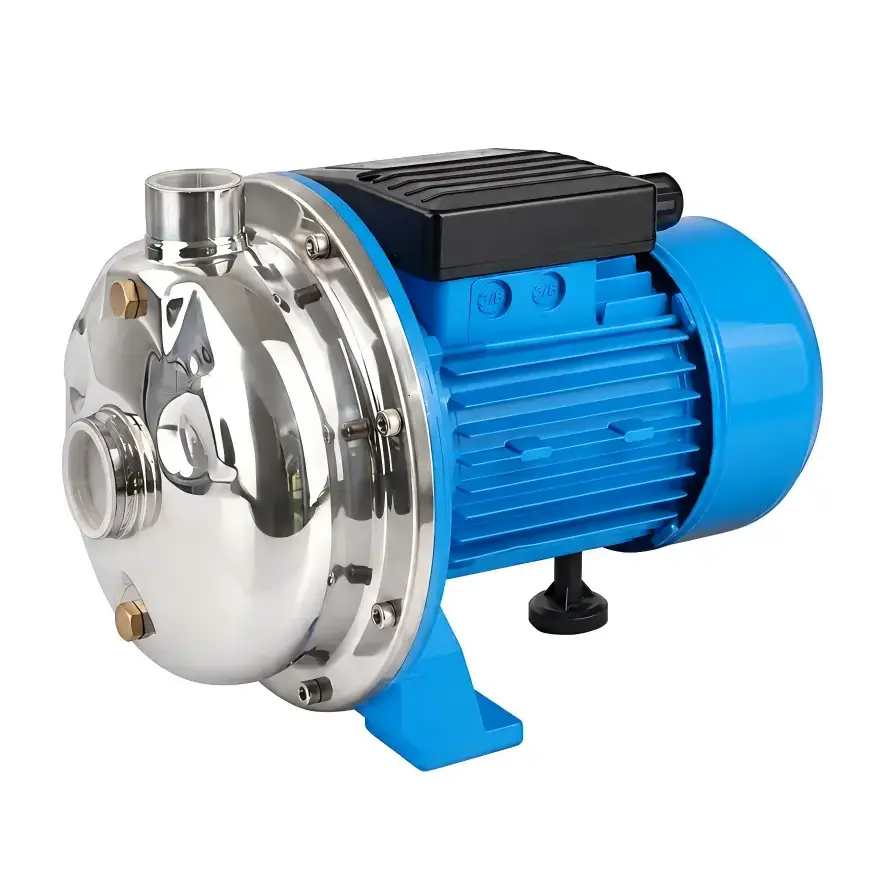

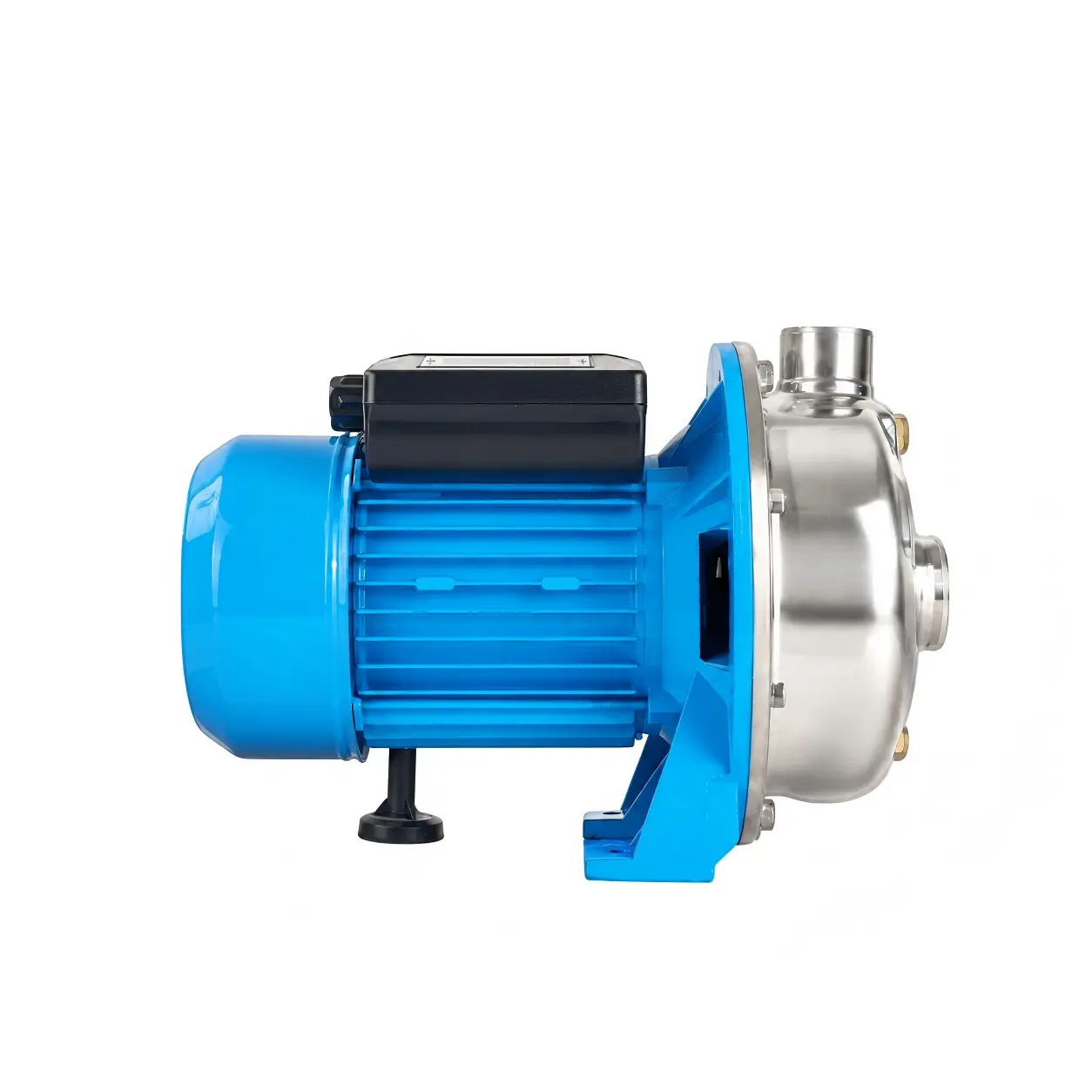

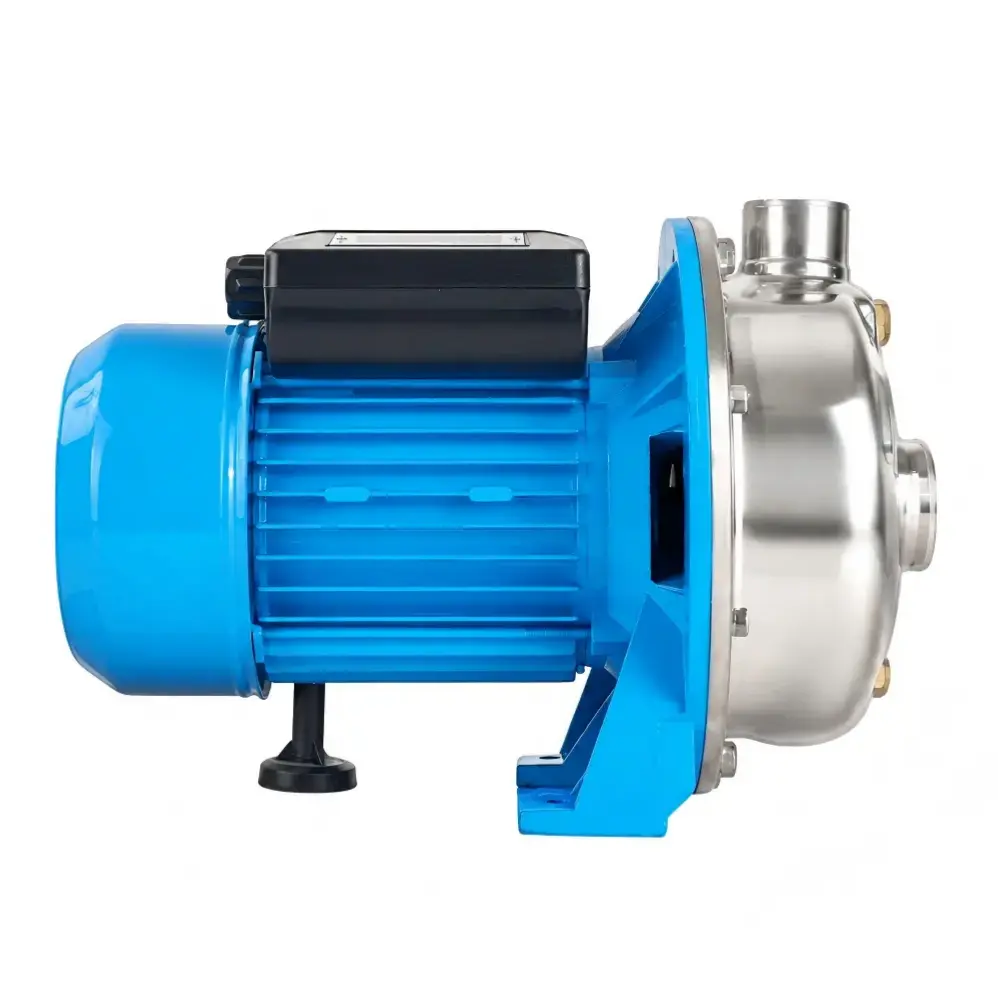

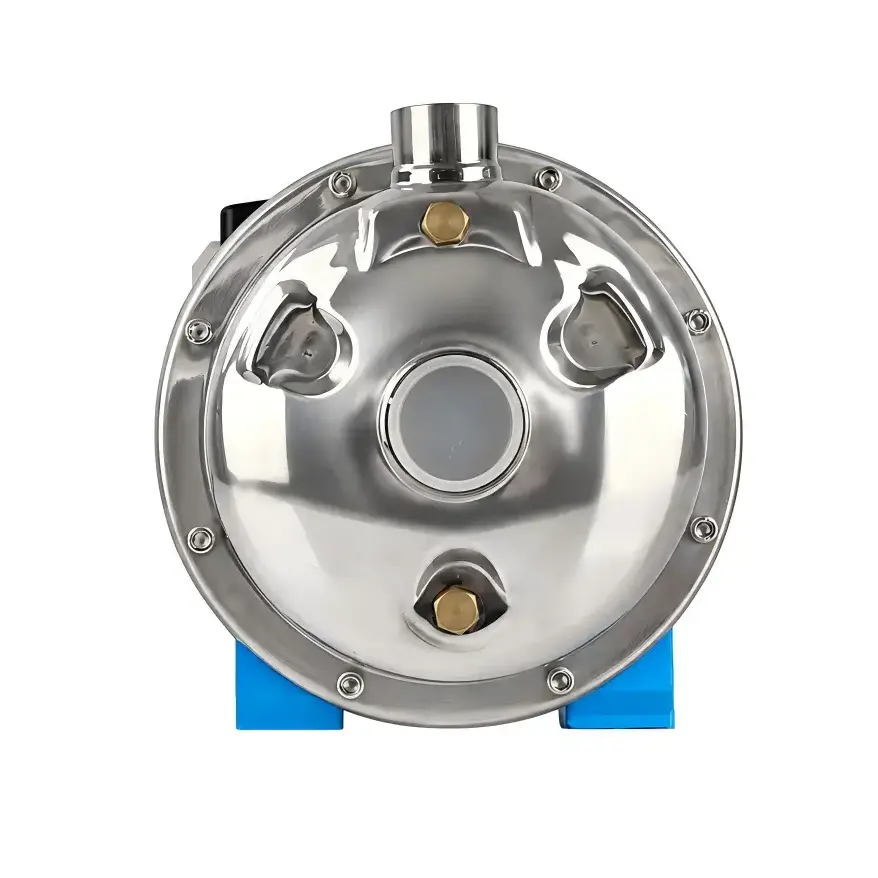

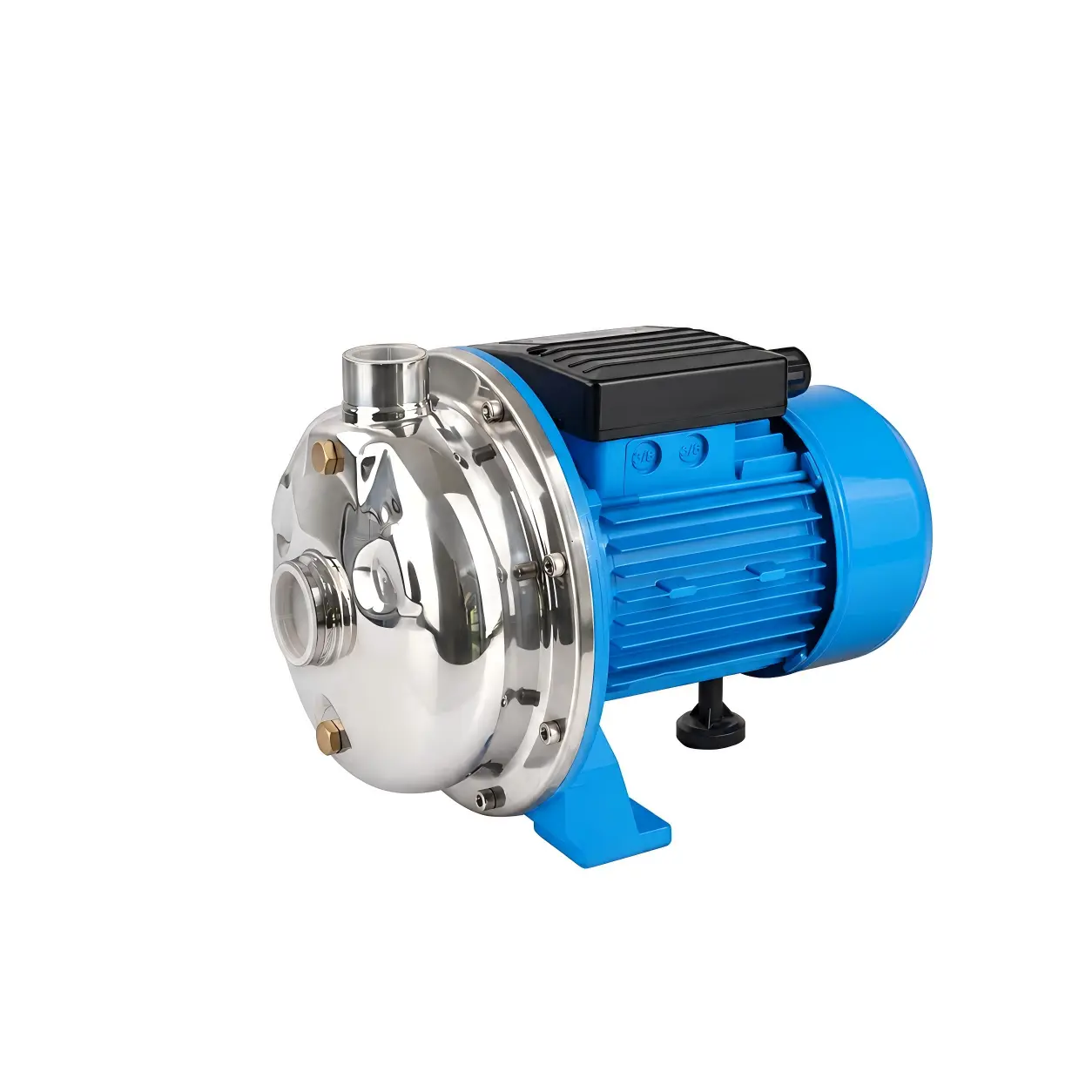

High quality stainless steel centrifugal pump is offered by China manufacturer YINJIA. CSm series stainless steel centrifugal pump belongs to the single-phase centrifugal pump category, compact design and very silent. All of the components in contact with the pumped liquid are constructed from stainless steel AISI 304, thus guaranteeing complete hygiene and maximum resistance against corrosion.Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for industrial use and urban water supply,pressure boosting for high buildings and fire fighting,garden imgation,long-distance water transfer,heating ventilation and air controlling, circulation and pressure boosting for cold hot water, and supporting equipment etc.
DESIGN FEATURES
- Pump body/lmpeller: S.S304
- Motor bracket: Aluminium
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
- Total suction lift up to 6-8 mt. with foot valve.
- Max. operating pressure: 8 bar.
- Max. ambient temperature: +40℃
- Max. liquid temperature: +90℃
- Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

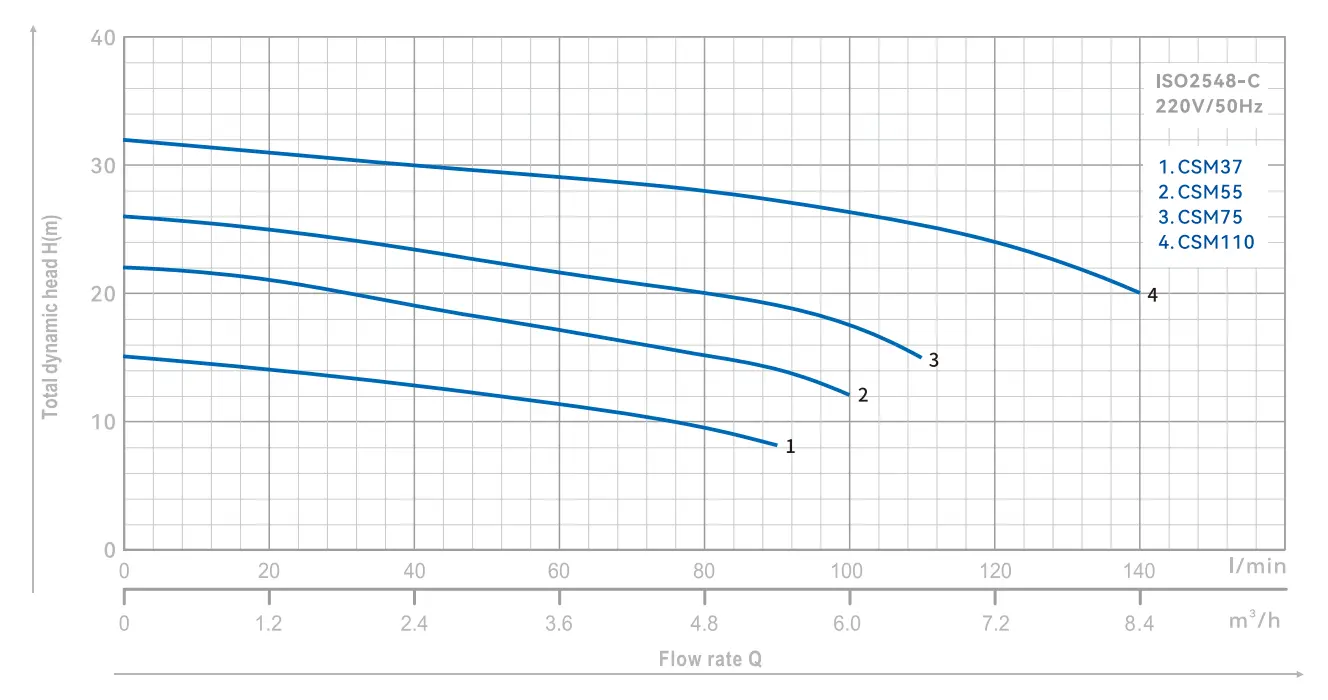

PERFORMANCE CHART
PERFORMANCE DATA
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | |||||||||||
| 1~ | 0 | 20 | 40 | 60 | 80 | 90 | 100 | 110 | 120 | 140 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 5.4 | 6.0 | 6.6 | 7.2 | 8.4 |
| H (m) | |||||||||||||||
| CSM37 | CST37 | 0.5 | 0.37 | 0.51 | 2.37 | 15 | 14 | 13 | 11.5 | 9.5 | 8 | - | - | - | - |
| CSM55 | CST55 | 0.75 | 0.55 | 0.74 | 3.51 | 22 | 21 | 19 | 17 | 15.5 | 14 | 12 | - | - | - |
| CSM75 | CST75 | 1 | 0.75 | 0.99 | 4.62 | 26 | 25 | 23.5 | 21.5 | 20 | 19 | 17.5 | 15 | - | - |
| CSM110 | CST110 | 1.5 | 1.1 | 1.44 | 6.75 | 30 | 31 | 30 | 29 | 28 | 27 | 26.5 | 25.5 | 24 | 20 |

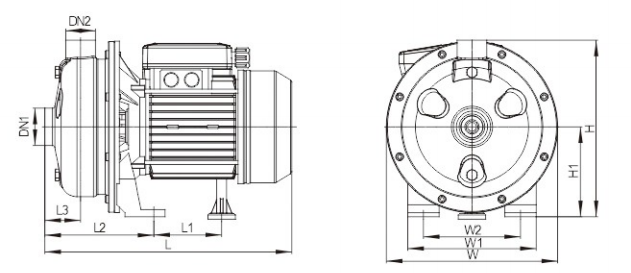

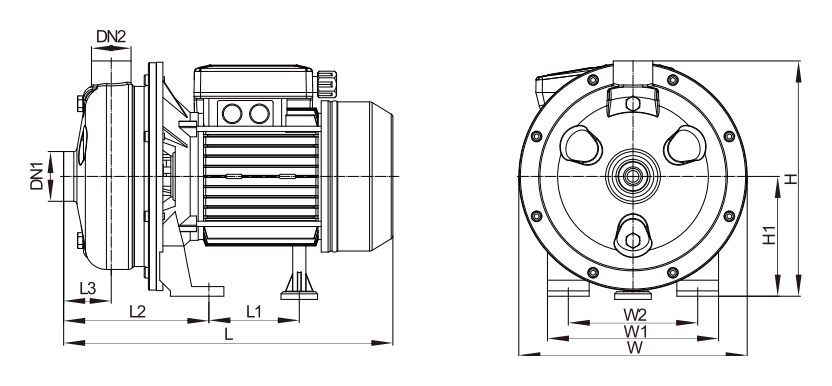

DIMENSIONS
| MODEL | Dimensions(mm) | Package Dimension (mm) | N.W | ||||||||||||
| L | L1 | L2 | L3 | W | W1 | W2 | H | H1 | DN1 | DN2 | L | W | H | (kg) | |
| CSM37 | 290 | 90 | 79 | 52 | 172 | 130 | 100 | 195 | 87 | 1" | 1" | 310 | 185 | 215 | 6.5 |
| CSM55 | 310 | 117 | 40 | 45 | 215 | 160 | 120 | 220 | 112 | 1.25" | 1" | 330 | 230 | 245 | 8.5 |
| CSM75 | 310 | 117 | 40 | 45 | 215 | 160 | 120 | 220 | 112 | 1.25" | 1" | 330 | 230 | 245 | 9.6 |
| CSM110 | 385 | 123 | 92 | 53 | 235 | 180 | 139 | 255 | 120 | 1.25" | 1" | 405 | 250 | 295 | 14.5 |
CSm Series Exploding Drawing
