YINJIA as the professional manufacturer, we would like to provide you hot and cold water booster pump. And we will offer you the best after-sale service and timely delivery. Pm series hot and cold water booster pumpbelongs to the single-phase self-priming peripheral pump category,is a best seller pump in the global market. It is our patent design pump, attractive appearance, compact and very silent. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/ mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

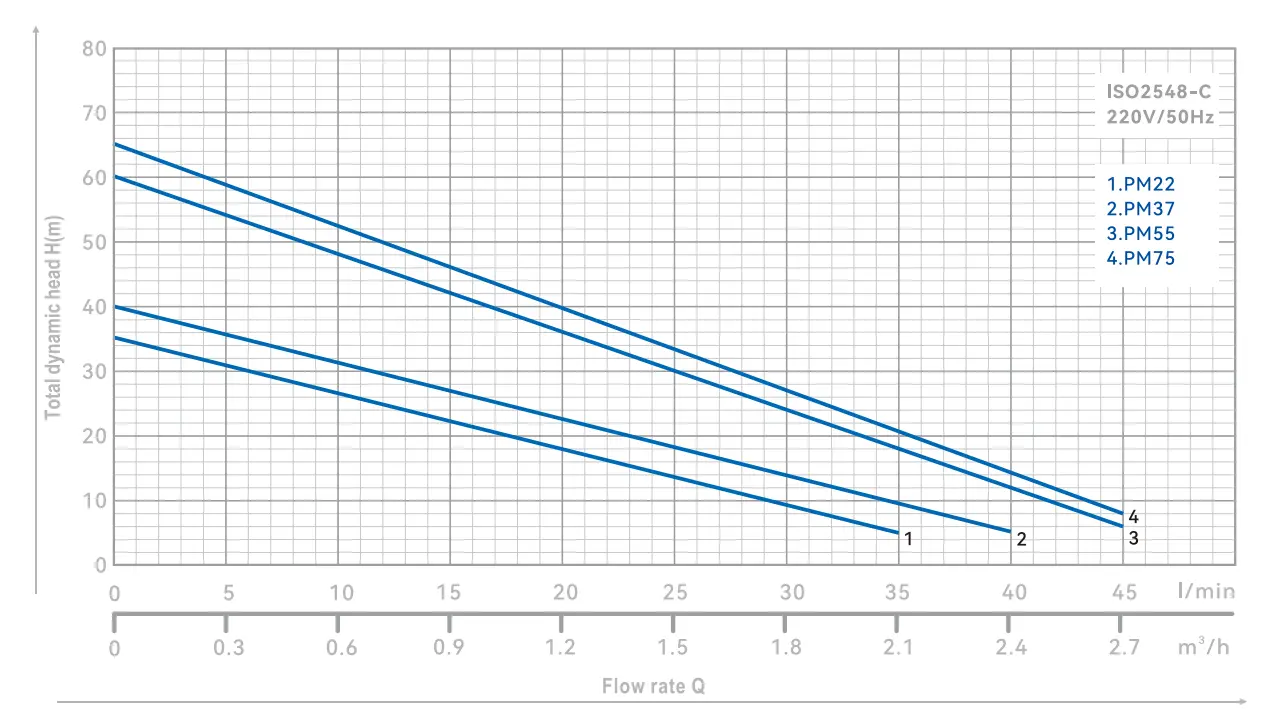

PERFORMANCE
Pm22 -0.22 kW / 0.3 HP - Max. Head 35m - Max. Flow 35 l/min - 1" water pump
Pm37 - 0.37 kW / 0.5 HP - Max. Head 40m - Max. Flow 40 l/min - 1" water pump
Pm55 - 0.55 kW / 0.75 HP - Max. Head 60m - Max. Flow 45 l/min - 1" water pump
Pm75 - 0.75 kW / 1 HP - Max. Head 65m - Max. Flow 45 l/min - 1" water pump

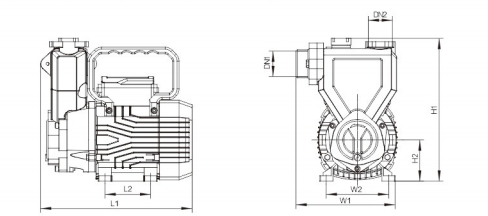

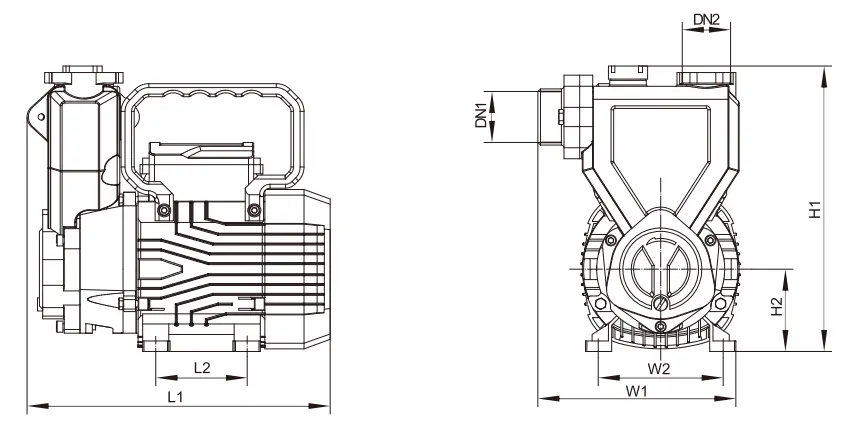

DIMENSIONS
PM EXPLODING DRAWING
