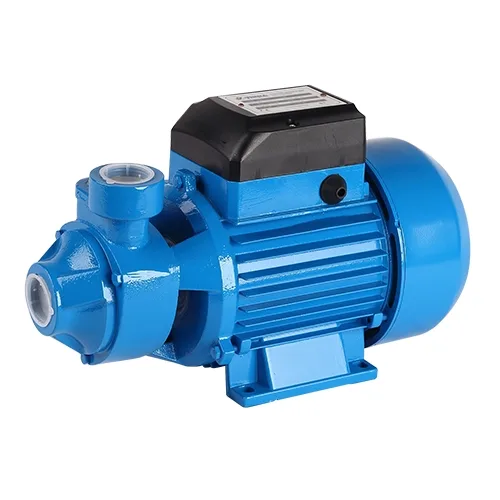

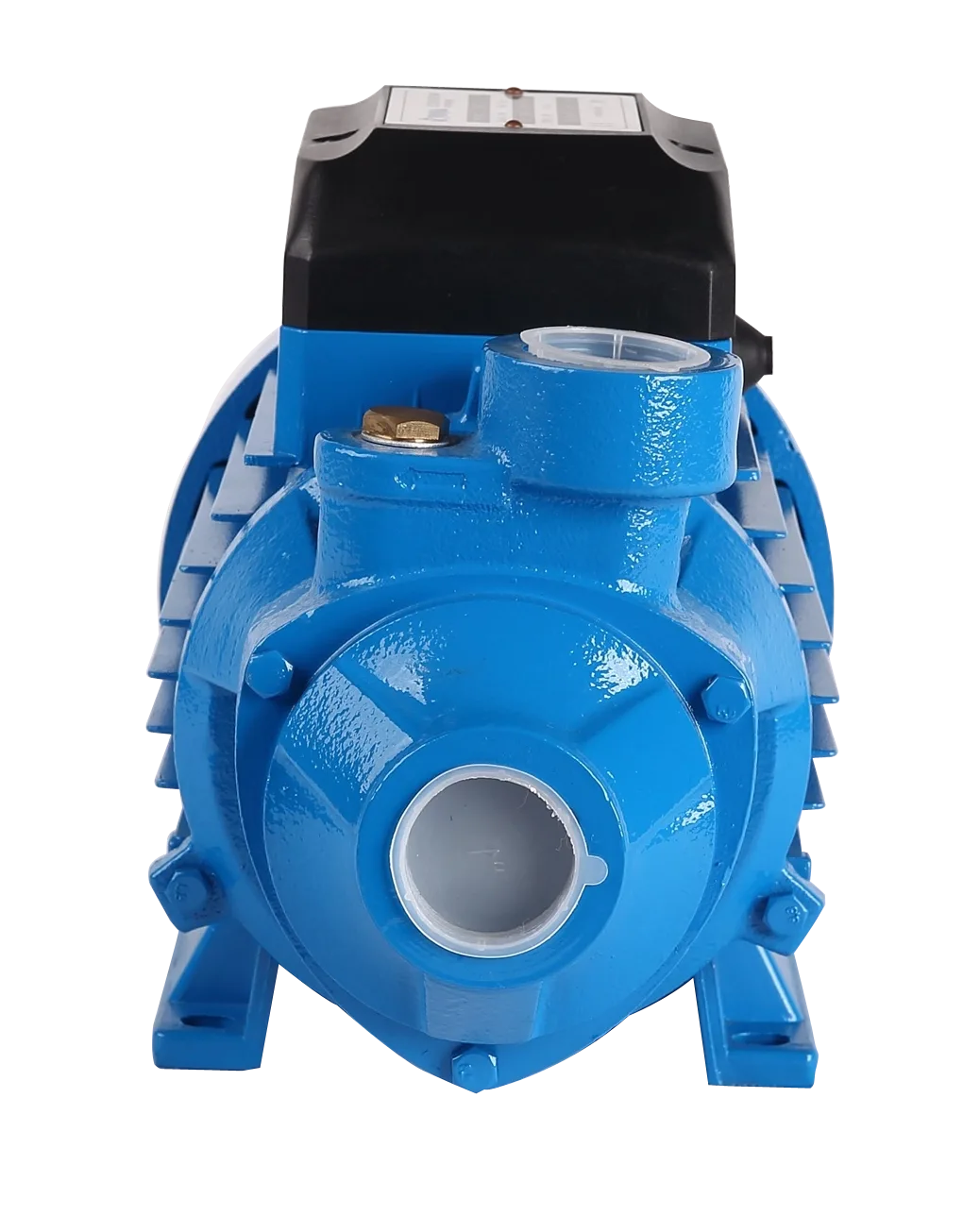

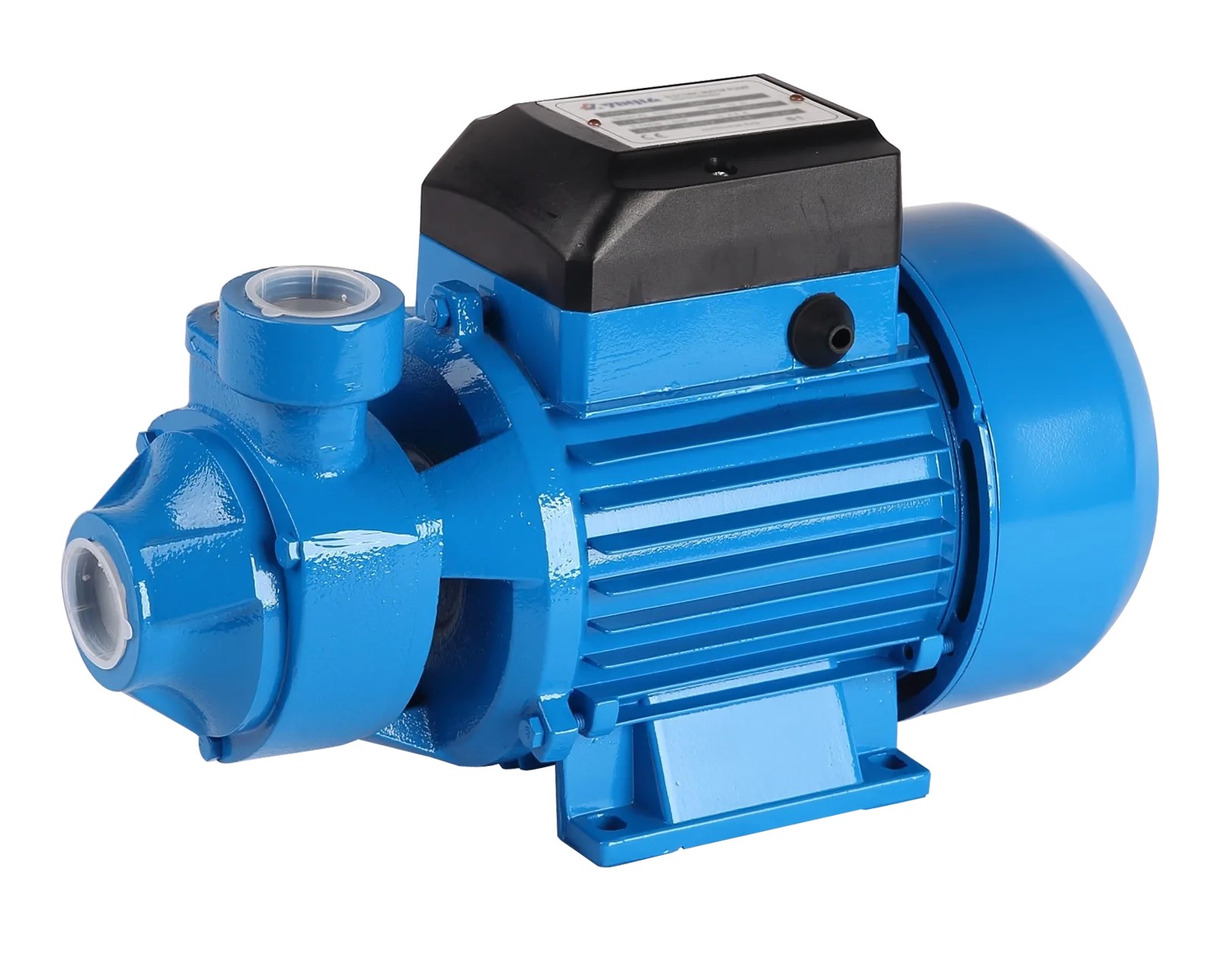

Peripheral Pump QB Series

Name: Peripheral Pump QB Series
Brand: Yinjia
Rating: 5.0 (40 reviews)


Availability:

Inquire Add to Basket

Model:
QB series
Brand:
Yinjia

YINJIA Peripheral Pump QB Series is designed for villas, household water pressure systems and garden irrigation. Key features include cast iron casing, single-phase motor compatibility and reliable pressure output in a compact body, supporting stable pressure, compact installation and daily clean-water reliability. Suitable for pump distributors and residential water system installers. Contact YINJIA for series selection, private labeling and bulk purchasing support.

Water pumping Water pump price Irrigation systems Water supplier pump Water pump agriculture High pressure pump Booster usage pump Mining industry pump Booster Pump For Domestic High Pressure Vortex Pump For High Building

Product Description

As a professional high quality electrical peripheral clean water pump manufacturer, you can rest assured to buy electrical peripheral clean water pump from YINJIA factory and we will offer you the best after-sale service and timely delivery. QB series electrical peripheral clean water pump belongs to the single-phase peripheral pump category, is a classical and popular pump in the global market. The small water pump with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.

Product Feature And Application

APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

Product Parameter (Specification)

QB60A - 0.22 kW / 0.3 HP - Max. Head 35m - Max. Flow 35 l/min - 1" water pump
QB60 - 0.37 kW / 0.5 HP - Max. Head 40m - Max. Flow 35 l/min - 1" water pump
QB70 - 0.55 kW / 0.75 HP - Max. Head 65m - Max. Flow 40 l/min - 1" water pump
QB80 - 0.75 kW / 1 HP - Max. Head 70m - Max. Flow 45 l/min - 1" water pump

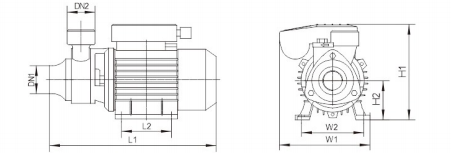

DIMENSIONS
