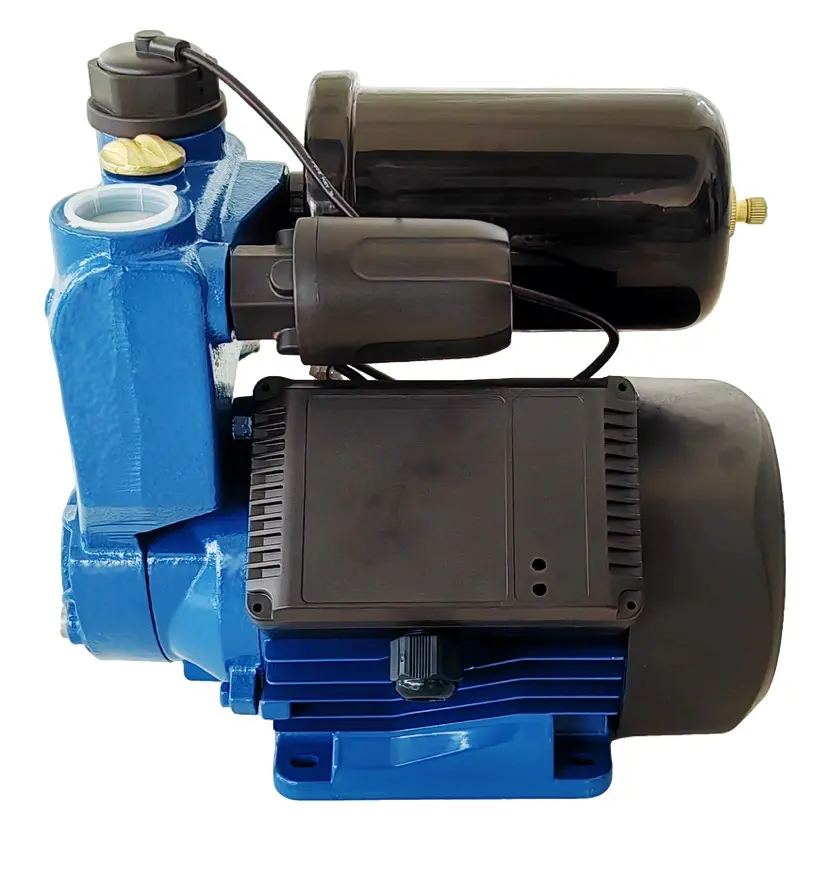

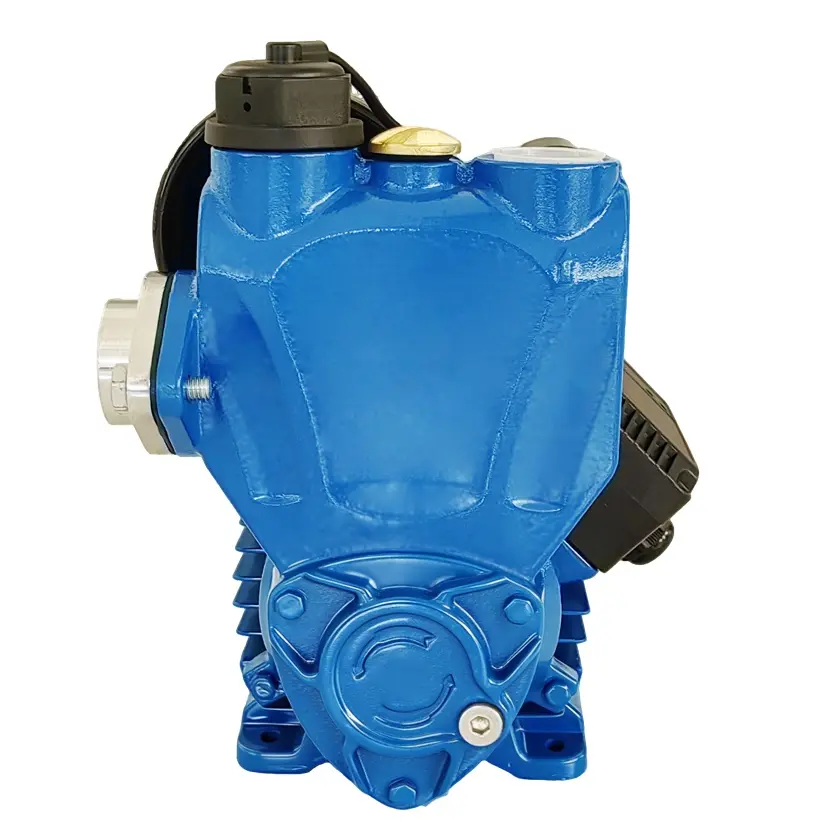

Peripheral Pump SPL Series

Name: Peripheral Pump SPL Series
Brand: Yinjia
Rating: 5.0 (33 reviews)


Availability:

Inquire Add to Basket

Model:
SPL Series
Brand:
Yinjia

YINJIA Peripheral Pump WZB Series is designed for domestic suction lifting, garden watering and small building water supply. Built with self-priming structure, clean-water transfer performance and simple surface installation, the series supports stable pressure, compact installation and daily clean-water reliability. Suitable for domestic pump importers, installers and OEM customers. Contact YINJIA for self-priming pump matching and wholesale supply.

Water Pump Electrical Peripheral Water Pump Domestic Pumps Self-Priming pump Irrigation and agriculture pump self-priming booster pump Drinking water treatment pump Domestic use peripheral pump Surface water pumps Clean water Pumps

Product Description

APPLICATIONS

Small domestic installations

Boiler feeding

For washing

Pressurization of industrial plants

Small autoclaves

Transfer of liquids

DESCRIPTION

Motor

Copper winding, IE2 efficiency, I.CI B, IPX4

single phase with thermal protection

Motor shaft

AISI304 welding shaft

Voltage & Frequency

110V,230V, wide voltage; 50HZ,60HZ

Pump body

Cast iron, brass or AlSI304 insert on request

Motor bracket

Cast iron, brass or AlSI304 insert on request

Impeller

Brass or AISI304 insert on request

Mechanical seal

Ceramic-Graphite-NBR

Liquid temperature

0-90°C

Operating limits

Suct. 8mt, Max 8bar

PERFORMANCE CHART

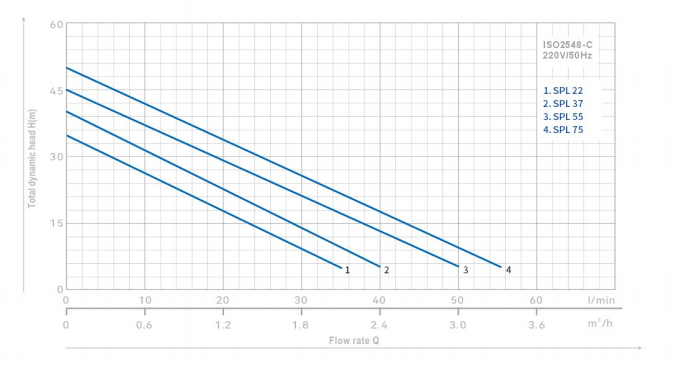

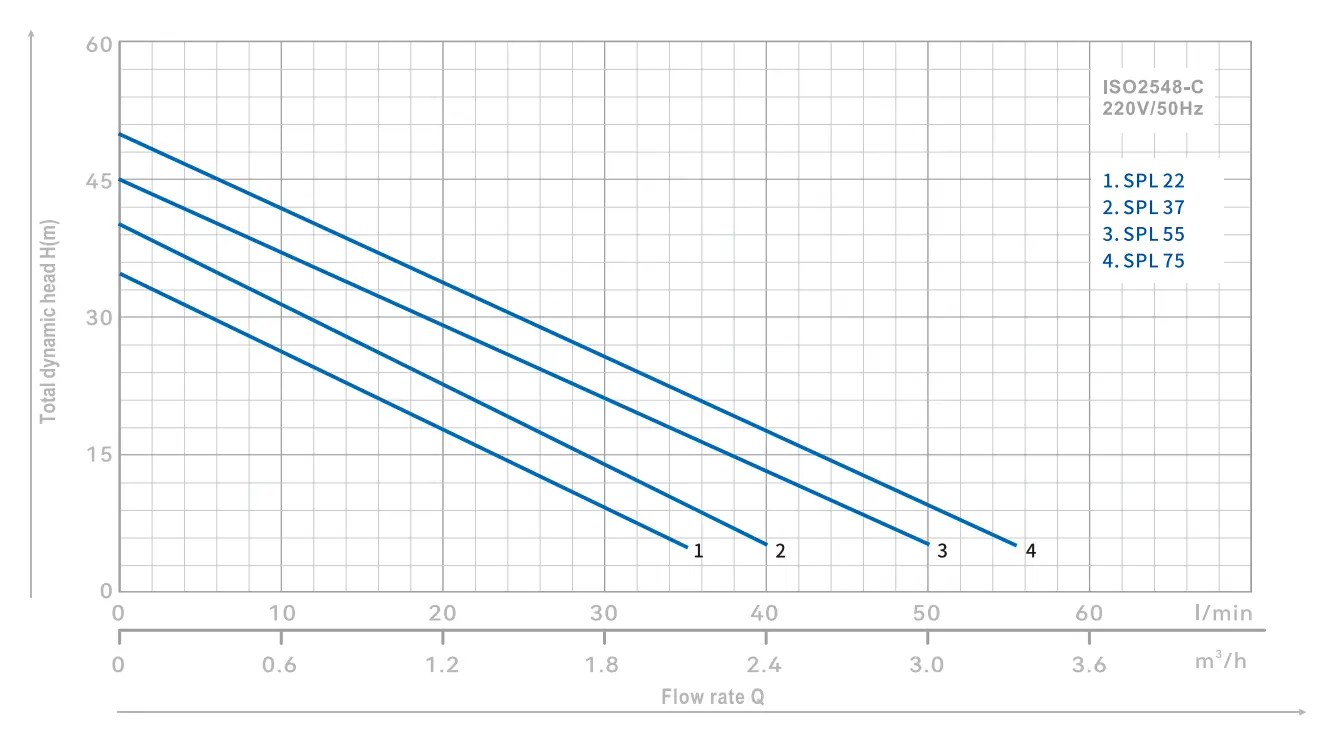

SPL chart

PERFORMANCE DATA

MODEL		P2		P1 (kW)	Ampere	Q(L/min-m³/h)								Pressure Tank	Recommended Usage
MODEL		P2		P1 (kW)	1~	0	10	20	30	35	40	50	55
1~	3~	HP	kW	1~	1x220V 50HZ	0	0.6	1.2	1.8	2.1	2.4	3	3.3
1~	3~	HP	kW	1~	1x220V 50HZ	H (m)
SPL 22	SPT22	0.3	0.22	0.33	1.39	35	26	18	10	5	-	-	-	1L	≤4 floor	1-2 tap
SPL 37	SPT37	0.5	0.37	0.51	2.37	40	30	25	20	15	5	-	-	1L	≤6 floor	1-2 tap
SPL 55	SPT55	0.75	0.55	0.74	3.51	45	37	30	21	17	13	5	-	2L	≤8 floor	1-2 tap
SPL 75	SPT75	1	0.75	0.99	4.62	50	42	34	26	22	17	10	6	2L	≤10 floor	1-2 tap

DIMENSIONS

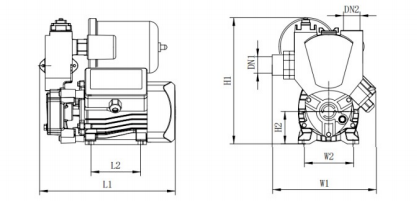

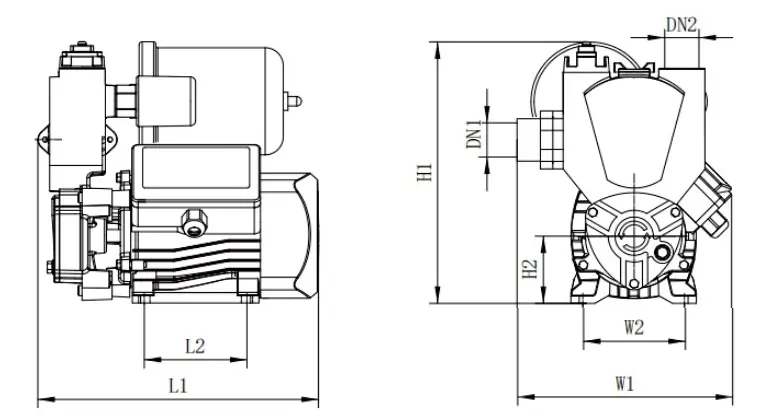

SPL dimensions

MODEL	Dimensions(mm)							Package Dimension (mm)				N.W
MODEL	L1	L2	W1	W2	H1	H2	DN1	DN2	L	W	H	(kg)
SPL 22	255	100	215	100	240	63	1"	1"	285	205	282	8
SPL 37	255	100	215	100	240	63	1"	1"	285	205	282	8.3
SPL 55	255	100	215	100	240	63	1"	1"	315	235	300	11
SPL 75	255	100	215	100	240	63	1"	1"	315	235	300	12.2
