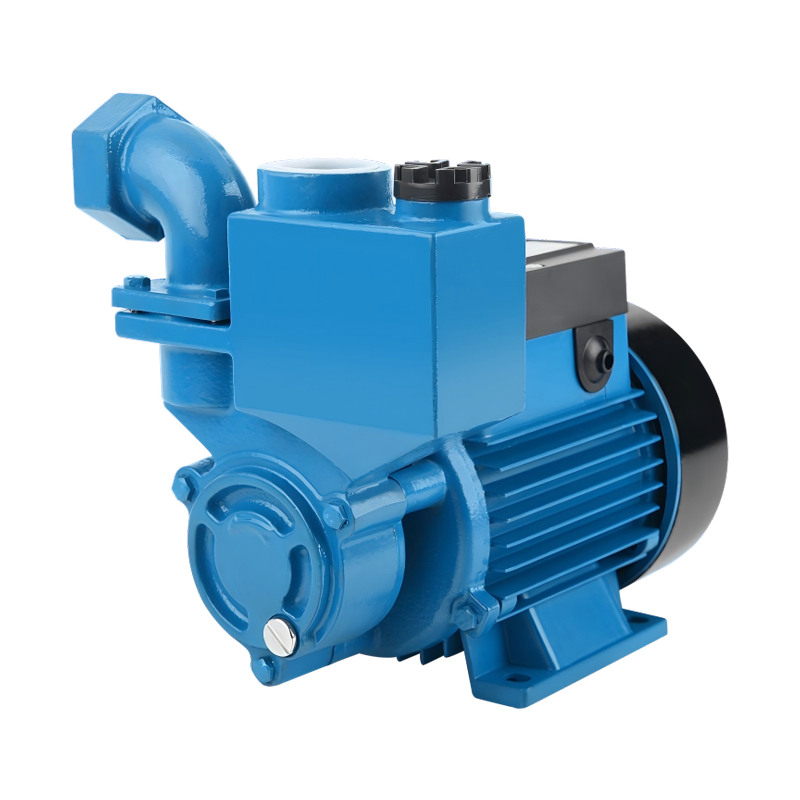

Yinjia pump as a professional high quality water pressure booster pumps manufacture, you can rest assured to buy water pressure booster pumps from our factory. TPS series water pressure booster pumps belongs to the single-phase self-priming peripheral pump category,is a best seller pump in the market. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insultation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insultation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

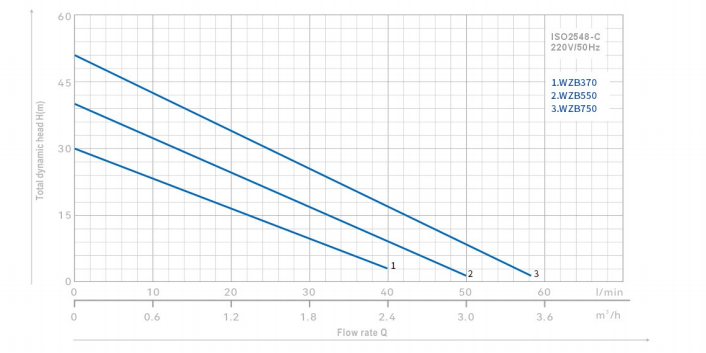

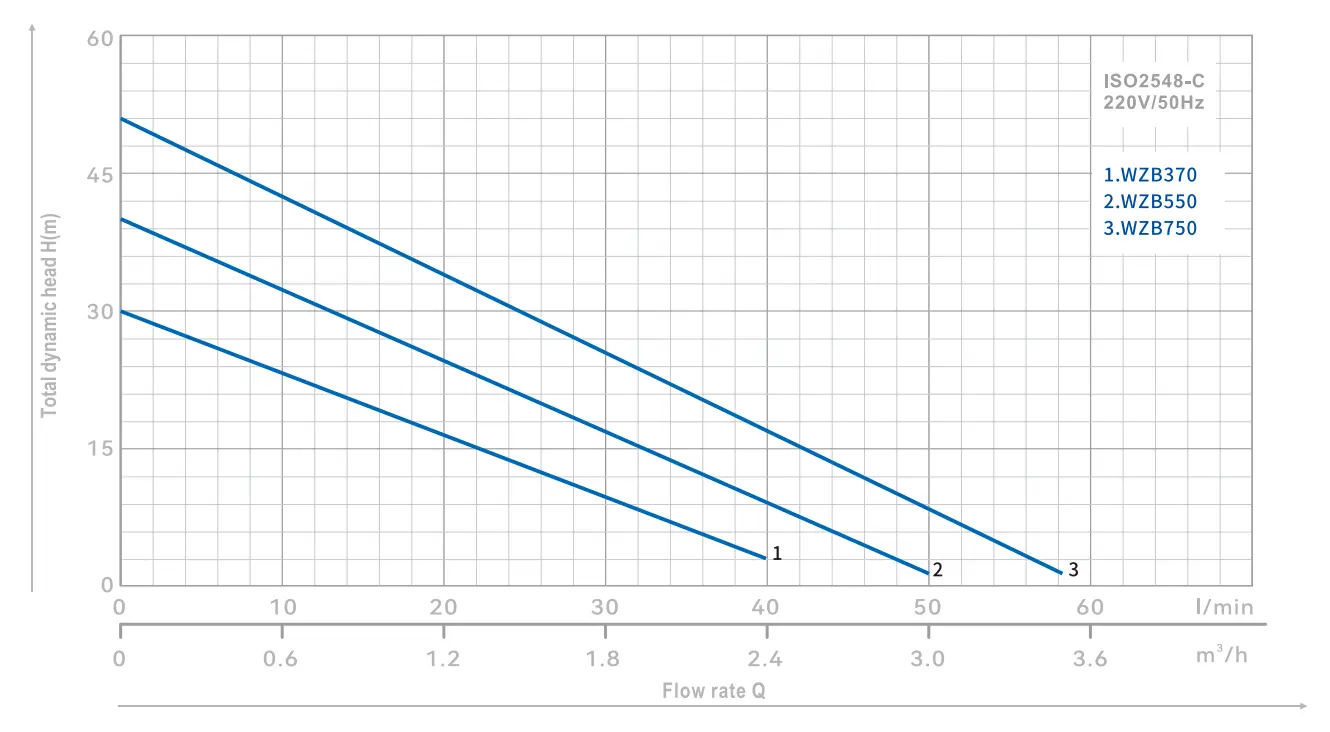

PERFORMANCE CHART
PERFORMANCE DATA
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | |||||||||||
| 1~ | 0 | 10 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 58.3 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 0 | 0.6 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3 | 3.5 |
| H (m) | |||||||||||||||
| WZB370 | WZB370T | 0.5 | 0.37 | 0.51 | 2.37 | 30 | 23 | 16.5 | 13 | 9.5 | 6.5 | 3 | - | - | - |
| WZB550 | WZB55T0 | 0.75 | 0.55 | 0.74 | 3.51 | 40 | 32 | 24.5 | 20.5 | 17 | 13 | 9 | 5 | 1.5 | - |
| WZB750 | WZB750T | 1 | 0.75 | 0.99 | 4.62 | 51 | 42.5 | 34 | 29.5 | 25.5 | 21 | 17 | 12.5 | 8.5 | 1.5 |

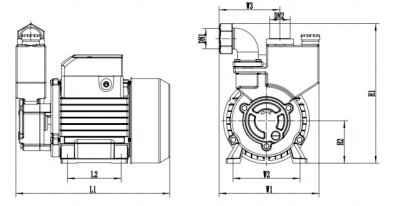

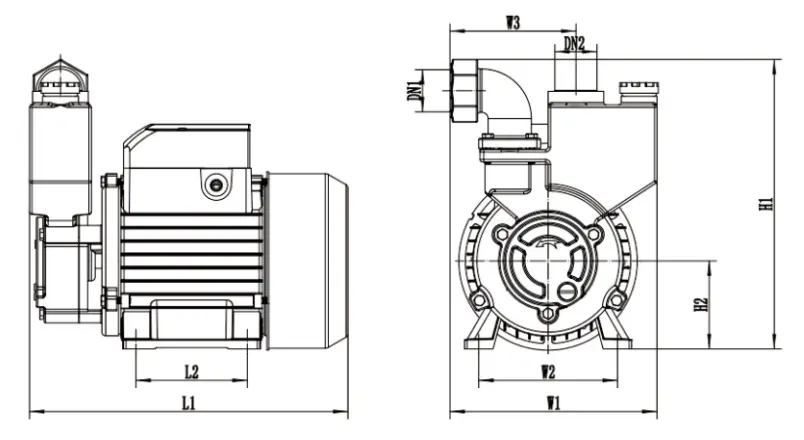

DIMENSIONS
| MODEL | Dimensions (mm) | Package Dimension (mm) | N.W | ||||||||||
| L1 | L2 | W1 | W2 | W3 | H1 | H2 | DN1 | DN2 | L | W | H | (kg) | |
| WZB370 | 240 | 82 | 160 | 100 | 100 | 63 | 215 | 1" | 1" | 280 | 205 | 250 | 6.1 |
| WZB550 | 260 | 90 | 168 | 112 | 100 | 71 | 235 | 1" | 1" | 295 | 200 | 260 | 8.6 |
| WZB750 | 260 | 90 | 168 | 112 | 100 | 71 | 235 | 1" | 1" | 295 | 200 | 260 | 10.4 |
