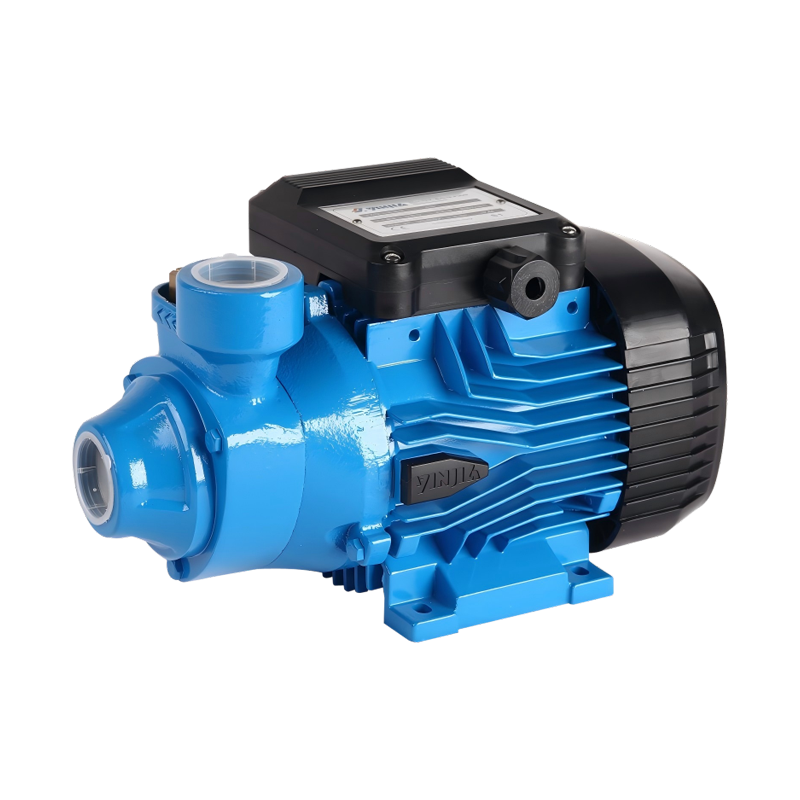

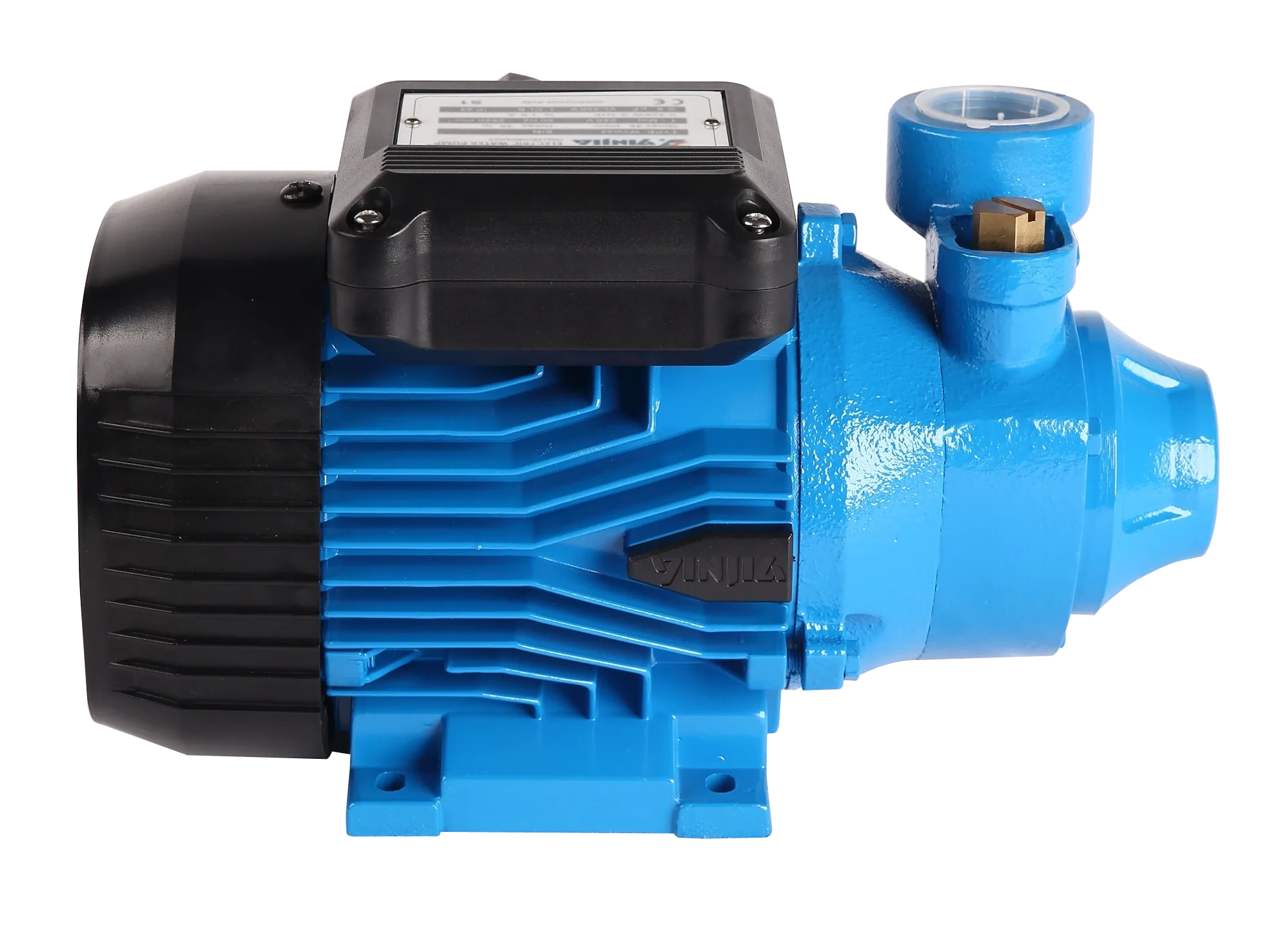

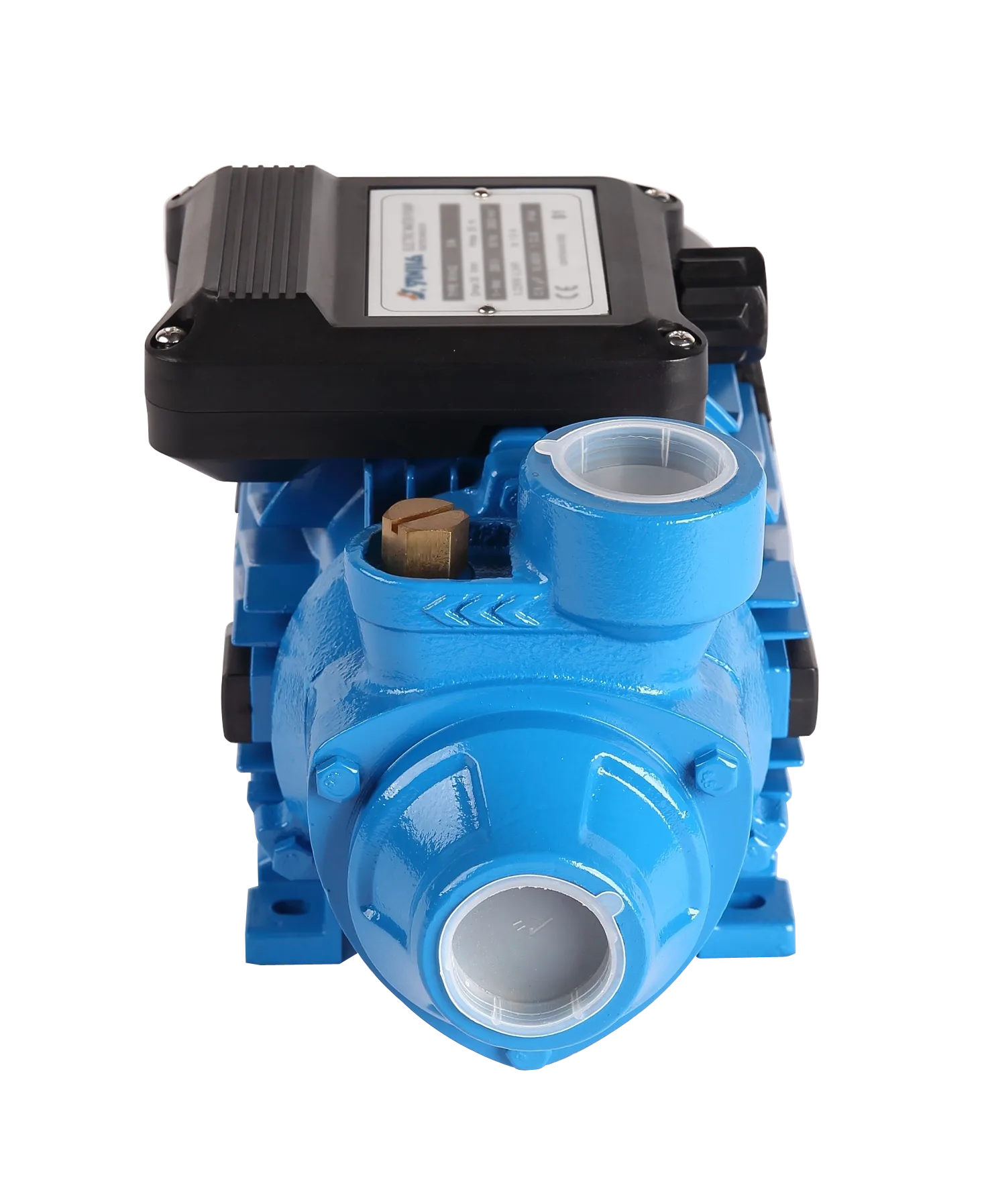

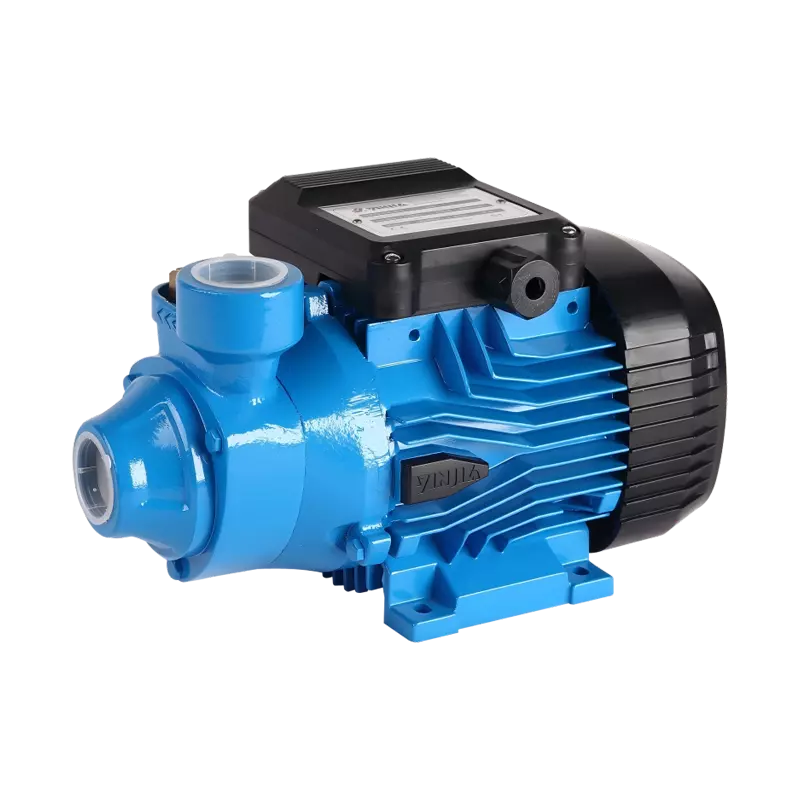

Welcome to buy new peripheral pump household use from YINJIA. Vm series new peripheral pump household use belongs to the single-phase peripheral pump category, is our patent design pump, attractive appearance, compact and very silent. The small water pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. In addition to having a high construction quality, the pump is extremely practical to install due to its small size and also due to the suction placed on the front. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
- Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
- Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
PERFORMANCE
| MODEL | P2 | P1 (kW) | Ampere | Q(L/min-m³/h) | |||||||||
| 1~ | 0 | 5 | 10 | 20 | 30 | 35 | 40 | 45 | |||||
| 1~ | 3~ | HP | kW | 1~ | 1x220V 50HZ | 0 | 0.3 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 2.7 |
| H (m) | |||||||||||||
| VM22 | VM22 | 0.3 | 0.22 | 0.33 | 1.39 | 35 | 29 | 25 | 16.5 | 7 | 3 | - | - |
| VM37 | VM37 | 0.5 | 0.37 | 0.51 | 2.37 | 40 | 36 | 31.5 | 22 | 12 | 7 | - | - |
| VM55 | VM55 | 0.75 | 0.55 | 0.74 | 3.51 | 65 | 58 | 50 | 35.5 | 20 | 13 | 5 | - |
| VM75 | VM75 | 1 | 0.75 | 0.99 | 4.62 | 70 | 62 | 54 | 40 | 26 | 19 | 12 | 5 |
Vm22 - 0.22 kW / 0.3 HP - Max. Head 35m - Max. Flow 35 l/min - 1" water pump
Vm37 - 0.37 kW / 0.5 HP - Max. Head 40m - Max. Flow 35 l/min - 1" water pump
Vm55 - 0.55 kW / 0.75 HP - Max. Head 65m - Max. Flow 40 l/min - 1" water pump
Vm75 - 0.75 kW / 1 HP - Max. Head 70m - Max. Flow 45 l/min - 1" water pump

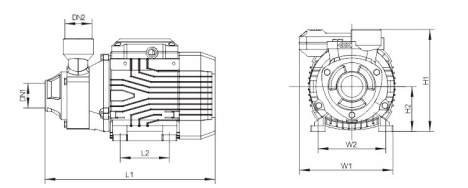

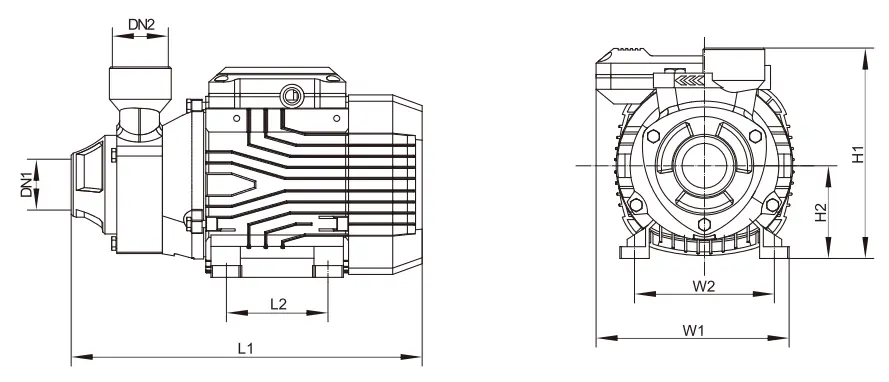

DIMENSIONS
VM37 EXPLODING DRAWING
