A household water pump can be hydraulically adequate and still become a nuisance because of humming, vibration, pipe resonance, water hammer, or frequent starting. It can also waste electricity when it is oversized, operated far from its efficient range, or forced to overcome unnecessary pipe friction. A quiet and energy-efficient water pump for a house is created by combining correct selection, suitable controls, thoughtful installation, and regular maintenance.
Noise and energy use often have the same root causes. A pump that short-cycles is both noisy and mechanically stressed. A small pipe raises friction, requiring more head and sometimes more motor power. Cavitation creates a harsh sound while reducing performance and damaging the impeller. Solving the system problem is usually more effective than enclosing the pump in a box.
Motor sound depends on speed, fan design, bearing condition, power-supply quality, and mounting. Variable speed may be quieter at low demand, although drives can add tonal sound.
A sudden change in sound may indicate bearing wear, fan damage, abnormal voltage, loose mounting, or overload. Compare current and voltage with baseline records.
Cavitation occurs when pressure at the pump inlet falls low enough for vapor bubbles to form and collapse. It may sound like gravel passing through the pump. Causes include excessive suction lift, a blocked strainer, an undersized suction pipe, hot water, high altitude, or operation too far toward the high-flow side of the curve. Suction-side air leaks can create similar noise and performance loss, but they are a separate fault.
Correct the inlet condition: keep suction short, airtight, and adequately sized, and design from the lowest water level.
A pump on a light floor or rigid wall piping can transmit vibration throughout the building.
Use a rigid, level base with suitable vibration isolators, flexible connectors, and independent pipe supports. Do not use soft mounts that allow excessive movement or misalignment. Avoid attaching the pump or main pipe to resonant panels.
Fast valve closure can create a pressure wave that bangs through the pipes. An oversized pump, high setpoint, fast-acting solenoid valve, or poorly placed check valve can make the effect worse. Use controlled pressure, appropriate pipe velocity, slow-closing valves, water-hammer arrestors where required, and a correctly located pressure tank.
The most important efficiency step is to calculate design flow and total dynamic head, then choose a pump curve that places the duty point near the stable, efficient region. A pump selected only by maximum head or horsepower may run far from its best range.
Oversizing can cause throttling, excess pressure, rapid cycling, higher starting frequency, and operation at poor efficiency. Undersizing may keep the pump running continuously without reaching the pressure setpoint. Both situations increase wear and reduce comfort.
Compare efficiency at the actual duty and check motor, impeller, current, and operating range. For variable speed, evaluate the expected demand range.
Pipe friction converts electrical energy into unwanted pressure loss. A longer route, small internal diameter, unnecessary elbows, restrictive valves, dirty filters, and poorly selected treatment equipment all increase total head.
Size the suction and main distribution pipes for reasonable velocity at peak flow. Increasing pipe diameter may allow a smaller pump, reduce motor load, improve top-floor pressure, and lower water noise. Keep full-bore isolation valves fully open and maintain filters before their pressure drop becomes excessive.
Avoid setting household pressure higher than needed. An extra bar at every flow increases leakage risk and pump work. Choose the lowest setpoint that still provides satisfactory pressure at the highest demanding outlet.

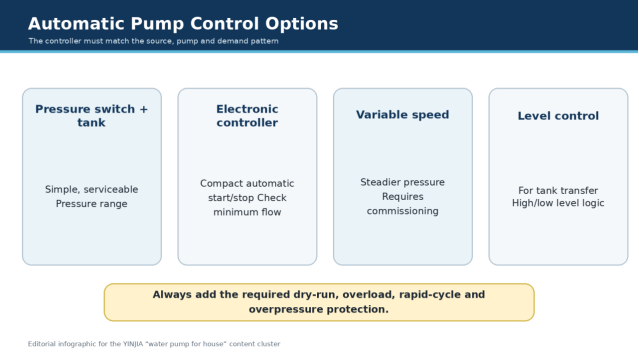

A fixed-speed pump with a pressure switch and properly sized tank can be efficient in a simple home because the pump runs in clear cycles and the tank supplies small demands. If the tank is too small or waterlogged, the pump starts repeatedly, increasing noise and electrical stress.
An electronic controller is compact and can stop the pump when flow ends. A small pressure vessel can reduce starts caused by drips or brief demands. Confirm the controller’s current rating and minimum-flow behavior.
A variable-speed system reduces speed at lower demand and maintains steadier pressure. It may reduce energy use when variable demand and friction head are significant. However, a high fixed setpoint, oversized pump, or poor sleep-mode configuration can eliminate the expected savings. Commission the drive rather than relying only on factory defaults.
Place the pump away from bedrooms, home offices, and lightweight partitions where possible. A ventilated utility room, protected pump enclosure, or outdoor plant area may be preferable. Outdoor equipment must be protected from rain, flooding, freezing, dust, and direct heat while receiving enough cooling air.
Do not seal an air-cooled motor in a soundproof box. Acoustic treatment must preserve ventilation, drainage, service access, and electrical clearances.
Maintain access to the priming port, drain, pressure switch, controller, tank air valve, strainer, gauges, and terminals. A quiet installation that cannot be serviced will become expensive later.
Rapid cycling is one of the most common sources of noise and premature wear. A pump may start for every small tap movement because the pressure tank has lost air, the bladder has failed, the tank is undersized, or the electronic controller reacts to a leak.
Check tank pre-charge with the water side fully depressurized. Repair leaking toilets, taps, check valves, and underground pipes. Confirm cut-in and cut-out settings, controller stop flow, and minimum run time. The selected tank should provide enough drawdown to keep starts within the motor manufacturer’s limits.
Record baseline flow, pressures, current, voltage, noise, and settings. Later changes can reveal restriction, wear, voltage, bearing, or source-level problems.
Clean strainers and filters, inspect cooling passages, tighten electrical terminals, test dry-run protection, and check for seal leakage. For wells, monitor pumping water level and sand. For tanks, clean sediment and verify level controls. For variable-speed systems, review fault history and sensor calibration.
Set maintenance intervals from water quality and operating hours, not one universal calendar.
Repair may be sensible when the pump is correctly sized and the fault is a seal, bearing, capacitor, pressure tank, switch, or blocked component. Replacement is often more attractive when the pump is badly oversized, corroded, repeatedly dry-run, unable to meet the duty, or paired with obsolete controls.
Before replacement, measure flow and head and correct suction or friction problems. Compare life-cycle cost, service, spares, efficiency, and controls.

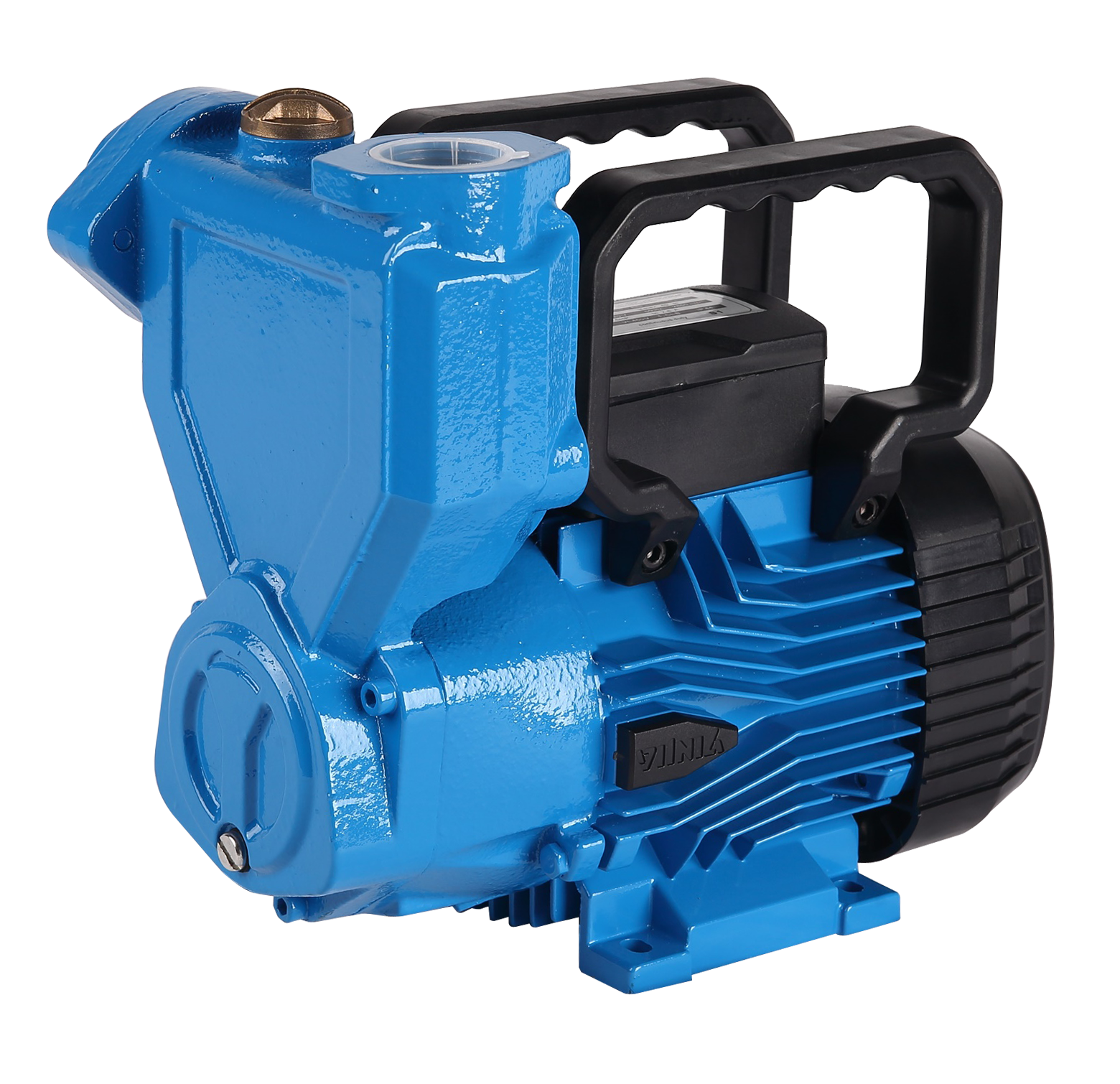

YINJIA states that its pump manufacturing history dates to 1990 and that its portfolio includes household surface pumps, self-priming jet pumps, centrifugal and multistage pumps, booster systems, deep-well pumps, pressure switches, and pressure tanks. The company also describes a patented aluminum rotor die-casting process intended to improve rotor filling, reduce electrical resistance and current, and support motor efficiency. For a quiet, efficient household selection, YINJIA should be given the actual flow and TDH, duty cycle, voltage and frequency, suction conditions, pipe sizes, control preference, noise-sensitive location, water quality, and desired protection functions.
Select from the duty point; keep the pump near its efficient curve region; use adequate suction and distribution pipe sizes; set only the pressure the house needs; provide a correctly sized pressure vessel; stop leaks and cycling; isolate vibration without compromising alignment; protect the pump while maintaining ventilation; and record commissioning measurements.
A quiet pump is not simply a product labeled “low noise.” It is a correctly selected machine operating with smooth inlet flow, stable controls, low vibration transmission, and reasonable pipe velocity. The same choices usually reduce electricity consumption and extend service life.
They are often quieter at low demand because speed is reduced, but installation, bearings, fan design, electronics, pipe vibration, and cavitation still affect sound.
Only if the enclosure preserves cooling airflow, drainage, electrical clearance, and service access. An airtight box can overheat the motor and create a safety risk.
The cause may be water hammer from high velocity, excessive pressure, a fast valve, or a poorly located check valve. Pressure control, pipe sizing, arrestors, and slower closure may help.
It can reduce starts in a fixed-speed system, which lowers starting stress and noise. It does not change the pump’s hydraulic efficiency while running, and it must be sized and pre-charged correctly.
Compare measured flow, head, current, and run time with the pump curve and original commissioning values. Excess pressure, throttling, cycling, blocked filters, and operation far from the efficient range are common signs.
